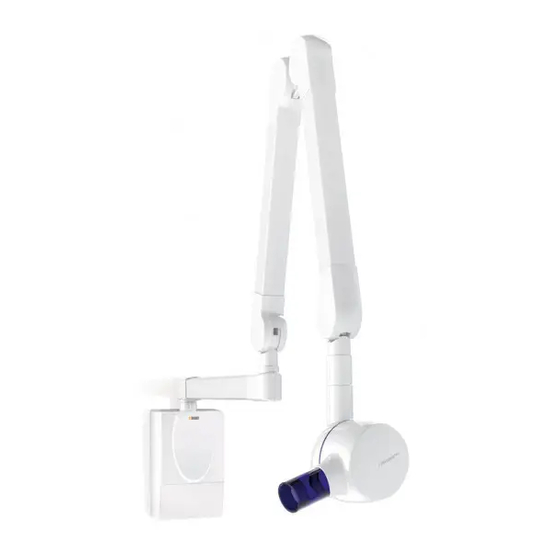

Dentsply Sirona Heliodent Plus Instructions Manual
  1. Manuals
  2. Brands
  3. Dentsply Sirona Manuals
  4. Dental equipment
  5. Heliodent Plus
  6. Instructions manual

Dentsply Sirona Heliodent Plus Instructions Manual

Hide thumbs Also See for Heliodent Plus:
Table of Contents

Advertisement

Quick Links

Heliodent Plus
Maintenance Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heliodent Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dentsply Sirona Heliodent Plus

Summary of Contents for Dentsply Sirona Heliodent Plus

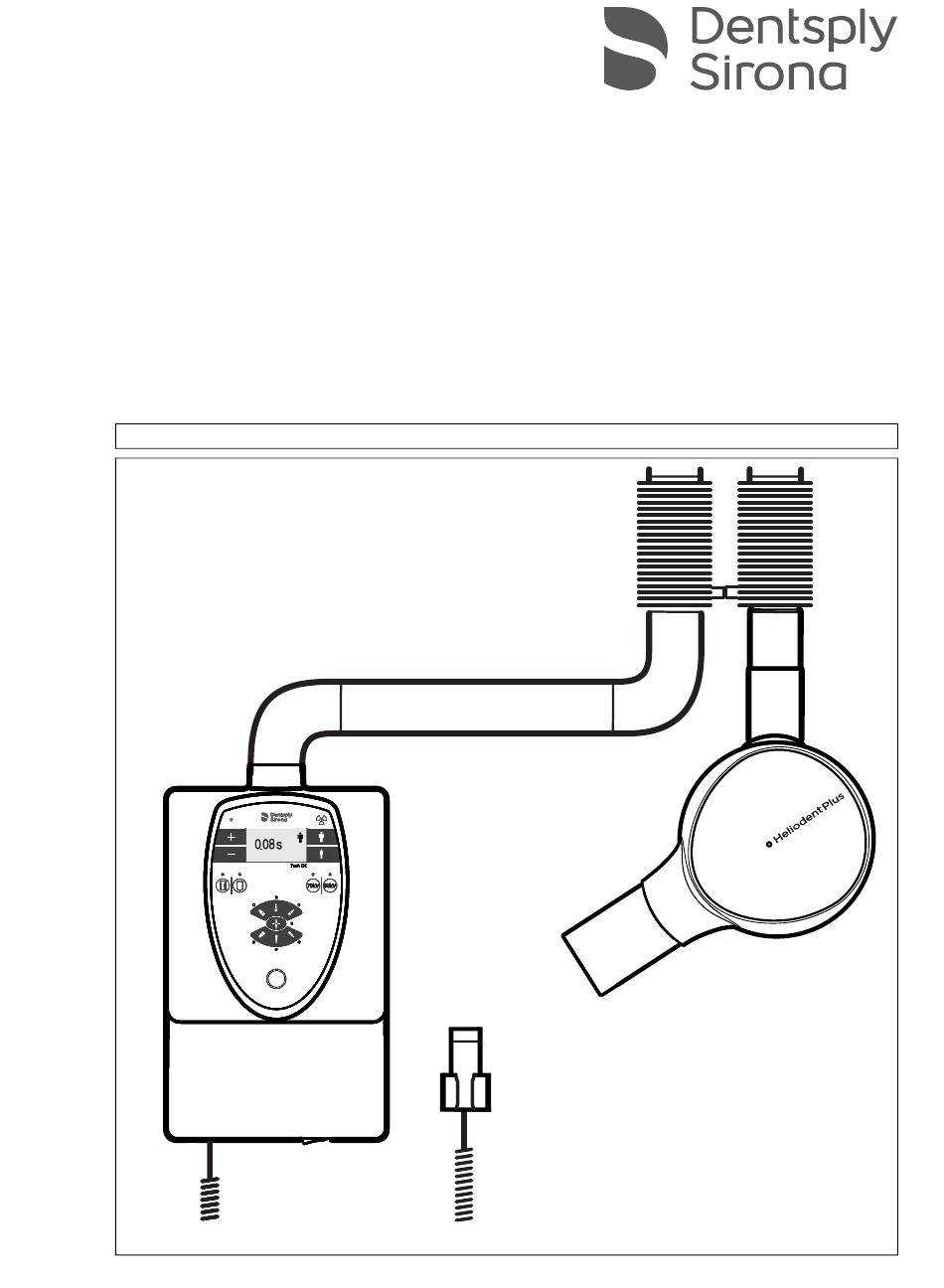

  • Page 1 Heliodent Plus Maintenance Instructions...
  • Page 2 Maintenance Instructions Sirona Dental Systems GmbH ATTENTION! Adequate lead proofing of room and operator position is essential. Since these requirements vary from state to state it is the assembler's / installer's responsibility that all local radiation safety requirements are met. 62 15 144 D 3507.101.01.03.02...

  • Page 3: Table Of Contents

    Maintenance Instructions General In order to ensure in compliance with the DHHS requirements the Heliodent Plus must be maintained annually following date of installation. It is the responsibility of the user to ensure that the equipment is main- tained in accordance with the manufacturer's recommended Maintenance Instructions to ensure compli- ance with the Federal Performance Standard.

  • Page 4: Visual Check

    Maintenance Instructions Sirona Dental Systems GmbH Visual Check • Look for mechanical damage, possibly affecting radiation safety. • Inspect cone for possible cracks. • Check the mechanical functions. Test the tubehead in all working positions for possible drift. • Verify that all labels are affixed and legible. Defaced labels must be replaced.

  • Page 5: Light Indicators At The Display, Audible Sound At The Wall Adapter

    Sirona Dental Systems GmbH Maintenance Instructions ATTENTION RADIATION Observe Radiation Protection Guidelines. See Operating Instructions. Light Indicators at the Display, Audible Sound at the Wall Adapter. • Switch unit ON with master power switch. The stored exposure data must light up on the display, see Operating Instructions under ”Preparing the exposure”.

  • Page 6: Tube Current Verification

    Maintenance Instructions Sirona Dental Systems GmbH 7 mA ±1.4 mA Tube Current Verification • Turn unit OFF and remove housing (see Service Manual!). • Connect multimeter to X600, range 10mADC. • Turn unit ON. (WARNING: Electrical shock hazard!) • Set the exposure time on the control panel to 3.2s, using the + or - button (conventional radiography technique).

  • Page 7: Exposure Time Verification And Kv-Verification

    Sirona Dental Systems GmbH Maintenance Instructions Focus marking SSD = Source to Skin Distance 8" 0.40 Dose Detector Exposure Time Verification and kV-Verification (conventional radiography technique) • For testing the exposure times a Digital Dosimeter is required (PTW Diados). • Place the Dose Detector in a distance of 8"...

  • Page 8: Verification Of The Exposure Button

    Maintenance Instructions Sirona Dental Systems GmbH Verification of the Exposure Button • If door contacts are installed, close door (close contacts), do not bridge contacts. • Turn unit OFF (WARNING: Electrical shock hazard!) • Connect multimeter in range for measuring resistance to: DX1 X401.1 and 4, when door contacts are not used.

  • Page 9: Verification Of The Keys

    Sirona Dental Systems GmbH Maintenance Instructions Verification of the keys • Press all the keys one after the other, checking whether the LEDs above the keys go on and off and whether the radiation times change. 62 15 144 D 3507.101.01.03.02...

  • Page 10: Mechanical Adjustments (If Required)

    Maintenance Instructions Sirona Dental Systems GmbH Mechanical Adjustments (if required) Readjustment is necessary, if the tubehead does not remain stationary after being positioned. 1. Adjust spring on left support arm: Slip bellows on both sides over the half shells A. Pull the half shells off. Pull the scissors arm apart and push bellows over the bearing.

  • Page 11: Yearly Maintenance Checklist

    Heliodent Plus Yearly Maintenance Checklist Customer: ____________________ Address: ________________________________ Dealer: _______________________ Address: ________________________________ Date of original installation: _______ Date of inspection: ________________________ Report of Assembly FD 2579 # ____ SCHEDULE Remarks All manuals are present Test instruments as required Manufacturer...
  • Page 12 Heliodent Plus Yearly Maintenance Checklist Customer: ____________________ Address: ________________________________ Dealer: _______________________ Address: ________________________________ Date of original installation: _______ Date of inspection: ________________________ Report of Assembly FD 2579 # ____ SCHEDULE Remarks All manuals are present Test instruments as required Manufacturer...
  • Page 13 Heliodent Plus Yearly Maintenance Checklist Customer: ____________________ Address: ________________________________ Dealer: _______________________ Address: ________________________________ Date of original installation: _______ Date of inspection: ________________________ Report of Assembly FD 2579 # ____ SCHEDULE Remarks All manuals are present Test instruments as required Manufacturer...
  • Page 14 Heliodent Plus Yearly Maintenance Checklist Customer: ____________________ Address: ________________________________ Dealer: _______________________ Address: ________________________________ Date of original installation: _______ Date of inspection: ________________________ Report of Assembly FD 2579 # ____ SCHEDULE Remarks All manuals are present Test instruments as required Manufacturer...
  • Page 15 Heliodent Plus Yearly Maintenance Checklist Customer: ____________________ Address: ________________________________ Dealer: _______________________ Address: ________________________________ Date of original installation: _______ Date of inspection: ________________________ Report of Assembly FD 2579 # ____ SCHEDULE Remarks All manuals are present Test instruments as required Manufacturer...
  • Page 16 tÉ=êÉëÉêîÉ=íÜÉ=êáÖÜí=íç=ã~âÉ=~åó=~äíÉê~íáçåë=ïÜáÅÜ=ã~ó=ÄÉ=êÉèìáêÉÇ=ÇìÉ=íç=íÉÅÜåáÅ~ä=áãéêçîÉãÉåíëK «=páêçå~=aÉåí~ä=póëíÉãë=dãÄe=OMMV péê~ÅÜÉW= ÉåÖäáëÅÜ= mêáåíÉÇ=áå=dÉêã~åó a=PRMTKNMNKMNKMPKMO===MOKOMNU ûKJkêKW= NOR=MON fãéêáã¨=Éå=^ääÉã~ÖåÉ Sirona Dental Systems GmbH in the USA: 62 15 144 D 3507 Fabrikstraße 31 Sirona Dental Systems LLC Order No 64625 Bensheim 4835 Sirona Drive, Suite 100 Germany Charlotte, NC 28273 www.dentsplysirona.com...
