03.2018
New as of:
Heliodent Plus
Installation Instructions
English

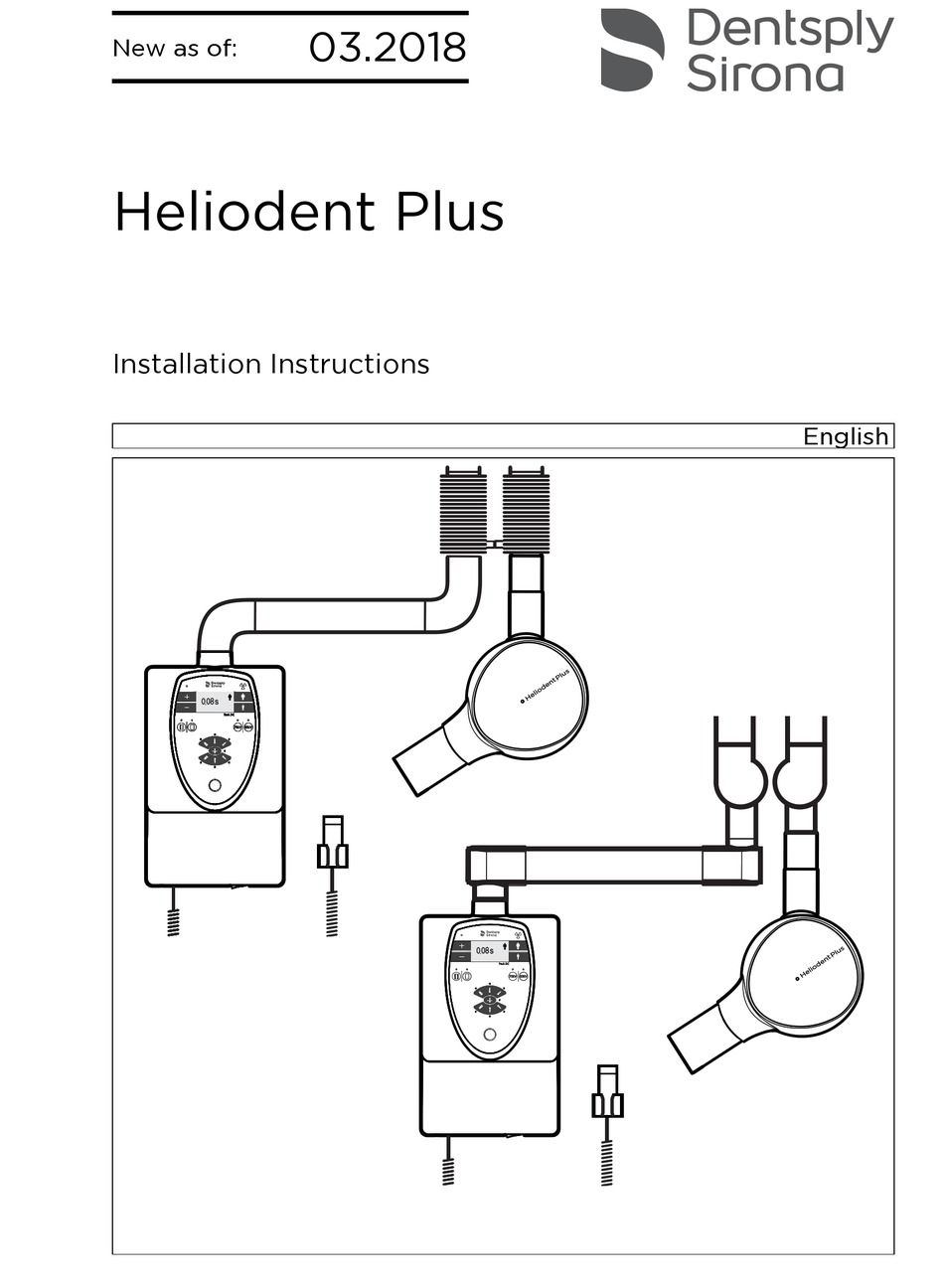

Cover Page Installation Instructions
=

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Heliodent Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Dentsply Sirona Heliodent Plus

Summary of Contents for Dentsply Sirona Heliodent Plus

  • Page 1 03.2018 New as of: Heliodent Plus Installation Instructions English Cover Page Installation Instructions...

  • Page 3: Table Of Contents

    Dentsply Sirona Table of contents Installation Instructions Heliodent Plus Table of contents About these Installation Instructions................ Scope ......................Round and angular support arm system ............Other documentation required..............Structure of the document ................1.4.1 Identification of the danger levels............ 1.4.2 Formats and symbols used .............
  • Page 4 Table of contents Dentsply Sirona Installation Instructions Heliodent Plus Electrical connection ....................Connecting the arm cable ................Connecting the grounding strap ..............Connecting the control panel ................ 7.3.1 Direct connection (standard) ............7.3.2 Connection to the remote timer ............Connecting the release and the door contact ..........
  • Page 5 Dentsply Sirona Table of contents Installation Instructions Heliodent Plus Final work ........................ Appendix........................10.1 Selection of the release button..............10.2 Service routines.................... 10.2.1 Operation..................10.2.2 Service routine S15 ................. 10.2.3 Adjustment following increased AL filter value ........ 10.2.3.1 Adapting radiation times ...........

  • Page 6: About These Installation Instructions

    Plus extraoral X-ray system. They are intended for use exclusively by trained and authorized distributors and service technicians. Round and angular support arm system The Heliodent Plus is available with a round and angular support arm system. In the images which do not exclusively demonstrate the angular support arm system, the round support arm system is shown.

  • Page 7: Structure Of The Document

    Dentsply Sirona 1 About these Installation Instructions Installation Instructions Heliodent Plus 1.4 Structure of the document Structure of the document 1.4.1 Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in these operating instructions.

  • Page 8: General Safety Information

    2 General safety information Dentsply Sirona Installation Instructions Heliodent Plus General safety information DANGER Potentially lethal shock hazard: ➢ It is essential that you switch the line voltage OFF at the main switch of the building installation before beginning installation of the unit!
  • Page 9 Attaching additional components to the support arm system is not permitted. CAUTION Heliodent Plus and LEDview Plus are authorized for use on the ceiling model for fixed connections only! Please observe the line voltage specifications on the rating plates of the ceiling MODEL and Heliodent Plus wall adapter.

  • Page 10: Installation Options

    3 Installation options Dentsply Sirona Installation Instructions Heliodent Plus Installation options Designations for release buttons and door contact ● Manual release S3 – Coiled cable ● Release key on the control membrane S4 – Directly connected to control board DX4 ● Remote control release key S9 –...
  • Page 11 Dentsply Sirona 3 Installation options Installation Instructions Heliodent Plus Installation option 4 Release outside of the X-ray room with remote control ● Release – Manual release S3 – Remote control release key S9 NOTICE Installation prerequisites Use of the remote control is permissible only if the yellow X-Ray LED is visible to the operating personnel during radiation release.
  • Page 12 3 Installation options Dentsply Sirona Installation Instructions Heliodent Plus Installation option 6.1 Release outside of the X-ray room with remote control, door contact safety circuit ● Door contact – Door contact S7 wired to the remote control housing ● Release – Manual release S3 –...

  • Page 13: Delivery And Transport

    Operating altitude: ≤ 3000 m Checking the delivery All products from Dentsply Sirona are carefully checked prior to shipment. Please perform an incoming inspection immediately after delivery. 1. Check the delivery note to ensure that the consignment is complete. 2. Check whether the product shows any visible signs of damage.
  • Page 14 4 Delivery and transport Dentsply Sirona 4.2 Checking the delivery Installation Instructions Heliodent Plus Heliodent Plus packaging, top part 62 14 972 D 3507 D 3507.031.01.15.02 03.2018...

  • Page 15: Required Materials

    Dentsply Sirona 5 Required materials Installation Instructions Heliodent Plus 5.1 Required installation material Required materials Required installation material CAUTION Observe wall properties In installation situations, the technician is responsible for the assessment of wall properties and selecting the method of attaching the unit to the wall.

  • Page 16: Required Tools And Auxiliary Materials

    5 Required materials Dentsply Sirona 5.2 Required tools and auxiliary materials Installation Instructions Heliodent Plus Required tools and auxiliary materials ● Drill or drill hammer, depending on the ground ● Masonry drill bit 10 mm (3/8") ● Masonry drill bit 6 mm (1/4") ●...
  • Page 17 ● Multimeter or ammeter (battery-operated) ● Test unit to measure unit leakage current: Dentsply Sirona recommends an automatic tester (example illustration) which complies with standard IEC 62353. If you do not use an automatic tester, please pay attention to the specifications in the standard IEC 62353.

  • Page 18: Installation

    Dentsply Sirona 6.1 Installing the wall adapter Installation Instructions Heliodent Plus Installation Installing the wall adapter For Heliodent Plus on the mobile stand, see section Installing the mobile stand [ → 91] 6.1.1 Preparation Attachment points These installation instructions distinguish between wall-mounted installation (masonry) and installation on wooden beams.
  • Page 19 Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.1 Installing the wall adapter 1. For concealed installation only: Cut out cable bushings (B) and (F) in the drilling template. 2. Pull the cable through the cable bushings (B) and (F). 3. Align the drilling template using a spirit level and attach it to the wall.

  • Page 20: Installation (Concealed Installation)

    6 Installation Dentsply Sirona 6.1 Installing the wall adapter Installation Instructions Heliodent Plus 6.1.2 Installation (concealed installation) 1. Remove wall adapter (P1) from the packaging. CAUTION Risk of damage Make sure that board DX1 is not damaged during installation! Observe ESD protective measures! 2.

  • Page 21: Installation (Surface Installation)

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.1 Installing the wall adapter 6.1.3 Installation (surface installation) 1. Remove wall adapter (P1) from the packaging. CAUTION Risk of damage Make sure that board DX1 is not damaged during installation! Observe ESD protective measures! 2.

  • Page 22: Installing The Round Support Arm And Scissor Arm

    6 Installation Dentsply Sirona 6.2 Installing the round support arm and scissor arm Installation Instructions Heliodent Plus Installing the round support arm and scissor arm 6.2.1 Installing the support arm 1. Remove support arm (P2) from the packaging. 2. Insert the support arm into the bearing (U).

  • Page 23: Installing The Scissor Arm

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.2 Installing the round support arm and scissor arm 6.2.2 Installing the scissor arm 1. Push the washer V (inside diameter 20 mm)) over the arm cable (F) (Leave the scissor arm in the package for this step).
  • Page 24 6 Installation Dentsply Sirona 6.2 Installing the round support arm and scissor arm Installation Instructions Heliodent Plus 7. Snap the retaining ring into the groove (G). 8. Push the arm cable (L1) through the support arm. 9. Disconnect the arm cable (L1) and the grounding strap (C) in the accessible area.
  • Page 25 Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.2 Installing the round support arm and scissor arm 13. Check the support arm with the spirit level. If necessary, loosen the bearing mount (4 nuts) and place the shim (X) underneath. 62 14 972 D 3507...

  • Page 26: Installing The Angular Support Arm And Scissor Arm

    6 Installation Dentsply Sirona 6.3 Installing the angular support arm and scissor arm Installation Instructions Heliodent Plus Installing the angular support arm and scissor 6.3.1 Installing the angular support arm 1. Remove support arm (P2) from the packaging. 2. Separate the ends of the threading aid from each other.

  • Page 27: Installing The Angular Scissor Arm

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.3 Installing the angular support arm and scissor arm 6.3.2 Installing the angular scissor arm CAUTION Gaps appear between the internal hinges when moving the angular Heliodent Plus stay arm. Fingers may be crushed in these gaps.
  • Page 28 6 Installation Dentsply Sirona 6.3 Installing the angular support arm and scissor arm Installation Instructions Heliodent Plus 5. Route the arm cable L1 and the ground cable (P) downwards through the arm and insert the scissor arm. 6. Adjust the rotatability of the scissor arm by tightening/loosening the screw (A).

  • Page 29: Adjusting The Brake

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.3 Installing the angular support arm and scissor arm 6.3.3 Adjusting the brake IMPORTANT The brake must always be adjusted on the scissor arm. ➢ Adjust to the desired braking effect with the adjusting screw (B).

  • Page 30: Preparing The Protective Housing

    6 Installation Dentsply Sirona 6.4 Preparing the protective housing Installation Instructions Heliodent Plus Preparing the protective housing 1. Remove the protective cover (P4) from the packaging. 2. Optional for surface mounting: Punch out the necessary openings for the release (X) or the surface-mounted power supply (Y) in the protective cover.

  • Page 31: Installing The Remote Control And The Remote Timer

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.5 Installing the remote control and the remote timer Installing the remote control and the remote timer 6.5.1 Wall-mounted installation Scope For installation options: 2, 3, 4, 5, 6, 6.1, 7 and 8 Preparation ➢...
  • Page 32 6 Installation Dentsply Sirona 6.5 Installing the remote control and the remote timer Installation Instructions Heliodent Plus 2. Drill the holes (6 mm (1/4") masonry drill bit) and insert the wall plugs. IMPORTANT For concealed installation (A), the control cable is drawn into the chassis from the rear.

  • Page 33: Modifying The Remote Timer

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.5 Installing the remote control and the remote timer 6.5.2 Modifying the remote timer Scope For installation options: 3, 5, 7 and 8 Installation step 1 / Remote Timer CAUTION Risk of damage Make sure that board DX4 is not damaged during installation! Observe ESD protective measures! 1.
  • Page 34 6 Installation Dentsply Sirona 6.5 Installing the remote control and the remote timer Installation Instructions Heliodent Plus Installation step 2 / blank panel Tip: It is easier to insert the blank panel if the protective cover is lying on a table and is pressed against its own body.

  • Page 35: Installing The Manual Release Holder

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.6 Installing the manual release holder Installing the manual release holder 6.6.1 Installation on the wall Scope For installation options: 1, 2, 3, 4, 5, 6, 6.1 and 8 Installation 1. Drill the hole for the holder at the desired position.

  • Page 36: Installation On The Cover (Wall Module)

    6 Installation Dentsply Sirona 6.6 Installing the manual release holder Installation Instructions Heliodent Plus 6.6.2 Installation on the cover (wall module) Scope For installation option: 1 Installation CAUTION Important installation instructions - Do not drill holes in the protective cover when it is attached! The protective cover must be removed.

  • Page 37: Installation On The Protective Cover Of The Remote Control

    Dentsply Sirona 6 Installation Installation Instructions Heliodent Plus 6.6 Installing the manual release holder 6.6.3 Installation on the protective cover of the remote control Explanation The protective cover must be modified to install the holder. Scope For installation options: 2, 4, 6, and 6.1 Conversion 1.

  • Page 38: Electrical Connection

    7 Electrical connection Dentsply Sirona 7.1 Connecting the arm cable Installation Instructions Heliodent Plus Electrical connection Connecting the arm cable Wall model ➢ Connect the cable to terminal strip X100 on the opposite side so that the lead color codes match. Lead colors (from top to bottom on terminal strip X100): ●...

  • Page 39: Connecting The Grounding Strap

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.2 Connecting the grounding strap Connecting the grounding strap CAUTION Risk of damage The grounding strap must have enough play so that it is able to follow the support and scissor arms without restriction.

  • Page 40: Connecting The Control Panel

    7 Electrical connection Dentsply Sirona 7.3 Connecting the control panel Installation Instructions Heliodent Plus Connecting the control panel 7.3.1 Direct connection (standard) Scope For installation options: 1, 2, 4, 6 and 6.1 Connection 1. Plug cable L2 coming from PC board DX4 onto connecting strip X400 of PC board DX1.

  • Page 41: Connection To The Remote Timer

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.3 Connecting the control panel 7.3.2 Connection to the remote timer Scope For installation options: 3, 5, 7, and 8 Connection 1. Plug cable L6 into the connecting strip X400 of PC board DX1.

  • Page 42: Connecting The Release And The Door Contact

    7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus Connecting the release and the door contact 7.4.1 General NOTICE Only one release button may be connected. Designations of release buttons and door contact ● Manual release S3 –...
  • Page 43 Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact Installation option: Structure: Installation: Switch setting S1 /S2 (DX4) 3. Release in the treatment room Installation with with Remote Timer manual release X100.1 X100.2 X100.3 See section "Installation option 3...
  • Page 44 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus Installation option: Structure: Installation: Switch setting S1 /S2 (DX4) 6. Release outside of the X-ray room with remote control, door S3/S9 contact safety circuit X401.1 X401.2...

  • Page 45: Removing The Emc Plate

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact Removing the EMC plate 7.4.2.1 ✔ The EMC plate must be removed if the release button or the door switch on X401 is to be connected to the DX1.

  • Page 46: Installation Option 1

    7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 7.4.3 Installation option 1 Structure Release in the treatment room without remote control ● Release – Manual release S3 Installation 1. Connect manual release S3 (coiled cable) to X401 on board DX1 at connectors X401.1 and X401.4.

  • Page 47: Installation Option 2

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.4 Installation option 2 Configuration Release in the treatment room with remote control ● Release – Manual release S3 – Remote control release key S9 Prerequisites ●...
  • Page 48 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 1. Check the setting of switch S1 on PC board DX4. Switch S1 must be set to "external" (see section on "Selection of the release button [ →...

  • Page 49: Installation Option 3

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.5 Installation option 3 Configuration Release in the treatment room withRemote Timer ● Release – Manual release S3 – Release key on the control membrane S4 NOTICE Length of cable supplied for Remote Timer approx.
  • Page 50 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 2. Connect manual release S3 to the connecting strip at X100.1 and X100.4 on PC board DX4. X100.1 3. Check the setting of switch S1 on PC board DX4. Switch S1 must be X100.2...

  • Page 51: Installation Option 4

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.6 Installation option 4 Configuration Release outside of the X-ray room with remote control ● Release – Manual release S3 – Remote control release key S9...
  • Page 52 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus Installation with remote control release button S9 ➢ Connect cable L9 and remote control release button S9 to the 3-pin terminal as shown. S3/S9 X401.1 ●...

  • Page 53: Installation Option 5

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.7 Installation option 5 Configuration Release outside of the X-ray room withRemote Timer ● Release – Manual release S3 – Release key on the control membrane S4 NOTICE Length of cable supplied for Remote Timer approx.
  • Page 54 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 2. Connect manual release S3 to the connecting strip at X100.1 and X100.4 on PC board DX4. X100.1 3. Check the setting of switch S1 on PC board DX4. Switch S1 must be X100.2...

  • Page 55: Installation Option 6

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.8 Installation option 6 Configuration Release outside of the X-ray room with remote control, door contact safety circuit ● Door contact – Door contact S7 wired to the wall adapter ●...
  • Page 56 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 2. Secure cable L9 with the shielding clamp (B). 3. Connect cable (P) of door contact S7 to connectors X401.3 and X401.4 on PC board DX1.
  • Page 57 Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact Installation with manual release S3 ➢ Connect cable L9 and coiled cable L3 to the 3-pin terminal as shown. ● Cable drawn in black = concealed installation S3/S9 X401.1...

  • Page 58: Installation Option 6.1

    7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 7.4.9 Installation option 6.1 Configuration Release outside of the X-ray room with remote control, door contact safety circuit ● Door contact – Door contact S7 wired to the remote control housing ●...
  • Page 59 Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact Installation of cable L9 (on DX1) S3/S9 X401.1 X401.2 X401.3 X401.4 1. Connect cable L9 to connectors X401.1 and X401.4 on PC board DX1. 2. Secure cable L9 with the shielding clamp (B).
  • Page 60 7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus Installation with manual release S3 1. Connect the shield of cable L9 to the shield of coiled cable L3 underneath the strain relief clamp. S3/S9 X401.1...

  • Page 61: Installation Option 7

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.4 Connecting the release and the door contact 7.4.10 Installation option 7 Configuration Release outside of the X-ray room with Remote Timer, door contact safety circuit ● Door contact – Door contact S7 ●...

  • Page 62: Installation Option 8

    7 Electrical connection Dentsply Sirona 7.4 Connecting the release and the door contact Installation Instructions Heliodent Plus 7.4.11 Installation option 8 Configuration Release outside of the X-ray room with Remote Timer, door contact safety circuit ● Door contact – Door contact S7 wired to Remote Timer ●...

  • Page 63: Completion

    Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.5 Completion Completion Rolling up the arm cable ➢ Roll up the extra lengths of cable L1 and of the grounding strap to the right of the bearing block and secure the cable roll with a cable tie on the cable clamp.

  • Page 64: Preparing The Power Connection

    Installation Instructions Heliodent Plus Preparing the power connection General NOTICE The Heliodent Plus wall model is suitable for fixed installation only. CAUTION Observe the permissible nominal voltage range! The unit can be connected to 120 V (1-phase connection) or to 200 - 240 V (1-phase or 2-phase connection).
  • Page 65 Dentsply Sirona 7 Electrical connection Installation Instructions Heliodent Plus 7.6 Preparing the power connection 2-phase connection ➢ Attach the power cable to X200 on DX1. Do not connect it due to initial test of protective ground wire and device leakage current, see ●...

  • Page 66: Starting Up

    8 Starting up Dentsply Sirona 8.1 Functional test Installation Instructions Heliodent Plus Starting up Functional test 8.1.1 Overview Explanation A functional test must be performed according to the following procedure. Step 1 1. Check the protective ground wires and the device leakage current according to IEC 62353: 2007 (see section "Checking the protective...

  • Page 67: Checking The Protective Ground Wires

    Dentsply Sirona 8 Starting up Installation Instructions Heliodent Plus 8.1 Functional test 8.1.2 Checking the protective ground wires Auxiliary devices required ● Power source Technical data: – No-load voltage max. 6V. – Short-circuit current min. 5A - max. 25A ● Ammeter – Observe the current intensity of the power source ●...
  • Page 68 8 Starting up Dentsply Sirona 8.1 Functional test Installation Instructions Heliodent Plus Protective ground wire test Explanation This test checks the electrical resistance of conductive and exposed parts of the X-ray unit against the protective wire connection. Test assembly See drawing. Test 1.

  • Page 69: Checking The Unit Leakage Current

    DIN VDE 0100-710 applies in Germany. Dentsply Sirona recommends an automatic tester (example illustration) which complies with standard IEC 62353. If you do not use an automatic tester, please pay attention to the specifications in the standard IEC 62353.

  • Page 70: Checking The X-Ray Tube Assembly

    8.1.4 Checking the X-ray tube assembly 1. Switch on the building installation or the emergency circuit to which the Heliodent Plus was connected. 2. Switch the unit on. 3. Monitor the self-test. 4. Select the shortest radiation time (0.01 - 0.05) and 60kV.
  • Page 71 Dentsply Sirona 8 Starting up Installation Instructions Heliodent Plus 8.1 Functional test 4. Switch the unit on. 5. Set the radiation time to 3.2 seconds (display: "3.20 s"). Test WARNING X-ray radiation! ➢ Release an exposure with the release button and read the tube current from the ammeter.

  • Page 72: Checking Exposure Time And High Voltage Kv

    8 Starting up Dentsply Sirona 8.1 Functional test Installation Instructions Heliodent Plus 8.1.6 Checking exposure time and high voltage kV Auxiliary devices required ● Suitable radiation meter. Examples: – Mini-X – PMX I-D – MOM Preparation 1. Switch the X-ray unit on.

  • Page 73: Checking The Deadman Function

    Dentsply Sirona 8 Starting up Installation Instructions Heliodent Plus 8.1 Functional test Test WARNING X-ray radiation! ➢ Release an exposure with the release button. ● The buzzer must be audible during radiation release. ● The radiation indicator lights up. – The radiation LED lights up yellow.

  • Page 74: Attaching The Housing Covers

    8 Starting up Dentsply Sirona 8.2 Attaching the housing covers Installation Instructions Heliodent Plus Attaching the housing covers 8.2.1 Support arm cover 1. In the case of round support arm system: Set the cover of the arm connection onto the wall module as shown, between the support arm and the wall.

  • Page 75: Attach The Emc Additional Plate For The Wall Adapter To The Power

    Dentsply Sirona 8 Starting up Installation Instructions Heliodent Plus 8.2 Attaching the housing covers 8.2.2 Attach the EMC additional plate for the wall adapter to the power supply ✔ The safety checks are performed, the power cable is connected. ✔ Not required for ceiling model.

  • Page 76: Wall Module

    8 Starting up Dentsply Sirona 8.2 Attaching the housing covers Installation Instructions Heliodent Plus 8.2.3 Wall module 1. Attach the cover of the wall module, locking it into place at the top first. 2. Attach the cover with two screws from underneath.

  • Page 77: Remote Control

    Dentsply Sirona 8 Starting up Installation Instructions Heliodent Plus 8.2 Attaching the housing covers 8.2.4 Remote control 1. Only with manual release S3 (coiled cable): Place the ferrite core of the coiled cable inside the housing. 2. Mount the cover of the remote control on top of the chassis from above.

  • Page 78: Remote Timer

    8 Starting up Dentsply Sirona 8.2 Attaching the housing covers Installation Instructions Heliodent Plus 8.2.5 Remote timer 1. Only with manual release S3 (coiled cable): Place the ferrite core of the coiled cable inside the housing centered on the opening in the wall.

  • Page 79: Individual Unit Adaptation

    8 Starting up Installation Instructions Heliodent Plus 8.3 Individual unit adaptation Individual unit adaptation Explanation The functionality of the Heliodent Plus can be adapted to customer requirements via service routines. Opening See the section titled “Service routines [ → 82]”. Overview The following adaptation of the key assignment and the exposure tables...

  • Page 80: Final Work

    9 Final work Dentsply Sirona Installation Instructions Heliodent Plus Final work 1. Switch the unit on. 2. Finally, check the functioning of the unit by releasing radiation repeatedly with different settings (time, kV, tooth symbol, patient symbol) according to the operating instructions.

  • Page 81: Appendix

    Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.1 Selection of the release button Appendix 10.1 Selection of the release button intern extern ● Slide switch S1 toggles between the release button on control membrane S4 (internal) and an external release button (external).

  • Page 82: Service Routines

    10 Appendix Dentsply Sirona 10.2 Service routines Installation Instructions Heliodent Plus 10.2 Service routines 10.2.1 Operation 1. Switch the unit on. 2. Press the Film key, the Sensor key and the Bite Wing key simultaneously. The service routine "S01" is displayed in front of a white background.

  • Page 83: Service Routine S15

    Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.2 Service routines 10.2.2 Service routine S15 Explanation Configuration of the safety circuit bypass. intern extern The safety circuit can be bypassed via hardware on DX4 (slide switch S2) (See section "Setting switch S1 and S2 on DX4 [ → 81]".

  • Page 84: Adjustment Following Increased Al Filter Value

    10 Appendix Dentsply Sirona 10.2 Service routines Installation Instructions Heliodent Plus 10.2.3 Adjustment following increased AL filter value In some countries an increase in the filter value is called for, for this purpose there is filter kit 63 36 916. If an increase in the filter value is not called for, the kit is not required.

  • Page 85: Replacing Old Units

    – See the section on "Replacement of horizontally mounted old units with an adapter plate [ → 85]". ● The Heliodent Plus has a lower knock-out elongated hole for the replacement of vertically mounted old units. – See the section on "Replacement of vertically mounted old units [ →...
  • Page 86 Exclusion of liability if the adapter plate is modified If any design/structural changes are made in the adapter plate (e.g. additional holes, removal of material, etc.) Dentsply Sirona accepts no liability whatsoever for any damage caused by said changes. Preparation 1.
  • Page 87 Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.3 Replacing old units Concealed installation CAUTION Do not install the cables for Remote Timer L6 and power cables in the same conduit. 1. Only if the old power cable is used: Extend the power cable sufficiently if necessary.

  • Page 88: Replacement Of Vertically Mounted Old Units

    Replacement of vertically mounted old units Explanation In the case of a vertically mounted old unit which was fastened with two installation holes located one above the other, a Heliodent Plus can be installed using the existing drill holes. CAUTION...
  • Page 89 Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.3 Replacing old units Preparation 1. Unscrew and remove the old unit. 2. Check the existing drill holes. Do they comply with the description in the installation regulations? 3. Check the electrical connection area of the old unit. It may be necessary to relocate the electrical connections (concealed installation for example).
  • Page 90 10 Appendix Dentsply Sirona 10.3 Replacing old units Installation Instructions Heliodent Plus Concealed installation CAUTION Nature and source of the danger Do not install the cables for Remote Timer L6 and power cables in the same conduit. 1. Only if the old power cable is used: Extend the power cable sufficiently if necessary.

  • Page 91: Installing The Mobile Stand

    Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.4 Installing the mobile stand 10.4 Installing the mobile stand ✔ Unpack the parts for the mobile stand 1. Screw the two rods (A) to the foot (B) using two screws and spring washers.
  • Page 92 10 Appendix Dentsply Sirona 10.4 Installing the mobile stand Installation Instructions Heliodent Plus 4. Pull the power cable through the larger hole (F) in the wall adapter. 5. Attach the wall adapter to the threaded studs and screw the three nuts (G) (M8) onto the threaded studs with a washer. Align the wall adapter using a spirit level and tighten the three nuts (recommended torque: 25 Nm).
  • Page 93 Dentsply Sirona 10 Appendix Installation Instructions Heliodent Plus 10.4 Installing the mobile stand 62 14 972 D 3507 D 3507.031.01.15.02 03.2018...
  • Page 94 We reserve the right to make any alterations which may be required due to technical improvements. © Sirona Dental Systems GmbH Sprache: englisch Printed in Germany D 3507.031.01.15.02 03.2018 Ä.-Nr.: 125 020 Sirona Dental Systems GmbH Fabrikstraße 31 62 14 972 D 3507 Order No 64625 Bensheim Germany...
