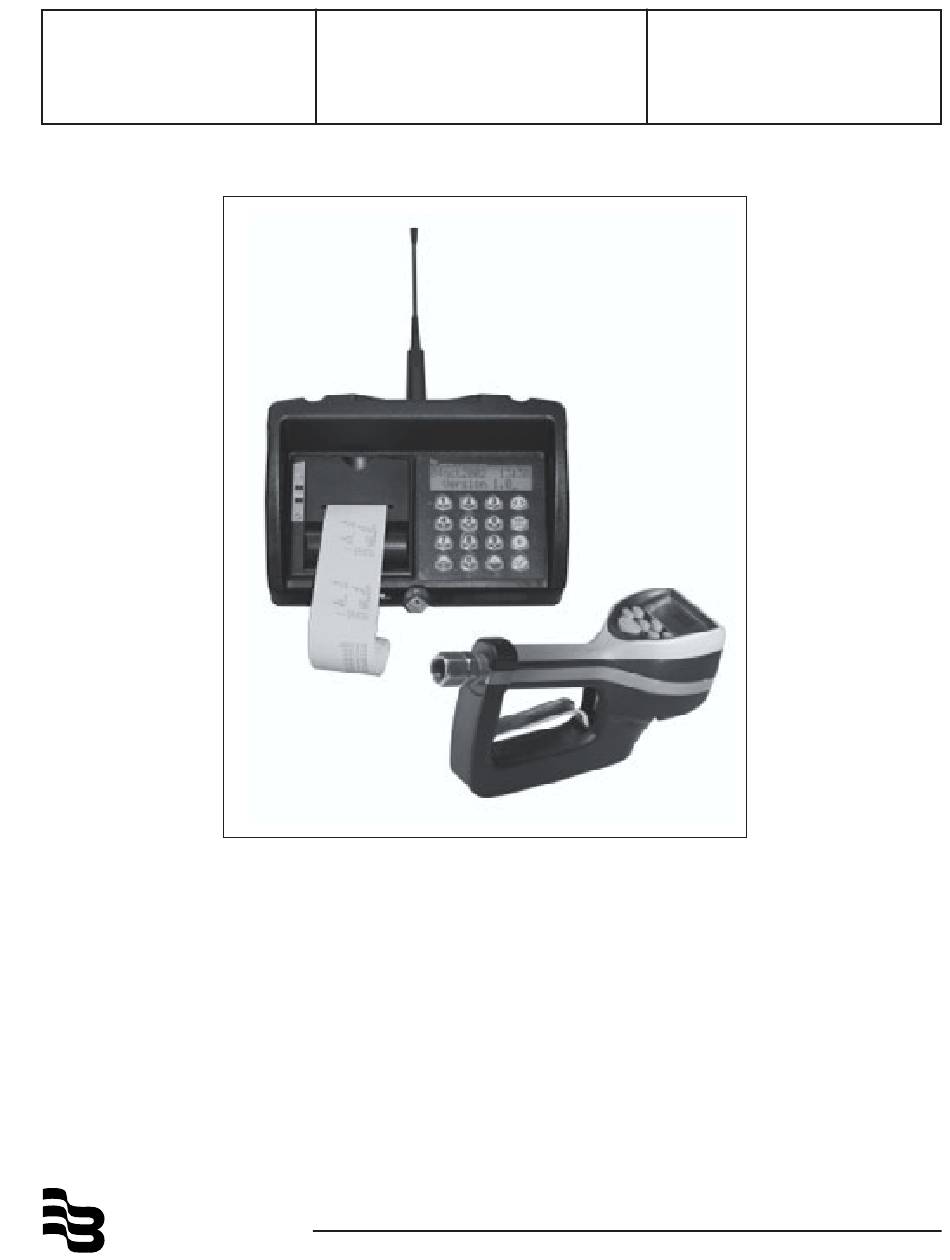

Installation &
Radio Frequency Oil
Model RF-OMS
Management System
Operation Manual
IMPORTANT !!!! This manual contains important warnings
and information. READ AND KEEP FOR REFERENCE.
Specific keypad/software set-up instructions are contained in the
keypad packaging.
IOM-085-01
BadgerMeter,Inc.
Part No. 53400-085
11-02
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Badger Meter RF-OMS
Summary of Contents for Badger Meter RF-OMS
- Page 1 Installation & Radio Frequency Oil Model RF-OMS Management System Operation Manual IMPORTANT !!!! This manual contains important warnings and information. READ AND KEEP FOR REFERENCE. Specific keypad/software set-up instructions are contained in the keypad packaging. IOM-085-01 BadgerMeter,Inc. Part No. 53400-085 11-02 ®...
-
Page 2: Keypad Overview
Troubleshooting ............11 Badger Meter’s Radio Frequency Oil Management Factory Settings System (RF-OMS) consists of an A/C powered keypad Each meter is preprogrammed and calibrated at the factory. with an integrated ticket printer and up to 48 RF Unless otherwise specified at the time of the order, each equipped meters. -
Page 3: Meter Installation
Menu Configuration. and consumption data are updated when communications are restored. Software included in the RF-OMS allows for tracking of all fluids under its control. However all tanks need to be defined and entered into the keypad detailing the size,... - Page 4 Slowly open the dispense valve and allow enough oil dispense order is received by the meter. to pass through to ensure that the system is clean. Close the valve and repeat for all dispense positions. Note: If the system has multiple dispense positions, begin at the position farthest from the pump, and move towards the pump.
- Page 5 2. Pull the trigger to begin the flow. 3. When the desired amount has been pumped, Do NOT press before topping off. The meter will release the trigger to stop the flow. Press begin a new batch. reset counter display to zero. Normal Operating Mode Functions Programming the Preset Batch Function when RF Total...
-
Page 6: Changing Factory Settings
2. Second warning: The AUTO function will shut off and Programming the Units the auto icon will disappear. This means the battery This meter comes with the option to choose 4 different power is too low to run the auto function. The meter units of measure. - Page 7 Recalibrating the Meter The Scale factor is used to adjust the accuracy of the meter. The scale factor will be set at the factory for oil. The primary use for the recalibration function is if the user wants to batch fluids with a viscosity other than 10W oil. If the fluid has a lower viscosity, more fluid can slip past the gears without being detected.
-
Page 8: Specifications
11.00" 3.50" 6.00" SPECIFICATIONS English Metric Maximum Flow * 8 gpm 30 lpm Minimum Flow * 0.25 gpm 1 lpm Operating Pressure (Maximum) 1000 psi 67 bar Operating Pressure (Minimum) 5 psi .35 bar Operating Temperature (Maximum) 120° F 50° C Operating Temperature (Minimum) 20°... -
Page 9: Part Description
ITEM # PART DESCRIPTION PART NUMBER Top Case with Screws 64103-006 Keypad 63802-002 NOTE: For service required on parts not listed above, please contact Badger Meter's authorized service center in Milwaukee. - Page 10 ITEM # PART DESCRIPTION PART NUMBER Battery Door with Screws 64103-004 Bottom Case with Screws 64103-003 NOTE: For service required on parts not listed above, please contact Badger Meter's authorized service center in Milwaukee.
- Page 11 ITEM # PART DESCRIPTION PART NUMBER Valve Assembly 64103-001 Gear Service Kit with O-Ring 62896-001 Trigger Assembly 64103-005 NOTE: For service required on parts not listed above, please contact Badger Meter's authorized service center in Milwaukee.
- Page 12 Due to continuous research, product improvements and enhancements, Badger Meter reserves the right to change product or system specifications without notice, except to the extent an outstanding bid obligation exists. Please see our website at www.badgermeter.com BadgerMeter,Inc. for specific contacts.
