Dimensions - Trane IntelliPak with Symbio 800 Programming Manual

20 to 75 tons with the td7 display

Hide thumbs Also See for IntelliPak with Symbio 800:

Table of Contents

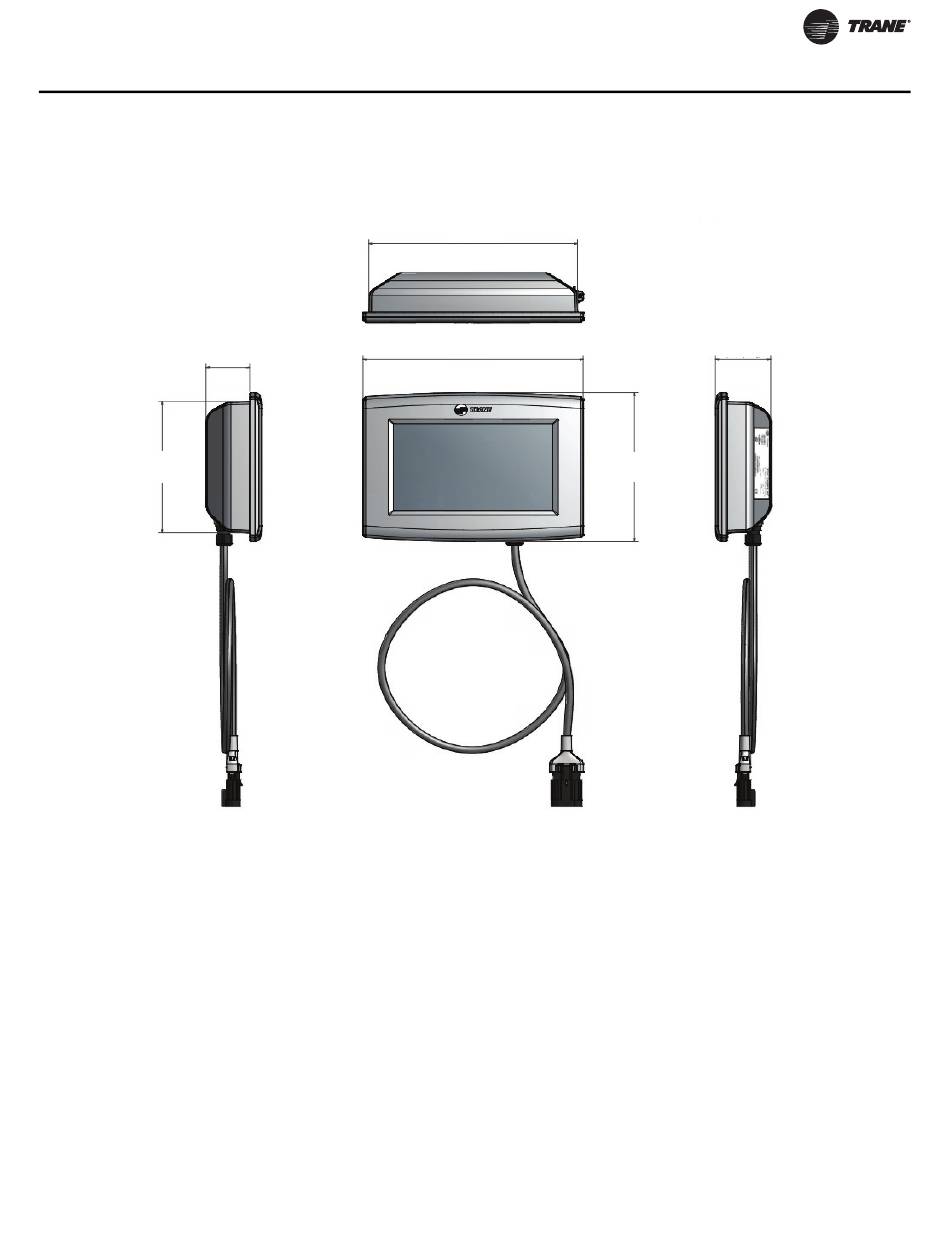

Dimensions

1.7 in. (41.9 mm)

5.5 in. (139.9 mm)

Note: The power cable is permanently attached to the

TD7 display. The power connector provides

strain relief and protection from the elements.

RT-SVP011E-EN

7.9 in. (200.7 mm)

8.3 in. (211.6 mm)

2.1 in. (53.2 mm)

6.3 in. (158.8 mm)
