Overview

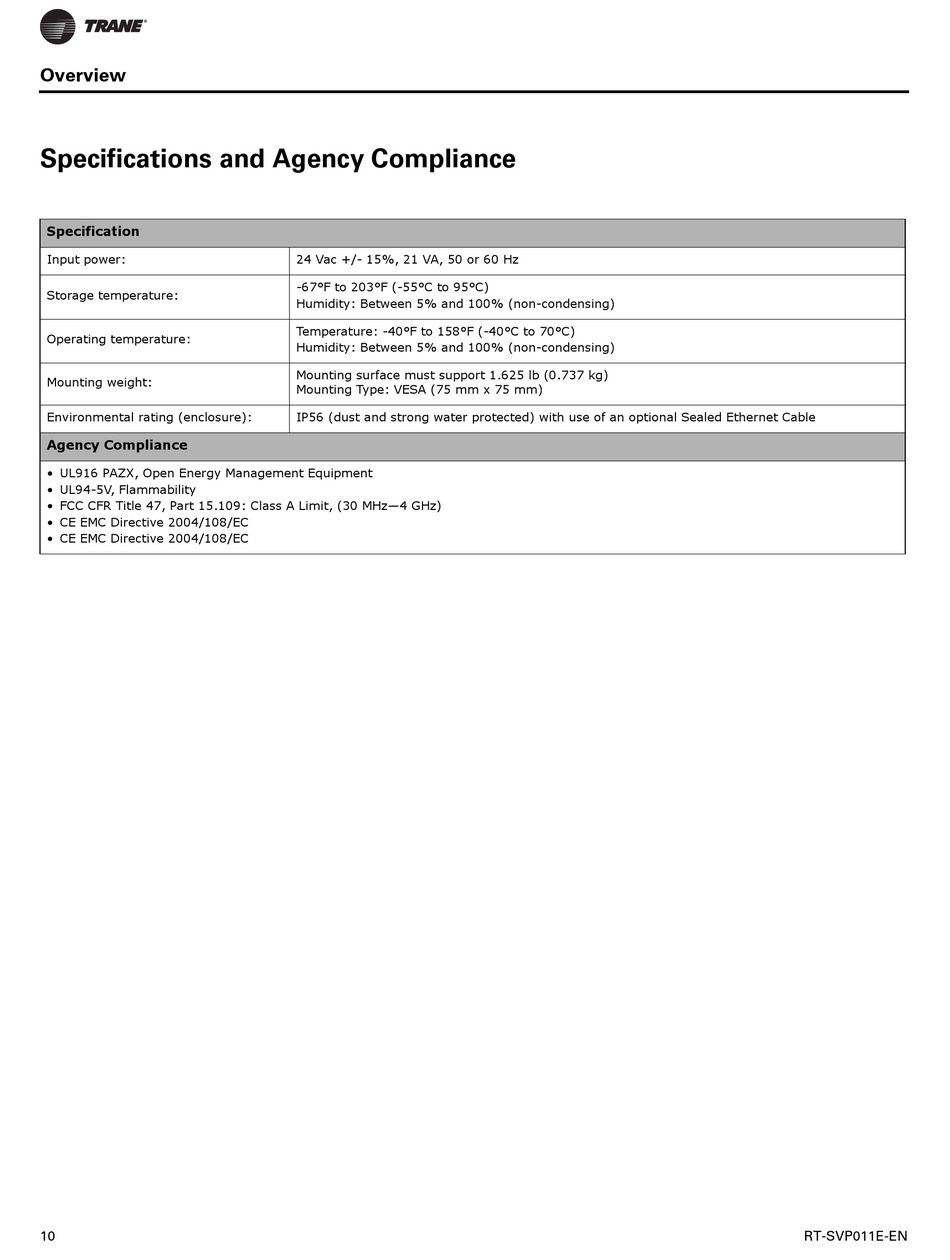

Specifications and Agency Compliance

Specification

Input power:

Storage temperature:

Operating temperature:

Mounting weight:

Environmental rating (enclosure):

Agency Compliance

• UL916 PAZX, Open Energy Management Equipment

• UL94-5V, Flammability

• FCC CFR Title 47, Part 15.109: Class A Limit, (30 MHz—4 GHz)

• CE EMC Directive 2004/108/EC

24 Vac +/- 15%, 21 VA, 50 or 60 Hz

-67°F to 203°F (-55°C to 95°C)

Humidity: Between 5% and 100% (non-condensing)

Temperature: -40°F to 158°F (-40°C to 70°C)

Humidity: Between 5% and 100% (non-condensing)

Mounting surface must support 1.625 lb (0.737 kg) 

Mounting Type: VESA (75 mm x 75 mm)

IP56 (dust and strong water protected) with use of an optional Sealed Ethernet Cable

RT-SVP011E-EN
