Hardware Installation and Reference Guide

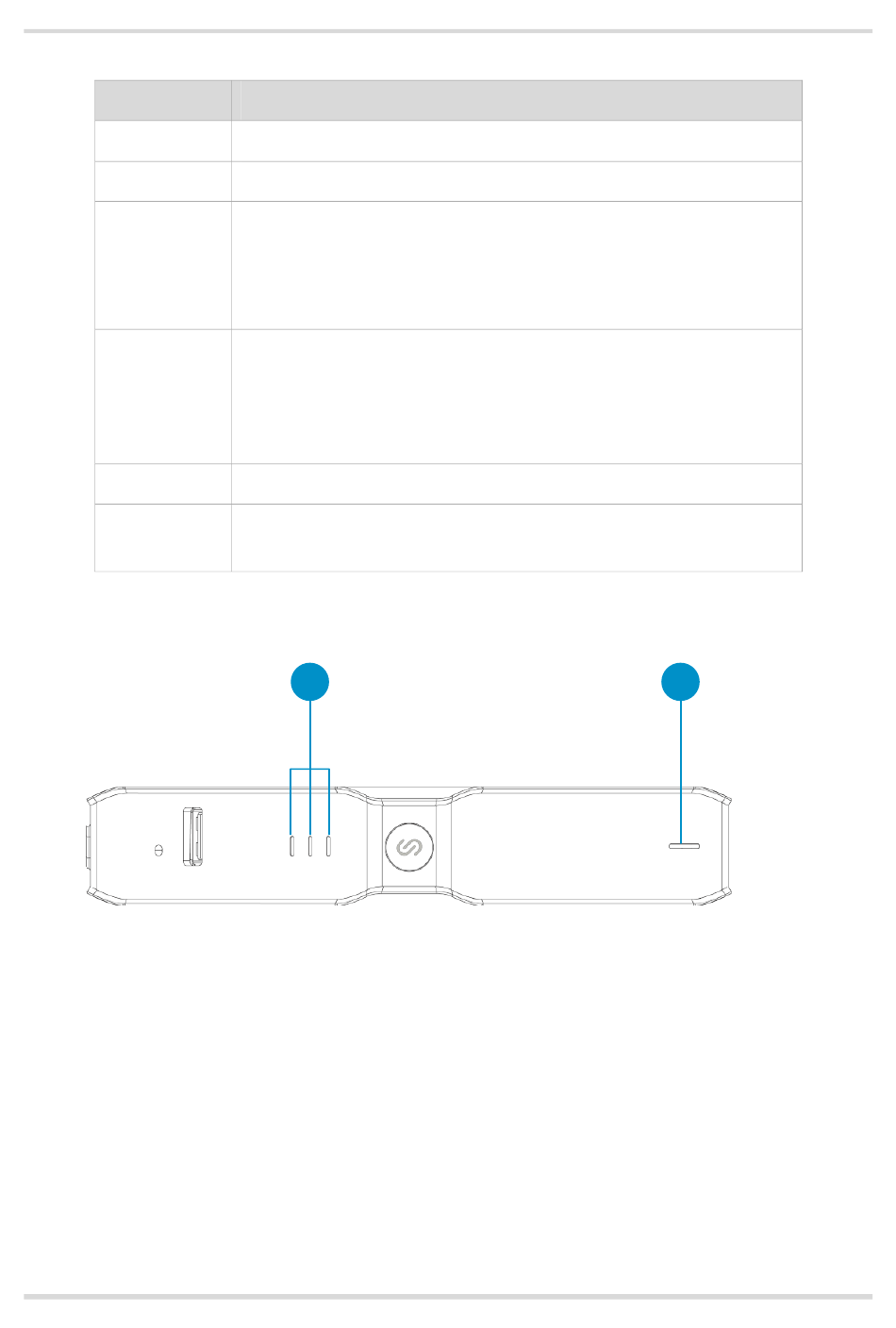

Table 1-2 Panel Specifications
No.
1
2
3
4
5
6
1.2.2

LED

Description
DC⎓12V: Power plug
WAN0: Configure the WAN0 port to establish an Internet connection.
LAN0-LAN3: Connect the LAN0-LAN3 ports to the switch, the access point or
other network devices with an Ethernet cable.
Note: If the LAN port is connected to the AP directly, a power supply module
needs to be installed on the AP.
Reset Button:
Press the Reset button for less than 2 seconds to restart the device.
Press the Reset button for over 5 seconds to restore the router to factory
settings. (Release the button when the system status LED blinks).
USB2.0 Port
Mesh Button: Press the Mesh button for less than 2 seconds to perform Mesh
pairing.
1
3
Product Overview
2
