- Page 1 Ruijie Reyee RG-EG210G-P-V3 Router Hardware Installation and Reference Guide Document Version: V1.0 Date: March 29, 2024 Copyright © 2024 Ruijie Networks...
- Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
-
Page 3: Preface
Intended Audience This document is intended for: Network engineers Technical support and servicing engineers Network administrators Technical Support Official website of Ruijie Reyee: https://reyee.ruijie.com Technical Support Website: https://reyee.ruijie.com/en-global/support Case Portal: https://www.ruijienetworks.com/support/caseportal Community: https://community.ruijienetworks.com ... - Page 4 Note This manual provides the device installation steps, hardware troubleshooting, module technical specifications, and specifications and usage guidelines for cables and connectors. It is intended for the users who have some experience in installing and maintaining network hardware. At the same time, it is assumed that the users are already familiar with the related terms and concepts.
-
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 Specifications ..........................1 1.2 Appearance ..........................2 1.3 Interface ............................. 2 1.4 LED Indicator ..........................3 1.5 Button ............................3 2 Preparation ............................4 2.1 Installation Environment ......................4 2.1.1 Temperature/humidity requirements ................4 2.1.2 Cleanliness ........................ - Page 6 4.3 Log In to the Web Interface ..................... 10 4.4 Configuring Router ........................10 5 Troubleshooting ..........................11 5.1 Power Supply ........................... 11 5.2 Configuration System ......................11 6 Appendix ............................12 6.1 Connectors and Connection Media ..................12 6.2 Cabling Recommendations in Installation ................13 6.2.1 Requirement for the minimum cable bend radius ............
-
Page 7: Product Overview
Featured with global-leading semiconductor technologies and communication control technologies, Ruijie EG series router is a data communication product developed by Ruijie Networks with independent intellectual property right. The EG series router is designed according to international standards, similar to the mainstream router products in the international market. -
Page 8: Appearance

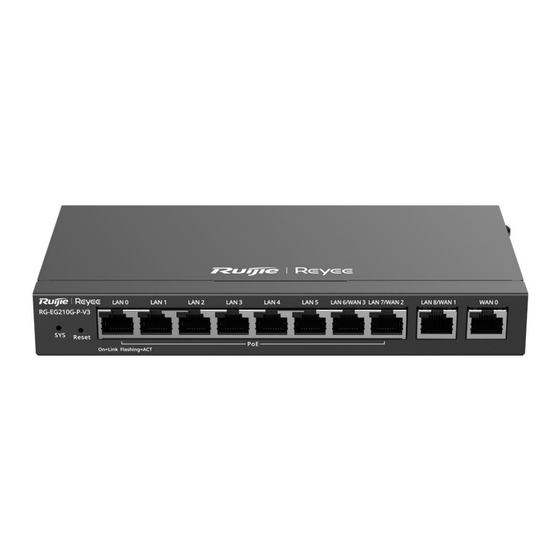

Hardware Installation and Reference Guide Product Overview Appearance Figure 1-1 Appearance of RG-EG210G-P-V3 Figure 1-2 Front Panel of RG-EG210G-P-V3 Figure 1-3 Back Panel of RG-EG210G-P-V3 Interface Interface Description 1 WAN port, used to connect to the DSL/Cable modem for Internet access. 9 LAN ports, used to connect the computer to the switch or access point (AP). -
Page 9: Led Indicator
LED Indicator Description System LED Blinking green (0.5Hz): The device has started up, but is not connected to the Ruijie Cloud. Solid green: The device has started up, and is connected to the Ruijie Cloud. Blinking green (10Hz): The device is starting up/shutting down, or PoE overload occurs. -
Page 10: Preparation
Installation Environment Ruijie EG series router products are for indoor use only. To ensure normal operation and prolong their service life, the installation site must meet the following requirements: 2.1.1... -
Page 11: Cleanliness
Hardware Installation and Reference Guide Preparation may result in defective insulation and even electric leakage. If the relative humidity is low, the insulation spacer may result in dry shrinkage, which will make screws looser and easily generate static electricity in the dry environment, thus damaging the interior circuits on the device. -
Page 12: Anti-Interference
Hardware Installation and Reference Guide Preparation To avoid the damage caused by static electricity, we shall: Properly ground the device and floor. Apply indoor dust control. Maintain proper temperature and humidity. Before touching the circuit board, wear an anti-static wrist strap and an anti-static uniform. ... -
Page 13: Installing The Router
Hardware Installation and Reference Guide Installing the Router Installing the Router Installation Flowchart Please take the following steps: Figure 3-1 Installation Flowchart Mounting the Router Mounting the router refers to installing the device to the specified position. Upon completion of installation preparation, fix the router to the specified position. -
Page 14: Installing Power Cables
Do not place heavy things on the device. Installing Power Cables The requirements of Ruijie EG series router products on AC power supply are described below (refer to Product Overview for detailed parameters): 100–240 V / 50/60 Hz. RG-EG series router uses 3-conductor power cables. You are suggested to use a single-phase 3-conductor outlet or a multifunction microcomputer outlet with neutral connector. -
Page 15: Quick Configuration
(1) Connect the AP device to the EG router via network cable. (2) Power on the devices. (3) The AP device broadcasts an SSID with a prefix starting with @Ruijie-mXXXX. Connecting to PC (1) Connect the PC to the EG router via network cable. -
Page 16: Log In To The Web Interface
Hardware Installation and Reference Guide Quick Configuration Log In to the Web Interface (1) Start up the PC and configure the local connection attribute on the PC. Change the static IP address of the PC to 192.168.110.XXX (1–255, excluding 1). Figure 4-1 Change the IP Address of the PC (2) Open a browser, enter 192.168.110.1 into the address bar of the browser, and press Enter. -
Page 17: Troubleshooting
Hardware Installation and Reference Guide Troubleshooting Troubleshooting Power Supply Refer to Product Overview for the normal state descriptions of LED indicators. If abnormity occurs, perform the following checks: Whether the power switch is turned on. Whether the power supply of the router is turned on. ... -
Page 18: Appendix
Hardware Installation and Reference Guide Appendix Appendix Connectors and Connection Media 1000BASE-T/100BASE-TX/10BASE-T Ports The 1000BASE-T/100BASE-TX/10BASE-T is a port that supports adaptation of three rates, and automatic MDI/MDIX Crossover at these three rates. The 1000BASE-T complies with IEEE 802.3ab, and uses the cable of 100-ohm Category-5 or Supper Category- 5 UTP or STP, which can be up to 100 m. -
Page 19: Cabling Recommendations In Installation
Hardware Installation and Reference Guide Appendix Figure A-3 Connections of the Twisted Pairs of the 100BASE-TX/10BASE-T Optical Fiber Connection For the optical fiber ports, select single-mode or multiple-mode optical fibers for connection according to the fiber module connected. The connection schematic diagram is shown in Figure A-4: Figure A-4 Optical Fiber Connections Cabling Recommendations in Installation When the device is installed in standard 19-inch cabinets, the cables are tied in the binding rack on the cabinet... -
Page 20: Precautions For Bundling Up Cables
Hardware Installation and Reference Guide Appendix When moving an optical fiber, the bend radius of the fiber should be equal to or greater than 20 times the diameter of the fiber. During cabling of an optical fiber, the bend radius of the fiber should be equal to or greater than 10 times the diameter of the fiber. - Page 21 Hardware Installation and Reference Guide Appendix Figure B-2 Bundling Up Cables (2) When cables need to bend, you should first bundle them up. However, the buckle cannot be bundled within the bend area. Otherwise, significant stress may be generated in cables, breaking cable cores. As shown in Figure B-3.
- Page 22 Hardware Installation and Reference Guide Appendix loosening measures should be taken, as shown in Figure B-4. Figure B-4 Cable Fastening The hard power cable should be fastened by the terminal connection area to prevent stress. Do not use self-tapping screws to fasten terminals. ...
