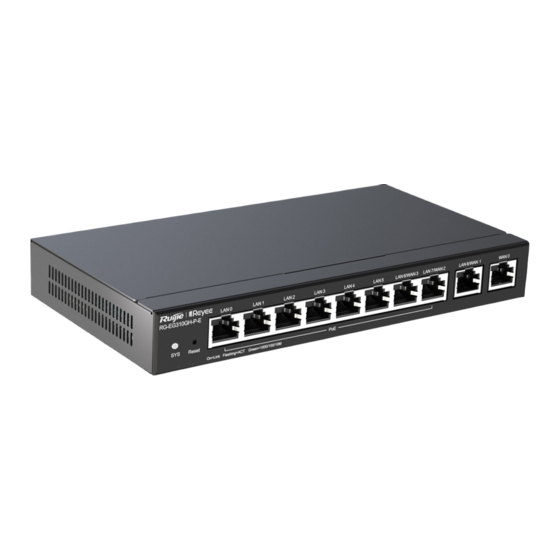

Ruijie Reyee RG-EG300G Series Installation Manual

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Ruijie

Series Routers

Installation Guide

Reyee

RG-EG300G

Document Version: V1.3

Date: July 22, 2024

Table of Contents

Need help?

Do you have a question about the Reyee RG-EG300G Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Ruijie Reyee RG-EG300G Series

Page 2 Ruijie Networks reserves the right to modify the content of the document without any notice or prompt. This manual is designed merely as a user guide. Ruijie Networks has tried its best to ensure the accuracy and reliability of the content when compiling this manual, but it does not guarantee that the content of the manual is completely free of errors or omissions, and all the information in this manual does not constitute any explicit or implicit warranties.
Page 3: Preface
Intended Audience This document is intended for:  Network engineers  Technical support and servicing engineers  Network administrators Technical Support  The official website of Ruijie Reyee: https://reyee.ruijie.com  Technical Support Website: https://reyee.ruijie.com/en-global/support  Case Portal: https://www.ruijienetworks.com/support/caseportal  Community: https://community.ruijienetworks.com...
Page 4 Note This manual provides installation steps, troubleshooting, technical specifications, and usage guidelines for cables and connectors. It is intended for users who want to understand the above and have extensive experience in network deployment and management, and assume that users are familiar with related terms and concepts.
Page 5: Table Of Contents
Contents Preface ..............................I 1 Product Overview ..........................1 1.1 RG-EG300GH-E ........................1 1.2 Package Contents........................1 1.2.1 RG-EG305GH-P-E ......................1 1.2.2 RG-EG310GH-E ......................2 1.2.3 RG-EG310GH-P-E ......................2 1.3 Product Appearance ........................3 1.3.1 RG-EG305GH-P-E ......................3 1.3.2 RG-EG310GH-E ......................5 1.3.3 RG-EG310GH-P-E ......................
Page 6 2.2.2 Ventilation Requirements ..................... 15 2.2.3 Space Requirements ....................15 2.2.4 Temperature/Humidity Requirements ................15 2.2.5 Cleanliness Requirements ................... 16 2.2.6 Grounding Requirements ..................... 16 2.2.7 Anti-interference Requirements ................... 17 2.2.8 Lightning Protection Requirements ................18 2.2.9 Installation Site Requirements ..................18 2.3 Cabinet Installation Requirements ...................
Page 7 3.9.1 Precautions ........................24 3.9.2 Bundling Steps ......................24 3.10 Verifying Installation ....................... 25 3.10.1 Verifying the Device ....................25 3.10.2 Verifying Cable Connection ..................25 3.10.3 Verifying Power Supply ....................25 4 Verifying Operating Status ....................... 26 4.1 Setting up Configuration Environment ..................26 4.2 Checklist...........................
Page 8: Product Overview
Product Overview RG-EG300GH-E The RG-EG300GH-E series routers are independently developed by Ruijie Networks with independent intellectual property rights. RG-EG300GH-E routers are a new generation of products for the small and micro enterprise offices, small hotels, and villas, providing 1000Mbps of egress bandwidth to meet the user need of high-speed bandwidth.
Page 9: Rg-Eg310Gh-E
Installation Guide Product Overview Item Quantity Warranty Card 1.2.2 RG-EG310GH-E Table 1-3 RG-EG310GH-E Package Contents Item Quantity Router Mounting bracket Foot pad GB819-85 M4 x 8 mm screw Power cord Power cord retention clip User Manual Warranty Card 1.2.3 RG-EG310GH-P-E Table 1-4 RG-EG310GH-P-E Package Contents Item...
Page 10: Product Appearance
Installation Guide Product Overview Product Appearance 1.3.1 RG-EG305GH-P-E Figure 1-1 RG-EG305GH-P-E Router Appearance Figure 1-2 Front Panel of an RG-EG305GH-P-E Router Table 1-5 Front Panel Specifications Mark Item Description Fast blinking green: The router is starting up. Solid green: The router is functioning properly. System Status LED Slow blinking green: ○...
Page 11 Installation Guide Product Overview Mark Item Description 10/100/1000BASE-T Ethernet RJ45 with auto negotiation, compliant with the IEEE 802.3af (PoE) and 802.3at (PoE+) LAN Port standards. Connect the LAN port to the PC, the switch or the access point with an Ethernet cable. 10/100/1000BASE-T Ethernet RJ45 with auto negotiation, LAN/WAN Switchable compliant with the IEEE 802.3af (PoE) and 802.3at (PoE+)
Page 12: Rg-Eg310Gh-E
Installation Guide Product Overview 1.3.2 RG-EG310GH-E Figure 1-4 RG-EG310GH-E Router Appearance Figure 1-5 Front Panel of an RG-EG310GH-E Router Table 1-7 Front Panel Specifications Mark Item Description Fast blinking green: The router is starting up. Solid green: The router is functioning properly. System Status LED Slow blinking green: ○...
Page 13 Installation Guide Product Overview Mark Item Description Port port is switchable between the WAN port and the LAN port. 10/100/1000BASE-T Ethernet RJ45 with auto negotiation. WAN Port Connect the WAN port to the DSL/Cable Modem to establish an Ethernet connection. Solid green: The port has made a successful link.
Page 14: Rg-Eg310Gh-P-E
Installation Guide Product Overview 1.3.3 RG-EG310GH-P-E Figure 1-7 RG-EG310GH-P-E Router Appearance Figure 1-8 Front Panel of an RG-EG310GH-P-E Router Table 1-9 Front Panel Specifications Mark Item Description Fast blinking green: The router is starting up. Solid green: The router is functioning properly. System Status LED Slow blinking green: ○...
Page 15 Installation Guide Product Overview Mark Item Description standards. Connect the LAN port to the PC, the switch or the access point with an Ethernet cable. LAN/WAN Switchable 10/100/1000BASE-T Ethernet RJ45 with auto negotiation. The Port port is switchable between the WAN port and the LAN port. 10/100/1000BASE-T Ethernet RJ45 with auto negotiation.
Page 16: Technical Specifications
Installation Guide Product Overview Technical Specifications 1.4.1 RG-EG305GH-P-E Table 1-11 Technical Specifications of an RG-EG305GH-P-E Router Model RG-EG305GH-P-E Dual-core CPU with the clock speed of 1.35 GHz Flash Memory 256 MB SDRAM DDRIII 512 MB Five 10/100/1000BASE-T Ethernet RJ45 with auto negotiation, including four LAN ports and one WAN port.
Page 17: Rg-Eg310Gh-E
0.45 kg (0.99 lbs) Warning Operation of this equipment in a residential environment could cause radio interference. Caution Please use the power adapter and power cord delivered with the router by Ruijie Networks. 1.4.2 RG-EG310GH-E Table 1-12 Technical Specifications of an RG-EG310GH-E Router...
Page 18: Rg-Eg310Gh-P-E
Installation Guide Product Overview Operating Temperature 0º C to 40º C (32° F to 104° F) Storage Temperature -40º C to 70º C (-40° F to 158° F) Operating Humidity 10% to 90% RH (non-condensing) Storage Humidity 5% to 95% RH (non-condensing) Fan Module Fanless Temperature Alarming...
Page 19 Installation Guide Product Overview Inner diameter: 2.1 mm (0.08 in.) Outer diameter: 5.5 mm (0.22 in.) Adapter Connector Depth: 10.0 mm (0.39 in.) ± 0.5 mm (0.02 in.) Specifications Polarity symbol: the center (tip) of the output plug is positive (+) and the barrel (ring) of the output is negative (-).
Page 20: Preparing For Installation
Installation Guide Preparing for Installation Preparing for Installation Safety Precautions Note ● To avoid personal injury and device damage, carefully read the safety precautions before you install the device. ● The following safety precautions may not cover all possible dangers. 2.1.1 General Safety Precautions ...
Page 21: Electrostatic Discharge Safety
Installation Guide Preparing for Installation  If a power supply system is equipped with a leakage protector (also referred to as “leakage current switch” or “leakage current breaker”), the power supply will be cut off automatically when the electric leakage or electric shock occurs.
Page 22: Ventilation Requirements
Installation Guide Preparing for Installation  Install the router into an open cabinet. If the router is installed into a closed cabinet, ensure that the cabinet has proper ventilation and heat dissipation.  The cabinet is strong enough to support the weight of the router and its accessories. ...
Page 23: Cleanliness Requirements
Installation Guide Preparing for Installation 2.2.5 Cleanliness Requirements Dust poses a major threat to the switch. The indoor dust takes on a positive or negative static electric charge when falling on the switch, causing poor contact of the metallic joint. Such electrostatic adhesion may occur more easily when the relative humidity is low, not only affecting the service life of the switch, but also causing communication faults.
Page 24: Anti-Interference Requirements
Installation Guide Preparing for Installation Caution ● Please adopt protection grounding connections in buildings so that the device can be connected to the protection ground. ● Check whether the AC socket is reliably connected to the protection ground of the building. If not, a protection ground wire should be used to connect the protection ground lug of the AC socket to the protection ground of the building.
Page 25: Lightning Protection Requirements
Installation Guide Preparing for Installation  Take electromagnetic shielding measures when necessary. 2.2.8 Lightning Protection Requirements  The device can guard against lightning strikes. As an electric device, it may still be damaged by strong lightning strikes. Take the following lightning protection measures: Ensure that the grounding cable of the cabinet is in good contact with the ground.
Page 26: Tools
Installation Guide Preparing for Installation (3) The distance between the square hole strip on the rack column and the outer side of the front cabinet door is greater than 180 mm (7.09 in.) and the thickness of the front cabinet door is smaller than 25 mm (0.98 in.). Therefore, the available space is greater than 155 mm (6.10 in.).
Page 27: Installing The Router
Installation Guide Installing the Router Installing the Router Caution Ensure that requirements in Chapter 2 are all met. Installation Procedure The installation steps are shown in the following figure. Figure 3-1 Installation Procedure Prepare for installation Read precautions Install the device Ground the device Connect the power supply Connect the cables...
Page 28: Preparing
Installation Guide Installing the Router Preparing Carefully plan and arrange the installation position, networking mode, power supply and cabling before installation. Confirm the following requirements before installation:  The installation site provides sufficient space for heat dissipation.  The installation site meets the temperature and humidity requirements of the device. ...
Page 29: Simple Installation Steps
Installation Guide Installing the Router  The front/rear doors of the cabinet should be installed to allow you open and close them smoothly. The locks should work normally, and all keys should be complete.  There should be no unnecessary and informal labels inside the cabinet and on service modules. ...
Page 30: Mounting The Device On A Workbench
Installation Guide Installing the Router Figure 3-2 Installing the Brackets (2) Mount the device into the cabinet and secure the other end of the brackets to square hole posts of the cabinet using the cage nuts and M6 screws. 3.5.2 Mounting the Device on a Workbench If a standard 19-inch cabinet is unavailable, you can mount the device on a workbench.
Page 31: Connecting The Power Cord
Installation Guide Installing the Router Connecting the Power Cord RG-EG305GH-P-E and RG-EG310GH-P-E routers adopt the adapter for power supply. The power cord of the device has three cores. You are advised to use a single-phase three-core power socket or a multi-function power socket with a neutral point connector. The neutral point of the power supply must be well grounded in the building.
Page 32: Verifying Installation
Installation Guide Installing the Router (2) Fasten the twisted pairs to the cabinet cable management ring or bracket. Attach the cables in the cable tray of the rack. (3) Bundle the twisted pairs closely along the bottom of the device and in a straight line wherever possible. 3.10 Verifying Installation 3.10.1...
Page 33: Verifying Operating Status
Wireless Connection: Connect the access point to the LAN port of the router with an Ethernet cable. The access point will automatically broadcast SSID “@Ruijie-mXXXX” (XXXX are the last four characters of the MAC address on the device label.) after power-on. Perform configuration on the device after the PC is connected to the wireless network.
Page 34: Log In To The Web Interface
Installation Guide Verifying Operating Status Log In to the Web Interface (1) Start up the PC and configure the local connection attribute on the PC. Change the static IP address of the PC to 192.168.110.XXX (1–255, excluding 1). (2) Open a browser, enter 192.168.110.1 into the address bar of the browser, and press Enter. Caution Use the default password "admin"...
Page 35: Troubleshooting
Check the device installation Check the power connection Check the LEDs on the device Check the cable connection Contact Technical Support of Ruijie Networks Common Troubleshooting Procedures 5.2.1 Password Loss Press the Reset button for more than 5 seconds to restore the device to factory default settings and reset the system login password.
Page 36: Appendix
Installation Guide Appendix Appendix Connectors and Media  1000BASE-T/100BASE-TX/10BASE-T The 1000BASE-T/100BASE-TX/10BASE-T is a 10/100/1000 Mbps adaptive port that supports auto MDI/MDIX Crossover. Compliant with IEEE 802.3ab, 1000BASE-T requires Category 5e 100-ohm UTP or STP (STP is recommended) with a maximum distance of 100 meters (328 feet). 1000BASE-T requires all four pairs of wires be connected for data transmission, as shown in Figure 6-1.
Page 37: Cabling
Installation Guide Appendix Figure 6-2 100BASE-TX/10BASE-T Connection Cabling When the RG-EG300GH-E router is installed in a standard 19-inch cabinet, secure the cables around the cable management brackets. Top cabling or bottom cabling is adopted according to the actual situation in the equipment room.
Page 38 Installation Guide Appendix Figure 6-3 Binding Cables (1) Bend Wind  Cables of different types (such as power cords, signal cables, and ground cables) should be separated in cabling and bundling. Mixed bundling is not allowed. When they are close to each other, it is recommended to adopt crossover cabling.
Page 39 Installation Guide Appendix Figure 6-5 Binding Cables (3)  Cables not to be assembled or remaining parts of cables should be folded and placed in a proper position of the cabinet or cable trough. The proper position refers to a position that does not affect device running or damage the switch or cable.
Page 40 Installation Guide Appendix Table 6-2 Cable Fastening Components Components Flat washer Spring washer Flat washer  Hard power cords should be fastened in the terminal connection area to prevent stress on terminal connection and cable.  Do not use self-tapping screws to fasten terminals. ...
