Summary of Contents for FUFU & GAGA KF200053
- Page 1 Ｉｎｓｔａｌｌａｔｉｏｎ Iｎｓｔｒｕｃｔｉｏｎｓ...

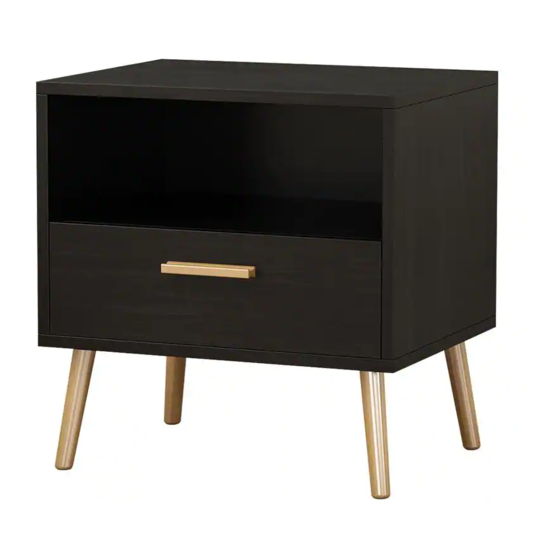

- Page 2 Nightstand 1/16...
- Page 3 IMPORTANT INFORMATION! please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference. AVOID SCRATCHES! In order to avoid scratching this furnuture should be assembled on a soft layer-could be a rug. IMPROVE EFFICIENCY ! Try to find a partner to install with you, which can speed up...
-
Page 4: Table Of Contents
Please prepare the following tools When installing, please carefully confirm whether each screw corresponds to the manual, accessories with similar shapes can be distinguished by size A x 8 B x 12 C x 12 D x 1 E x 2 4 x 35 mm 6 x 35 mm 15 x 9 mm... - Page 5 4/16...
- Page 6 B x 12 6 x 35 mm Insert quickfit screw(B) into corresponding holes in plate 5,6,7,10 with a screwdriver as shown. 5/16...
-
Page 7: A X 4
A x 4 4 x 35 mm Attach plate 1 and 3 to plate 2 with screw(A) as shown. Slide plate 4 into available slots as shown. 6/16... -
Page 8: C X 4
C x 4 15 x 9 mm Attach plate 5 to the component and turn cam lock(C) clockwise to tighten as shown. 7/16... -
Page 9: Dr X 1
D x 1 E x 2 4 x 16 mm Fix handle(D) to plate 5 with screw(E) as shown. F x 4 DR x 1 DL x 1 3 x 12 mm 300 mm 300 mm Fix runner(DL) and (DR) to plate 1 and 3 respectively with screw(F) as shown. - Page 10 F x 4 CR x 1 CL x 1 3 x 12 mm 300 mm 300 mm Fix slide rail(CL) and (CR) to plate 6 and 7 respectively with screw(F) as shown. Please pay attention to the holes where the accessories are inserted.
- Page 11 I x 20 J x 4 4 x 14 mm Fix iron sheet(J) to plate 8 with screw(I) as shown. 10/16...
- Page 12 C x 4 K x 4 15 x 9 mm 6 x 30 mm Connect plate 6 and 7 with plate 9 using wooden dowel(K) and turn cam lock(C) clockwise to tighten as shown. 11/16...
- Page 13 A x 4 K x 4 4 x 35 mm 6 x 30 mm Attach plate 8 to the component with wooden dowel(K), then fix with screw(A) as shown. 12/16...
- Page 14 C x 4 K x 4 15 x 9 mm 6 x 30 mm Cover plate 10 to the component with wooden dowel(K) and turn cam lock(C) clockwise to tighten as shown. 13/16...
-
Page 15: Q X 4
L x 12 Q x 4 3 x 12 mm 8 x 30 mm Fix back plate 11 with screw(L) as shown. Rotate part(Q) into iron sheet. 14/16... - Page 16 Rotate leg 12 into iron sheet as shown. Align rails, slide the drawer. 15/16...
- Page 17 Your bedside table is ready for use. Maximum recommended weight limit is 10kg. 16/16...
- Page 18 WARRANTY WARRANTY CLAIMS •There is a 30-day warranty for broken furniture or any other problems that do not work properly. The warranty will start from the date of purchase which must be verified by proof of purchase. •Before making a claim, we may be able to answer your query, simply call us. Please leave your purchase order number, along with some details of the problem, if you want a replacement part.
