Bircher Reglomat ProxySwitch User Manual

ProxySwitch
presence

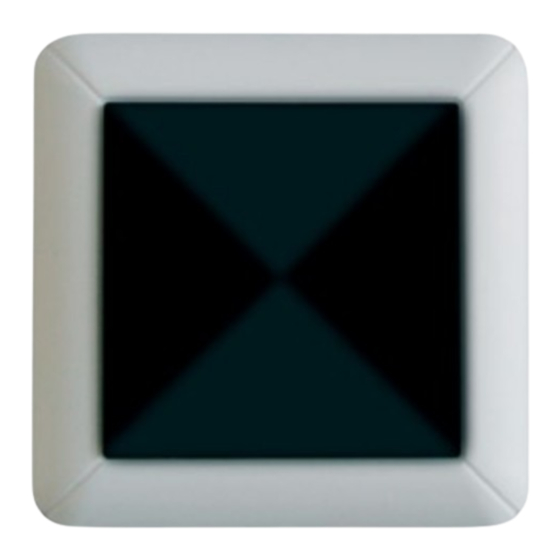

Touchless Push Plate

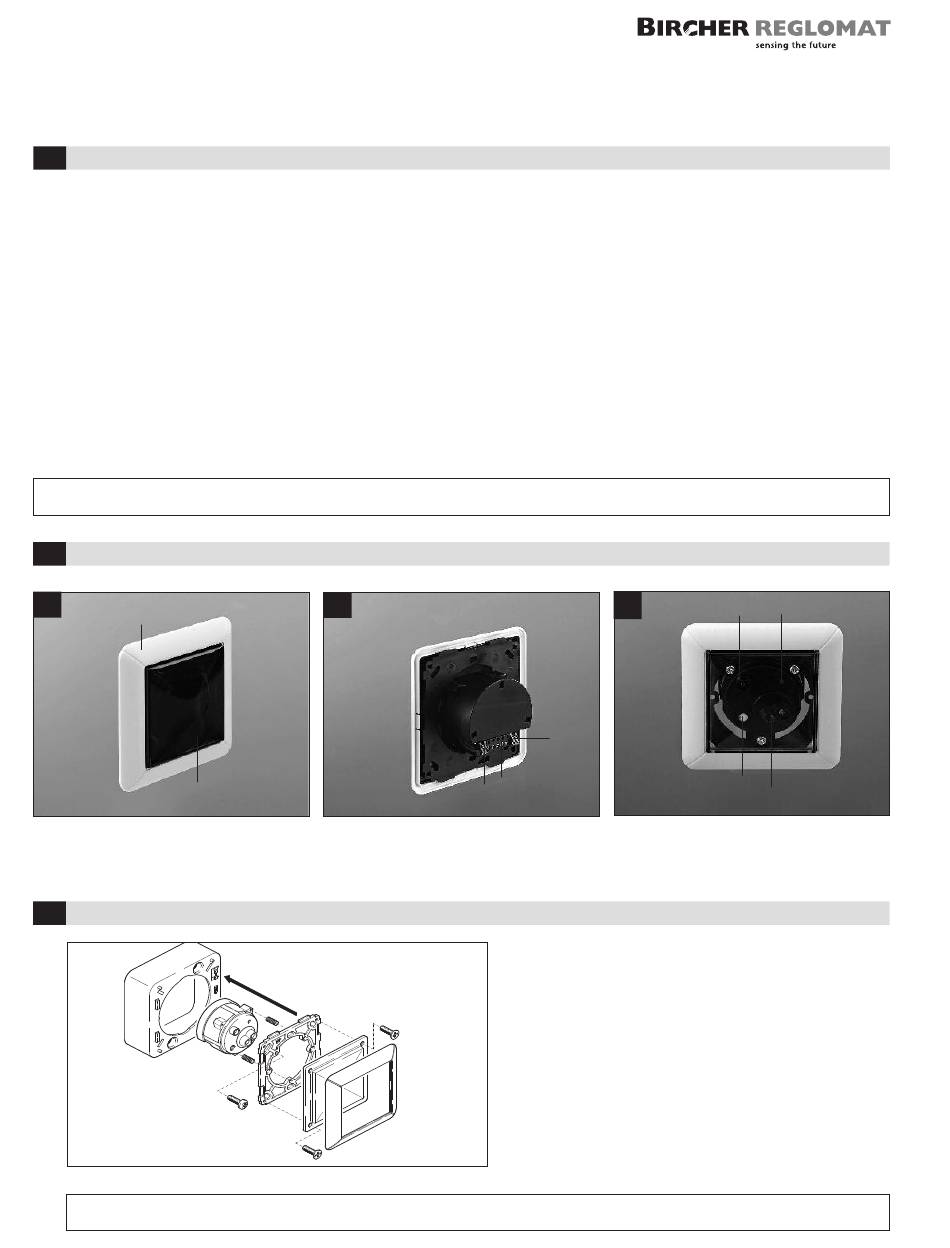

1 Safety Instructions
* The device must only be operated at a protective low voltage with safe electrical insulation.
* Product repairs must be performed solely by the manufacturer.
* Shut off all power going to the sensor before attempting any wiring procedures.
* Maintain a clean & safe environment when working in public areas.
* Constantly be aware of pedestrian traffic around the door area.
* Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.
* Always check placement of all wiring and components before powering up to ensure that moving door parts will not catch any
wires and cause damage to equipment.
* Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
D O N O T L E A V E A N Y P R O B L E M S U N R E S O L V E D - N E V E R S A C R I F I C E S A F E T Y F O R A N Y R E A S O N
2 Design / Overview
2a
1
2
1 Cover frame
2 Front lens cap
3 Mounting / Installation
Surface mounting use accessory PRSW-SMB
IMPORTANT: WHEN CONNECTING THE DEVICE TO THE OPERATING VOLTAGE, NO OBJECT MAY BE IN THE DETECTION AREA.
,
User s guide
2b
3 4
3 Jumper scanning ranges
4 Connection terminal
5 Jumper scanner/switch ON/OFF
Questions? Call us at 800 - 252-1272, 8am - 5pm central standard time.
2c
5
6 Pot. scanning range setting
7 Transmitter
8 Receiver
9 Function indication red LED
9
8
6
7
