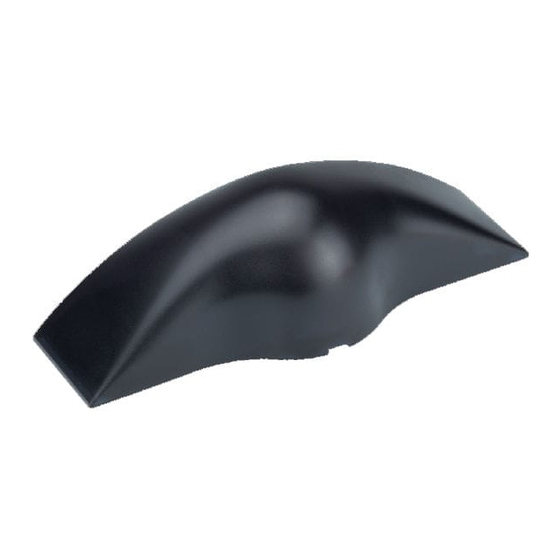

Bircher Reglomat Reflex ES User Manual

Microwave motion detector for automatic pedestrian doors with direction recognition

Safety instructions

* The device must only be operated at a protective low voltage with safe electrical insulation. Product repairs must be performed solely by the manufacturer.
* Shut off all power going to the sensor before attempting any wiring procedures.
* Maintain a clean & safe environment when working in public areas.
* Constantly be aware of pedestrian traffic around the door area.
* Always stop pedestrian traffic through the doorway when performing tests that may result in unexpected reactions by the door.
* Always check placement of all wiring and components before powering up to ensure that moving door parts will not catch any wires and cause damage to equipment.
* Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of installation.
D O N O T L E A V E A N Y P R O B L E M S U N R E S O L V E D - N E V E R S A C R I F I C E S A F E T Y F O R A N Y R E A S O N
Symbols meaning
= flash
A

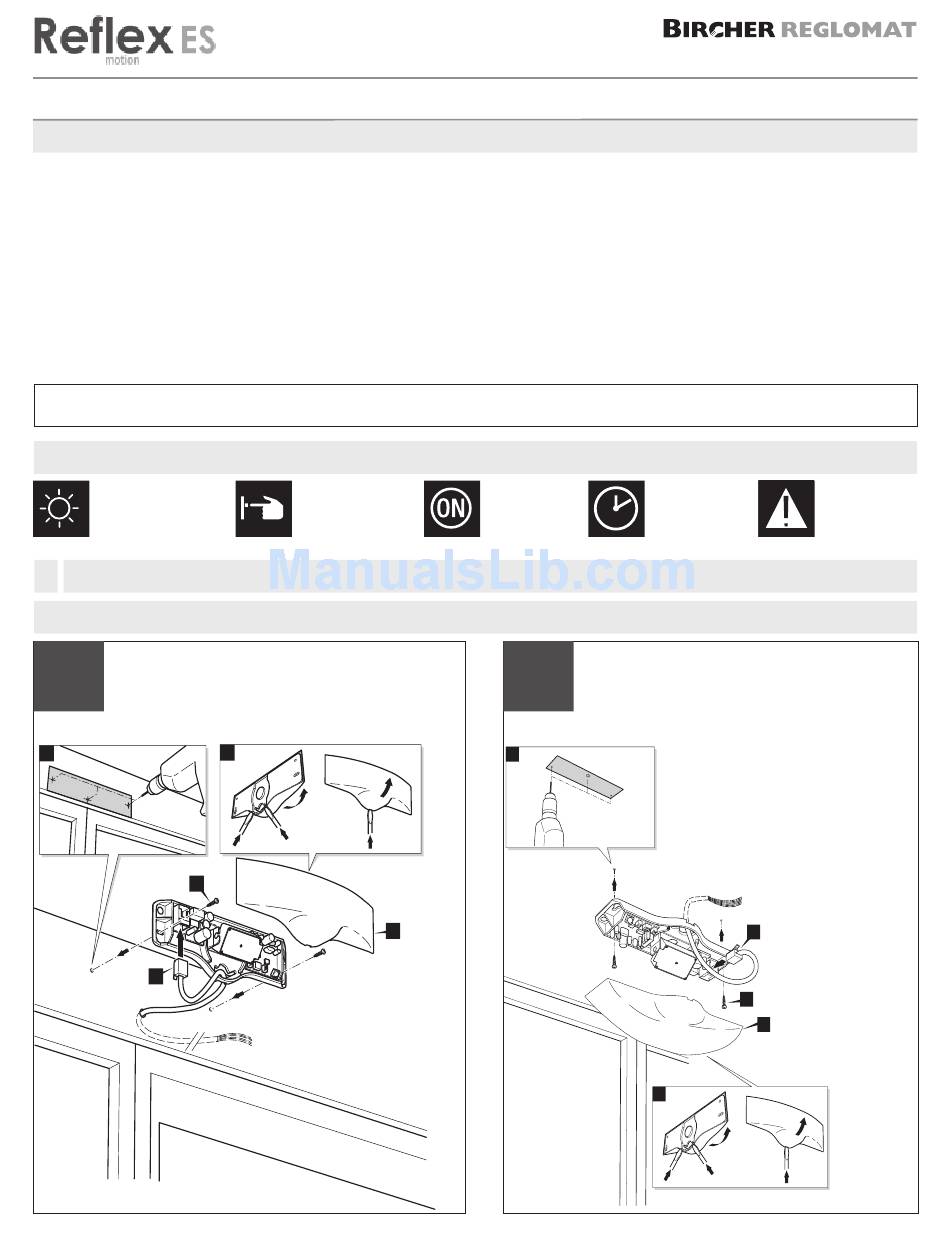

Installation

Physical installation
Mounting on
a door header
or wall
drill holes using template
1
3
4
,
User s guide
= press
open sensor with screwdriver
2
5
Questions? Call us at 800 - 252-1272, 8am - 5pm central standard time.
= on = time
Mounting on a
ceiling
drill holes using template
1
2
open sensor with screwdriver
sensing the future
= Attention
4
3
5
1
