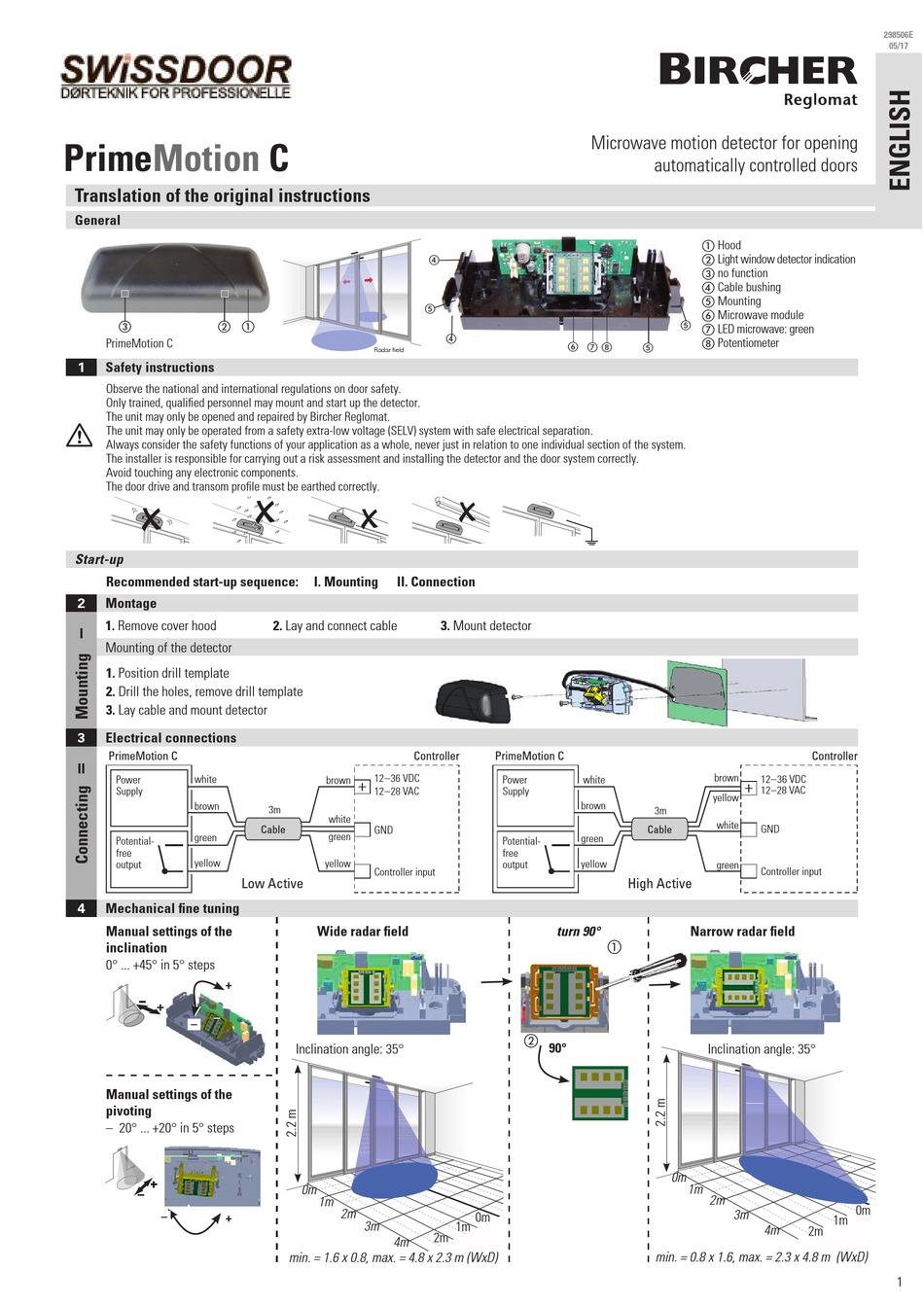

Bircher Reglomat PrimeMotion C Translation Of The Original Instructions

PrimeMotion
Translation of the original instructions
General
c b

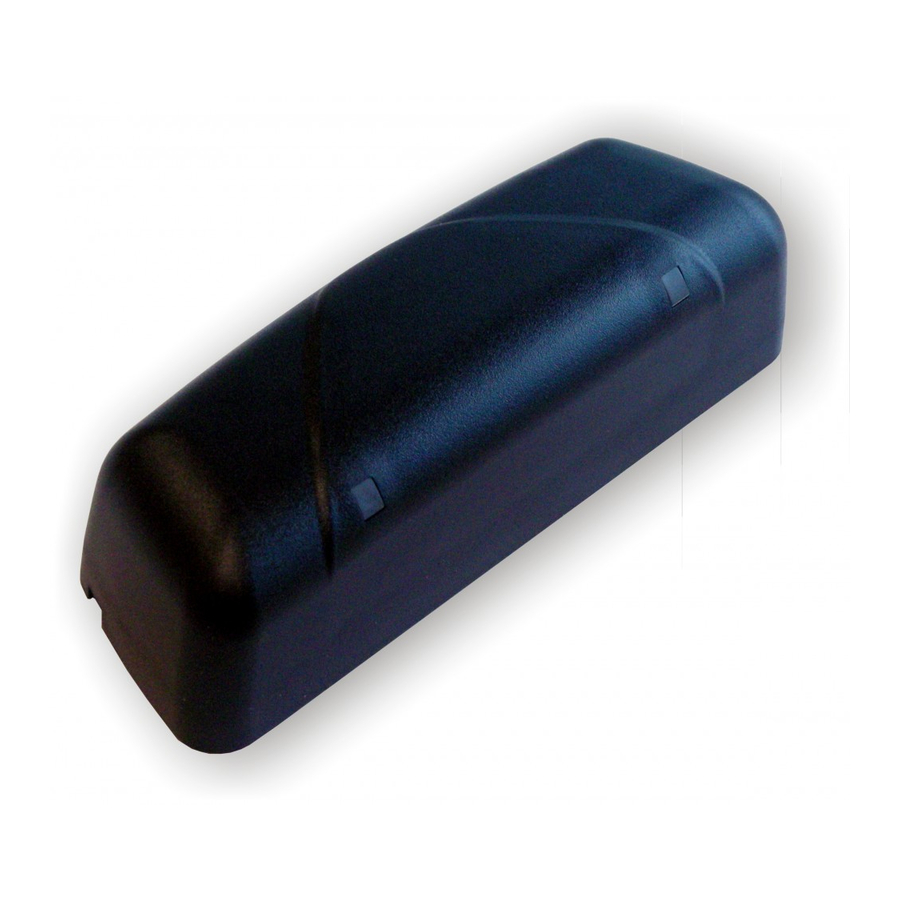

PrimeMotion C
1 Safety instructions
Observe the national and international regulations on door safety.
Only trained, qualified personnel may mount and start up the detector.
The unit may only be opened and repaired by Bircher Reglomat.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom profile must be earthed correctly.
Start-up
Recommended start-up sequence:
Montage
2
1. Remove cover hood
I
Mounting of the detector
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
Electrical connections
3
PrimeMotion C
II
Power white
Supply
brown
green
Potential-
free
yellow
output
Mechanical fine tuning
4
Manual settings of the
inclination
0° ... +45° in 5° steps
+
–
+
–
–
Manual settings of the
pivoting
– 20° ... +20° in 5° steps
+
–
–
+
C
a
Radar field
Radarfeld
I. Mounting II. Connection
2. Lay and connect cable
Controller
12–36 VDC
brown
+
12–28 VAC
3m
white
Cable
GND
green
yellow
Controller input
Low Active
Wide radar field
1m
2m
3m
Inclination angle: 35°
0m
1m
2m
3m
4m
min. = 1.6 x 0.8, max. = 4.8 x 2.3 m (WxD)
Microwave motion detector for opening
d
e
d
f
g
3. Mount detector
PrimeMotion C
Power white
Supply
brown
green
Potential-
free
output yellow
turn 90°
b
90°
0m
1m
2m
automatically controlled doors
a Hood
b Light window detector indication
c no function
d Cable bushing
e Mounting
f Microwave module
e
g LED microwave: green
h Potentiometer
h e
brown
12–36 VDC
+
12–28 VAC
yellow
3m
white
Cable GND
green
Controller input
High Active
Narrow radar field
a
1m
2m
3m
Inclination angle: 35°
0m
1m
2m
3m
4m
min. = 0.8 x 1.6, max. = 2.3 x 4.8 m (WxD)
298506E
05/17
Controller
0m
1m
2m
1
