Bircher Reglomat PrimeTec B Original Instructions

Bircher Reglomat PrimeTec B Original Instructions

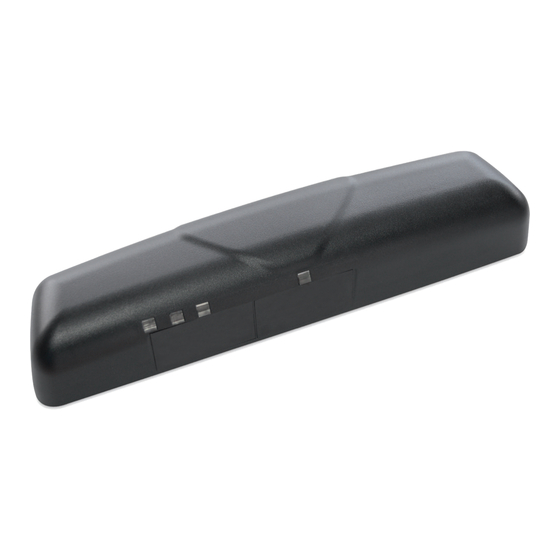

Combined detector air/radar for opening and protecting automatically controlled sliding doors

Advertisement

Quick Links

PrimeTec
B
PrimeScan
B

Translation of the original instructions

PrimeTec B
a b c
d
PrimeScan B
a b c
d
a) IR-receiver
c) red LED
b) IR-transmitter
d) green LED

Safety instructions

1
Consider the national and international regulations on door safety.
Only trained, qualified personnel may mount and start up the detector.
The unit may only be opened and repaired by Bircher Reglomat.
The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
Always consider the safety functions of your application as a whole, never just in relation to one individual section of the system.
The installer is responsible for carrying out a risk assessment and installing the detector and the door system correctly.
Avoid touching any electronic components.
The door drive and transom profile must be earthed correctly.

Start-up

Recommended start-up sequence: I. Mounting

Mounting

2
1. Remove cover hood
I
2. Set AIR field width (see chapter 2.1)

Setting the AIR field width (PrimeTec / PrimeScan)

2.1
The width of the AIR field can be set using the click-in plastic cover in front of
the detector's lens.
*
Detector without cover:
All light beams are active
Possible settings (Dimensions at 2.2 m mounting hight):
A, D covered
A
B
C

Mounting of the detector

2.2
1. Position drill template
2. Drill the holes, remove drill template
3. Lay cable and mount detector
PrimeScan
PrimeTec
II. Connection
Field width:
2.3 m x 0.2 m
at 2.2 m
A. C, D covered
D
A
B
C
D
Combined detector AIR/Radar for opening and
protecting automatically controlled sliding doors
Hood
LED display
AIR light window
Cable bushing
Detector without hood
III. Initialisation
3. Lay and connect cable
4. Mount detector
1.
2.
1. Slide
2. Push & click!
G, H covered
E
F
G
H
b
a
Mounting holes
b Button Data (black)
Detector electronic
LED radar: green (rig.)
Optics-cover
AIR adjusting device
LED AIR: red (left)
Radar module
a Button Mode (red)
LCD display
A B
C D
E F
G H
A, B, D covered
A, B covered
A
B
C
D
A
*Factory setting
267087E
10/13
B
C
D
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PrimeTec B and is the answer not in the manual?

Questions and answers

Summary of Contents for Bircher Reglomat PrimeTec B

  • Page 1 Consider the national and international regulations on door safety. Only trained, qualified personnel may mount and start up the detector. The unit may only be opened and repaired by Bircher Reglomat. The unit may only be operated from a safety extra-low voltage (SELV) system with safe electrical separation.
  • Page 2 Electrical connections PrimeTec B / PrimeScan B Controller 1 white white – Power Supply 2 brown 11.5 - 32 VDC brown 3 green green – Radar output 4 yellow yellow Radar IN 5 grey Cable grey – Test 6 rose...
  • Page 4 Manufacturer: Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen, Switzerland, www.bircher-reglomat.com Authorised rep: Bircher Reglomat GmbH, Robert Bosch Strasse 3, D-71088 Holzgerlingen, Germany Notified Body: TÜV NORD CERT GmbH, Langemarckstrasse 20, D-45141 Essen, NB 0044, EC-type-examination certificate No. 44 205 12 403013-003 Following directives have been observed: 2006/42/EC, R&TTE directive 1999/5/EC, EMV-directive 004/108/EC...
