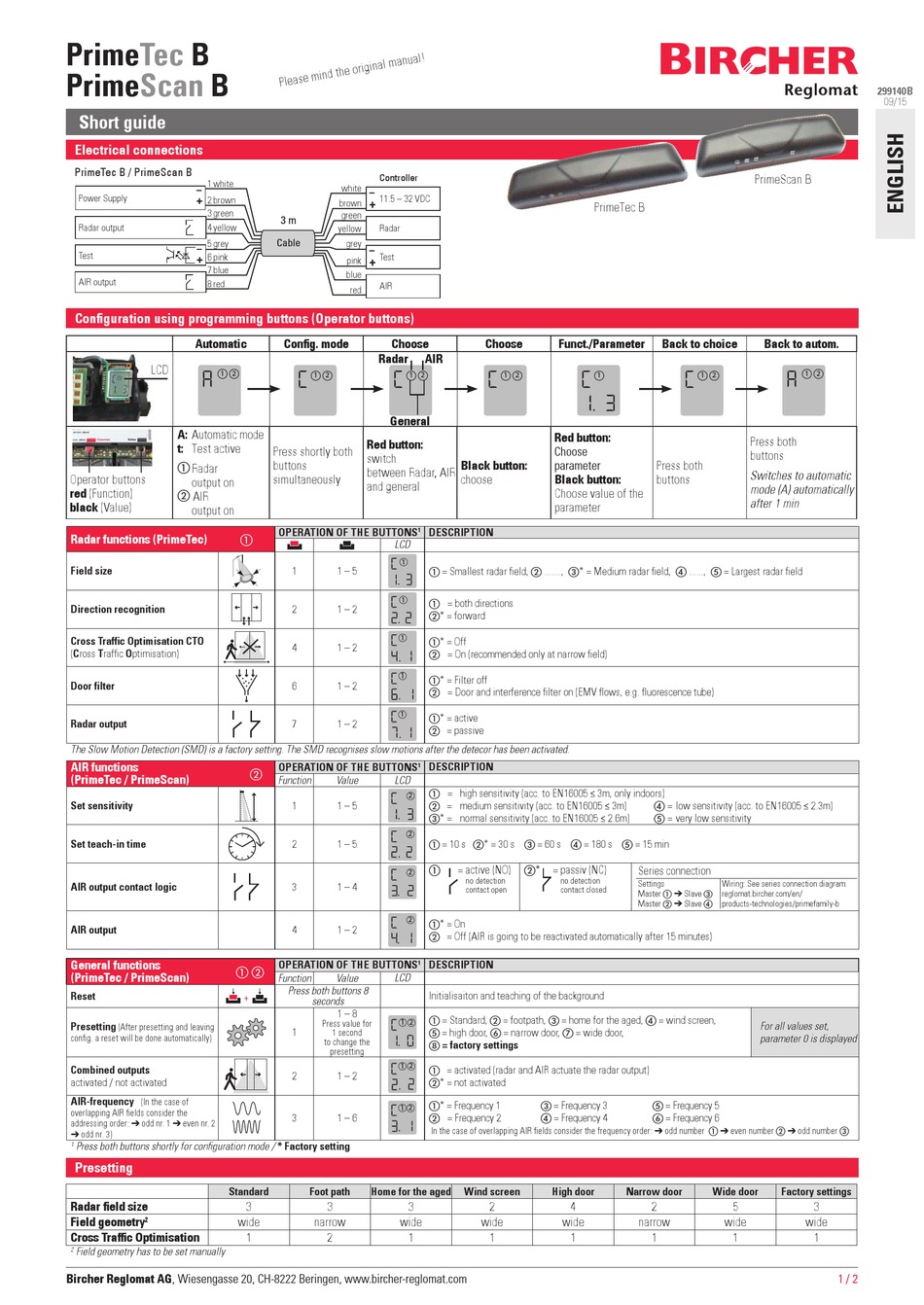

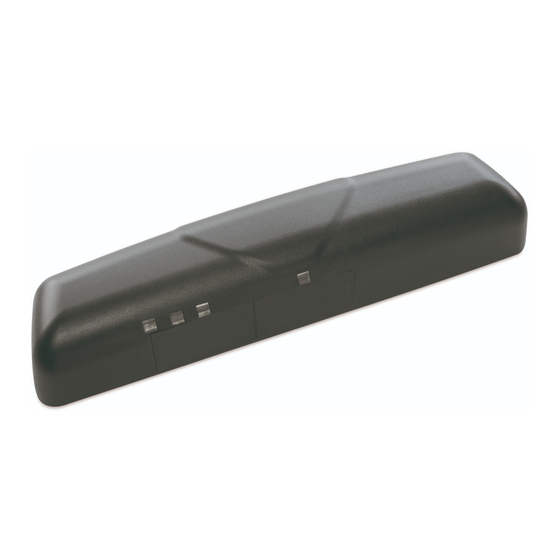

Bircher Reglomat PrimeScan B Short Manual

PrimeTec B
PrimeScan B
Short guide
Electrical connections
PrimeTec B / PrimeScan B
1 white
–
Power Supply
+ 2 brown
3 green
Radar output 4 yellow
5 grey
–
Test
6 pink
+
7 blue
AIR output
8 red
Configuration using programming buttons (Operator buttons)
Automatic
LCD
1 2
A: Automatic mode
t: Test active
 Radar
Operator buttons
output on
red (Function)
 AIR
black (Value)
output on
Radar functions (PrimeTec)
Field size
Direction recognition
Cross Traffic Optimisation CTO
(Cross Traffic Optimisation)
Door filter
Radar output
The Slow Motion Detection (SMD) is a factory setting. The SMD recognises slow motions after the detecor has been activated.
AIR functions
(PrimeTec / PrimeScan)
Set sensitivity
Set teach-in time
AIR output contact logic
AIR output
General functions
 
(PrimeTec / PrimeScan)
Reset
Presetting
(After presetting and leaving
config. a reset will be done automatically)
Combined outputs
activated / not activated
AIR-frequency
(In the case of
overlapping AIR fields consider the
addressing order: ➔ odd nr. 1 ➔ even nr. 2
➔ odd nr. 3)
Press both buttons shortly for configuration mode / * Factory setting
1
Presetting
Standard
Radar field size
Field geometry wide
2
Cross Traffic Optimisation
Field geometry has to be set manually
2
Bircher Reglomat AG, Wiesengasse 20, CH-8222 Beringen, www.bircher-reglomat.com
Controller
white
11.5 – 32 VDC
brown
green
3 m
Radar
yellow
Cable
grey
Test
pink
blue
AIR
red
Config. mode Choose
Radar
1 2 1 2
General
Red button:
Press shortly both
switch
buttons
between Radar, AIR
simultaneously
and general
OPERATION OF THE BUTTONS

LCD
1
1 1 – 5
1
2 1 – 2
1
4 1 – 2
1
6 1 – 2
1
7 1 – 2
OPERATION OF THE BUTTONS

Function Value LCD
2
1 1 – 5
2
2 1 – 5
2
3 1 – 4
2
4 1 – 2
OPERATION OF THE BUTTONS
Function Value LCD
Press both buttons 8
+
seconds
1 – 8
1
Press value for 2
1
1 second
to change the
presetting
1 2
2 1 – 2
1 2
3 1 – 6
Foot path Home for the aged
3 3 3
narrow wide
1 2 1
Choose Funct./Parameter
AIR
1 2
Red button:
Choose
Black button: parameter
choose Black button:
Choose value of the
parameter
DESCRIPTION
1
 = Smallest radar field,  ......., * = Medium radar field,  ......,  = Largest radar field
 = both directions
* = forward
* = Off
 = On (recommended only at narrow field)
* = Filter off
 = Door and interference filter on (EMV flows, e.g. fluorescence tube)
* = active
 = passive
DESCRIPTION
1
 = high sensitivity (acc. to EN16005 ≤ 3m, only indoors)
 = medium sensitivity (acc. to EN16005 ≤ 3m)
* = normal sensitivity (acc. to EN16005 ≤ 2.6m)
 = 10 s * = 30 s  = 60 s  = 180 s  = 15 min
= active (NO) = passiv (NC)
 *
no detection no detection
contact open contact closed
* = On
 = Off (AIR is going to be reactivated automatically after 15 minutes)
DESCRIPTION
1
Initialisaiton and teaching of the background
 = Standard,  = footpath,  = home for the aged,  = wind screen,
 = high door,  = narrow door,  = wide door,
 = factory settings
 = activated (radar and AIR actuate the radar output)
* = not activated
* = Frequency 1  = Frequency 3
 = Frequency 2  = Frequency 4
In the case of overlapping AIR fields consider the frequency order: ➔ odd number  ➔ even number  ➔ odd number 
Wind screen High door
2 4
wide wide
1 1
PrimeScan B
PrimeTec B
Back to choice Back to autom.
1 1 2
Press both
buttons
Press both
Switches to automatic
buttons
mode (A) automatically
after 1 min
 = low sensitivity (acc. to EN16005 ≤ 2.3m)
 = very low sensitivity
Series connection
Settings Wiring: See series connection diagram:
Master  ➔ Slave  reglomat.bircher.com/en/
Master  ➔ Slave  products-technologies/primefamily-b
For all values set,
parameter 0 is displayed
 = Frequency 5
 = Frequency 6
Narrow door Wide door
2 5
narrow wide
1 1
299140B
09/15
1 2
Factory settings
3
wide
1
1 / 2
