Summary of Contents for Oricom OBH930

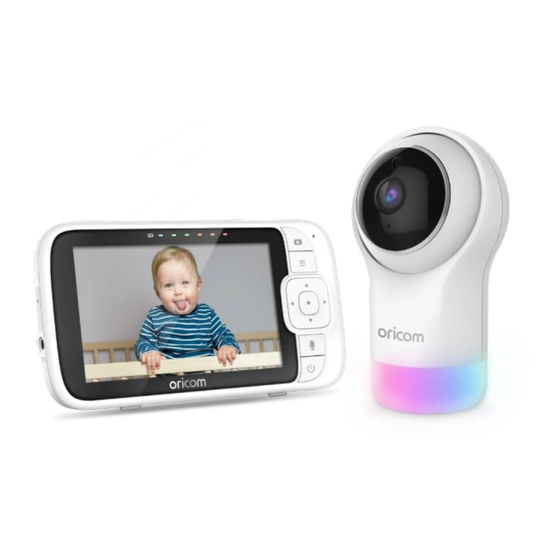

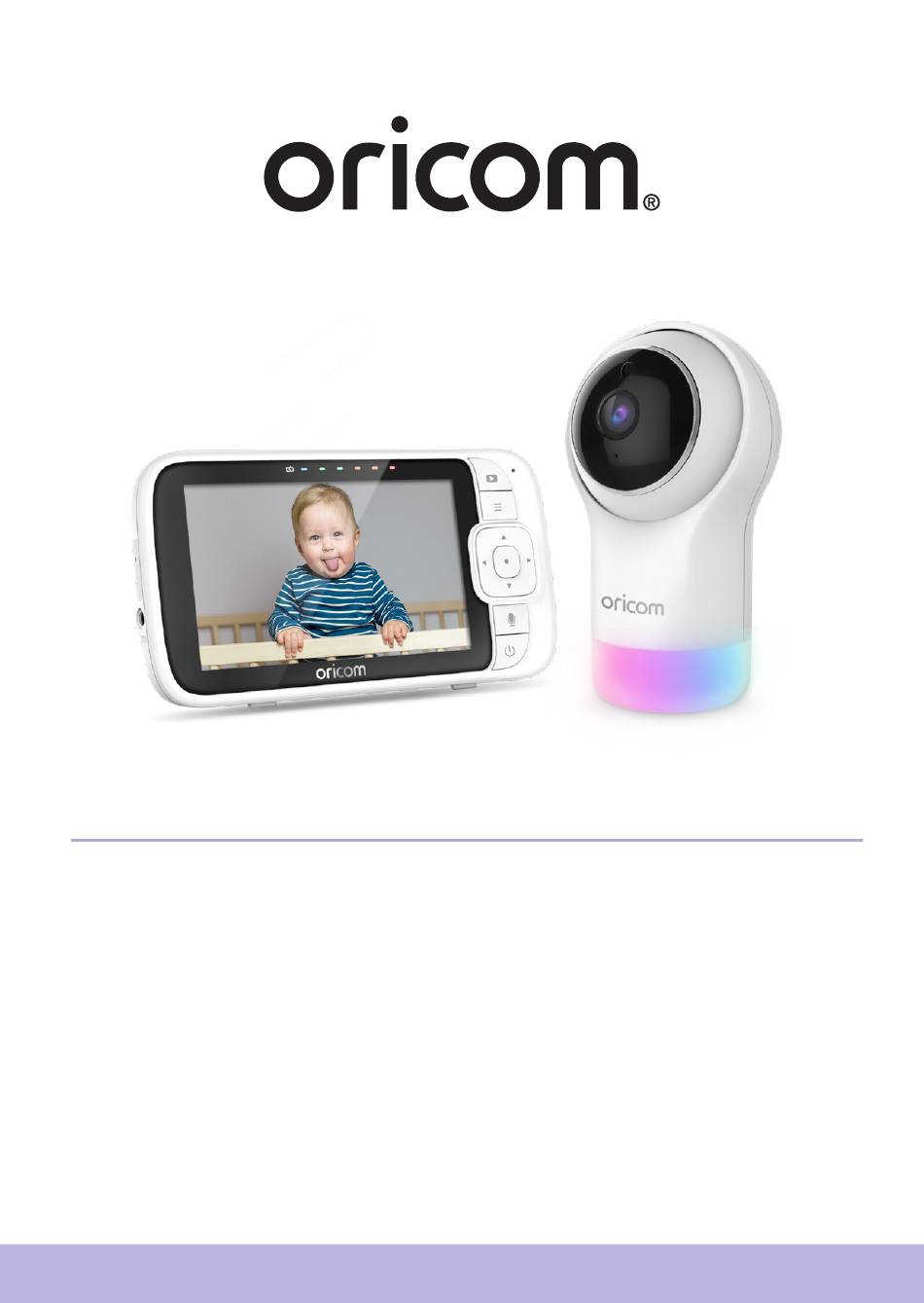

- Page 1 USER’S GUIDE 5" Smart HD Baby Monitor with Night Light Model: OBH930 The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Oricom product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit 1. Display (LCD screen) 8. Microphone Charging LED 9. MENU button RED when mains power Press to open / close the Menu connected. options. 3. Parent Unit ON/OFF LED 10. Navigation button + - < > (Green) Move Up/Down/Right/Left menu 4.
- Page 4 Parent Unit menu icons Signal Level (4 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X).
- Page 5 Overview of Your Baby Unit Light Sensor Power Socket Infrared LEDs (x8, for night vision) Speaker Camera Lens PAIR button High Sensitivity Microphone 10. Screw mounting hole Power/Link indicatior 11. Antenna Mood Light 12. Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor •...
-
Page 6: Table Of Contents
Table of contents 1. Safety Instructions ................8 2. Getting Started ................... 11 2.1 Connecting the Power Supply for the Baby Unit ......11 2.2 Connecting the Power Supply of the Parent Unit ......11 2.3 Desktop Stand of the Parent Unit ........... 12 2.4 Registration (Pairing) ................13 3. - Page 7 4.6 Temperature ..................17 4.7 Power Saving mode ................. 18 4.8 View multiple cameras on screen ............ 18 5. Wi-Fi® Internet Viewing ..............19 5.1 Minimum System Requirements ............19 5.2 Getting started - Connecting Devices ..........19 5.3 Setup ....................19 5.4 User Account and Camera Setup on Android™...
-
Page 8: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 9 BABY UNIT SET UP & USE: • Choose a location for the Baby Unit that will provide the best view of your baby in his/her crib. • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit with Hubble Grip (Not Included).
- Page 10 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Do not touch the plug contacts with sharp or metal objects. • Connect the power adapters to easily accessible electrical sockets. Caution: There is a risk of explosion if the battery is replaced by an incorrect type.
-
Page 11: Getting Started
2. Getting Started 2.1 Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to mains power. -
Page 12: Desktop Stand Of The Parent Unit
Note: When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a color image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing the Baby Unit is in Night Vision mode. -
Page 13: Registration (Pairing)
2.4 Registration (Pairing) The Baby Unit is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: Press the button and the menu bar will pop up. -
Page 14: Using The Baby Monitor
3. Using the Baby Monitor 3.1 Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. Note: Do not place the Baby Unit within the baby’s reach! If there is inter- ference with the picture or sound, try moving the units to different locations,... -
Page 15: Parent Unit Menu Options
4. Parent Unit Menu Options 4.1 Volume Press the + or - button to adjust the volume level. icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 4, and level 0 is OFF.) 4.2 Brightness Press the button and the menu bar will pop up. -
Page 16: Camera Control
4.5 Camera Control 4.5.1 Add (pair) a camera Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the - (delete) / + (add) / (view) / (scan) menu will pop up. -
Page 17: Delete A Camera
4.5.3 Delete a camera Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the - (delete) / + (add) / (view) / (scan) menu will pop up. Press the + UP button or - DOWN button to select - (delete), and press the button to confirm. -
Page 18: Power Saving Mode
4.7 Power Saving mode Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until V is highlighted. Press the + UP button or - DOWN button to select auto video off after 5 mins, 15 mins or 30 mins (if operating on batteries only). -
Page 19: Wi-Fi® Internet Viewing
5. Wi-Fi® Internet Viewing 5.1 Minimum System Requirements Android™ System • Version 8.0 or above iPhone®/iPad® iOS • Version 12.0 or above High Speed (Wi-Fi®) Internet • At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site: http://www.speedtest.net) 5.2 Getting started - Connecting Devices How does it work? Wi-Fi®... -
Page 20: User Account And Camera Setup On Android™ Devices Or Iphone®/Ipad
Status of LED Indication: Pair / Setup state: LED is Green and Flashing. Unconnected state: LED is Red and Flashing. Connected state: LED is Green and always on. Video streaming: LED is Green and Flashing. Note: You can only setup via a compatible smartphone or tablet and not via a PC. -
Page 21: Add The Camera To Your Account
Note: If you already have a Hubble App account, please tap Log in with Hubble to go to the next steps. fig.1 fig.2 5.4.4 Add the Camera to your account • Log in your Hubble Account by entering “User Name” and “Password” (fig.3). - Page 22 • To select your device for setting up by tapping Baby Monitoring (fig.5). • Tap OBH930 to add the new camera (fig.6) . fig.5 fig.6 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter “Password” (fig.7).
- Page 23 • Tap Generate QR code on your device and hold the QR code 6 to 12 inches in front of Camera to get scanned till you will hear confirmation message “ Scanning Sucess” from your device. (fig.10, fig.11) fig.9 fig.10 fig.11 •...
-
Page 24: Disposal Of The Device (Environment)
6. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 25: Cleaning
7. Cleaning Clean the Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the product with thinners or other solvents and chemicals –... -
Page 26: Help
8. Help Display No display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON. - Page 27 Interference Noise interference on your Parent Unit • Your Baby and Parent Units may be too close. Move them further apart. • Make sure there is at least 3 to 6 feet between the 2 Units to avoid audio feedback. •...
-
Page 28: General Information
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product. - Page 29 No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury...
- Page 30 Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: •...
- Page 31 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 / Monday - Friday 8am – 6pm AEST Email: support@oricom.com.au / www.oricom.com.au...
-
Page 32: Technical Specifications
10. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 1M Pixels IR LED 8 pcs Operating C to 40 Temperature Power Adapter Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1500mA Technical Specifications... - Page 33 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 5” diagonal LCD Brightness 8 steps Control Volume Control 8 steps Operating C to 40 Temperature Power Adapter: Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1500mA WARNING Use only with provided power supply. Battery (built-in) TMB i9300 3.8V, 2100mAh Lithium-Ion, re-chargeable...
- Page 34 All rights reserved Printed in China Ref: 2021-11-19 Version 1.0...
