Summary of Contents for Oricom OBHFCU
- Page 1 USER’S GUIDE Smart Camera Model: OBHFCU The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Android™ and view the Camera’s video stream from your smart phone. Please keep your original dated sales receipt for your records. For war- ranty service of your Oricom product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.

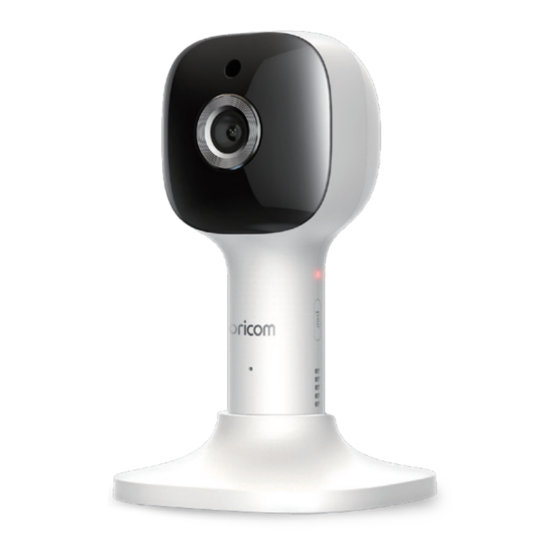

- Page 3 Overview of Your Baby Unit Photo Sensor (Night Vision Mode) Power/Link indicatior Camera Lens PAIR button Infrared LEDs (x 8, for night Night Light vision) Speaker High Sense Microphone 10. Power Socket Magnetic mount 11. Temperature Sensor Important guidelines for installing your Smart Camera •...
-
Page 4: Table Of Contents
Table of contents 1. Safety Instructions ................5 2. Getting Started ..................7 2.1 Connecting the Power Supply of the Camera Unit ......7 2.2 Fixing magnetic mount on the wall ...........7 2.3 Registration (Pairing) ................8 3. Wi-Fi® Internet Viewing ............... 9 3.1 Minimum System Requirements ............9 3.2 Getting started - Connecting Devices ..........9 3.3 Setup ....................10... -
Page 5: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED on cords. Keep this cord out of the reach of children (more than 1m away). Never use extension cords with AC Adaptors. Only use the AC Adaptors provided. Safety Instructions... - Page 6 CAMERA UNIT SET UP & USE: • Choose a location for the Camera Unit that will provide the best view of your baby in his/her cot. • Place the Camera Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Camera Unit on a wall securely using the keyhole slots in the underside of the stand.
-
Page 7: Getting Started
2. Getting Started 2.1 Connecting the Power Supply of the Camera Unit • Insert the DC plug of the power adaptor into the DC socket on the back of the Camera Unit. • Connect the other end of the power adaptor to mains power. -
Page 8: Registration (Pairing)
2.3 Registration (Pairing) The smart camera is compatible with Oricom models OBH500/OBH430/ OBH650P and works as an accessory camera, to re-register your smart camera, follow the procedures below: Press the button to access the menu. Press the < LEFT button or > RIGHT button until... -
Page 9: Wi-Fi® Internet Viewing
3. Wi-Fi® Internet Viewing 3.1 Minimum System Requirements Android™ System • Version 8.0 or above iPhone®/iPad® iOS • Version 12.0 or above High Speed (Wi-Fi®) Internet • At least 0.6 Mbps upload bandwidth per camera (you can test your internet speed on this site: http://www.speedtest.net) 3.2 Getting started - Connecting Devices How does it work? Wi-Fi®... -
Page 10: Setup
3.3 Setup Connect the Wi-Fi® Camera to the Power Adaptor, then plug into mains power. The Camera must be within range of the Wi-Fi® router with which you want to connect. Make sure the password of the router is available for entering during the in-app setup process. -
Page 11: Sign Up With Hubble On Your Smart Device
3.4.3 Sign up with Hubble on your smart device • Ensure that your smart device is connected to your Wi-Fi® router. • Run HubbleClub for Partners App, tap Create Account with Hubble (fig.1), read through the Privacy Policy, Terms and Conditions, by signing up you agree to our terms of service, tap Done (fig.2). -
Page 12: Add The Camera To Your Account
• Tap Add Your Device on the screen of your device to add new Camera (fig.8) fig.7 fig.8 • Tap Oricom brand and select your device for setting up by tapping Oricom baby moniotor (fig.9-10). • Tap OBH500 to add the new camera (fig.11) . fig.9 fig.10... - Page 13 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter “Password” (fig.12). • Power on your camera and wait for the LED to flash Red on the camera. Press and hold the PAIR button on the side of Camera, you will hear a voice prompt “Ready for Pairing”...
- Page 14 • It will take a few minutes for the Camera to connect to the Wi-Fi® network before showing the connection status (fig.16). • The Camera has been successfully connected, name your Camera (fig.17). fig.16 fig.17 Note: If connection fails, please tap Retry and repeat the steps starting from 3.4.4.
-
Page 15: Procedure For Resetting The Camera
4. Procedure for Resetting the Camera Note: If your Camera is moved from one router (e.g. home) to another (e.g. office) or you have Camera setup issues, then the Camera must be reset. Please reset the Camera with the following procedure: •... -
Page 16: Cleaning
6. Cleaning Clean the Smart camera with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the product with thinners or other solvents and chemicals –... -
Page 17: Help
7. Help Noise interference on your device • To avoid background noise or echoes, ensure that there is enough distance between your device and the Wi-Fi® Camera Unit. • Use of other 2.4 GHz products, such as Bluetooth™ systems or microwave ovens, may cause interference with this product. - Page 18 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Account I am unable to Please check your user name and login even after password. registration. Account I receive an error Please ensure that you have registered with us. Tap Create message saying: Account to create an account.
- Page 19 Connectivity I get a message: We Please try again in a few Issues are having problems minutes.This could be because accessing your of any issue with your internet camera. This could be connection. due to lack of internet If the problem remains, please connection.
- Page 20 General What is the Pair / Setup state: LED is Flashing significance of the Green. camera LED? Unconnected state: LED is Flashing Red. Connected state: LED is Solid Green. Green: The camera is live streaming. LED Off - No Power to camera. Connectivity I am not able to Please check if the Camera is within...
- Page 21 Connectivity Even though I am Please check your wireless router Issues accessing my Camera settings. For example, for Buffalo from the same brand routers there is an option Wi-Fi ® network, I called Wireless Isolation. Please still find my Camera disable this option.
- Page 22 Android™: General How do I download the App for Android™ – Open the Google Play Store on and iOS devices? your Android™ device. – Select Search – Type in “HubbleClub for Partners” – The results will show the Hubble – Select to install it iOS Device: –...
-
Page 23: General Information
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In the event of a minor failure, Oricom reserves the right to choose to repair or replace the product. - Page 24 No change to the conditions of this Express Warranty is valid unless it is made in writing and signed by an authorised representative of Oricom. Oricom will not be liable under this Express Warranty, and to the extent permitted by law will not be liable for any defect, loss, damage or injury...
- Page 25 Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: •...
- Page 26 Oricom Support - Australia For all product enquiries, troubleshooting or to discuss the range of Oricom products, feel free to contact Oricom or visit our website for answers to frequently asked questions. (02) 4574 8888 / Monday - Friday 8am – 6pm AEST Email: support@oricom.com.au / www.oricom.com.au...
-
Page 27: Technical Specifications
9. Technical Specifications Frequency 2400 MHz to 2483.5 MHz Image sensor colour CMOS 2M Pixels IR LED 8 pcs Operating C to 40 Temperature Power Adaptor: Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA Specifications are subject to change without prior notice. Technical Specifications... - Page 28 All rights reserved Printed in China Ref: 2021-12-20 Version 3.0...
