Baby Monitor
Secure 300
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Secure 300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oricom Secure 300

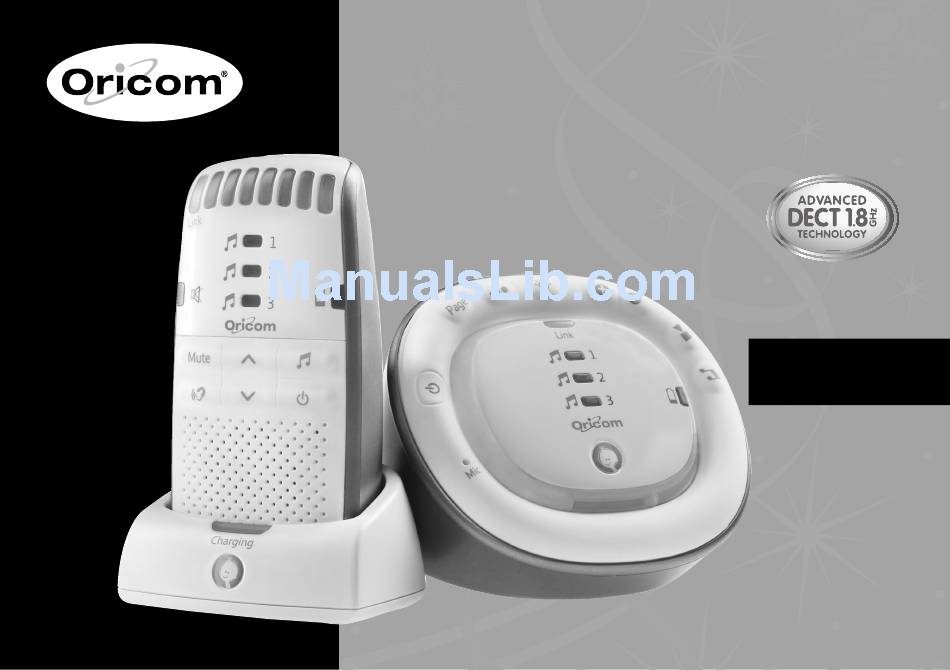

  • Page 1 Baby Monitor Secure 300 User Guide...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS AND SAFETY INFORMATION GETTING STARTED YOUR BABY MONITOR BASIC OPERATION TROUBLESHOOTING PRODUCT SPECIFICATIONS GUARANTEE...
  • Page 3: Warnings And Safety Information

    WARNINGS AND SAFETY INFORMATION IMPORTANT Please read this user guide thoroughly before use. Your ORICOM Baby Monitor is designed to be an aid and should not be used as a substitute for responsible and proper adult supervision of a child.
  • Page 4: Battery Requirements

    If there is any sign of poisoning, immediately call emergency 000. • When your Baby Monitor is not in use, it is recom- mended that you disconnect it from the mains supply and remove the batteries.
  • Page 5: Getting Started

    Thank you for choosing this monitor from Oricom. Your Secure 300 Baby Monitor offers the best Digital Technology. INTERFERENCE FREE FREQUENCY DECT (Digital Enhanced Cordless Telecommunications) is the most widely used worldwide digital cordless technology, offering amazingly clear sound, long range and maximum voice security.
  • Page 6 Parent Unit cannot be used without batteries, even if it is placed in the charger. For the Baby Unit 1 In event of a power failure, your Baby Monitor can switch to battery power. It is therefore recommended that you insert non-rechargeable batteries in the Baby Unit.
  • Page 7: Wall Mounting The Baby Unit

    Wall mounting the Baby Unit Use the following wall mount diagram to locate and install the mounting pins/screws if you prefer to wall mount your base unit. The dimensions are shown in millimeters (mm). 58.00 GETTING STARTED 1. Insert screws into the wall through the wall mount. The recommended mounting screw size is diameter 3mm and length 20mm,the diameter of the screw head and the screw should not be greater than...
  • Page 8: Your Baby Monitor

    YOUR BABY MONITOR Baby unit (Sender) Night light Press to switch night light on or off. Brightness Press to adjust the night light brightness (once night light is switched on). There are three levels. Page Press to page the Parent unit –...
  • Page 9: Back Of Baby Unit

    Back of Baby unit Power socket For connection to mains power. YOUR BABY MONITOR Underside Battery lock Child tamper proof lock for the battery compartment.
  • Page 10: Parent Unit

    YOUR BABY MONITOR Parent unit From the Parent unit you can listen to your baby and operate the Baby unit by remote control. Talk (on side of unit) Press to talk to your baby. Lullaby LEDs Green on - When the selected lullably is being played.
  • Page 11: Parent Unit Charger

    Parent unit charger Front Charging light Indicates Parent unit is charging. YOUR BABY MONITOR Back Power socket For connection to mains power.
  • Page 12: Basic Operation

    BASIC OPERATION Once you have set up your Baby Monitor, you will be able to hear the sounds in your baby’s room through the Parent Unit. And also see the green and red sensor lights around the top of the Parent Unit rise and fall with the sound levels.
  • Page 13: Adjusting Volume

    • If the volume of the Parent Unit is turned off, an alert will sound when the audio picked up reaches the second red led. Note: Do not position the baby unit and the parent unit close to each other or in the same room as feedback may be generated.
  • Page 14: Adjust Talk Back Volume

    BASIC OPERATION Talk Back You can use the talk back feature to talk to your baby. • Press and hold [Talk] key on the Parent unit to speak to baby. The green link lights on both Units fl ash. • Talk into parent unit's microphone. •...
  • Page 15: Out Of Range

    Lullaby The Baby unit plays lullabies to gently soothe your baby back to sleep. Each lullaby is played repeatedly for 15 minutes. Select one of the three melodies or select Play All for a medley of all 3 lullabies for 15 minutes. The Lullaby LEDs indicate which lullaby is playing or if all 3 are being played.
  • Page 16: Charging The Battery

    BASIC OPERATION Note: Low battery alert can be suppresed by pressing any button. Charging the Battery Place the parent unit on its charger pod to charge the battery. When charging, the red light on the charger will light steadily. The Low Battery light will be turned off. Note: The Parent Unit must never be operated on the charger pod without batteries.
  • Page 17: Troubleshooting

    Problem The red power lights do not turn on when you plug in the power. The green Link light on the Parent Unit is fl ashing and cannot hear the sounds from your baby's room. Can't hear your baby on the Parent Unit but the Link light is still glowing steadily.
  • Page 18: Product Specifications

    PRODUCT SPECIFICATIONS Feature Operating Frequency Range Power supply (parent unit / baby unit) Non rechargeable batteries (baby unit) (not included in the package contents) Transmitting power Re-chargeable batteries (parent unit) Operating time with charged battery Specifi cations 1.8 GHz Up to 300 m under optimum conditions. The range is reduced in buildings (up to 50 m) as a result of walls, doors etc.
  • Page 19: Warranty (Australia)

    The Warranty Card is located in the package. (b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User...
  • Page 20 Australia Oricom International Pty Ltd Locked Bag 658 South Windsor, NSW 2756 Customer Support Email: support@oricom.com.au Web: www.oricom.com.au Phone: 1300 889 785 Fax: (02) 4574 8898...
