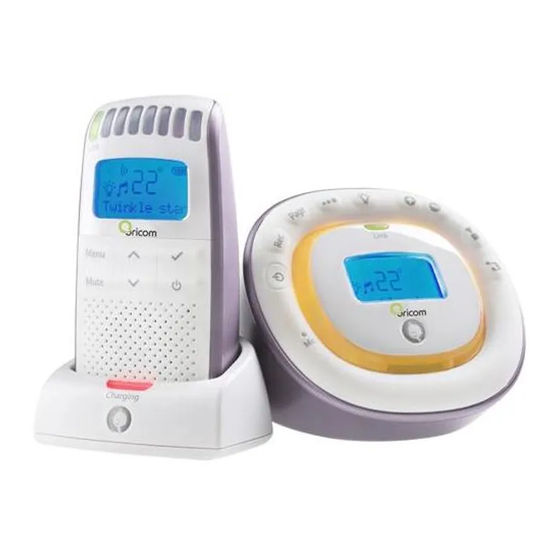

Oricom international secure 500 baby monitor user guide

Advertisement

Baby Monitor
Secure 500
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Secure 500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oricom Secure 500

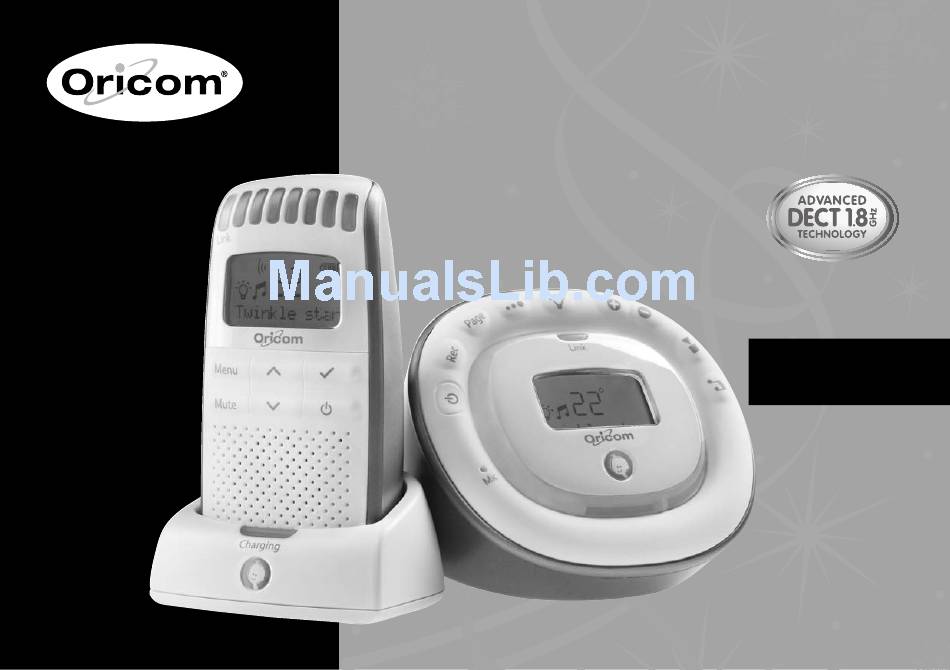

  • Page 1 Baby Monitor Secure 500 User Guide...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS AND SAFETY INFORMATION GETTING STARTED YOUR BABY MONITOR LCD DISPLAY OF BABY MONITOR BASIC OPERATION MENU SETTINGS TROUBLESHOOTING PRODUCT SPECIFICATIONS GUARANTEE...
  • Page 3: Warnings And Safety Information

    WARNINGS AND SAFETY INFORMATION IMPORTANT Please read this user guide thoroughly before use. Your ORICOM Baby Monitor is designed to be an aid and should not be used as a substitute for responsible and proper adult supervision of a child.
  • Page 4: Battery Requirements

    If there is any sign of poisoning, immediately call emergency 000. • When your Baby Monitor is not in use, it is recom- mended that you disconnect it from the mains supply and remove the batteries.
  • Page 5: Getting Started

    Thank you for choosing this monitor from Oricom. Your Secure 500 Baby Monitor offers the best Digital Technology. INTERFERENCE FREE FREQUENCY DECT (Digital Enhanced Cordless Telecommunications) is the most widely used worldwide digital cordless technology, offering amazingly clear sound, long range and maximum voice security.
  • Page 6 Parent Unit cannot be used without batteries, even if it is placed in the charger pod. For the Baby Unit 1. In event of a power failure, your Baby Monitor can switch to battery power. It is therefore recommended that you insert non-rechargeable batteries in the Baby Unit.
  • Page 7: Wall Mounting The Baby Unit

    Wall mounting the Baby Unit Use the following wall mount diagram to locate and install the mounting pins/screws if you prefer to wall mount your base unit. The dimensions are shown in millimeters (mm). 58.00 GETTING STARTED 1. Insert screws into the wall through the wall mount. The recommended mounting screw size is diameter 3mm and length 20mm,the diameter of the screw head and the screw should not be greater than...
  • Page 8: Your Baby Monitor

    YOUR BABY MONITOR Baby unit (Sender) Night Light Press to switch Night Light on or off. Brightness Press to adjust the Night Light brightness (once Night Light is switched on). There are three levels. Page Press to page the Parent unit –...
  • Page 9: Back Of Baby Unit

    Use to plug in an external audio source, e.g. MP3 player so you can play your own choice of music to baby. Temperature sensor Power socket For connection to mains power. YOUR BABY MONITOR Underside Battery lock Child tamper proof lock for the battery compartment.
  • Page 10: Parent Unit

    YOUR BABY MONITOR Parent unit From the Parent unit you can listen to your baby and operate the Baby unit by remote control. Talk (on side of unit) Press to talk to your baby. Display Power saving backlight switches off 15 seconds after last button push.
  • Page 11 Back of Parent unit Charging light Indicates parent unit is charging. Power socket For connection to mains power. YOUR BABY MONITOR...
  • Page 12: Lcd Display Of Baby Monitor

    LCD DISPLAY OF BABY MONITOR Baby unit display icons Battery full (icon not displayed when using mains power). Battery half full. Battery low. Parent unit display icons Displayed when the Speaker is switched off. Night Light is on. Sound alert is on.
  • Page 13: Power On/Off

    Once you have set up your Baby Monitor, you will be able to hear the sounds in your baby's room through the Parent Unit. And also see the green and red sensor lights around the top of the Parent Unit rise and fall with the sound levels.
  • Page 14: Adjusting Volume

    BASIC OPERATION • Audio picked up by the baby unit microphone is depicted on the 7 Lights on the parent unit (4 green and 3 red). The more audio is picked up, the more Lights will be lit. When no audio is picked up, all 7 Lights will be off. •...
  • Page 15: Night Light

    Talk Back You can use the talk back feature to talk to your baby. Whilst using Talk Back you will not be able to hear your baby until you release the [Talk] key. • Press and hold [TALK] key on the Parent unit to speak to baby.
  • Page 16: Sound Alert

    (contact your local health authority to ensure you are aware of the current guidelines). Your Baby Monitor can show the current room temperature on the Baby Unit and the Parent Unit, and can even be set to alert you if the temperature falls outside of a defi...
  • Page 17: Record A Lullaby

    • Press [ ] key repeatedly to select different lullabies. • Press [ ] key to play. Parent Unit • Press [Menu] key and use [ ] key to scroll to "Lullaby". • Press [ ] key to confi rm. "Play?" is shown on the display. •...
  • Page 18: Delete A Recorded Lullaby

    BASIC OPERATION Delete a recorded lullaby 1. Press and hold [Rec]. After 2 seconds the display shows "Deleted". 2. Release [Rec]. • To avoid deleting a recorded message, press [ ] on the Baby unit to check whether the Own prompt is displayed.
  • Page 19: Charging The Battery

    If [ ] or [–] is not pressed within 4 seconds, the unit returns to idle mode. If you want to restore the factory default settings on the baby monitor, you will need to restore factory default setting on the Baby Unit or on the Parent Unit individually.
  • Page 20: Menu Settings

    MENU SETTINGS Note: All Menu setting operations are only available on the Parent unit. During setting, press [Menu] key to exit. Night Light Setting You can turn on or off the Night Light on the baby unit via the parent unit. 1.
  • Page 21: Sensitivity Setting

    Units. An alert will sound when the room temperature is raised or dropped out of the pre-set temperature range. Please note the baby monitor cannot manipulate the temperature in your baby’s room, it only provides a temperature reading.
  • Page 22: Timer Setting

    MENU SETTINGS Setting Temperature Range You can select your own minimum and maximum room temperatures. The minimum temperature can be anywhere between 10˚C and 19˚C and the maximum temperature anywhere between 22˚C and 30˚C. Note the default setting is 14˚C min. and 23˚C max. 1.
  • Page 23 Activate count up timer The timer can count up from 1 second to 99 hours 59 minutes. The TIMER icon [ ] is displayed along with the countup time. 1. In the Timer setting menu, Press [ ]. 2. Use [ ] or [ ] key to select "Count up". Press [ ]. 3.
  • Page 24 MENU SETTINGS Vibrate Alert Setting Vibrate alert is only available on the Parent Unit. You can turn on/off the vibrate alert through the menu. 1. Press [Menu], and use[ ] or [ ] key to select "Vibrate". The display is shown below: Vibrate 2.
  • Page 25: Troubleshooting

    Problem The red Power lights do not light on when you plug in. The green Link light on the Parent Unit is fl ashing and cannot hear the sounds from your baby's room. Can't hear your baby on the Parent Unit but the Link light is still glowing steadily.
  • Page 26: Product Specifications

    PRODUCT SPECIFICATIONS Feature Operating Frequency Range Power supply (Baby Unit/Parent Unit) Non rechargeable batteries, baby unit (not included in the package contents) Transmitting power Re-chargeable batteries (Parent Unit) Operating time with charged battery Specifi cations 1.8 GHz Up to 300 m under optimum conditions. The range is reduced in buildings (up to 50 m) as a result of walls, doors etc.
  • Page 27: Warranty (Australia)

    The Warranty Card is located in the package. (b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User...
  • Page 28 Australia Oricom International Pty Ltd Locked Bag 658 South Windsor, NSW 2756 Customer Support Email: support@oricom.com.au Web: www.oricom.com.au Phone: 1300 889 785 Fax: (02) 4574 8898...
