Oricom 200 User Manual

Oricom baby monitor user guide
Hide thumbs Also See for 200:
Table of Contents

Advertisement

Quick Links

See also: Manual
Baby Monitor
Secure 200
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 200 and is the answer not in the manual?

Questions and answers

Related Manuals for Oricom 200

Summary of Contents for Oricom 200

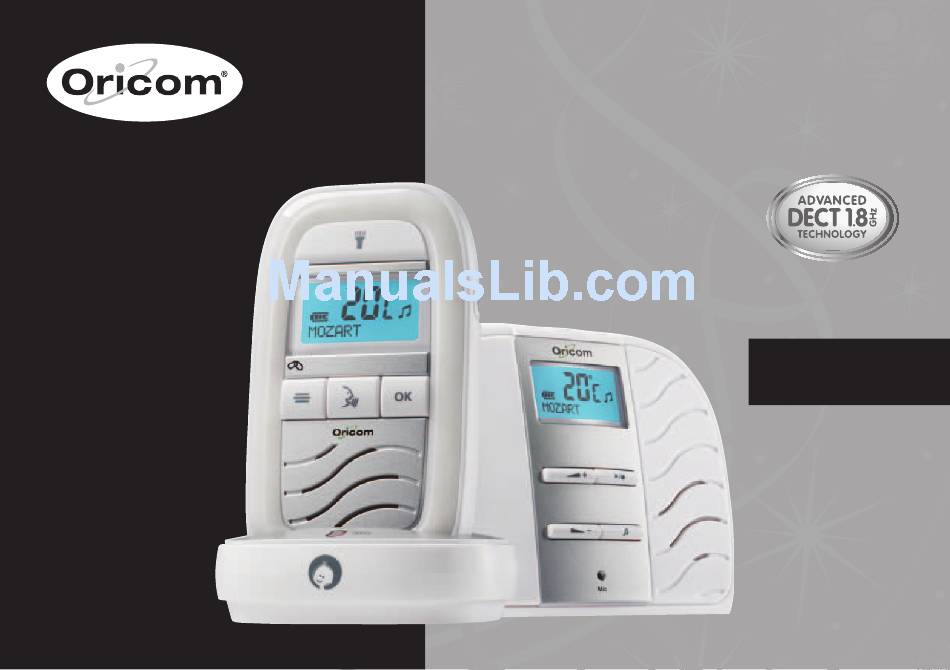

  • Page 1 Baby Monitor Secure 200 User Guide...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARNINGS AND SAFETY INFORMATION GETTING STARTED YOUR BABY MONITOR LCD DISPLAY OF BABY MONITOR BASIC OPERATION MENU SETTINGS TROUBLESHOOTING PRODUCT SPECIFICATIONS GUARANTEE...

  • Page 3: Warnings And Safety Information

    WARNINGS AND SAFETY INFORMATION IMPORTANT Please read this user guide thoroughly before use. Your ORICOM Baby Monitor is designed to be an aid and should not be used as a substitute for responsible and proper adult supervision of a child.

  • Page 4: Battery Requirements

    If there is any sign of poisoning, immediately call emergency 000. • When your Baby Monitor is not in use, it is recom- mended that you disconnect it from the mains supply and remove the batteries.

  • Page 5: Getting Started

    Thank you for choosing this monitor from Oricom. Your Secure 200 Baby Monitor offers the best Digital Technology. INTERFERENCE FREE FREQUENCY DECT (Digital Enhanced Cordless Telecommunications) is the most widely used worldwide digital cordless technology, offering amazingly clear sound, long range and maximum voice security.
  • Page 6 Parent Unit cannot be used without batteries, even if it is placed in the charger pod. For the Baby Unit 1. In event of a power failure, your Baby Monitor can switch to battery power. It is therefore recommended that you insert non-rechargeable batteries in the Baby Unit.

  • Page 7: Baby Unit (Sender)

    Useful to call for assistance or to locate a missing Parent Unit. 6 Display Indicates the current settings of your Baby Monitor, including: Battery level, Date and Time, Temperature, Lullaby on/off, Lullaby melody. 7 Play/Stop key (Lullabies) Press to start or stop the lullaby music.

  • Page 8: Parent Unit (Receiver)

    YOUR BABY MONITOR Left view of baby unit 11 DC 6V input Connecting to Power Adaptor. Parent unit (Receiver) 12 Battery Cover Rechargeable batteries. 13 Belt Clip 14 Volume Up/Down Keys Adjust the volume at which you hear the sounds in your Baby's room, and scroll through the menu during setting.

  • Page 9: Charger Pod

    16 Menu key, [OK] key Press to adjust the features of your Baby Monitor. Press [ ] key to enter the menu options, use [ keys to scroll through the menu choices and [OK] key to select. Press [ ] key to exit.

  • Page 10: Lcd Display Of Baby Monitor

    LCD DISPLAY OF BABY MONITOR Baby Unit 1. Battery level indicator 2. Numbers/Characters indicator 3. Temperature indicator 4. Lullaby on/off indicator Parent Unit 1. Sensitivity indicator 2. Night light indicator 3. Battery level indicator 4. Numbers/Characters indicator 5. Temperature indicator 6.

  • Page 11: Power On/Off

    Once you have set up your Baby Monitor, you will be able to hear the sounds in your baby's room through the Parent Unit. And also see the green and red sensor lights around the top of the Parent Unit rise and fall with the sound levels.

  • Page 12: Night Light

    BASIC OPERATION Baby alert! You can set your Parent Unit to give an extra warning "beep" when the noise levels in your baby's room is high and the red lights on the sound sensor are lit. This is particularly useful if the volume of your Parent Unit is turned down and you are just using the sensor lights to monitor the noise levels in your baby's room.

  • Page 13: Time For A Feed

    Time for a Feed If your baby is in a routine of regular feeding intervals, you may wish to set your Baby Monitor to alert you when your baby's feeds are due. You have the choice to either set an...

  • Page 14: Talk To Your Baby

    Customize your Baby Monitor to your Baby Some babies are louder than others! You can customize the sound sensitivity of your Baby Monitor to suit your baby. Set the sensitivity "High" for a quiet sleeper with a soft cry and set to "Low" sensitivity if they tend to make noise when sleeping or can make quite loud noises before they are truly crying.

  • Page 15: Charging The Battery

    Charging the Battery The Parent Unit will work for up to 10 hours with fully charged batteries. If a battery low alert tone is heard and the battery icon on the Parent Unit's display is fl ashing, you should put the parent unit on the Charger Pod to recharge the batteries.

  • Page 16: Menu Settings

    MENU SETTINGS Note: All Menu settings operations are only available on the Parent unit. During setting, press [ ] key to exit. Night light Setting You can turn on or off the night light on the baby unit via the parent unit. 1.

  • Page 17: Temperature Setting

    19°C to 26°C. If selected an alert on the parent unit will sound and the display will fl ash if the room temperature falls outside the selected range. Please note the baby monitor cannot manipulate the temperature in your baby’s room, it only provides a temperature reading.

  • Page 18: Clock Setting

    Clock Setting You can set the current day and time on the Display of the Parent Unit. If you have unplugged your Baby Monitor from the power supply, you will need to reset the Clock the next time you use it.
  • Page 19 Feed Time Setting If your baby is in a routine of regular feeding intervals, you may wish to set your Baby Monitor to alert you when your MENU SETTINGS baby's feeds are due. You have the choice to either set an...

  • Page 20: Language Setting

    MENU SETTINGS Set the fi rst or next feed time 1. Press [OK] key, "Set Time" is shown on the display. 2. Press [ OK ] key, then follow the procedures in the Set the time of Clock Setting to set the hour and minute. Set the interval for following feeds 1.

  • Page 21: Troubleshooting

    Problem The red power lights do not turn on when you plug in the power. The green Link light on the Parent Unit is fl ashing and cannot hear the sounds from your baby's room. Can't hear your baby on the Parent Unit but the Link light is still glowing steadily.

  • Page 22: Product Specifications

    (up to 50m) as a result of walls, doors etc. Input: 240 V 50Hz Output: 6 V , 200 mA, Type: AA, 1.5 V Alkaline Average: 10 mW Maximum: 250 mW Input: 240 V , 50Hz Output: 6 V , 300 mA Type: AAA, 1.2 V, 800 mAh NiMH...

  • Page 23: Warranty (Australia)

    The Warranty Card is located in the package. (b) Exclusion and limitation of liability. Oricom will not be in breach of a warranty or condition expressly stated in this User Guide or the Warranty Card or implied by the Trade Practices...
  • Page 24 Australia Oricom International Pty Ltd Locked Bag 658 South Windsor, NSW 2756 Customer Support Email: support@oricom.com.au Web: www.oricom.com.au Phone: 1300 889 785 Fax: (02) 4574 8898...
