INST ALLA TION GUIDE
XR6 COMMAND PROCESSOR™ PANEL and
XR10 COMMAND PROCESSOR™ PANEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the COMMAND PROCESSOR XR6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DMP Electronics COMMAND PROCESSOR XR6

Summary of Contents for DMP Electronics COMMAND PROCESSOR XR6

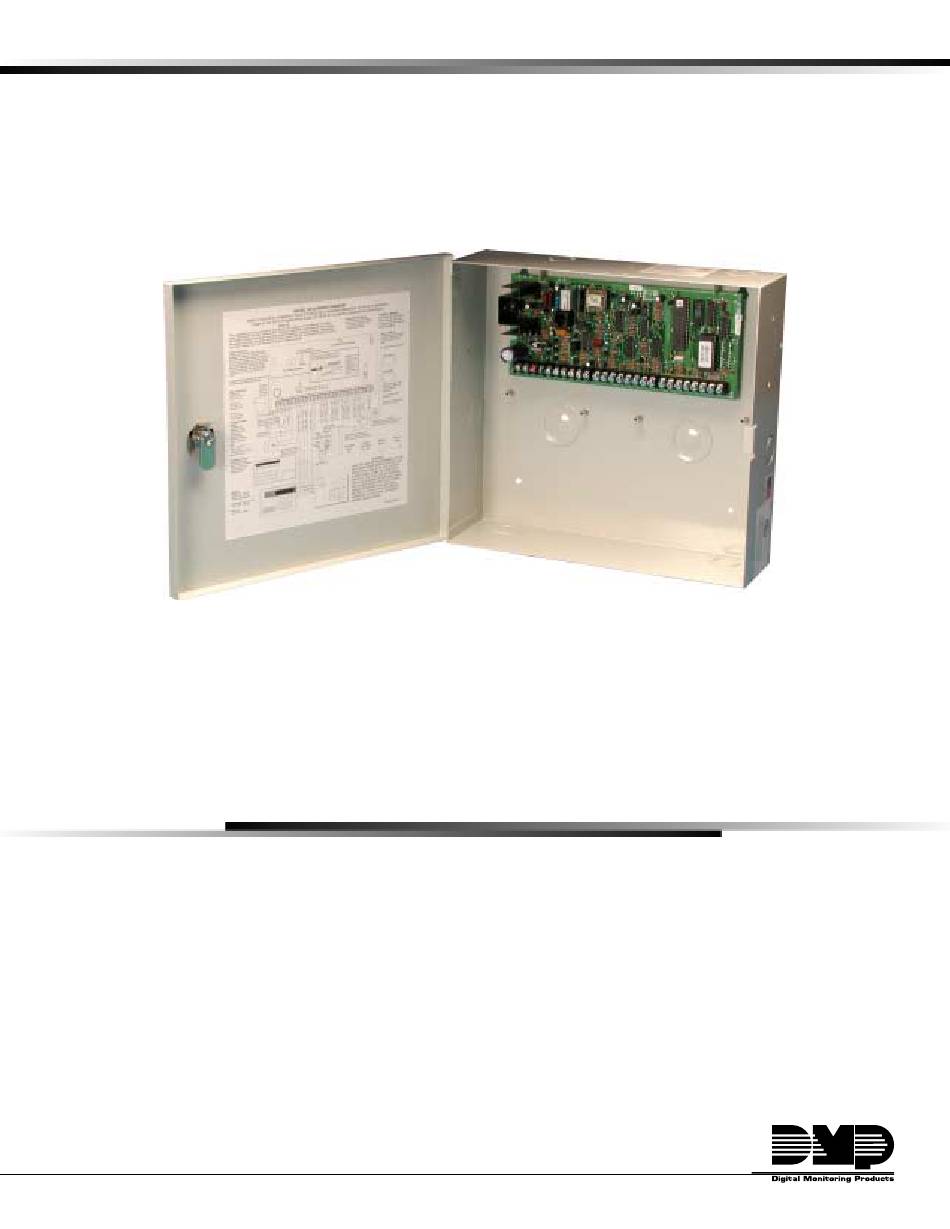

  • Page 1 INST ALLA TION GUIDE XR6 COMMAND PROCESSOR™ PANEL and XR10 COMMAND PROCESSOR™ PANEL...
  • Page 2 MODEL XR6/XR10 COMMAND PROCESSOR INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer's instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section Page Panel Specifications ................1 Power Supply ..............1 Communication .............. 1 Panel Zones ..............1 Keypads ................ 1 Outputs ................. 1 Enclosure Specifications ........... 1 Introduction .................... 2 Description ..............2 System Configurations ............. 2 Before you Begin ............
  • Page 4 TABLE OF CONTENTS Section Page Powered Zone for 2-Wire Smoke Detectors ........11 11.1 Terminals 25 and 26 ............11 Annunciator Outputs ................12 12.1 Description ..............12 12.2 Harness Wiring .............. 12 12.3 Model 860 Relay Module ..........12 Telephone RJ Connector ..............
  • Page 5 TABLE OF CONTENTS Section Page UNIVERSAL UL and NFPA FIRE ALARM SPECIFICATIONS ....17 20.1 Introduction ..............17 20.2 Wiring ................17 20.3 Police station phone number ..........17 20.4 System maintenance ............17 20.5 Audible alarm ............... 17 20.6 Fire zone programming ...........
  • Page 6 This page left intentionally blank.

  • Page 7: Panel Specifications

    INTRODUCTION Panel Specifications Power Supply Transformer Input: 16.5 VAC 40VA (Models 320 wire-in or 321 plug-in) 16.5 VAC 20VA (Model 324 plug-in) Standby Battery: 12 VDC 7.0Ah (40VA transformer charges up to 2 batteries) Auxiliary Output: 12 VDC at 500mA Bell Output: 12 VDC at 1.5 Amps with 40VA transformer, 600mA with 20VA transformer Smoke Detector Output: 12 VDC at 100mA...

  • Page 8: Introduction

    INTRODUCTION Introduction Description The DMP XR6/XR10 Command Processor panels are powerful 12 VDC burglary and fire communicator panels with ® battery backup. The XR10 provide nine on-board burglary zones and one on-board 12 VDC Class B powered fire zone. The XR6 provides five burglary and one fire zone. The fire zone has a reset capability to provide for 2-wire smoke detectors, relays, or other latching devices.

  • Page 9: System Components

    INTRODUCTION System Components Description The DMP system is made up of an alarm panel with built in communicator, an enclosure, a 16.5 VAC transformer, and a 12 VDC 7.0 Ah battery. You can add Security Command keypads to the system and can also connect auxiliary devices to the panel's open collector outputs to expand the basic system.

  • Page 10: Xr6/Xr10 Wiring Diagram

    INTRODUCTION XR6/XR10 Wiring Diagram The Class 2, Class 3, and power-limited fire alarm circuits are installed using CL3, CL3R, or CL3P, or substitute cable permitted by the National Electric code, ANSI/ NFPA 70, and the Class 2, Class 3, and power-limited fire alarm circuit conductors extending beyond the cable jacket are separated a minimum of 1/4 in.

  • Page 11: Installation

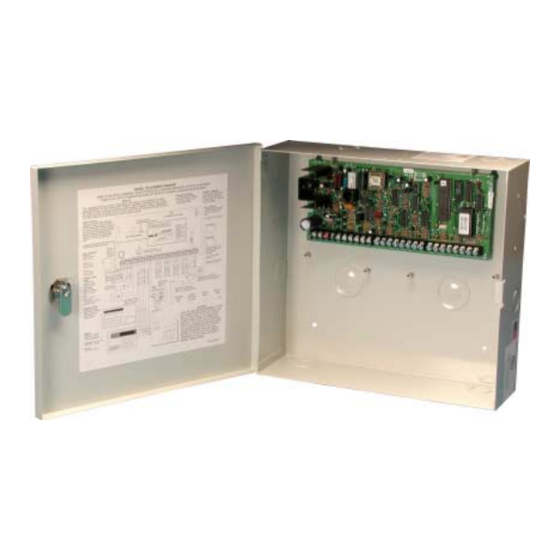

    INST ALLA TION Installation Mounting the Enclosure The metal enclosure must be mounted in a secure, dry place to protect the panel from damage due to tampering or the elements. It is not necessary to remove the PCB when installing the enclosure. The PCB may be installed in the standard 340 enclosure, or the optional 349 enclosure, or the optional 350A Grade A enclosure.

  • Page 12: Mounting Keypads

    INST ALLA TION Mounting Keypads Security Command keypads have removable covers that allow you to easily mount the base to a wall or other flat surface using the screw holes provided on each corner. For mounting keypads on solid walls, or for applications where conduit is required, use a DMP 695, 696, 775, or 776 keypad conduit backbox.

  • Page 13: Secondary Power Supply

    INST ALLA TION Secondary Power Supply Battery Terminals 3 and 4 Connect the black battery lead to terminal 4 on the panel and to the negative terminal of the battery. The negative terminal connects to the enclosure ground internally through the panel circuit board. Connect the red battery lead to terminal 3 on the panel and to the positive terminal of the battery.

  • Page 14: 6.7 Xr6/Xr10 Standby Battery Calculations

    INST ALLA TION 6.7 XR6/XR10 Standby Battery Calculations Standby Current Alarm Current Command Processor Panel 50mA ______ mA 50mA ______ mA Active Zones 1-9 Qty _____ x 1.6mA ______ mA Qty _____ x *2mA ______ mA Active Zone 10 (zone 6 on XR6) 4mA ______ mA 30mA ______ mA 2-Wire Smoke Detectors...

  • Page 15: Bell Output

    INST ALLA TION Bell Output Terminals 5 and 6 Nominal 12 VDC is supplied by terminal 5 on the panel to power alarm bells or horns. The output is rated for a maximum of 1.5 Amps with a 40VA transformer and 600mA with a 20VA transformer. This output can be steady, pulsed, or Temporal Code 3 depending upon the Bell Action specified in Output Options programming.

  • Page 16: Burglary Zones

    INST ALLA TION Burglary Zones 10.1 Description The XR10 terminals 12 to 24 are the nine burglary zones. For programming purposes, the zone numbers are 1 to 9. The zone configurations on terminals 12 to 24 are described below. The XR6 terminals 12 to 18 are the five burglary zones with terminal 16 providing the ground for zone 5.
  • Page 17 INST ALLA TION Powered Zone for 2-Wire Smoke Detectors 11.1 Terminals 25 and 26 A resettable 2-wire Class B powered zone is provided on terminals 25 (positive) and 26 (negative) of the panel. For programming purposes, the zone number is 10 on the XR10 and zone 6 on the XR6. The zone uses a Model 309, 3.3k Ohm EOL resistor (provided with the panel) and has an operating range of 8.8 to 14.2 VDC.
  • Page 18 INST ALLA TION Annunciator Outputs 12.1 Description The four annunciator outputs can be programmed to indicate the activity of the panel's zones or conditions occurring on the system. Annunciator outputs do not provide a voltage but instead switch to ground voltage from another source.
  • Page 19 INST ALLA TION 13.2 FCC Registration The panel complies with FCC part 68 and is registered with the FCC. Registration number: CCKUSA - 18660 - AL - R Ringer Equivalence: 1.1B 13.3 Notification Registered terminal equipment must not be repaired by the user. In case of trouble, the device must be immediately unplugged from the telephone jack.
  • Page 20 COMPLIANCE UNIVERSAL UL BURGLARY SPECIFICATIONS 15.1 Introduction The programming and installation specifications contained in this section must be completed when installing the XR6/ XR10 in accordance with any of the UL burglary standards. Additional specifications may be required by a particular standard.
  • Page 21 COMPLIANCE UL 1610 and 1076 SPECIFICATIONS Central-Station and Proprietary Burglar-Alarm Units 17.1 Opening/Closing reports The Opening/Closing Reports option must be programmed as YES. See the XR6/XR10 Programming Guide (LT-0230). 17.2 Automatic bell test This option must be programmed as YES. See the XR6/XR10 Programming Guide (LT-0230). 17.3 Proprietary dialer The Model XR6/XR10 provides Grade A proprietary service when configured as a digital dialer.
  • Page 22 COMPLIANCE UL 365 and 609 SPECIFICATIONS Police Station Connected and Local Burglar Alarm Units and Systems 19.1 Entry delay The maximum entry delay used must not be more than 60 seconds when using the Model 349A Grade A housing. See the XR6/XR10 Programming Guide (LT-0230).
  • Page 23 COMPLIANCE UNIVERSAL UL and NFPA FIRE ALARM SPECIFICATIONS 20.1 Introduction The programming and installation specifications contained in this section must be completed when installing the Model XR6/XR10 in accordance with any of the UL or NFPA fire standards. Additional specifications may be required by a particular standard.
  • Page 24 WIRING DIAGRAMS 23.1 Multiple Indicating Circuit Module Installation XR6/XR10 Installation Guide Digital Monitoring Products...
  • Page 25 DCX Systems RJ31X Telco Jack STU-2Z MAIN BACKUP 1 2 3 4 5 6 Telephone Connections Use EOL Termination Assembly P/N 21024-0003 (590 W 1/2 W Resistor). Panel Auxiliary Power - Terminal 7 = Supervised Circuit Panel Common - Terminal 10 Supervisory Zone Input - Terminal 13 Note 1 Note 1...
  • Page 26 24.1 Troubleshooting This section of the Installation Guide provides troubleshooting information for use when installing or servicing an XR6/ XR10 system. Problem Possible Cause Solution Remove the J16 reset jumper. J16 reset jumper is installed. Check for broken or shorted wires Open or short on the green data Security Command keypads between the keypad and panel.
