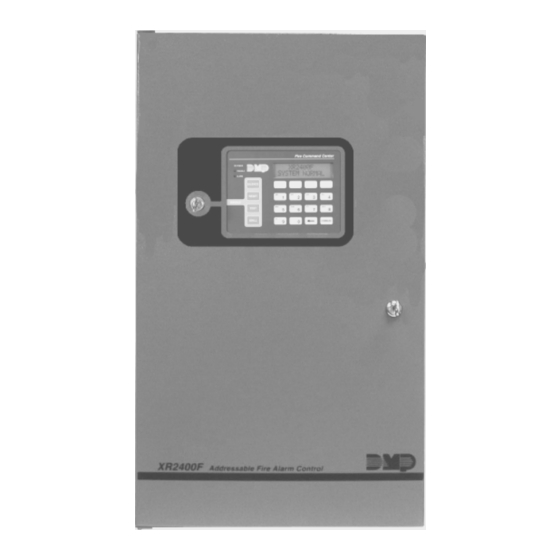

- Page 1 XR2400F Addressable Fire Alarm Control Panel Installation Guide 238 Zone Fire Alarm Control Panel with Built-in Communicator 2500 N. Partnership Boulevard Springfield, MO 65803 www.dmpnet.com LT-0554 (12/00)
- Page 2 MODEL XR2400F Addressable Fire Alarm Control Panel INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer's instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.
-
Page 3: Table Of Contents
Earth ground from the XR2400F panel ........5 Secondary Power Supply ................5 Description ..................5 Battery Connection to XR2400F Command Processor panel ..5 Battery Connection to the 504-24 Power Supply ......5 Two 866 NAC Modules ..................6 Description .................. - Page 4 Fire Command Center .................. 13 11.1 Description .................. 13 11.2 Connection .................. 13 11.3 Remote Fire Command Center ........... 13 XR2400F Command Processor Panel ............14 12.1 Description .................. 14 12.2 Connection .................. 14 XR2400F Product Specifications ..............15 13.1 Power supply ................
- Page 5 18.1 Description .................. 22 18.2 Terminal 7 - RED ................. 22 18.3 Terminal 8 - YELLOW ..............22 18.4 Terminal 9 - GREEN ..............22 18.5 Terminal 10 - BLACK ..............22 Smoke Detector Output ................22 19.1 Terminals 11 and 12 ..............22 19.2 Current rating ................
- Page 6 27.3 Closing wait ................. 28 27.4 Proprietary dialer ................. 28 27.5 AA Network Communication ............28 UL 1635 SPECIFICATIONS ................29 28.1 System trouble display ..............29 28.2 Digital Dialer telephone number ..........29 28.3 Entry delay .................. 29 28.4 Exit delay ..................
- Page 7 CALIFORNIA STATE FIRE MARSHAL SPECIFICATIONS ......32 33.1 Bell output definition..............32 System Wiring Diagrams ................33 34.1 Multiple indicating circuit modules ..........33 34.2 Multiple indicating circuit modules for zoned annunciation ..34 34.3 Dual Style D Zone Module installation ........35 34.4 Remote Station reversing relay connection ........
-
Page 8: Introduction
How to use this guide To locate information about the installation of the XR2400F, go to the Table of Contents at the front of this guide. Find the subject heading that best describes the information you need and turn to the section number shown to the right of the heading. -
Page 9: Mounting
Mounting the enclosure The XR2400F must be mounted in a secure, dry location to protect the unit from damage due to tampering and the elements. The enclosure can be either flush mounted or surface mounted and includes a hinged door with lock. -
Page 10: Wiring Diagram
Installation Wiring diagram The XR2400F system below shows the layout of the components. The wires shown in this guide have been factory installed and connected. The dashed lines represent wires that run underneath a component. Detailed wiring diagrams for each supplied component appear in following sections of this guide. -
Page 11: Ac Connection
Never share the Fire Alarm Control Panel circuit with any other equipment. The XR2400F comes supplied with two transformers: the 16.5 VAC 100 VA transformer and the 28 VAC 175 VA transformer. The 28 VAC and 16.5 VAC transformers' white leads and black leads must be connected together respectively. -
Page 12: Vac Transformer
The XR2400F system includes pre-wired cables for connecting a 24 VDC battery to the 504-24 power supply and a 12 VDC battery to the XR2400F panel. For 24 VDC battery operation to the 504-24, connect two 12 VDC sealed lead-acid batteries in series using the included series connecting strap (See Figure 4). Observe polarity when connecting all batteries. -
Page 13: Two 866 Nac Modules
Each 866 module is pre-installed on the right side of the enclosure wall using the standard three-hole configuration. The modules are factory pre-wired to each other, the 504-24, and the XR2400F panel. Refer to figure below and to Figure 2: XR2400F System for wiring connections. -
Page 14: Notification Appliances
Installation Notification Appliances The following table indicates the approved notification appliances that can be used with the XR2400F system. - i t l a i l - i t l a i l c r i t i u c r i... -
Page 15: 462N Lx-Bus™ Expansion Card
1. Remove AC and battery power from the XR2400F panel before installing the 462N card. 2. Align the 50 pin connector of the 462N with the J6 connector on the XR2400F panel. 3. Press the 462N onto the J6 connector while applying even pressure to both sides. -
Page 16: Telephone Rj Connector
RJ31X or RJ38X phone jacks and the 893's J4 connector (for main line) and J5 (for backup line). Set the 3-pin headers labeled J11 and J12 on the XR2400F to DD for digital dialer, Contact ID, or Modem IIe operation. -
Page 17: Jumper Settings
For multiplex operation both jumpers (J1 and J2) must be set to MPX. Also, jumpers J11 and J12 on the panel must be set to MPX. See XR2400F Command Processor Panel Connection. The XR2400F is preset at the factory for Digital Dialer. The Main modular jack (J4) is used for the primary dialer or multiplex line. The Backup modular jack (J5) is used for the secondary digital dialer line. -
Page 18: 504-24 Condition Chart
Amp/hour requirement. The 866 NACs receive power for internal operation from the XR2400F panel and do not enter in this calculation themselves. 1. Add all standby current values including the power supply operating current. -
Page 19: Interconnect Wiring Harness
866 Module #2 terminal 8 (Bell Trouble) 504-24 Battery Trouble terminal Common Black 866 Module #2 terminal 8 (Bell Trouble) 866 Module #1 terminal 8 (Bell Trouble) Table 4: Interconnect Wiring Harness XR2400F Installation Guide www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803... -
Page 20: Fire Command Center
11.2 Connection The display and keyboard are factory pre-wired to terminals 7, 8, 9, and 10 of the XR2400F panel. For standby battery calculations, the display draws 100mA of current in normal standby or alarm condition. See Panel Standby Battery Calculations. The keyswitch has been pre-wired to the membrane keyboard. -
Page 21: Xr2400F Command Processor Panel
12.3 Relays The XR2400F is shipped with two Model 305 Relays pre-installed to allow zone alarm control for the 866 NAC Modules. When a fire alarm occurs the bell output is factory programmed to turn on and provide power to the contacts of the relays. -
Page 22: Xr2400F Product Specifications
Two 3.3k Ohm EOL Class B (Style A) powered zone with reset (zones 9 and 10) 13.4 Remote Annunciator You can connect up to seven of the following supervised keypads or expanders to the XR2400F keypad data bus: • Alphanumeric Fire Command Centers or keypads •... -
Page 23: Expansion
14.2 Output (relay) expansion In addition to the two SPDT relays and eight voltage outputs on board the XR2400F, you can also connect up to 25 Model 716 Output Expanders to each card's LX-Bus™. These modules can provide an additional 200 programmable SPDT relays. -
Page 24: Accessory Devices
Installation Accessory Devices 15.1 Wiring diagram The XR2400F system below shows some of the accessory modules you can connect for use in various applications. A brief description of each module appears in section Accessory Devices. DD, MPX Form C Relays... -
Page 25: Accessory Devices
® y t i y t i ® a i l n i t l a t n i l XR2400F Installation Guide www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803... -
Page 26: Mounting Keypads And Zone Expanders
Up to 100 zones or relays are available on each LX-Bus. The XR2400F supports two LX-Bus' to provide up to 200 class B style 3.5 alarm points. You can connect up to 100 Model 521LX or 521LXT smoke detectors directly to the 4-wire cable. -
Page 27: Battery Information
16.1 Battery only restart When powering up the XR2400F panel without AC power, it is necessary to short across the CR7 leads to pull in the battery cutoff relay. The leads need a momentary short only. Once the relay has pulled in, the battery voltage holds it in that condition. - Page 28 Installation STANDBY BATTERY POWER CALCULATIONS Standby Current Alarm Current XR2400F Control Panel 80mA ______ mA 80mA ______ mA Relay Outputs 1-2 (ON) Qty _____ x 30mA ______ Qty _____ x 30mA ______ Voltage Outputs 3-10 (ON) Qty _____ x 5mA ______...
-
Page 29: Bell Output
18.1 Description Terminals 7, 8, 9, and 10 of the XR2400F panel are for the keypad data bus. In addition to Fire Command Centers and Remote Fire Command Centers, you can also connect any combination of up to eight zone expanders, 5845LX Glassbreak detectors, 6155LX PIRs, and DS775LX PIRs to the data bus. -
Page 30: Powered Zones For 2-Wire Smoke Detectors
Table 5: Compatible 2-wire smoke detectors XR2400F Installation Guide 2500 N. Partnership Boulevard Springfield, MO 65803 www.dmpnet.com... -
Page 31: Protection Zones
Protection Zones 21.1 Description Zones 1 to 8 on the XR2400F panel (terminals 13 to 24) are all grounded burglary zones. For programming purposes, the zone numbers are 1 through 8. Terminals 13 to 24 provide connection as listed below. -
Page 32: Dry Contact Relay Outputs
12 VDC Voltage Outputs 3 to 10 23.1 Description The XR2400F also provides eight 12 VDC, 50mA resistive voltage outputs on J2 to power external relays or other devices. The voltage outputs are operated from the same functions as Outputs 1 and 2. -
Page 33: Reset Jumper J16
The reset header is located just above the terminal strip on the right side of the circuit board and is used to reset the microprocessor of the XR2400F. To reset the panel when first installing the system, install the reset jumper before applying power to the panel. -
Page 34: Universal Ul Burglary Specifications
The Bell Cutoff time cannot be less than five minutes. See section 8.2 of the XR200 and XR2400F Programming Guide (LT-0196). 26.2 Entry delay The maximum entry delay used must not be more than 45 seconds. See section 7.3 of the XR200 and XR2400F Programming Guide (LT-0196). 26.3 Exit delay The maximum exit delay used must not be more than 60 seconds. -
Page 35: Ul 1610 And 1076 Specifications
90. This may be increased to 180 by setting the SNRM option to NO in the SCS-1 Receiver system. This is to allow any signal from a XR2400F panel to be transmitted to the receiver within 90 seconds. - Page 36 Both programmed telephone numbers must begin with a D or P. See sections 3.17 and 3.18 of the XR200 and XR2400F Programming Guide (LT-0196). 28.3 Entry delay The maximum entry delay used must not be more than 60 seconds. See section 7.3 of the XR200 and XR2400F Programming Guide (LT-0196). 28.4 Exit delay The maximum exit delay used must not be more than 60 seconds.
- Page 37 Model XR2400F. See section Dual Style D Zone Module Installation in System Wiring Diagrams and the 869 Installation Guide (LT-0186) for wiring information. 30.12 Video Option The Video option must be selected as NO when any fire protection is connected to the XR2400F. See section 7.9 in the Programming Guide (LT-0196). 30.13 UL Listed Receivers UL has verified operation with the DMP SCS-1 (SDLC), Sur-Gard SG-HLR2-DG (CID, M2E), FBII CP220PB (CID), Osborne-Hoffman Quick-Alert (CID, M2E), and Radionics D6500 (M2E) receivers.
- Page 38 SCS-1 Receiver System must not exceed 90. This may be increased to 180 by setting the SNRM option to NO in the SCS-1 Receiver system. This is to allow any signal from a XR2400F to be transmitted to the receiver within 90 seconds.
-
Page 39: California State Fire Marshal Specifications
33.1 Bell output definition The Bell Output of the XR2400F panel must be programmed to operate steady on burglary alarms and pulsed, temporal, or California School Code on fire alarms. See sections 8.4A and 8.4B of the Programming Guide (LT- 0196). -
Page 40: Multiple Indicating Circuit Modules
To additional twenty-three 866 Indicating Circuit Modules. Up to a maximum of twenty-five 866 modules on the XR200 panel. All modules must be installed in a 340FC, 349, or 350 enclosure connected by no more than 20 feet of conduit. DD, MPX Selection Notification Circuit Module... -
Page 41: System Wiring Diagrams
5 Bell Power Input - Circuit Module can be jumpered together to 6 Bell A Output + supply bell power from the XR2400F panel. 7 Bell A Output - 8 Bell A Output + A Maximum of 1.5 Amps at 12 VDC is... -
Page 42: Dual Style D Zone Module Installation
ZONE B Zone B Heat detectors, manual pull 12 VDC Supply stations, or any other UL listed 25mA Standby Current shorting device. 75mA Alarm Current Unlimited number of units. XR2400F Installation Guide 2500 N. Partnership Boulevard Springfield, MO 65803 www.dmpnet.com... -
Page 43: Remote Station Reversing Relay Connection
Reversing Relay Module Radionics Model D127 All modules must be installed in 12 VDC Supply a listed enclosure connected by 5mA Standby no more than 20 feet of conduit. 55mA Alarm XR2400F Installation Guide www.dmpnet.com 2500 N. Partnership Boulevard Springfield, MO 65803... -
Page 44: Supervised Remote Relay
DD, MPX Selection Lithium Battery Phone Jack Connector Tamper Header Answering Machine Bypass Relay DPDT Relay Output Header J2 Use Model 305 All outputs must be connected Use Model ASRB-1 from Advanced Signaling. to devices located within the same room as the control panel. 30mA coil operating current at 12 VDC. -
Page 45: Cellular Backup Installation For Derived Channel Burglary
CELLULAR ANTENNA AUXILIARY POWER SUPPLY CELLULAR DATA CELLULAR INTERFACE TRANSCEIVER The Secure-Comª Cellular System must be connected to a separate power supply. Only for supplementary use. DD, MPX Selection Lithium Battery Phone Jack Connector DCX Systems RJ31X Telco Jack STU-2Z Tamper Header 1 2 3 4 5 6 Answering Machine... -
Page 46: Lx-Bus™ Module Connection
8 Mon. RTN 00 to 99. A Supervisory Connect to panel BELL RELAY TENS ONES Supervisory zone zone must be programmed Bell Ring Style ADDRESS into the XR2400F to prop- Power Supply TENS ONES SUPERVISORY erly supervise Monitor LED ADDRESS each module. -
Page 47: Second Lx-Bus With Auxiliary Power Supply
5 Bell Power Input - Circuit Module can be jumpered together to 6 Bell A Output + supply bell power from the XR2400F panel. 7 Bell A Output - 8 Bell A Output + A Maximum of 1.5 Amps at 12 VDC is... -
Page 48: Operating Instructions
System Wiring Diagrams OPERATING INSTRUCTIONS XR2400F Addressable Fire Alarm Control Panel NORMAL STANDBY CONDITION When the system is in the normal standby condition, the display shows either the time of day or a blank display. ALARM CONDITION When the system is in an alarm condition, the display shows the alarmed zone name(s) followed by an alarm display. - Page 49 2500 N. Partnership Boulevard Springfield, MO 65803 800-641-4282...
