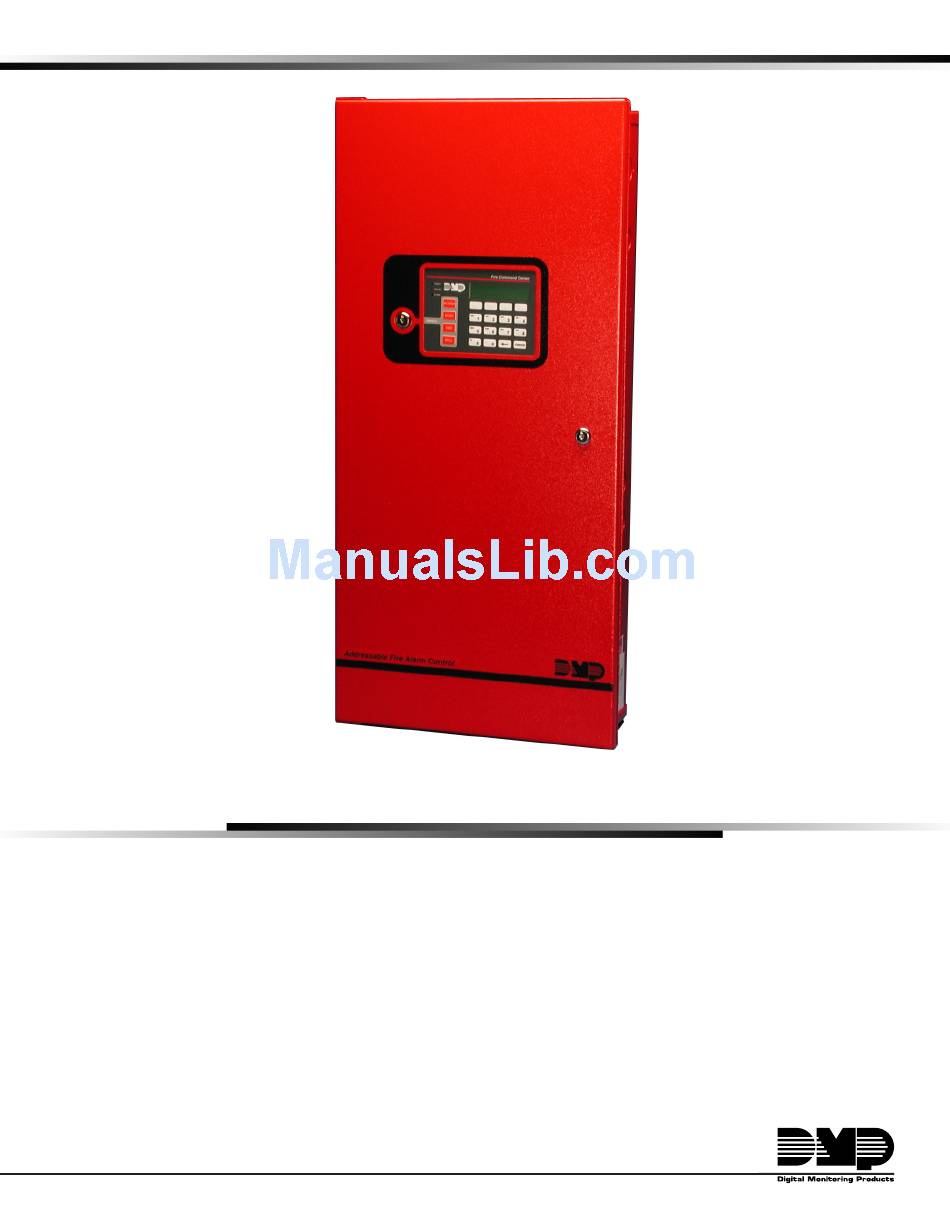

- Page 1 Inst alla tIon GuIde XR2500F addRessaBle FIRe alaRM ContRol Panel...
-
Page 2: Installation Guide
MODEL XR2500F COMMAND PROCESSOR INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class A computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. -
Page 3: Table Of Contents
t aBle oF Contents Introduction Overview ...................... 1 System Components ..................1 Power Specifications ..................1 Communication ..................... 1 Panel Zones ....................1 Keypad Bus ....................1 LX-Bus™ ....................... 2 Outputs ......................2 Relays ......................2 1.10 Zone Reference ..................... 2 1.11 Compliance Instructions ................. - Page 4 t aBle oF Contents Accessory Devices 10.1 Wiring Diagram ....................13 10.2 Lightning Protection ..................13 10.3 Accessory Devices ..................14 10.4 Mounting Keypads and Zone Expansion Modules ..........15 10.5 Connecting LX-Bus and Keypad Bus Devices ...........15 Battery Information 11.1 Battery Only Restart ..................16 11.2 Battery Replacement Period................16 11.3...
- Page 5 t aBle oF Contents J1 Ethernet Connector 22.1 Description ......................27 22.2 Ethernet LEDs ....................27 Reset and Tamper Headers 23.1 J16 Reset Header ..................27 23.2 J4 Tamper Header ..................27 Listed Compliance Specifications 24.1 Introduction ....................28 Universal UL Burglary Specifications 25.1 Introduction ....................28 25.2 Wiring......................28 25.3...
- Page 6 t aBle oF Contents Holdup Alarm Units ANSI/UL 636 29.1 ANSI/UL 1610 Required ................32 29.2 1100X Wireless Receiver ................32 29.3 Wireless Supervision Time ................32 29.4 LED Display ....................32 29.5 Jamming Detection ..................32 29.6 Local Alarm ....................32 29.7 Message to Transmit ..................32 29.8 Wireless Audible Annunciation Option ............32 Digital Burglar Alarm Communicator System Units...
- Page 7 t aBle oF Contents Control Units for Fire-Protective Signaling Systems ANSI/UL 864, NFPA 72 35.1 Power Supply ....................37 35.2 Zone Restoral Reports ...................37 35.3 Power Fail Delay ...................37 35.4 Sprinkler Supervisory ..................37 35.5 DACT Systems ....................37 35.7 Local Protective Signaling Systems ..............37 35.8 Remote Station Protective Signaling Systems ..........37 35.9...
- Page 8 This page intentionally left blank Digital Monitoring Products XR2500F Installation Guide...
-
Page 9: Overview
IntRoduCtIon Introduction Overview The DMP XR2500F Addressable Fire Alarm Control Panel (FACP) is an expandable 24 VDC Fire Alarm Control with built-in DACT and LCD Fire Command Center keyboard with membrane keyswitch. A complete system can provide: • 574 programmable inputs and outputs for commercial and industrial fire alarm service. • Eight on-board grounded zones • Two on-board 12 VDC Class B, Stye A powered zones Connect a 12 or 24 VDC regulated, power limited power supply listed for Fire Protective Signaling Systems to distribute notification appliance power between the two class B style W NAC outputs. Additional NAC... -
Page 10: Lx-Bus
IntRoduCtIon LX-Bus™ You can connect the following devices to the LX-Bus™ provided by the DMP 481 (supplied) or by the 462N, 481, 462P, 463G, and 472 Interface Cards up to the maximum number of LX-Bus™ addresses. See Accessory Devices. • Model 521LX or 521LXT Smoke Detectors with CleanMe • Sixteen-, eight-, four- and/or single-zone expansion modules • Single-zone detectors • Relay output expansion modules • Graphic annunciator modules Outputs The XR2500F provides two pre-installed Model 305 Single Pole, Double Throw (SPDT) relay outputs, each rated 1 Amp at 30 VDC (power limited sources only). The XR2500F also provides four programmable open collector outputs rated for 30 VDC @ 50mA each. The open collector outputs provide ground connection for a positive voltage source. A Model 300 Output Harness is required to use these outputs and may be connected to a Model 860 Relay Output Module. Relays The XR2500F ships with two Model 305 Relays pre-installed to allow zone alarm control for the 866 NAC Modules. When a fire alarm occurs the bell output is factory programmed to turn on and provide power to the contacts of the relays. Specific zone programming determines whether one or both relays turn on signal voltage to the 866 NACs. This allows control of the NACs by zone. 1.10 Zone Reference The XR2500F has been pre-wired in the factory. The first 866 NAC module connects to Zone 1. The second 866 NAC module connects to Zone 2. 1.11 Compliance Instructions For applications that must conform to a local authorities installation standard or a National Recognized Testing Laboratory certificated system, please see the Wiring Diagrams for Notification Appliances and the Listed Compliance Specifications section near the end of this guide for additional instructions. Digital Monitoring Products XR2500F Installation Guide... -
Page 11: Mounting
IntRoduCtIon Mounting Mounting the Enclosure The XR2500F must be mounted in a secure, 3/4" X 1/2" Knockouts dry location to protect the unit from damage due to tampering and the elements. The Hole for Flush enclosure can be either flush mounted or Mounting surface mounted and includes a hinged door with lock. The hole in the enclosure door allows access to the Fire Command Center without opening the door. Figure 1 illustrates the mounting hole locations for the panel enclosure. The enclosure dimensions are 32” tall, 14.5” Holes for Surface Mounting wide, by 4” deep. The lid adds about 0.5” to each side. -
Page 12: Wiring Diagram
IntRoduCtIon Wiring Diagram The XR2500F system below shows the component layout. The wires shown in this guide have been factory installed and connected. The dashed lines represent wires running underneath or behind a component. Detailed wiring diagrams for each supplied component appear in following sections of this guide. WARNING THIS UNIT MAY BE PROGRAMMED TO USE AN ALARM VERIFICATION FEATURE THAT RESULTS IN DELAY OF THE Verification Control Unit Smoke Detector SYSTEM ALARM SIGNAL FROM THE INDICATED CIRCUITS. THE TOTAL DELAY (CONTROL UNIT PLUS SMOKE Zones Delay Model... -
Page 13: Ac Connection
IntRoduCtIon AC Connection Transformers and AC Power Connection The AC connection should be completed by a licensed electrician. Never share the Fire Alarm Control Panel circuit with any other equipment. The XR2500F comes supplied with a 16 VAC 56 VA transformer. The 16 VAC transformer white leads and black leads must be connected to an unswitched 120 VAC 60 Hz power source with at least .87A available. Observe wire colors and connect the transformer wires: The Black transformer wires to the Black 120 VAC wire The White transformer wires to the White 120 VAC wire The Green/Yellow ground wire to the electrical ground Bracket L-Bracket Connected to Enclosure Door 56 VA 16 VAC... -
Page 14: Secondary Power Supply
IntRoduCtIon Secondary Power Supply Description The XR2500F system includes pre-wired cables for connecting 12 VDC battery to the XR2500F panel. Observe polarity when connecting all batteries. Use sealed lead-acid batteries only. Use the DMP Model 367, 368, 369, 365, 366, 12 VDC sealed lead-acid rechargeable batteries. Batteries supplied by DMP have been tested to ensure proper charging with DMP products. Gel cell batteries cannot be used with the XR2500F panel. Battery Connection to XR2500F Command Processor panel For 12 VDC battery operation to the XR2500F, connect the black battery lead to the battery negative terminal. The black battery wire connects to XR2500F panel terminal 4. Connect the red battery lead to the battery positive terminal. The red battery wire connects to XR2500F panel terminal 3. See Figure 11 and Figure 2. -
Page 15: Two 866 Nac Modules
IntRoduCtIon Two 866 NAC Modules Description Each 866 provides one style W indicating circuit for supervising listed polarized notification appliances, such as bells, strobes, and horns. See Table 1: Notification Appliances for a list of approved notification appliances. Connection Each 866 module is pre-installed on the removable backplate using the standard three-hole configuration. The modules are factory pre-wired to each other and the XR2500F panel. Refer to the figure below and to Figure 2: XR2500F System for wiring connections. Connect a 12 or 24 VDC regulated, power limited power supply listed for Fire Protective Signaling Systems to terminals 2 and 4 of each module to provide Notification appliance power. Connect notification appliances to terminals 5 and 6 of each module. Each module provides a zone of notification and can be activated separately. Normal/Silence Switch Module #1 1 AUX PWR 2 GND 3 Alarm In To XR2500F Output #1 (J2 pin #2) 4 Bell PWR In Listed, Polarized Notification Appliances 5 Bell Out +... -
Page 16: Lx-Bus™ Operation
IntRoduCtIon LX-Bus™ Operation Description The XR2500F Command Processor™ panel supports LX-Bus operation directly from the panel. Each LX-Bus circuit provides 100 additional zones. Use J22 LX-Bus Header for the first 100 zones. Use the installed 481 Zone Expansion Interface Card for the next 100 zones. This provides a total of 200 expansion zones. To install up to four additional Interface Cards use a Model 461 Interface Adaptor Card. XR2500F On-board LX-Bus To enable J22 to operate as an LX-Bus, place a jumper on the two pins next to the letter “L” on the J23 6-Pin header. When using J22 as an LX-Bus, connect a DMP Model 300 4-wire Harness to the J22 4-pin header labeled LX-BUS. This provides the first 100 LX-Bus zones numbered 500-599. Respect wire colors when connecting devices and use all four wires. Reset the panel using the J16 jumper to activate LX-Bus operation. See Connecting LX-Bus and Keypad Devices section for maximum wiring distances. Note: Do NOT use shielded wire when using the LX-Bus. Do NOT connect the wires from the 4-wire harness to the panel terminals. LX-Bus 481 Zone Expansion Interface Card The 481 Zone Expansion Interface Card provides an additional 100 zones to the XR2500F. When used in conjunction with the on-board J22 LX-Bus the 481 LX-Bus zones are numbered 600 to 699. Installing the 481 Card Remove AC and battery power from the XR2500F panel and ground yourself before handling and installing the 481 Card. -
Page 17: Description
IntRoduCtIon 893A Dual Phone Line Module Description The 893A is a dual telephone line supervision module that allows the panel to indicate a phone line failure to the premises and the central monitoring station. After the 893A senses a failure on the main line, it switches to the backup, or secondary, phone line. The 893A installs on the removable backplate above the XR2500F circuit board. Connection The pre-wired 893A connects the panel to the public telephone network through an installed DMP 356 RJ Cable between the XR2500F panel J3 connector and the 893A Module J3 connector labeled PANEL. Factory pre-wired 893A Dual Telephone Line Module to XR2500F panel Phone Jack PANEL Connector, J3 Communication Jumpers: Factory pre-wired Both Set both Jumpers to XR2500F panel J10 Connector To Primary MAIN... -
Page 18: Notification
IntRoduCtIon Notification The user must not repair registered terminal equipment. In case of trouble, immediately unplug the device from the telephone jack. The factory warranty provides for repairs. Registered terminal equipment may not be used on party lines or in connection with coin telephones. No t ify the telephone company with the following information: a. The particular line(s) where the service is connected b. The FCC registration number c. The ringer equivalence d. The device make, model, and serial number (see the serial # sticker on the panel) 7.10 FCC Registration The Model XR2500F complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the outside of the enclosure of this equipment is a label that contains, among other information, a product identifier in the format US:CCKAL00BXR500. If requested this number must be provided to the telephone company. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. See installation instructions for details. The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. If the XR2500F causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. -
Page 19: Fire Command Center
IntRoduCtIon Fire Command Center Description The XR2500F provides an LCD display and 20-key keyboard for programming and system user operation. The Fire Command Center is installed on the XR2500F enclosure door. A keyswitch is installed and pre-wired to the left of the keyboard. The user must turn the keyswitch to enable the four function keys. See the illustration below. Fire Command Center POWER TROUBLE ALARM SILENCE RESET ENABLE TEST DRILL COMMAND Figure 10: Fire Command Center LCD and Keyboard Connection The display and keyboard are factory pre-wired to the XR2500F panel terminals 7, 8, 9, and 10. For standby battery calculations, the display draws 92mA of current in normal standby or alarm condition. See Panel... -
Page 20: Expansion
IntRoduCtIon Expansion Zone Expansion Up to 574 fire and burglary zones are available on the XR2500F using DMP Security Command keypad remote zone capability and zone expansion modules. The panel keypad data bus supports up to sixteen supervised device addresses with each address supporting up to four programmable expansion zones. Up to 500 zones are available using the on-board LX-Bus along with additional expansion modules. Use the 461 Interface Adaptor, 462N, 462P, 463G, or 481 interface cards, and any combination of sixteen, eight, four, and single point zone expander modules and single point LX-Bus detectors. Combined current requirements of additional modules may require an additional power supply. See the 710/710F Bus Splitter/Repeater Installation Guide (LT-0310). Refer to the Standby Battery Calculations section when calculating power requirements. Note: Do not use shielded wire for LX-Bus or Keypad Bus circuits. Output Expansion Note: Do not use shielded wire for LX-Bus or Keypad Bus circuits. In addition to the two SPDT relays and four programmable open collector outputs on the XR2500F, you can also connect up to 25 programmable Model 716 Output Expansion Modules to each LX-Bus. These modules can provide an additional 500 programmable SPDT relays. The XR2500F provides 100 Output Schedules you can use for programming the 716 to perform a variety of annunciation and control functions. You can also assign the 716 outputs to any panel Output Options such as Fire Alarm, Communication Fail, or Phone Trouble Outputs. Refer to the 716 Installation Guide (LT-0183). The LX-Bus™ also supports the Model 717 Graphic Annunciator Module. Each 717 module supplies 20 switched ground outputs that follow the state of their assigned zones. Note: The 717 supports the first eight keypad bus zones. To follow Keypad Bus zones nine through 16, install multiple 716 modules. Refer to the 717 Installation Guide (LT-0235) and 716 Installation Guide (LT-0183). Digital Monitoring Products XR2500F Installation Guide... -
Page 21: Wiring Diagram
Inst alla tIon Accessory Devices 10.1 Wiring Diagram The XR2500F system below shows some of the accessory modules for use in various applications. A brief description of each module follows. XR2500F Front Command Processor™ Form C Relays (J2) AC Wiring must be in conduit and exit Tamper Output Color Code–Model 431 Harness out the left side of the enclosure. Panel Output 2 N/O Orange/White Phone Line Output 2 Com White/Gray... -
Page 22: Accessory Devices
Inst alla tIon 10.3 Accessory Devices Interface Adaptor and Interface Cards 461 Interface Adaptor Card Allows you to connect two or more expansion interface cards to the XR2500F panel. The 461 is an expansion board that plugs into the panel J6 Interface Connector and is required when using two or more Interface Cards. -
Page 23: Mounting Keypads And Zone Expansion Modules
Inst alla tIon 10.4 Mounting Keypads and Zone Expansion Modules LCD keypads have removable covers that allow mounting the keypad to a wall or other flat surface using the screw holes on each corner of the base. Before mounting the base, connect the keypad wire harness leads to the keypad cable from the panel and to any device wiring run to that location. Then attach the harness to the pin connector on the PC board, mount the base, and install the keypad cover making sure all of the keys extend through their respective holes. For mounting keypads on solid walls, or for applications where conduit is required, use the Model 695 1-1/2” deep or the Model 696 1/2” deep backboxes. The DMP 711, 714, 715, 716, and 717 modules are each contained in molded plastic housings with removable covers. The base provides you with mounting holes for installing the unit to a wall, switch plate, or other surface. 10.5 Connecting LX-Bus and Keypad Bus Devices Several factors determine the DMP LX-Bus™ and keypad bus performance characteristics: the wire length and gauge used, the number of devices connected, and the voltage at each device. When planning an LX-Bus™ and keypad bus installation, keep in mind the following information: 1. DMP recommends using 18 or 22-gauge unshielded wire for all keypad and LX-Bus circuits. Do not use twisted pair or shielded wire for LX-Bus and keypad bus data circuits. 2. On keypad bus circuits, to maintain auxiliary power integrity when using 22-gauge wire do not exceed 500 feet. When using 18-gauge wire do not exceed 1,000 feet. To increase the wire length or to add devices, install an additional power supply that is listed for Fire Protective Signaling, power limited, and regulated (12 VDC nominal) with battery backup. Note: Each panel allows a specific number of supervised keypads. Add additional keypads in the unsupervised mode. Refer to the panel installation guide for the specific number of supervised keypads allowed. -
Page 24: Battery Information
Inst alla tIon Battery Information 11.1 Battery Only Restart When powering up the XR2500F panel without AC power, briefly short across the battery start pads to pull in the battery cutoff relay. The leads need a momentary short only. Once the relay has pulled in, the battery voltage holds it in that condition. If the XR2500F panel is powered up with an AC transformer, the battery cutoff relay is pulled in automatically. For battery start pad location refer to Figure 11. 11.2 Battery Replacement Period DMP recommends replacing the battery every 3 to 5 years under normal use. 11.3 Discharge/Recharge The XR2500F battery charging circuit float charges at 13.9 VDC at a maximum current of 1.0 Amps using a 56 VA transformer. Listed below are the various battery voltage level conditions: Battery Trouble: Below 11.9 VDC Battery Cutoff: Below 10.2 VDC Battery Restored: Above 12.6 VDC 11.4 Battery Supervision The XR2500F tests the battery when AC power is present. The test is done every three minutes and lasts for five seconds. During the test, the panel places a load on the battery; if the battery voltage falls below 11.9 VDC a low battery is detected. If AC power is not present, a low battery is detected any time the battery voltage falls below 11.9 VDC. If a low battery is detected with AC power present, the test repeats every two minutes until the battery charges above 12.6 VDC indicating the battery has restored voltage. If a weak battery is replaced with a fully charged battery, the restored battery is not detected until the next two minute test completes. -
Page 25: Xr2500F Standby Battery Calculations
Inst alla tIon 11.7 XR2500F Standby Battery Calculations Standby Battery Power Calculations Standby Current Alarm Current XR2500F Control Panel Qty ___ 1_ 180mA __180_mA Qty ____1_ 180mA __180_mA Relay Outputs 1-2 (ON) Qty ______ 30mA ______ Qty ______ 30mA ______ Switch Grounds 3-6 (ON) Qty ______ ______... -
Page 26: Standby Current
Inst alla tIon Standby Battery Power Calculations Standby Current Alarm Current 736P POPIT Interface Module Qty ______ 25mA ______ Qty ______ 25mA ______ Radionics Popex, POPITs, OctoPOPITs Qty ______ ___mA ______ Qty ______ ___mA ______ 710 Bus Splitter/Repeater Module Qty ______ 32mA ______ Qty ______ 32mA ______... -
Page 27: Standby Battery Selection
Inst alla tIon 11.8 Standby Battery Selection To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from the XR2500F Power Requirements section, perform the following: 1. Select the desired standby hours required from the table below: 24, 60, or 72 hours 2. Select the desired battery size: Model 368 (12 VDC 4.5 Ah), Model 369 (12 VDC 7 Ah), Model 367 (12 VDC 7.7 Ah), Model 365 (12 VDC 9 Ah), Model 366 (12 VDC 18 Ah). 3. Select a Max. Ah Available number that is just greater than the number calculated as the Amp Hours Required. 4. Install the number of batteries shown in the corresponding No. of Batteries required column. Example: If the Amp Hours Required calculation equals 22 Ah for 24 hours of standby time and 4.5 Ah batteries are desired, install six (6) Model 368 (12 VDC, 4.5 Ah) batteries. For listed installations, all batteries shall be installed in a DMP Model 341, 349, 350, or 352S enclosure and all wiring shall run through conduit. The enclosure shall be installed to the left of the XR2500F enclosure to ensure Battery and AC wire separation. -
Page 28: Bell Output
Inst alla tIon Bell Output 12.1 Terminals 5 and 6 Terminal 5 supplies positive 12 VDC regulated power for alarm bells or horns. This output can be steady, pulsed, or temporal depending upon the Bell Action specified in Output Options. Terminal 6 is the ground reference for the bell circuit. This supervised output detects 10k Ohms or less as normal. The indicating appliance can supply this resistance. If using a horn or siren, a 1k Ohm 1/2 W EOL resistor (provided) should be added across the bell circuit to provide supervision. See the Notification Appliance section for a list of approved notification appliances and the Wiring Diagrams for connections. Keypad Bus 13.1 Description XR2500F panel terminals 7, 8, 9, and 10 are for the keypad bus. In addition to Fire Command Centers and Remote Fire Command Centers, you can connect up to fifteen supervised keypads and multiple unsupervised keypads to the XR2500F. In addition to Security Command keypads, you can also connect any combination of zone expansion modules, 5845LX Glassbreak detectors, and 6155LX PIRs to the data bus. Refer to the specific device Installation sheet for the maximum number of keypad Bus devices. Refer to the section titled LX-Bus for complete information about the LX-Bus 4-pin header and expansion slot. Note: Do not use shielded wire for LX-Bus/Keypad Bus circuits. 13.2 Terminal 7 - RED This terminal supplies positive 12 VDC regulated to power Fire Command Centers and zone expansion modules. Terminal 7 also supplies power for any auxiliary device. The ground reference for terminal 7 is terminal 10. The output current is shared with the smoke power output on terminal 11 and Zones 9 and 10. Current draw for all connected devices must not exceed the panel maximum current rating. See Power Supply in the Compliance section for maximum current in a fire listed application. 13.3 Terminal 8 - YELLOW Terminal 8 receives data from keypads and zone expansion modules. It cannot be used for any other purpose. -
Page 29: Smoke And Glassbreak Detector Output
Inst alla tIon Smoke and Glassbreak Detector Output 14.1 Terminals 11 and 12 Terminal 11 supplies positive 12 VDC regulated to power 4-wire smoke detectors and other powered devices. This output can be turned off by the user for five seconds using the Sensor Reset User Menu option to allow latched devices to reset. Terminal 12 is the ground reference for terminal 11. 14.2 Current Rating The Output current from terminal 11 is shared with terminals 7, 25, and 27. The total current draw of all devices powered from the panel must be included with terminal 11 calculations and must not exceed the maximum output rating. Powered Zones for 2-Wire Smoke Detectors 15.1 Terminals 25–26 and 27–28 Panel terminals 25 through 28 provide two resettable Class B, Style A, 2-wire powered zones. For programming purposes the zone numbers are 9 and 10. Note: The maximum wire length for either zone 9 or zone 10 is 3000 feet using 18 AWG or 1000 feet using 22 AWG. The maximum voltage is 14 VDC and the maximum normal standby current is 1.25mA DC. The maximum line impedance is 100 Ohms. The maximum short circuit current is 56mA. When using 725 Zone Expansion Modules, use included, listed 6.8k Ohm EOL resistors. The compatibility identifier for the zones using 725 Zone Expansion Modules is B. When using 715 Zone Expansion modules, use listed 3.3k Ohm EOL resistors, Model 309. For all other zone expansion modules, use listed 1.0k Ohm Model 310 EOL resistors. The compatibility identifier for the zones is A. -
Page 30: Compatible 2-Wire Smoke Detector Chart
Inst alla tIon 15.2 Compatible 2-Wire Smoke Detector Chart Manufacturer Model Detector Base Base # of Zone Panel Voltage Detectors Expansion Zones Range (12V/24V) Modules Detection Systems DS230, DS230F MB2W, MB2WL 8.5-33 715, 715-8, Detection Systems DS250, DS250TH MB2W, MB2WL 8.5-33 10/12 9 &... -
Page 31: Protection Zones
Inst alla tIon Protection Zones 16.1 Terminals 13–24 Zones 1 to 8 (terminals 13 to 24) on the XR2500F panel are all grounded burglary zones. For programming purposes, the zone numbers are 1 through 8. Listed below are terminal 13 to 24 connection functions. Terminal Function Terminal Function Zone 1 voltage sensing Zone 5 voltage sensing Ground for Zones 1 and 2 Ground for Zones 5 and 6 Zone 2 voltage sensing Zone 6 voltage sensing Zone 3 voltage sensing Zone 7 voltage sensing Ground for Zones 3 and 4 Ground for Zones 7 and 8 Zone 4 voltage sensing Zone 8 voltage sensing Note: Zones 1 and 2 have been pre-wired to the two 866 NAC modules. All other zones are available. The voltage sensing terminal measures the voltage across a 1k Ohm End-of-Line resistor to ground. Use DMP Model 311 1k Ohm resistors. Dry contact sensing devices can be used in series (normally-closed) or in parallel (normally-open) with any of the burglary protection zones. 1K Ohm 1K Ohm 1K Ohm Normally Normally Open Combination Normally Open Closed and Normally Closed Figure 12: Protection Zone Wiring... -
Page 32: Dry Contact Relay Outputs
Inst alla tIon Dry Contact Relay Outputs 17.1 Description The XR2500F panel provides two programmable auxiliary SPDT relays with the two DMP Model 305 relays in K6 (Output 1) and K7 (Output 2) and a Model 431 Output Harness on the J2 6-pin Header. Each relay provides one SPDT set of contacts that can be operated by any of the functions listed below: 1) Activation by zone condition: Steady, Pulsing, Momentary, and Follow 2) Activation by 24-hour 7-day schedule: One on and one off time a day for each relay 3) Manual activation from the Security Command keypad menu 4) Communication failure 5) Armed area annunciation 6) Fire Alarm, Fire Trouble, or Supervisory 7) Ambush Alarm 8) Exit and Entry timers 9) System Ready 10) Late to Close Refer to the XR500 Series Programming Guide (LT-0679) for specific information. 17.2 Contact Rating The Model 305 relay contacts are rated for 1 Amp at 30 VDC (allows .35 power factor). Connect auxiliary power to the Relay Output 1 common terminal by installing the gray harness wire to terminal 7. Current draw for all connected devices must not exceed the panel maximum current rating. -
Page 33: J11 Annunciator Outputs
Inst alla tIon J11 Annunciator Outputs 18.1 Description The four programmable annunciator outputs can be programmed to indicate the activity of the panel zones or conditions occurring on the system. Annunciator outputs do not provide a voltage but instead switch- to-ground a voltage from another source and are rated at a maximum 30 VDC @ 50mA. The outputs can respond to any of the conditions listed in the Description section of Dry Contact Relay Outputs. 18.2 Model 300 Harness Wiring Access the open collector outputs by installing DMP 300 Harness on the 4-pin header labeled J11. The output locations are shown below. Note: For UL applications, devices connected to the outputs must be located within the same room as the panel. -
Page 34: J22 Lx-Bus Expansion Connector
Inst alla tIon J22 LX-Bus Expansion Connector 20.1 Description J22 LX-Bus and J21 RS-232 connectors cannot be used at the same time. Either use J21 to connect a serial device for PC Log Reporting, or use J22 to connect an LX-Bus or Wireless device. This is determined by where you install the jumper on J23 6-Pin Header. Reset the panel using J16 jumper to activate selected J23 operation. See the Connecting LX-Bus and Keypad Bus Devices section for maximum wiring distances. Note: Do NOT use shielded wire when using the LX-Bus. Do NOT connect the wires from the 4-wire harness to the panel terminals. 20.2 LX-Bus Interface Cards Refer to the following tables to identify zone locations and numbers relative to J22 operation. 461 Adaptor Card and J22 LX-Bus Enabled One Interface Card Multiple Interface Cards LX-Bus Zone Numbers LX-Bus Zone Numbers LX-Bus Zone Numbers 500-599 600-699... -
Page 35: Ethernet Leds
Inst alla tIon J1 Ethernet Connector 22.1 Description The J1 Ethernet Connector is available to connect directly to an Ethernet network using a standard patch cable. The maximum line impedance is 100 Ohms. Link LED Activity LED Ethernet Figure 15: J1 Header and LEDs 22.2 Ethernet LEDs The two LEDs, located to the left of J1 Ethernet Connector, indicate network operation. The top, Activity LED flashes green to indicate the network traffic is good. The bottom, Link LED flashes yellow to indicate messages are being sent and received. Reset and Tamper Headers 23.1 J16 Reset Header The reset header is located just above the terminal strip on the right side of the circuit board and is used to reset the XR2500F microprocessor. To reset the panel when first installing the system, install the reset jumper before applying power to the panel. After connecting the AC and battery, remove the reset jumper. To reset the panel while the system is operational, for example, prior to reprogramming, install the reset jumper without powering down the system. Remove the reset jumper after one or two seconds. After resetting the panel, begin programming within 30 minutes. If you wait longer than 30 minutes, you must reset the panel again. -
Page 36: Introduction
Inst alla tIon Listed Compliance Specifications 24.1 Introduction For applications that must conform to a local authorities installation standard or a National Recognized Testing Laboratory certificated system, please see the following sections. Universal UL Burglary Specifications 25.1 Introduction The programming and installation specifications contained in this section must be completed when installing the XR2500F panel in accordance with any burglary standards. Additional specifications may be required by a particular standard. See the XR500 Programming Guide (LT-0679). 25.2 Wiring All wiring must be in accordance with NEC, ANSI/NFPA 70, ANSI/UL 681. All transformer wires must be installed in conduit. 25.3 Control Outside of Protected Area A Potter EVD or Sentrol 5402 should be used in place of a lined cabinet when the panel is installed outside of the protected area. Front and rear tamper switches are required. Refer to the system wiring diagram and Figure 2. 25.4 Police Station Phone Numbers The digital dialer telephone number programmed for communication must not be a police station phone number. -
Page 37: Ownership
Inst alla tIon Area Information 26.1 Ownership The control unit system shall be under one ownership. 26.2 Annunciation The System shall be installed so that when arming any area from any keypad, the local bell shall annunciate. 26.3 Trouble Display The Status List programming shall be set to annunciate all trouble messages at all keypads. 26.4 Closing Wait The Closing Wait option must be programmed YES. 26.5 Local Bell Supervision When a local bell is employed, the power supply for the bell shall be under 24-hour protection. Proper personnel for maintenance or security of the system shall be able to disarm that area. Household Burglar-Alarm System Units ANSI/UL 1023 27.1 Audible Devices At least one listed audible device (Ademco AB12M) rated to operate over the voltage rate of 11.7 VDC to 12.8 VDC and rated at 85 DB minimum must be used. -
Page 38: Proprietary Dialer
Inst alla tIon 28.5 Proprietary Dialer The Model XR2500F provides proprietary service when configured as a digital dialer. 28.6 DACT Central Station DACT Central Station service can be provided under by adding an Ademco AB12M bell and bell housing. 28.7 Bell Cutoff The Bell Cutoff time cannot be less than 15 minutes. 28.8 Standard or Encrypted Line Security Standard Line Security is provided when configured as a Path 1 NET system using an XR500N panel. The NET Check-in time must be set to 06 minutes or RDM. When programmed for Standard Line Security, Exit Time Restart is disabled. When a dialer is required for 06 minute check-in time, an attack resistant enclosure (DMP Model 350A) is required. When the check-in time is set to a number less than 200 seconds, an attack resistant enclosure is not required. To provide Encrypted Line security, install an XR500E panel. For Encrypted Line security operation, communication between the Premise and Supervising Station provides 128 bit encryption when using an XR500E panel or an XR500 panel with an iCOM-E Encrypted Network Alarm Router. The Model XR500 Series Protected Premises Control Unit is suitable for Standard Line Security service when configured for NET communication with SCS-1R receiving system. This configuration is approved for the following: AMCX - Central Station Alarm Units APOU - Proprietary Alarm Units 28.9 Wireless Audible Annunciation Option The Wireless Audible option must be selected as ANY for commercial applications. -
Page 39: Standard Or Encrypted Line Security
Inst alla tIon 28.11 Model 463G NET with CELL as Alternate Primary and Dialer Backup, Standard or Encrypted Line Security Standard or Encrypted Line Security is provided using NET communication with CELL as an alternate primary and with digital dialer as a backup. XR500 network communication is used as primary with a 6 minute check-in when armed, and a random check-in over a 60 minute period when disarmed. CELL is the backup path and set to daily test. Should the NET primary path become disabled, CELL adapts the same check-in time programmed for the primary communication and becomes an alternate primary path. The dialer path is used as the backup if both NET and CELL fail to receive acknowledgement from the receiver. This method of operation causes the CELL alternate primary to adapt to the 6 minute NET primary check-in rate when the NET primary is unavailable maintaining line supervision and precludes the need for a central station runner to respond to the NET primary failure. Path 1 programming Path 2 programming Path 3 programming Comm Type: = NET Comm Type: = CELL Comm Type: = DD Path Type: = Primary Path Type: = Backup... -
Page 40: Ansi/Ul 1610 Required
CoMPlIanCe Holdup Alarm Units ANSI/UL 636 29.1 ANSI/UL 1610 Required The programming and installation specifications contained in this section must be completed in addition to ANSI/UL 1610 Specifications when installing a Model 1142 with a Model XR500 Series panel. 29.2 1100X Wireless Receiver The Model 1100X Wireless Receiver in conjunction with the Model 1142 Holdup Alarm Transmitter must be installed in the system. 29.3 Wireless Supervision Time The Zone Information Supervision Time must be a maximum of 240 minutes. 29.4 LED Display The LED Operation option display must be set to NO when using a Model 1142 Holdup Alarm Transmitter. 29.5 Jamming Detection The Detect Wireless Jamming option must be set to YES. 29.6 Local Alarm The Bell Action for a PN (Panic) type zone must be programmed as N (None). 29.7 Message to Transmit The Armed Open and Armed Short messages for a PN (Panic) type zone must be programmed to A (Alarm). -
Page 41: Bell Cutoff
CoMPlIanCe 31.4 Bell A local audible signal appliance must be used such as Ademco AB12M bell and bell housing. The alarm housing for a mercantile alarm system without a remote alarm transmission connection shall be mounted on the outside of the building, visible from a public street or highway. It shall be accessible for examination and repair. It shall also be located not more than four stories above the street level unless: a) A second alarm sounding device and housing, intended for outside service, is mounted adjacent to the premises or area of the building in which the alarm system is installed or b) A second alarm sounding device, intended for inside service, is mounted within the premises. In either case, the outside alarm sounding device and housing may be mounted as high as the seventh floor. 31.5 Bell Cutoff The Bell Cutoff time cannot be less than 15 minutes. 31.6 Automatic Bell Test The Automatic Bell Test option must be programmed as YES. 31.7 Standard or Encrypted Line Security Standard Line Security is provided when configured as a Path 1 NET system using an XR500N panel or an XR500 panel with an iCOM™ Network Alarm Router. The NET Check-in time must be set to 06 minutes or RDM. When programmed for Standard Line Security, Exit Time Restart is disabled. When a dialer is required for 06 minute check-in time, an attack resistant enclosure (DMP Model 350A) is required. When the check-in time is set to a number less than 200 seconds, an attack resistant enclosure is not required. To provide Encrypted Line security, install an XR500E panel or an XR500 panel with an iCOM-E™ Encrypted Network Alarm Router. For Encrypted Line security operation, communication between the Premise and Supervising Station provides 128 bit encryption when using an XR500E panel or an XR500 panel with an iCOM-E Encrypted Network Alarm Router. 31.8 Wireless Audible Annunciation Option The Wireless Audible option must be selected as ANY for commercial applications. -
Page 42: Model 463G Net With Cell As Alternate Primary And Dialer Backup Standard Or Encrypted Line Security
CoMPlIanCe 31.11 Model 463G NET with CELL as Alternate Primary and Dialer Backup, Standard or Encrypted Line Security Standard or Encrypted Line Security is provided using NET communication with CELL as an alternate primary and with digital dialer as a backup. XR500 network communication is used as primary with a 6 minute check-in when armed, and a random check-in over a 60 minute period when disarmed. CELL is the backup path and set to daily test. Should the NET primary path become disabled, CELL adapts the same check-in time programmed for the primary communication and becomes an alternate primary path. The dialer path is used as the backup if both NET and CELL fail to receive acknowledgement from the receiver. This method of operation causes the CELL alternate primary to adapt to the 6 minute NET primary check-in rate when the NET primary is unavailable maintaining line supervision and precludes the need for a central station runner to respond to the NET primary failure. Path 1 programming Path 2 programming Path 3 programming Comm Type: = NET Comm Type: = CELL Comm Type: = DD Path Type: = Primary Path Type: = Backup (operates Path Type: = Backup... -
Page 43: Mercantile
CoMPlIanCe Police Station Connected and Local Burglar Alarm Units ANSI/UL 609 32.1 Mercantile For Mercantile and Police Station Connect operation the Model XR500 Series must be mounted in an Attack Resistant Housing, (DMP Model 350A or 350H). 32.2 Entry Delay The maximum entry delay used must not be more than 60 seconds when using the Model 350A or 350H housing. 32.3 Exit Delay The maximum exit delay used must not be more than 60 seconds. 32.4 Bell A local audible signal appliance must be used such as Ademco AB12M bell and bell housing. In a mercantile burglar alarm system, a mercantile alarm sounding device located within a building but outside the protected area, is acceptable, provided it is rated for outside service and alarm conditions are transmitted to: a) The dispatch location of the law enforcement agency having jurisdiction over the protected property or b) A central station or residential monitoring station complying with the Standard for Central Station Alarm Services, UL 827. In a mercantile burglar alarm system, an alarm sounding device located within the area of greatest protection, or outside the area of greatest protection but within an area protected by an alarm system and that shares a common control unit with the system installed in the area of greatest protection, is acceptable provided it is rated for inside service and alarm conditions are transmitted to: a) The dispatch location of the law enforcement agency having jurisdiction over the protected property or b) A central station or residential monitoring station complying with the Standard for Central Station Alarm Services, UL 827. An inside sounding device shall be mounted at least 10 feet (3.05 m) above the floor or at the surface of the ceiling. When there is fixed construction within the area that could provide access for an intruder, the alarm sounding device shall also be mounted at least 4 feet (1.2 m), as measured horizontally, away from the edges of the fixed construction or at least 10 feet (3.05 m) above it so as to minimize access by an intruder. -
Page 44: Wiring
CoMPlIanCe Universal Fire Alarm Specifications 34.1 Introduction The programming and installation specifications contained in this section must be completed when installing the Model XR2500F in accordance with any of the ANSI/UL or NFPA fire standards. Additional specifications may be required by a particular standard. See the XR500 Series Programming Guide (LT-0679). 34.2 Wiring All wiring must be in accordance with NEC, ANSI/NFPA 70. 34.3 Transformer Use the supplied 16 VAC 56 VA transformer. 34.4 End-of-Line Resistor The DMP Model 310 1K Ohm EOL resistor should be used on all 1K Ohm EOL fire zones. 34.5 System Trouble Display The Status List Display must include at least one keypad that displays system monitor troubles. 34.6 Fire Display The Status List Display must include at least one keypad that displays troubles and alarms on fire type zones. 34.7 Police Station Phone Number The digital dialer telephone number programmed for communication must not be a police station phone number, unless that phone number is specifically provided for that purpose. 34.8 System Maintenance To ensure continuous satisfactory operation of any alarm system, proper installation and regular maintenance by the installing alarm company and frequent testing by the end user is essential. Offering a maintenance program and acquainting the user with the correct procedures for system use and testing is also the responsibility of the installing alarm company. -
Page 45: Control Units For Fire-Protective Signaling Systems
CoMPlIanCe Control Units for Fire-Protective Signaling Systems ANSI/UL 864, NFPA 72 35.1 Power Supply For listed installations, the total current combined from Auxiliary and Bell Power cannot exceed: 1.2 Amps with a 56 VA transformer; .5 Amp Max for Auxiliary Power and .7 Amp Max for Bell Combined total current from Terminals 7, 11, 25, and 27 cannot exceed 1.2 Amps. -
Page 46: Notification Appliances
CoMPlIanCe 35.12 Notification Appliances The following table indicates the approved notification appliances that can be used with the XR2500F system. Wheelock Model No. Description Max No. of Detectors using 56 VA MB-G6-12-R Motor Bell, 6” MB-G10-12-R Motor Bell, 10” MT-12/24 Multi-tone Horn RSS-12575W-F Multi-Candela Strobe RSSP-121575W-F Multi-Candela Strobe with Retrofit Plate SM-12/24-R Sync Module, Single circuit DM-12/24-R Sync Module, Dual circuit MIZ-24 Mini Horn AH-24 Horn AH-24WP Weatherproof Horn MB-G6-24-R 6-Inch Bell MB-G10-24-R 10-Inch Bell RSS-2475C-FW Weatherproof Strobe... -
Page 47: California State Fire Marshal Specifications
CoMPlIanCe California State Fire Marshal Specifications 37.1 Bell Output Definition The Model XR2500F panel Bell Output must be programmed to operate steady on burglary alarms and pulsed, temporal, or California School Code on fire alarms. New York City (MEA) Specifications 38.1 Introduction The programming and installation specifications contained in this section must be completed when installing the XR500 Series panel for New York City (MEA) fire alarm installations that provide a digital dialer with network IP communication as backup. Fire alarm installations that use two digital dialer telephone lines do not need to comply with these specifications. 38.2 Digital Dialer and Network Communication When used with a central office communicator or a transmitter, the installation and operation of the equipment and devices shall comply with 3RCNY 17-01. The installation shall employ the digital dialer as the primary communicator (using telephone line) with network IP communication as backup or secondary means of communication. It shall have the capability of transmitting separate and distinct signals to indicate manual pull station alarm, automatic detection alarm, sprinkler waterflow alarm, supervisory signal indications and trouble indications. 38.3 Wiring All wiring must be in accordance with NEC, ANSI, and NFPA 70. All network cabling must be installed in accordance with NFPA 70 for communication circuits. -
Page 48: Wiring Diagrams
CoMPlIanCe Wiring Diagrams 39.1 Prewired 866 Modules with NAC Extender Prewired to XR2500F panel Normal/Silence Switch Model 310 Model 310 1K EOL 1K EOL 1 AUX PWR 2 GND 3 Alarm In 4 Bell PWR In 5 Bell Out + 6 Bell Out - DMP Model 866 PowerPath NAC Extender... -
Page 49: Prewired 866 Class B Style W Modules With Multiple Notification Appliances
WIRInG dIaGRaMs 39.3 Prewired 866 Class B Style W Modules with Multiple Notification Appliances Prewired to XR2500F panel Model 310 DMP Model 866 Normal/Silence Switch SM-12/24 Module 1K EOL 45mA @ 12 VDC The maximum voltage drop between the panel Bell Output and The 866 Notification 1 AUX PWR the Model 308 is 1 VDC when a... -
Page 50: Prewired 866 Class B Style W Modules With Dual Notification Appliance Circuits
WIRInG dIaGRaMs 39.4 Prewired 866 Class B Style W Modules with Dual Notification Appliance Circuits Prewired to XR2500F panel DSM-12/24 Module Model 310 DMP Model 866 Normal/Silence Switch 1K EOL 45mA @ 12 VDC The 866 Notification The maximum voltage drop 1 AUX PWR Appliance Circuit between the panel Bell Output and... -
Page 51: 867 Class B Style W Using Single Notification Appliance
WIRInG dIaGRaMs 39.5 867 Class B Style W Notification Appliance Circuit To initiating zone Normal/Silence Switch Model 310 DMP Model 867 Ground Fault LED 1K EOL 30mA @ 12 VDC Bell Trouble LED Bell In + 1 The 867 must have its Bell In - 2 own independent Bell Out + 3... -
Page 52: 867 Class B Style W Multiple Notification Appliance Circuits
WIRInG dIaGRaMs 39.7 867 Class B Style W Multiple Notification Appliance Circuits To initiating zone DMP Model 867 Normal/Silence Switch Auxiliary Power Supply must be Listed for Fire Model 310 30mA @ 12 VDC Ground Fault LED Protective Signaling Service. Power Supplies 1K EOL Bell Trouble LED must have battery backup. -
Page 53: Dual Style D Zone Module Installation
WIRInG dIaGRaMs 39.8 Dual Style D Zone Module Installation Tamper XR2500F Interface Card Command Processor™ Expansion Connector Panel RS-232 Battery Start Reset –B BELL GND RED YEL GRN BLK SMK GND Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+ Z10– Dual Style D Initiating Module 12 13 15 16... -
Page 54: Remote Station Reversing Relay Connection
WIRInG dIaGRaMs 39.9 Remote Station Reversing Relay Connection XR2500F Tamper Command Processor™ Panel Interface Card Expansion Connector J2 Output Header RS-232 All outputs must be located within the same room as the control panel. Model 431 Output Harness Battery Start Reset –B BELL GND... -
Page 55: Second Lx-Bus™ With Auxiliary Power Supply
WIRInG dIaGRaMs 39.10 Second LX-Bus™ with Auxiliary Power Supply LX-Bus Expansion Cards: DMP Models 481, 462N, 462P, 463G, and 472 Interface Cards Tamper Phone Line XR2500F Command Processor™ Panel Ethernet Power LED RS-232 LX-Bus Output 2 Output 1 Battery Start Reset PROG BELL GND... -
Page 56: Lx-Bus™ Module Connection
WIRInG dIaGRaMs 39.11 LX-Bus™ Module Connection LX-Bus Expansion Interface Card DMP Models 481, 462N, 462P, 463G, or 472 Each LX-Bus Module must have its own independent address ranging from 00 to 99. A Supervisory zone must be programmed into the XR500 Series to properly supervise each module. -
Page 57: Model 860 Relay Module Connection
WIRInG dIaGRaMs 39.12 Model 860 Relay Module Connection XR2500F Tamper Command Processor™ Interface Panel Card Expansion Connector J2 Output Header All outputs must be located within the same room as the control panel. Model 860 RS-232 Relay Module BL K Common Relay 1 Battery... -
Page 58: Revisions To This Document
RevIsIons Revisions to This Document This section explains the changes made to this document during this revision. It lists the version and identifies the change(s) made, the related section number and section heading, and a summary of the change. Section Number and Heading Quick Explanation of Changes 1.03 31.4 Bell Added mercantile information 32.4 Mercantile Safe & Vault Removed section 32.4 Bell Added mercantile information 32.6 Bank Safe Removed section 1.02 The following changes were implemented for ANSI/UL 864 9th Edition compliance Complete Document Removed all references to the 504-24 Power Supply 1.1 Overview Added reference to optional power supply 1.3 Power Specifications Added reference to Compliance Instruction section 1.7 LX-Bus Added reference to 463G 1.8 Outputs Added output rating 1.11 Compliance Instructions Added section 2.6 Wiring Diagram Removed 504-24, 24 VDC batteries, and transformer Updated Types of Service 3.1 Transformers and AC Power... - Page 59 This page intentionally left blank Digital Monitoring Products XR2500F Installation Guide...
-
Page 60: Operating Instructions Model Xr2500F Panels
OPERATING INSTRUCTIONS MODEL XR2500F PANELS NORMAL STANDBY CONDITION When the system is in the normal standby condition, the keypad shows either the time of day or a blank display. ALARM CONDITION When the system is in an alarm condition, the keypad display shows the violated zone name(s) followed by an alarm display. ALARM SILENCE To silence the alarm while the bell or siren is sounding, enter your code number and press the COMMAND key. This silences the alarm but does not cancel any alarm reports to the central station. RESETTING DETECTORS To reset a smoke or other detector, enter the User Menu by pressing the COMMAND key until MENU? NO YES appears in the display. Press the top row key under YES. The display shows ENTER CODE: -. Enter your code number and press COMMAND. The keypad display now shows ALARM SILENCE? if your code allows. Press the COMMAND key until SENSOR RESET? appears in the display.
