INSTALLATION GUIDE

XR150/XR550 SERIES
CONTROL PANEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR150 series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics XR150 series

Summary of Contents for DMP Electronics XR150 series

  • Page 1: Installation Guide

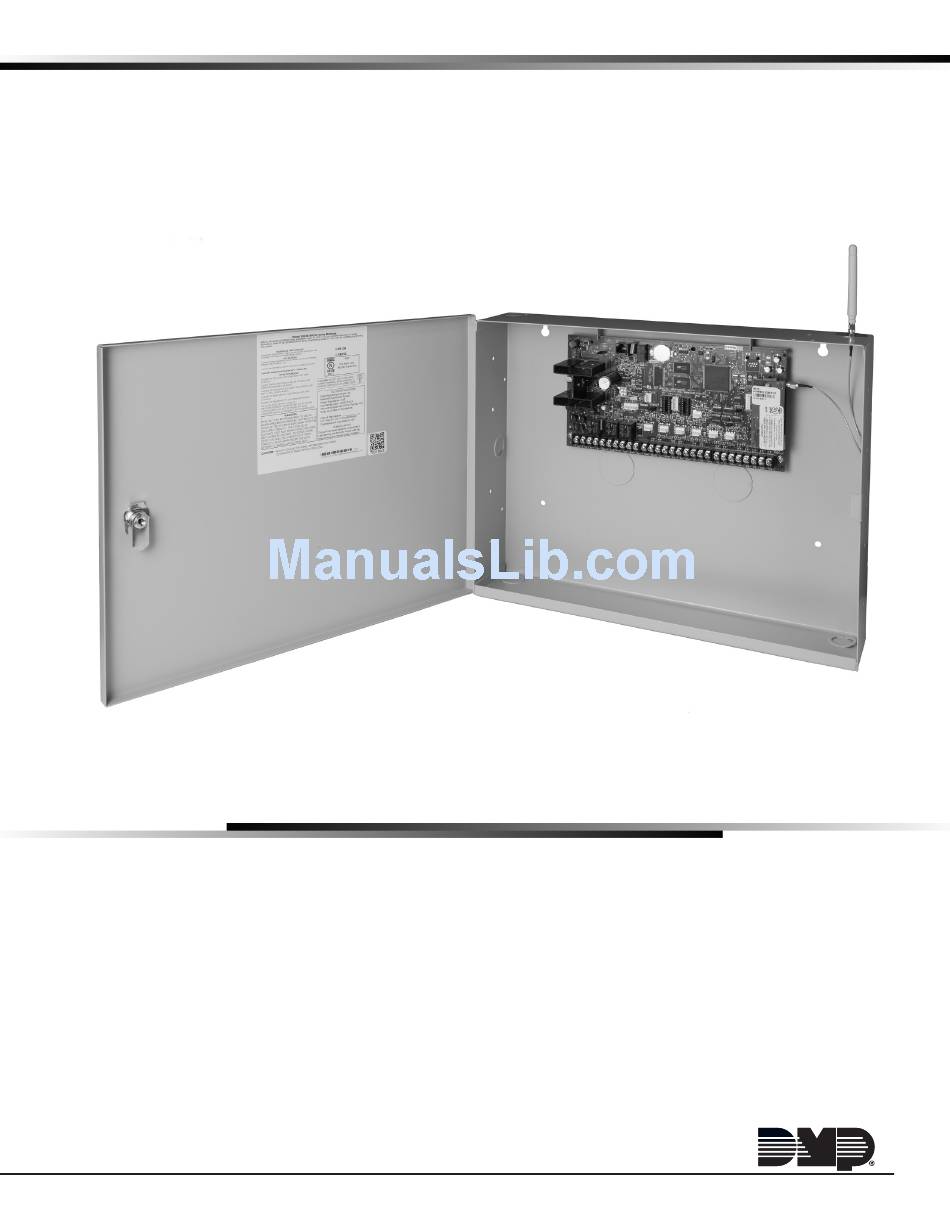

    INSTALLATION GUIDE XR150/XR550 SERIES CONTROL PANEL...
  • Page 2 MODEL XR150/XR550 SERIES INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class A computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Product Specifications Summary Power Supply ................1 Communication ................1 Panel Zones ................1 Keypad Bus ................1 LX500-LX900 Bus™ ..............1 Outputs ..................1 Enclosure Specifications ..............2 Panel Features Description .................2 Zone Expansion ................2 Output Expansion ...............2 Central Station Communication ............3 Encrypted Communications (XR550 with Network &...
  • Page 4 TABLE OF CONTENTS Protection Zones 10.1 Terminals 13–24 ...............16 10.2 Operational Parameters .............16 10.3 Zone Response Time ..............16 10.4 Keyswitch Arming Zone .............16 Powered Zones for 2-Wire Smoke Detectors 11.1 Terminals 25–26 and 27–28 ............17 Dry Contact Relay Outputs 12.1 Description ................17 12.2 Contact Rating .................17...

  • Page 5: Product Specifications Summary

    INTRODUCTION Product Specifications Summary Power Supply Transformer Input: Model 327, plug-in — Primary input: 120 Vac, 60 Hz, Secondary output: 16.5 Vac 50 VA Model 322/323, wire-in — Primary input: 120 Vac, 60 Hz, Secondary output: 16 Vac 56 VA Model 324/324P, wire-in —...

  • Page 6: Enclosure Specifications

    PANEL SPECIFICATIONS Enclosure Specifications The XR150/XR550 Series panels are shipped in an enclosure with a transformer, End-of-Line resistors, battery leads, user’s guide, and programming sheets. Enclosure Size Color(s) Construction (Cold Rolled Model Steel) 17.5”W x 13.5”H x 3.5”D Gray (G) or Red (R) 18-Gauge 350A 17.5”W x 13.5”H x 3.75”D...

  • Page 7: Central Station Communication

    SYSTEM COMPONENTS Central Station Communication You can program the panel for reporting to DMP SCS-VR or SCS-1R Receivers using digital dialer, cellular, network, or Contact ID communication. The panels connect at the premises to a standard RJ31X or RJ38X telephone jack. Use the DMP 893A Dual Phone Line Module when connecting the panel to two separate phone lines in fire or burglary applications.

  • Page 8: Wiring Diagram

    SYSTEM COMPONENTS System Components Wiring Diagram The XR150/XR550 Series diagram below shows some of the accessory modules you can connect for use in various applications. A brief description of each module follows in section 3.3. Front and Rear tamper AC Wiring must be in conduit and exit protection included out the left side of the enclosure.

  • Page 9: Accessory Devices

    Interface Modules Wi-Fi™ Module 763 Module Allows you to add Wi-Fi alarm signal communication to XR150 Series with Version 112 or higher firmware and Level F hardware and XR550 Series panels with Version 112 or higher firmware. DMP Two-Way Wireless Devices 1100X/1100XH Receiver Supports up to 500/100 devices in residential or commercial wireless operation.
  • Page 10 SYSTEM COMPONENTS 1142BC Two-button Panic Belt Clip Provides portable two-button panic operation. Transmitter 1142 Two-button Panic Transmitter Provides permanently mounted under-the-counter two-button panic operation. 1144-4 (Four-Button) 1144 Series Key Fob transmitters designed to clip onto a key ring or lanyard. 1144-2 (Two-Button) 1144-2-P (Two-Button with Prox) 1144-D (Two Button Panic)

  • Page 11: Installation

    INSTALLATION Installation Mounting the Enclosure The metal enclosure for the XR150/XR550 Series must be mounted in a secure, dry place to protect the panel from damage due to tampering or the elements. It is not necessary to remove the panel PCB when installing the enclosure.

  • Page 12: Mounting Keypads And Zone Expansion Modules

    INSTALLATION 56 VA Transformer Mounting Plate XR550 Panel XR550 Panel Mounting for one (1) Zone Expansion Module. Battery Shelf Figure 4: XR550 Series in Model 352X Enclosure and Separate 352S Enclosure with Shelves Mounting Keypads and Zone Expansion Modules DMP LCD keypads have removable covers that allow you to easily mount the keypad to a wall or other flat surface using the screw holes on each corner of the base.

  • Page 13: Connecting Lx-Bus™, Ax-Bus™ And Keypad Bus Devices

    INSTALLATION Connecting LX-Bus™, AX-Bus™ and Keypad Bus Devices Connections for LX-Bus/AX-Bus and Keypads are provided through the PROG, LX500, LX600, LX700, LX800, and LX900 4-pin headers and the keypad bus. Several factors determine the DMP LX-Bus/AX-Bus and keypad bus performance characteristics: the wire length and gauge used, the number of devices connected, and the voltage at each device.

  • Page 14: Primary Power Supply

    INSTALLATION Primary Power Supply AC Terminals 1 and 2 Connect the transformer wires to terminals 1 and 2 on the panel. Use no more than 70 ft. of 16 gauge or 40 ft. of 18 gauge wire between the transformer and the panel. Always ground the panel before applying power to any devices: The XR150/XR550 Series must be properly grounded before connecting any devices or applying power to the panel.

  • Page 15: Discharge/Recharge

    INSTALLATION Discharge/Recharge The XR150/XR550 Series battery charging circuit float charges at 13.8 Vdc at a maximum current of 1.0 Amps using a 50 VA or 56 VA transformer. Listed below are the various battery voltage level conditions: Battery Trouble: Below 11.9 Vdc Battery Cutoff: Below 10.2 Vdc Battery Restored:...

  • Page 16: Power Requirements

    INSTALLATION Power Requirements During AC power failure, the XR150/XR550 Series panel and all connected auxiliary devices draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. The following table lists the XR150/XR550 Series panel power requirements. You must add the additional current draw of keypads, zone expansion modules, smoke detector output, and any other auxiliary devices used in the system for the total current required.
  • Page 17 INSTALLATION Standby Battery Power Calculations Standby Current Alarm Current 736P POPIT Interface Module Qty _______ 25mA ______ Qty _______ 25mA ______ Radionics Popex, POPITs, OctoPOPITs Qty _______ ___mA ______ Qty _______ ___mA ______ 738A Ademco Wireless Interface Module Qty _______ 75mA ______ Qty _______ 75mA ______...

  • Page 18: Standby Battery Selection

    INSTALLATION Standby Battery Selection To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from section 6.8 XR150/XR550 Series Power Requirements, perform the following: 1. Select the desired standby hours required from the table below: 24, 60, or 72 hours 2.

  • Page 19: Bell Output

    XR150/XR550 Series panel terminals 7, 8, 9, and 10 are for the keypad bus. You can connect up to 16 supervised keypads to the XR550 Series and 8 supervised keypads to the XR150 Series as well as multiple unsupervised keypads.

  • Page 20: Smoke And Glassbreak Detector Output

    INSTALLATION Smoke and Glassbreak Detector Output Terminals 11 and 12 Terminal 11 supplies positive 12 Vdc Regulated to power 4-wire smoke detectors and other powered devices. This output can be turned off by the user for 5 seconds using the Sensor Reset User Menu option to allow latched devices to reset. Terminal 12 is the ground reference for terminal 11.

  • Page 21: Terminals 25–26 And 27–28

    INSTALLATION Powered Zones for 2-Wire Smoke Detectors 11.1 Terminals 25–26 and 27–28 Panel terminals 25 through 28 provide two resettable Class B, Style A, 2-wire powered zones. For programming purposes the zone numbers are 9 and 10. Note: The maximum wire length for either zone 9 or zone 10 is 3000 feet using 18 AWG or 1000 feet using 22 AWG. The maximum voltage is 13.8 Vdc and the maximum normal standby current is 1.25mA DC.

  • Page 22: Description

    INSTALLATION Annunciator Outputs 13.1 Description The four programmable annunciator outputs can be programmed to indicate the activity of the panel zones or conditions occurring on the system. Annunciator outputs do not provide a voltage but instead switch-to-ground a voltage from another source. The outputs can respond to any of the conditions listed in the Description section for Dry Contact Relays.

  • Page 23: Lx-Bus/Ax-Bus Headers

    INSTALLATION LX-Bus /AX-Bus Expansion 15.1 LX-Bus/AX-Bus Headers XR Series control panels are capable of providing zone, output, and access control expansion by connecting hardware modules to the AX/LX-Bus headers on the control panel. XR150 panels are manufactured with one LX-Bus header labeled LX500.

  • Page 24: Lx-Bus/Ax-Bus Leds

    INSTALLATION 15.3 LX-Bus/AX-Bus LEDs The two LEDs, located above each LX-Bus/AX-Bus header, indicate data transmission and receipt. The left LED flashes green to indicate the panel is transmitting LX-Bus/AX-Bus data. The right LED flashes yellow to indicate the panel is receiving LX-Bus/AX-Bus data. 15.4 OVC LEDs The Overcurrent LED (OVC) lights Red when the devices connected to the Keypad Bus and LX-Bus(es) draw more...

  • Page 25: Description

    INSTALLATION PHONE LINE RJ Connector 17.1 Description Connect the panel to the public telephone network by installing a DMP 356 RJ Cable between the panel PHONE LINE connector and the RJ31X or RJ38X phone block. The maximum impedance is 100 Ohms. CAUTION - To reduce the risk of fire, use only No.

  • Page 26: Fcc Registration

    INSTALLATION 17.5 FCC Registration The Model XR150/XR550 Series complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the outside of the enclosure of this equipment is a label that contains, among other information, a product identifier in the format US:CCKAL00BXR550.

  • Page 27: Cell Module Header

    7- pin EXP header on compatible panels using the included cable and operates at 12 VDC from the panel power supply. The 763 Wi-Fi Module is compatible with all DMP XR150 Series Version 112 or higher firmware with Level F hardware and XR550 Series control panels Version 112 or higher firmware.

  • Page 28: Connecting The 763

    INSTALLATION 20.2 Connecting the 763 NOTE: POWER MUST BE REMOVED FROM THE PANEL PRIOR TO CONNECTING THE 763 TO THE XR150/XR550 Series EXP HEADER. DAMAGE TO PANEL MAY OCCUR. 1. The included cable connects to the 763 6-pin header. See Figure 14. 2.
