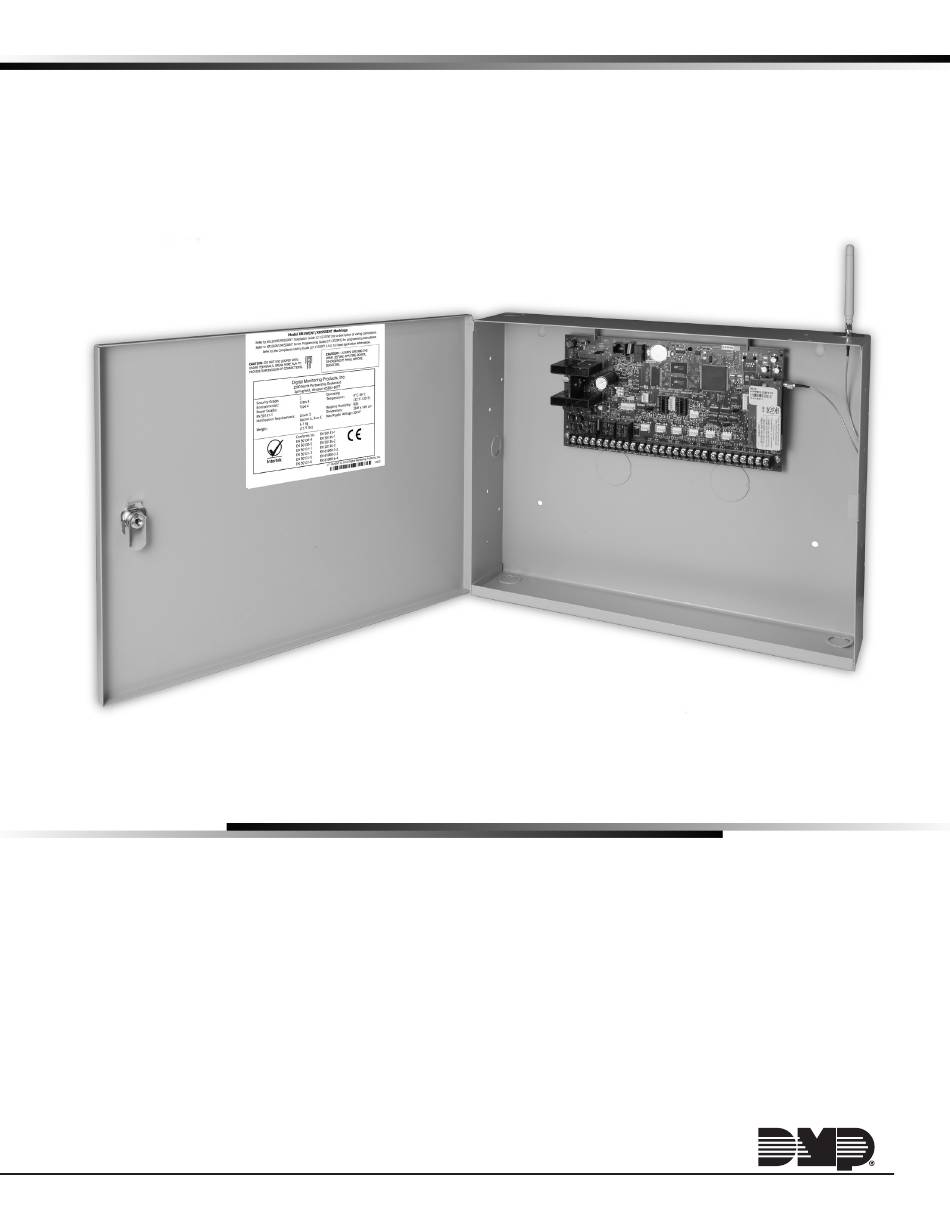

- Page 1 INSTALLATION GUIDE XR150/XR550 INTERNATIONAL SERIES CONTROL PANEL...
- Page 2 MODEL XR150/XR550 INTERNATIONAL SERIES PANELS INSTALLATION GUIDE © 2021 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice. Digital Monitoring Products XR150INT/XR550INT Series Installation Guide...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Specifications Summary Power Supply ..................... 1 Communication ....................1 Panel Zones ......................1 Keypad Bus ......................1 LX500-LX900 Bus™ ..................... 1 Outputs ......................1 1.7 Enclosure Specifications ..................2 Panel Features Description ......................2 Zone Expansion ....................2 Output Expansion .................... - Page 4 TABLE OF CONTENTS Protection Zones 10.1 Terminals 13–24 ....................14 10.2 Operational Parameters ..................14 10.3 Zone Response Time ..................15 10.4 Keyswitch Arming Zone ..................15 Powered Zones for 2-Wire Smoke Detectors 11.1 Terminals 25–26 and 27–28 ................15 Dry Contact Relay Outputs 12.1 Description ......................15 12.2 Contact Rating ....................15...
-
Page 5: Product Specifications Summary
PANEL SPECIFICATIONS Product Specifications Summary Power Supply Transformer Input: Model 324INT wire-in — Primary input: 230 VAC, 50 Hz, Secondary output: 18 VAC 100 VA, 400 mA Standby Battery: 12 VDC, 1.0 Amps Max. charging current Models 365, 366, 368, or 369 Replace every 3 to 5 years Auxiliary: 12 VDC output at 1.5 Amp Max... -
Page 6: Enclosure Specifications
PANEL SPECIFICATIONS Enclosure Specifications The XR150INT/XR550INT Series panels are shipped in an enclosure with a transformer, End-of-Line resistors, battery leads, user guide, and programming sheets. Enclosure Size Color(s) Construction (Cold Model Rolled Steel) 350INT 44.45 W x 34.29 H x 8.89 D cm Gray (G) or Red (R) 18-Gauge 350AINT... -
Page 7: Caution Notes
PANEL SPECIFICATIONS Caution Notes Throughout this guide you will see caution notes containing information you need to know when installing the panel. These cautions are indicated with a yield sign. Whenever you see a caution note, make sure you completely read and understand its information. -
Page 8: System Components
SYSTEM COMPONENTS System Components Specific and Non-specific Wired Interconnections The XR150INT/XR550INT Series panels diagram below shows some of the accessory modules you can connect for use in various applications. A brief description of each module follows in section 3.3. Form C Relays (J2) Output Color Code–Model 431 Harness Listed Resistors Output 2 N/O Orange/White... -
Page 9: Accessory Devices
SYSTEM COMPONENTS Accessory Devices Cellular Communicator Cards 263LTE-INT-A Allows you to connect the XR150INT/XR550INT Series panels to any compatible LTE network. Accessory Modules 270INT Network Transient Provides transient surge protection for the ETHERNET Connector. Suppression Module Expansion Modules 710INT Bus Splitter/Repeater Allows you to increase keypad or LX-Bus™... -
Page 10: Installation
Dual 1 3/4" and 1 3/8" Conduit Knockouts * 350A Optional Knockout Tamper Switch for 350A Attack Resistant Enclosure Battery Shelf holds up to three 7 Ah Batteries Figure 2: XR550 International Series panel in Model 350 or 350A Enclosure Digital Monitoring Products XR150INT/XR550INT Series Installation Guide... -
Page 11: Mounting Keypads And Zone Expansion Modules
Switch for Enclosure Enclosure Figure 3: XR550 International Series in Model 352XINT Enclosure and Separate 352S Enclosure with Shelves Mounting Keypads and Zone Expansion Modules DMP LCD keypads have removable covers that allow you to easily mount the keypad to a wall or other flat surface using the screw holes on each corner of the base. -
Page 12: Connecting Lx-Bus™, Ax-Bus™ And Keypad Bus Devices
LED turns from Red to Green. Wireless keypads are assigned to the first open device position in Device Setup Figure 4: XR550 International Series Panel Showing automatically based upon the order in Reset and Transmit/Receive which they are detected. -
Page 13: Ac Terminals 1 And 2
The leads need a momentary short only. Once the relay has pulled in, the battery voltage holds it in that condition. If the XR150/XR550 International Series panel is powered up with an AC transformer, the battery cutoff relay is pulled in automatically. For more information refer to Figure 1. -
Page 14: Battery Supervision
INSTALLATION Battery Supervision The XR150INT/XR550INT Series panels tests the battery when AC power is present. The test is done every three minutes and lasts for five seconds. During the test, the panel places a load on the battery; if the battery voltage falls below 11.2 VDC a low battery is detected. - Page 15 INSTALLATION Standby Battery Power Calculations Standby Current Alarm Current 738Z+INT Z-Wave Interface Module Qty _______ 40mA ______ Qty _______ 40mA ______ 710INT Bus Splitter/Repeater Module Qty _______ 32mA ______ Qty _______ 32mA ______ 712-8INT Zone Expansion Module Qty _______ 17mA ______ Qty _______ 17mA...
-
Page 16: Standby Battery Selection
INSTALLATION Standby Battery Selection To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from section 6.8 XR150INT/XR550INT Series Power Requirements, perform the following: 1. Select the desired standby hours required from the table below: 24, 60, or 72 hours 2. -
Page 17: Bell Output
INSTALLATION Bell Output Terminals 5 and 6 Terminal 5 supplies positive 12 VDC to power alarm bells or horns. This output can be steady, pulsed, or temporal depending upon the Bell Action specified in Bell Options. Terminal 6 is the ground reference for the bell circuit. -
Page 18: Smoke And Glassbreak Detector Output
INSTALLATION Smoke and Glassbreak Detector Output Terminals 11 and 12 Terminal 11 supplies positive 12 VDC Regulated to power 4-wire smoke detectors and other powered devices. This output can be turned off by the user for 5 seconds using the Sensor Reset User Menu option to allow latched devices to reset. -
Page 19: Zone Response Time
INSTALLATION 10.3 Zone Response Time A condition must be present on a zone for 400 milliseconds before it is detected by the XR150INT/XR550INT Series panel. Ensure detection devices used on the protec tion zones are rated for use with this delay. Zones 1-10 can also be programmed for a fast response delay of 160 milliseconds. -
Page 20: Model 431 Output Harness Wiring
INSTALLATION 12.3 Model 431 Output Harness Wiring The relay contacts are accessible by installing the DMP 431 Output Harness on the 6-pin header labeled OUT1-OUT2. OUTPUT 2 uses the top three prongs, and OUTPUT 1 uses the bottom three prongs. The wire harness and contact locations are shown below: Contact Color... -
Page 21: Lx-Bus Tm Tm
INSTALLATION LX-Bus /AX-Bus Expansion 15.1 LX-Bus HeadersLX-Bus/AX-Bus Headers XR150INT/XR550INT Series panels are capable of providing zone, output, and access control expansion by connecting hardware modules to the AX/LX-Bus headers on the control panel. XR150INT panels are manufactured with one LX-Bus header labeled LX500. AX-Bus operation does not apply to XR150INT panels. XR550INT panels are manufactured with five AX/LX-Bus headers labeled LX500-LX900. -
Page 22: Ovc Leds
INSTALLATION 15.3 OVC LEDs The Overcurrent LED (OVC) lights Red when the devices connected to the Keypad Bus and LX-Bus(es) draw more current than the panel is rated for. The LED(s) turn a steady Red when lit. When the OVC LED(s) light Red, the appropriate LX-Bus(es) and Keypad bus are shut down. -
Page 23: Reset And Tamper Headers
INSTALLATION RESET and TAMPER Headers 18.1 RESET Header The RESET header is located to the left of the Expansion Header (EXP) on the right side of the circuit board and is used to reset the XR150INT/XR550INT Series microprocessor. To reset the panel when first installing the system, install the reset jumper before applying power to the panel. -
Page 24: Cellular Modules
INSTALLATION Cellular Module 19.1 CELL MODULE Header The CELL MODULE header is located to the right of the Expansion (EXP) Module header on the right side of the circuit board and is used to connect the DMP Model 263LTE-INT-A Cellular Communicators. This provides a fully supervised alarm communication path for the XR150INT/XR550INT Series panel. -
Page 25: International Certifications
International Certifications Intertek (ETL) Listed EN 50130-4:2011+A1:2014 Alarm systems. Electromagnetic compatibility. Product family standard: Immunity requirements for components of fire, intruder, hold up, CCTV, access control and social alarm systems. EN 50130-5:2011 Alarm systems. Environmental test methods. EN 50131-1:2006+A1:2009 Alarm systems. Intrusion and hold-up systems. System requirements. EN 50131-3:2009 Alarm systems. - Page 26 Documentation Security Grade: Environmental Class II Power Supply: Type A Power Input 18 VAC, 50 Hz, 400 mA, Class II EN 50131-1 Notification Requirements Grade 3 Options A,B, or C Weight: 6.1 kg (13.5 lbs) Environmental Class: Operating Temperature: 0°C - 49°C (32°F - 120°F) Relative Humidity: Dimensions: 26W x 14H cm...
