InstallatIon GuIde
XR150fc/XR550fc
seRIes Panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR150FC Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics XR150FC Series

Summary of Contents for DMP Electronics XR150FC Series

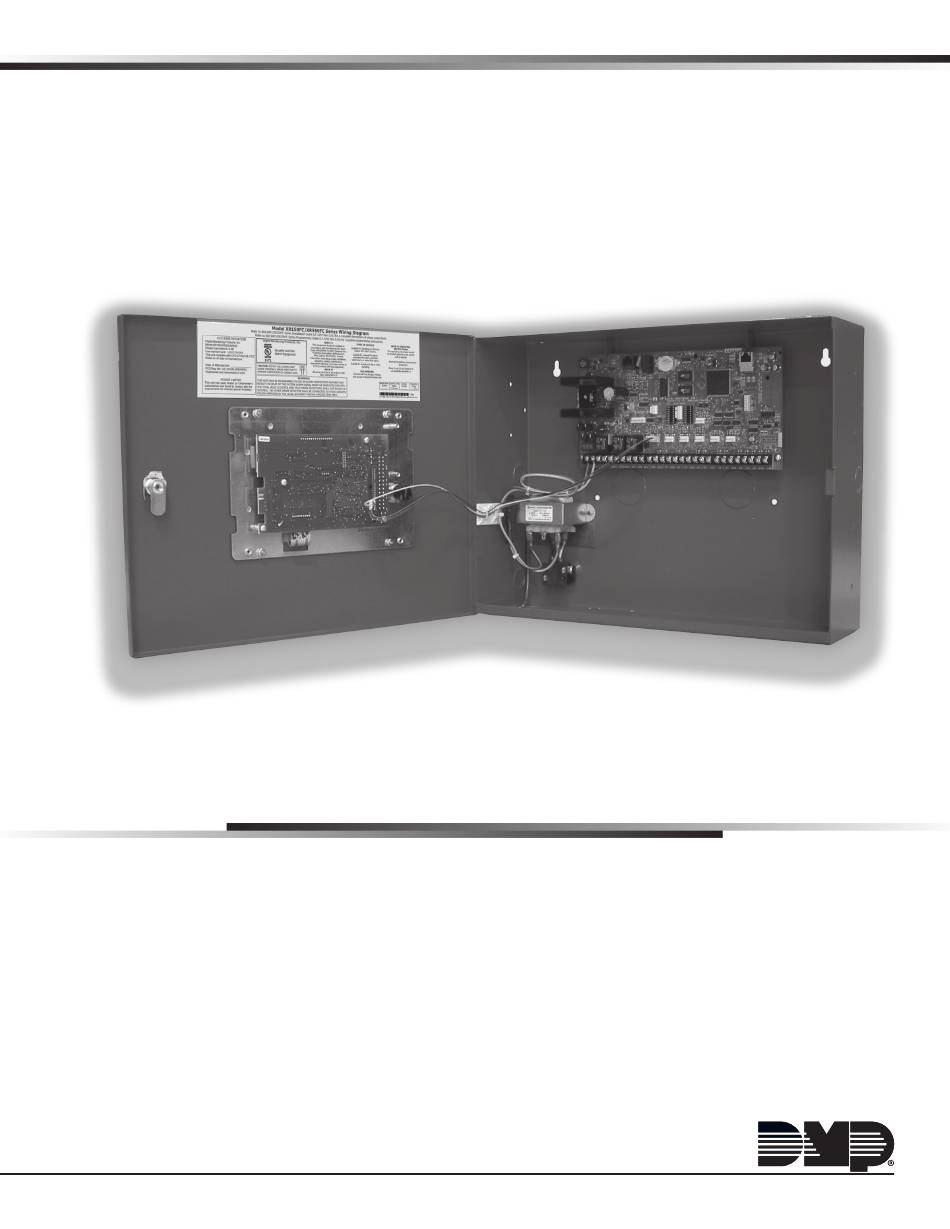

  • Page 1 InstallatIon GuIde XR150fc/XR550fc seRIes Panel...
  • Page 2 MODEL XR150FC/XR550FC SERIES PANEL INSTALLATION GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class A computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.

  • Page 3: Table Of Contents

    T able of ConTenTs Product Specifications Summary Power Supply .................1 Communication ..............1 Panel Zones ................1 Keypad Bus ................1 LX-Bus™ ................1 Outputs .................1 Panel Features Description ................2 Zone Expansion ..............2 Output Expansion ..............2 Caution Notes ................2 Compliance Instructions ............2 System Components Wiring Diagram ..............3 Lightning Protection ..............3 Network Protection ..............3...
  • Page 4 T able of ConTenTs Powered Zones for 2-Wire Smoke Detectors 11.1 Terminals 25–26 and 27–28 ..........14 Dry Contact Relay Outputs 12.1 Description ................15 12.2 Contact Rating ..............15 12.3 Model 431 Output Harness Wiring ..........15 Annunciator Outputs 13.1 Description ................15 13.2 Model 300 Harness Wiring .............15 13.3 Model 860 Relay Module ............15...

  • Page 5: Product Specifications Summary

    IntroductIon Product Specifications Summary Power Supply Transformer Input: Primary input: 120 Vac, 60 Hz, Secondary output: 16 Vac 56 VA Standby Battery: 12 Vdc, 1.0 Amps Max. charging current Auxiliary: 12 Vdc output at .5 Amp Max* Bell Output: 12 Vdc at .7 Amp Max* Note: The combined Auxiliary and Bell outputs total cannot exceed 1.2 Amps with a 56 VA Transformer.

  • Page 6: Panel Features

    IntroductIon Panel Features Description The DMP XR150FC/XR550FC Series system is made up of an alarm panel with a built-in communicator, an enclosure, battery, one 16 Vac transformer, and keypads. Each panel is a versatile 12 Vdc, combined access control, burglary, and fire communicator panel with a built in LCD Fire Command Center keyboard with membrane keyswitch.

  • Page 7: System Components

    IntroductIon System Components Wiring Diagram The diagram shows some of the accessory modules you can connect for use in various applications. A brief description of each module follows in section 3.4. AC Wiring must be in conduit and exit out the left side of the enclosure. Wiring on terminals 5 through 22 must Power Form C Relays (J2)

  • Page 8: Accessory Devices

    IntroductIon Accessory Devices Interface Adaptor and Interface Cards 263C CDMA Cellular Communicator Allows you to connect the XR150FC/XR550FC Series to any compatible CDMA/SMS network. 263H HSPA+ Cellular Allows you to connect the XR150FC/XR550FC Series to any compatible HSPA/SMS network. Communicator Expansion Modules 270 Network Transient Provides transient surge protection for the J1 Ethernet Connector.

  • Page 9: Accessory Devices (Continued)

    IntroductIon Accessory Devices (continued) DMP Two-Way Wireless Devices (continued) 1165 Commercial Smoke Commercial smoke detector. Detector 1165H Commercial Smoke/Heat Commercial smoke/heat detector with fixed rate-of-rise heat detector. Detector 1165HS Commercial Smoke/Heat Commercial smoke/heat detector with fixed rate-of-rise heat detector and sounder. Detector and Sounder 1181 PIV Commercial Post Indicator Valve (PIV).

  • Page 10: Installation

    IntroductIon Installation Mounting the Enclosure The metal enclosure for the XR150FC/XR550FC Series must be mounted using screws in the four mounting holes shown in Figure 2. Mount the enclosure in a secure, dry place to protect the panel from damage due to tampering or the elements.

  • Page 11: Mounting Keypads And Zone Expansion Modules

    Inst alla tIon Mounting Keypads and Zone Expansion Modules DMP LCD keypads have removable covers that allow you to easily mount the keypad to a wall or other flat surface using the screw holes on each corner of the base. Before mounting the base, connect the keypad wire harness leads to the keypad cable from the panel and to any device wiring run to that location.

  • Page 12: Primary Power Supply

    Inst alla tIon Primary Power Supply Transformers and AC Power Connection The AC connection should be completed by a licensed electrician. Never share the Fire Alarm Control Panel circuit with any other equipment. The XR150FC/XR550FC panel comes supplied with a 16 Vac 56 VA transformer. The 16 Vac transformer must be wired to a dedicated unswitched 120 Vac 60 Hz circuit with at least .87A available.

  • Page 13: Secondary Power Supply

    Inst alla tIon Secondary Power Supply Battery Terminals 3 and 4 Battery Start XR550 Connect the black battery lead to the negative battery Panel terminal. The negative terminal connects to the enclosure –B BELL GND Battery ground internally through the XR150FC/XR550FC Series To AC circuit board.

  • Page 14: Power Requirements

    Inst alla tIon Power Requirements During AC power failure, the XR150FC/XR550FC Series panel and all connected auxiliary devices draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. The following table lists the panel power requirements. You must add the additional current draw of keypads, zone expansion modules, smoke detector output, and any other auxiliary devices used in the system for the total current required.
  • Page 15 Inst alla tIon Standby Battery Power Calculations Standby Current Alarm Current 736P POPIT Interface Module Qty _______ 25mA ______ Qty _______ 25mA ______ Radionics Popex, POPITs, OctoPOPITs Qty _______ ___mA ______ Qty _______ ___mA ______ 738A Ademco Wireless Interface Module Qty _______ 75mA ______ Qty _______...

  • Page 16: Standby Battery Selection

    Inst alla tIon Standby Battery Selection To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from section 6.8 XR150FC/XR550FC Series Power Requirements, perform the following: 1.

  • Page 17: Bell Output

    Inst alla tIon Bell Output Terminals 5 and 6 Terminal 5 supplies positive 12 Vdc to power alarm bells or horns. This output can be steady, pulsed, or temporal depending upon the Bell Action specified in Bell Options. Terminal 6 is the ground reference for the bell circuit. This supervised output detects 1k Ohms or less as normal.

  • Page 18: Protection Zones

    Inst alla tIon Protection Zones 10.1 Terminals 13–24 Zones 1 to 8 (terminals 13 to 24) on the panel are all grounded burglary zones. For programming purposes, the zone numbers are 1 through 8. Listed below are terminal 13 to 24 connection functions. Terminal Function Terminal...
  • Page 19 Inst alla tIon Dry Contact Relay Outputs 12.1 Description The XR150FC/XR550FC Series panel provides two programmable auxiliary SPDT relays when equipped with two DMP Model 305 relays in sockets K6 (Output 1) and K7 (Output 2) and a Model 431 Output Harness on the J2 6-pin Header. Each relay provides one SPDT set of contacts that can be operated by any of the functions listed below: 1) Activation by zone condition: Steady, Pulsing, Momentary, and Follow 2) Activation by 24-hour 7-day schedule: One on and one off time a day for each relay...
  • Page 20 Inst alla tIon Wireless Bus Expansion 14.1 Description The J13 Wireless Bus (XBUS) header provides connection for the 1100X or 1100XH Wireless Receiver. The XBUS provides up to 500 wireless zones numbered 500-999. Refer to the 1100X Wireless Receiver Install Guide (LT-0708) or the 1100XH Wireless Receiver Install Guide (LT-0970) for complete information.
  • Page 21 Inst alla tIon J3 Telephone RJ Connector 17.1 Description Connect the panel to the public telephone network by installing a DMP 356 RJ Cable between the panel J3 connector and the RJ31X or RJ38X phone block. The maximum impedance is 100 Ohms. CAUTION - To reduce the risk of fire, use only No.
  • Page 22 Inst alla tIon The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. If trouble is experienced with the Model XR150FC/XR550FC Series, for repair or warranty information, please contact DMP at the address and telephone number listed on the back of this document.
  • Page 23 Digital Monitoring Products XR150FC/XR550FC Series Installation Guide...
  • Page 24 Certifications California State Fire Marshal (CSFM) FCC Part 15 FCC Part 68 Registration ID CCKAL00BXR550 New York City (FDNY COA #6167) ANSI/UL 294 Access Control System Units ANSI/UL 1610 Central Station Burglar ANSI/UL 2017 General Purpose Signaling Devices and Systems ANSI/UL 864 Fire Protective Signaling Compatible with Devices listed for:...
