PROGRAMMING GUIDE
XR6 COMMAND PROCESSOR™ PANEL and
XR10 COMMAND PROCESSOR™ PANEL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR6 COMMAND PROCESSOR and is the answer not in the manual?

Questions and answers

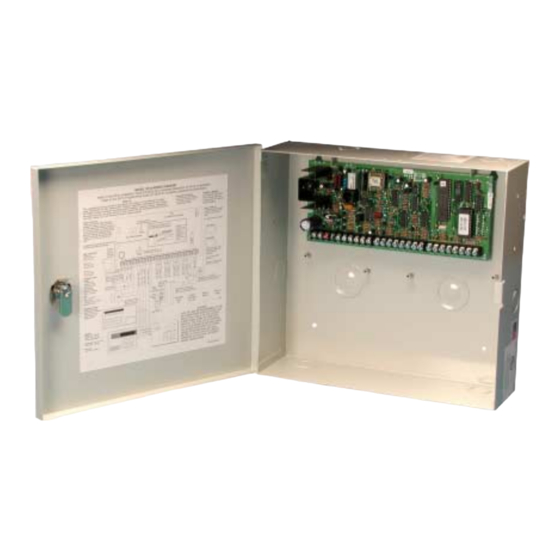

Summary of Contents for DMP Electronics XR6 COMMAND PROCESSOR

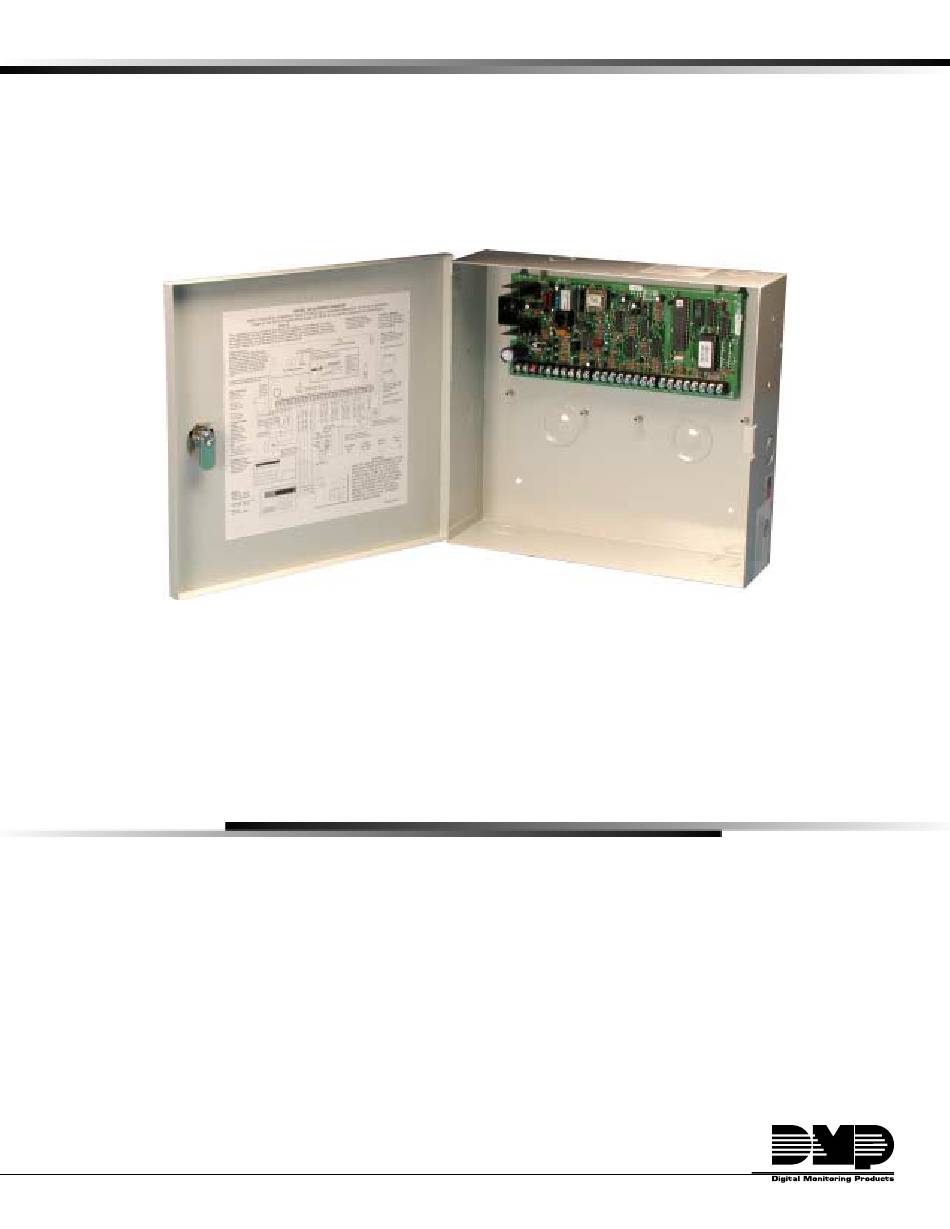

  • Page 1 PROGRAMMING GUIDE XR6 COMMAND PROCESSOR™ PANEL and XR10 COMMAND PROCESSOR™ PANEL...
  • Page 2 MODEL XR6/XR10 COMMAND PROCESSOR PROGRAMMING GUIDE FCC NOTICE This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer's instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class B computing device in accordance with the specification in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Section Page Introduction Before You Begin ............. 1 Getting Started .............. 1 Programming Menu ............2 Programmer Lockout Codes ..........2 Reset Timeout ..............2 Special Keys ..............2 Entering Alpha Characters ..........3 Entering Non-Alpha Characters .......... 3 Keypad Prompts Display Current Programming ......
  • Page 4 TABLE OF CONTENTS Section Page System Reports SYSTEM REPORTS ............. 9 OPENING/CLOSING REPORTS ..........9 ABORT REPORT ............... 9 ZONE RESTORAL REPORTS ..........9 BYPASS REPORTS ............. 9 CODE CHANGE REPORTS ............ 9 AMBUSH ................ 9 System Options SYSTEM OPTIONS ............10 ALL/PERIMETER .............
  • Page 5 TABLE OF CONTENTS Section Page Zone Information ZONE INFORMATION ............13 ZONE NUMBER ............... 13 ZONE NAME ..............13 ZONE TYPE ..............13 AREA NAME ..............13 ARM AREAS ..............14 NEXT ZONE ..............14 ALARM ACTION ............... 14 DISARMED OPEN ............. 14 8.9A MESSAGE TO TRANSMIT ............
  • Page 6 This page left intentionally blank.
  • Page 7: Before You Begin

    1 - INTRODUCTION 1.1 Before You Begin About this Guide This guide provides programming information for the DMP XR6/XR10 Command Processor Panel. After this Introduction, the remaining sections describe the functions of each programming menu item along with their available options. Before starting to program, we recommend you read through the contents of this guide. The information contained here allows you to quickly learn the programming options and operational capabilities of the XR6/XR10 panel.
  • Page 8: Programming Menu

    1 - INTRODUCTION 1.3 Programming Menu To select a section for programming, press any top row Select key when the name of that section is displayed on the keypad. The detailed instructions for each programming step are found in the following sections. There are 9 programming menu items to choose from: Menu Item Section...
  • Page 9: Entering Alpha Characters

    1 - INTRODUCTION Select Keys The top row of keys are called the Select keys. When the Programmer displays an option for you to select, such as YES or NO, you press the Select key under the option you want to enable. The Select keys also allow you to change programming information currently in the panel's memory.
  • Page 10: Initialization

    2 - INITIALIZA TION INITIALIZATION INITIALIZATION This function allows you to set the panel's user codes and Programmer selections back to factory defaults before programming the panel for the first time or a new installation. After you select YES to clear a section of memory, the panel asks if you are sure you want to clear the memory.
  • Page 11: Communication

    3 - COMMUNICA TION COMMUNICATION COMMUNICATION This section allows you to configure the communication settings for the panel. After choosing the Communication type, continue through the remaining options. COMMUNICATION TYPE COMM TYPE: NONE Specifies the communication method the panel uses to contact the receiver. Press any Select key to display the following communication options: NONE - For local systems.
  • Page 12: Opening/Closing And User Reports

    3 - COMMUNICA TION 3.11 OPENING/CLOSING AND USER REPORTS O/C USER NO YES Select YES to enable opening/closing, door access, schedule and code changes, bypass, and zone reset reports by user to be sent to this receiver. 3.12 TEST REPORT TEST RPT NO YES Select YES to enable the Recall Test report to be sent to this receiver.
  • Page 13: Backup Reporting

    3 - COMMUNICA TION 3.19 BACKUP REPORTING BACKUP NO YES YES enables this receiver to be a backup to the other receiver in the event the other receiver cannot be reached. 3.20 FIRST TELEPHONE NUMBER FIRST PHONE NO. This is the first number the panel dials when sending reports to this receiver. A –...
  • Page 14: Remote Options

    4 - REMOTE OPTIONS REMOTE OPTIONS REMOTE OPTIONS This section allows you to enter the information needed for Remote Command/ Remote Programming operation. RMT KEY: REMOTE KEY Enter a code of up to 8 digits for use in verifying the authority of an alarm or service receiver to perform a remote command/programming session.
  • Page 15 5 - SYSTEM REPORTS SYSTEM REPORTS SYSTEM REPORTS This section of the Programmer allows you to select the reports the panel sends to the receiver. OPENING/CLOSING REPORTS OPN/CLOS NO YES YES allows the panel to send opening/closing reports by user to the receiver. ABORT NO YES ABORT REPORT...
  • Page 16 6 - SYSTEM OPTIONS SYSTEM OPTIONS SYSTEM OPTIONS This section allows you to select system-wide functions of the XR6/XR10 system. ALL/PERIMETER ALL/PRM NO YES YES configures the panel as a Perimeter (Area 1) and Interior (Area 2) system. NO configures the panel for Home/Sleep/Away operation. In addition to the Perimeter (Area 1) and Interior (Area 2) a third area, Bedrooms (Area 3) is created.
  • Page 17 7 - OUTPUT OPTIONS OUTPUT OPTIONS OUTPUT OPTIONS This function allows you to program the panel's Bell Output functions and certain Output options. Switched Ground (open collector) outputs are available from the XR6/XR10 when using a 4-wire output harness (Model 300 Harness). Refer to the XR6/XR10/XR20/XR40 Installation Guide (LT-0229) for complete information.
  • Page 18 7 - OUTPUT OPTIONS OUTPUT ACTION OUTPUT ACTION . . . This option allows you to define the operation of the panel's four annunciator outputs. 7.5A CUTOFF OUTPUTS CO OUTS: - - - - Any or all of the available outputs can be programmed here to turn off after the time specified in OUTPUT CUTOFF TIME.
  • Page 19: Zone Information

    8 - ZONE INFORMA TION ZONE INFORMATION ZONE INFORMATION This allows you to define the operation of each protection zone used in the system. A description of each programming option follows. ZONE NUMBER ZONE NO: – Enter the number of the zone you intend to program. Press COMMAND to enter a zone name.
  • Page 20: Arm Areas

    8 - ZONE INFORMA TION ARM AREAS ARM AREAS: This option specifies the areas to be armed by the Arming Type Zone. When disarmed, all areas in the system are disarmed. PERIMETER/ALL - Specify whether the arming zone arms just the Perimeter PERIM (PERIM) or the Perimeter and Interior areas (ALL) for All/Perimeter systems.
  • Page 21: Message To Transmit

    8 - ZONE INFORMA TION 8.9A MESSAGE TO TRANSMIT MSG: TROUBLE You can send two report types to the receiver: Alarm and Trouble. These are represented by the characters A and T. Press any top row Select key to display the zone's report options.
  • Page 22: Entry Delay

    8 - ZONE INFORMA TION 8.11 ENTRY DELAY ENTRY DELAY: 1 Select the entry delay timer for this zone. Entry delay timers 1 and 2 are programmed in section 6.4 Entry Delay 1. CRS ZONE NO YES 8.12 CROSS ZONE Select YES to enable cross zoning for this zone.
  • Page 23: Stop

    9 - STOP STOP STOP At the STOP prompt, pressing any Select key allows you to exit the Programmer. When selected, the panel performs an internal reset and exits the programmer. The Stop function causes the following to occur: • The system is DISARMED •...
  • Page 24: Appendix 11.1 Status List

    11 - APPENDIX 11.1 Status List The Status List is the current status of the system or records of recent system events that are displayed on the alphanumeric keypads. For example, in Home/Away systems, you might see the display SYSTEM READY. This would be the current status of the system.
  • Page 25: Zone Type Specifications

    11 - APPENDIX 11.4 Zone Type Specifications This section describes applications for the default zone types in Zone Information programming. The XR6/XR10 panel contains 11 default zone types for use in configuring the system. These zone types provide the most commonly selected functions for their applications. All zone types except the Arming zone type can be customized by changing the variable options listed below.
  • Page 26: Zone Type Descriptions

    11 - APPENDIX 11.5 Zone Type Descriptions NT (Night Zone) - Controlled instant zone used for perimeter doors and windows and interior devices such as PIRs and Glassbreak detectors. DY (Day zone) - Used for emergency doors or fire doors to sound the keypad buzzer and display the zone name when the zone is faulted.
  • Page 27: Default Panel Programming

    11 - APPENDIX 11.7 Default panel programming This program sheets shows the XR6/XR10 panel's default program settings. PROGRAMMING INFORMATION For XR6/XR10 COMMAND PROCESSOR Panels Name Account Number Phone Date Address City State COMMUNICATION SYSTEM REPORTS Communication Type NONE 4 - 2 Opening/Closing Reports Account Number _ _ _ _ _ (1 to 65,535)
  • Page 28: Communication Reports

    11 - APPENDIX 11.8 4-2 Communication Reports The table below contains a complete list of hexadecimal characters sent using the DMP 4-2 communication format. i l o c i t l l a o l f o l f l u f y l t t i x l i a...
  • Page 29: Examples

    11 - APPENDIX 11.10 4-2 Examples The following examples are the actual event codes a central station would receive. The full report would also include the account number and checksum. When the central station receives this event code It means A Fire alarm is being reported on zone 10 An Ambush alarm is being reported A battery trouble is being reported...
  • Page 30 8 0 0 - 6 4 1 - 4 2 8 2 I N T R U S I O N • F I R E • A C C E S S • N E T W O R K S w w w .
