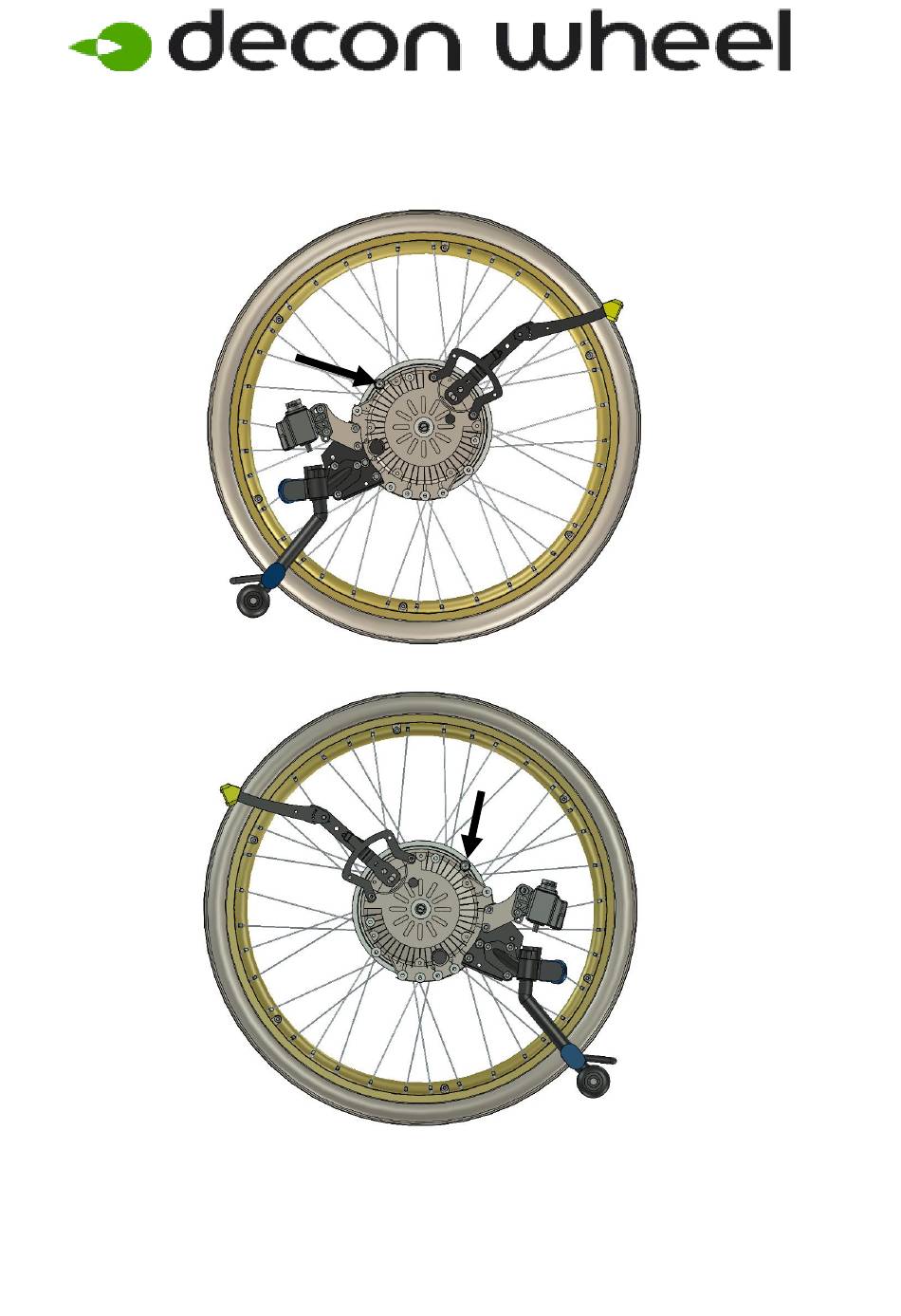

- Page 1 Assembly instructions for Bellis MED3040 1. Remove wheels and sleeves on both sides. 2. Check the correct placement for the stop pin on the E-drive unit. 4/21/2020...
- Page 2 Placement for the adapter plate. 3. Assembly the plate (right side) according to picture. 4. Parts pair mountingset: Item No. Part Number Description MED2000 Bracket 100 400 007 Spacer HW069 Hubsleever M16x1 405239 Nordlock washer XSM16FJ Single coil washer M16 XSM16M Nut M16 100 400 017...
- Page 3 Assembly of the joystick 6. Loose the screws until you are able to place the bracket (MED1500) between, then you assemble them again. 4/21/2020...
- Page 4 Assembler the Alternate: Attendant control (only right side) Move this too the other side, if you assemble the joystick on the left side. Item No. Part Number Description XOC-48110-A1 Joystick MED1316 Plate with pin XSM6X16 Screw M6 x 16 XSM6X35 Screw M6 x 35 XSM6BR Plain Washer 6,4...
- Page 5 Alternative attendant control (only right side) Item No. Part Number Description XSM6TG Thorn Washer 6,4 Xklamma2 XClamp2 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 4/21/2020...
