Assembly instructions for Etac Sting
A

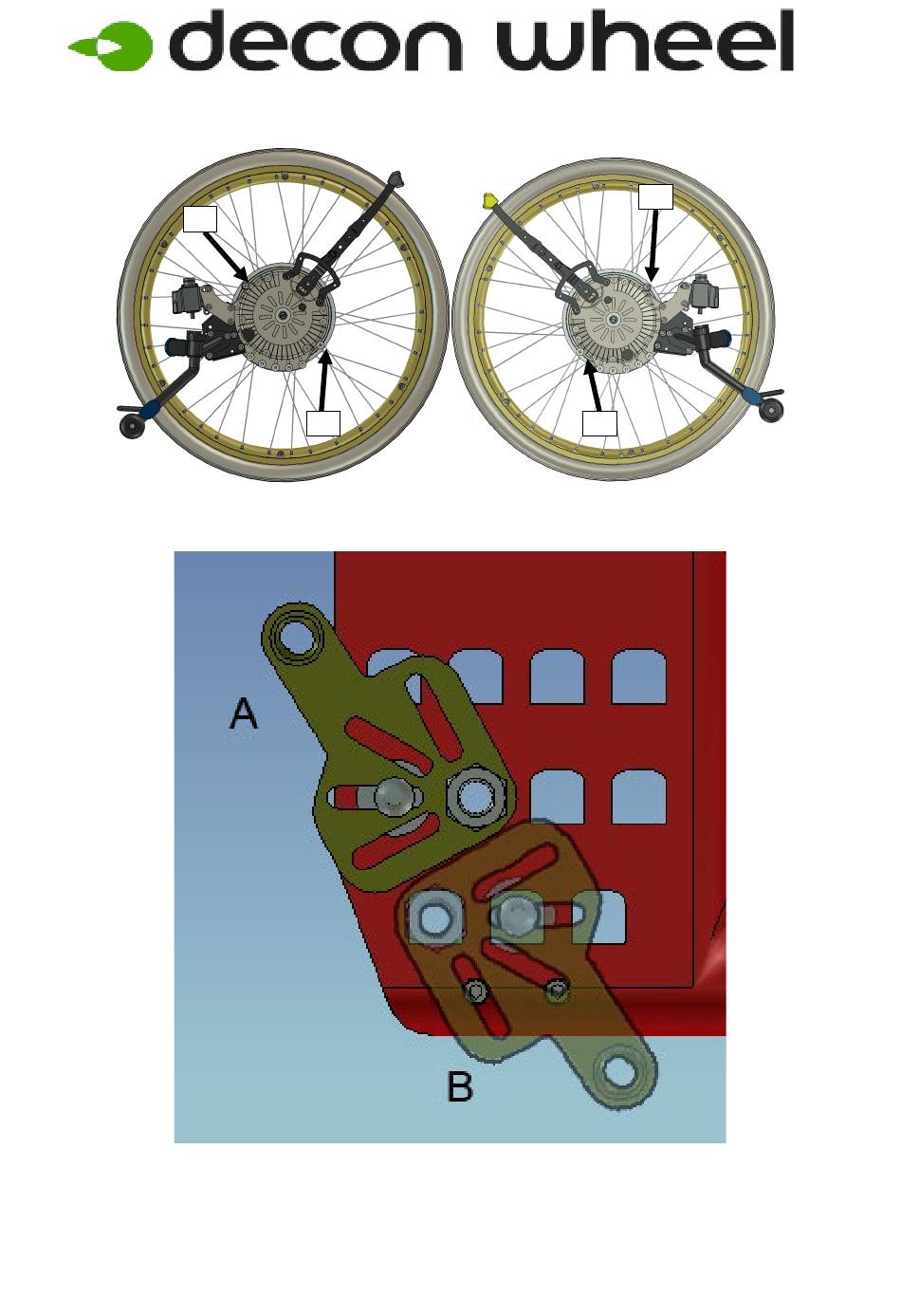

1. Remove wheels and anti-tip devices on both sides. Check the correct placement for the
stop pin, see placement for the bracket. (See picture below.)
2. Assembly the E-drive bracket (right side) according to picture, here you can see two
placement opportunities.
MED3025
B
A
B
2020-08-26
Advertisement
Table of Contents
Related Manuals for Decon wheel MED3025
Summary of Contents for Decon wheel MED3025
- Page 1 Assembly instructions for Etac Sting MED3025 1. Remove wheels and anti-tip devices on both sides. Check the correct placement for the stop pin, see placement for the bracket. (See picture below.) 2. Assembly the E-drive bracket (right side) according to picture, here you can see two placement opportunities.
- Page 2 3. Parts pair mountingset: Item No. Part Number Description HW069 Hubsleever BR1100-03 Spacer MED 2004 Bracket 100 400 017 Spacer 280008 Spacer XSM8X40 Screw M8 x 40 Rounded head XSM8ML Locknut M8 XSM16M Nut M16 405239 Nordlock Washer XSM8BR Plain Washer M8 Item No.
- Page 3 Assembly instructions for Joystick on armrest Tightening torque 6Nm. Details included in MED1348/MED1348L Item No Part number Qty Description XOC-48160-B0 Upper bracket complete XSM6X30 Screw M6 x 30 XSM6BR Flat washer M6 XSM6ML Lock nut M6 XSM6X16 Screw M6 x 16 MED1547 Bracket MED1501 Rev6...
- Page 4 MED1356 Attendant control with Joystick controller Item No. Part Number Description MED1317 Bracket XSM6X35 Screw M6 x 35 XSM6X16 Screw M6 x 16 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with thread XA2-2612E-00 Clamp with hole 5.
- Page 5 Alternate attendant control (Only on Right side) Item No. Part Number Description XSM6TG Washer Xklamma2 Clamp XSM6X20 Screw M6 x 20 XSM6BR Plain Washer 6,4 MED1200 Attendant control 6. For the attendant control unit, you need these parts. 2020-08-26...
- Page 6 Om inget annat specifiseras, använd följande åtdragningsmoment. Unless otherwise specified, use the following tightening torque. Metriska grovgängor, stål. Metric coarse threads, steel. Gänga / Thread Åtdragningsmoment / Tightening torque 1,2 Nm 3 Nm 6 Nm 10 Nm 25 Nm 50 Nm 85 Nm Navhylsor.
