SKYDANCE ES-D Quick Start Manual

SKYDANCE ES-D Quick Start Manual

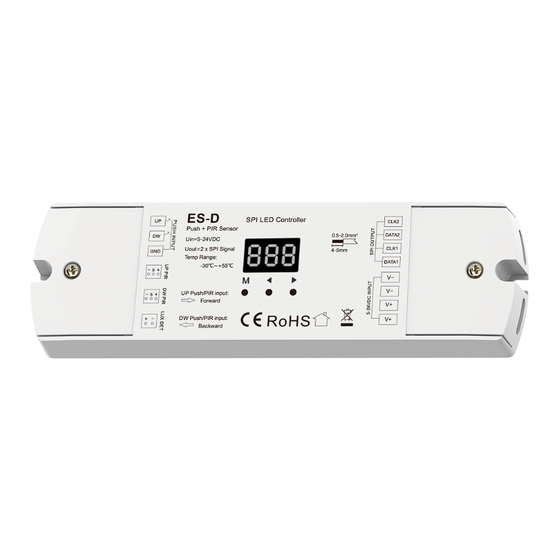

Stair light controller

Advertisement

Quick Links

ES-D
Dual PIR Sensor + Dual Push Button SPI Controller
● Dual PIR sensor + dual push button input RGB or white light SPI controller features daylight sensor.
● Two groups same SPI(TTL) signal output, drive 28 kinds IC digital RGB or white LED strip,
IC type and R/G/B order can be set.
Compatible ICs:

TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912,
UCS2903,UCS2909, UCS2912, WS2811, WS2812, TM1829,
TM1914A, GW6205,GS8206,GS8208,LPD6803, LPD1101,
D705, UCS6909, UCS6912, LPD8803,LPD8806, WS2801,
WS2803, P9813, SK9822, SM16703P.
● When applied to stair light, supports four output modes:
color ow, white ow, color step, white step.
● Sequential switching control is realized when multiple SPI controllers
are connected to a single self-resetting push switch button.
●Multiple light colors and change types are selectable with adjustable speed and brightness.
Technical Parameters
Input and Output
Input voltage
5-24VDC
Input current
15A
Output signal
2XSPI(TTL)
Max 960
Pixel number
Input signal
PIR sensor + Push button
Warranty
5 years
Warranty
Mechanical Structures and Installations
UP Push switch
DW Push switch
Push switch COM
Installation rack
UP PIR sensor input
DW PIR sensor input
Daylight sensor input

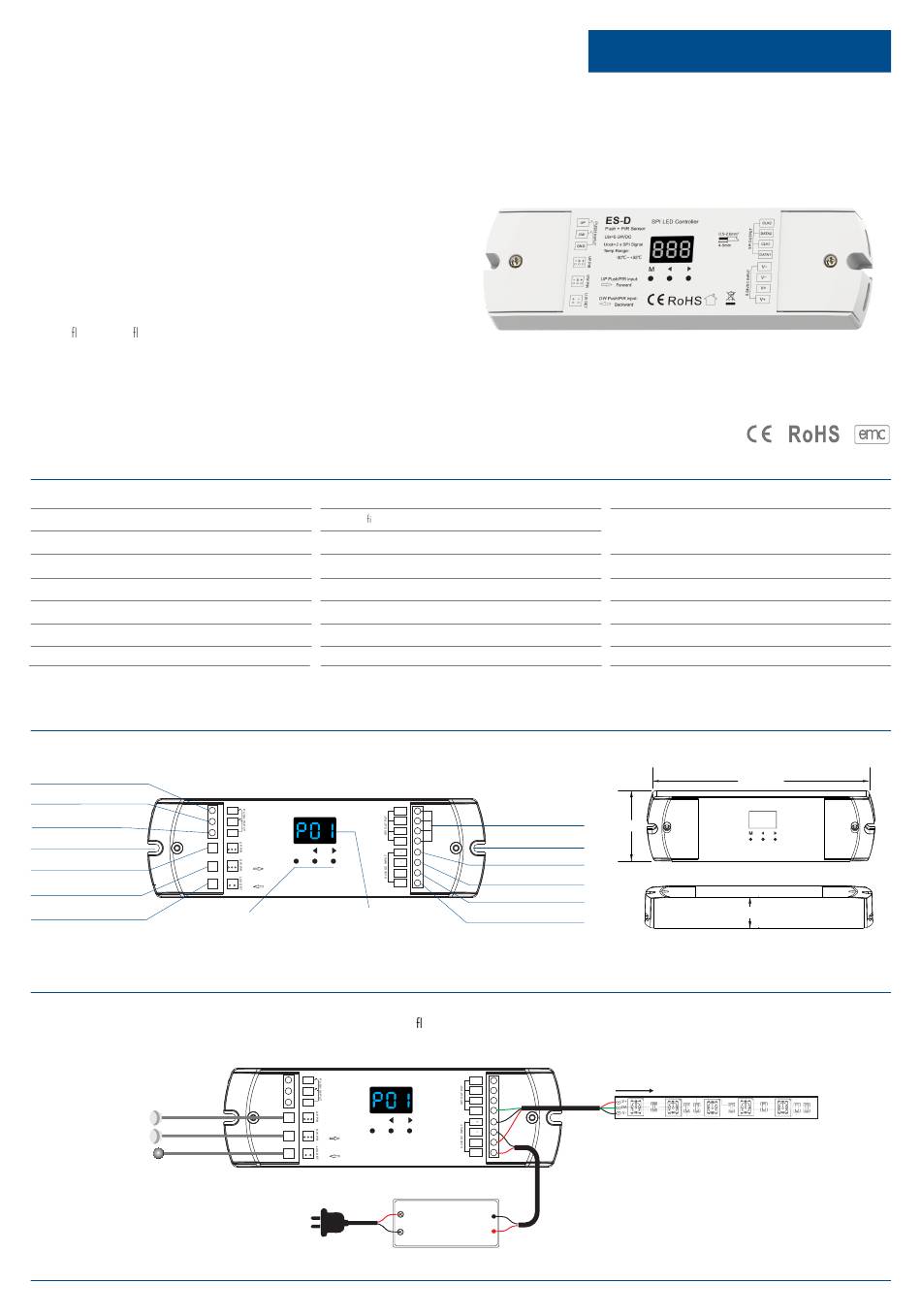

WiringDiagram
1. Stair light application, connect with PIR sensor, color or white light ow control
UP PIR sensor
DW PIR sensor
Daylight sensor
User Manual Ver 1.0.2
2024.04
Sensor data
Sensitive eld
Sensitivity angle
Environment
Operation temperature
Case temperature (Max.)
IP rating

UP
CLK2
DATA2
DW
CLK1
GND
DATA1
-
S
+
M
V
V
UPPush/PIR input:
-
+
S
Forward
V+
-
DWPush/PIR input:
+
V+
Backward
Setting key
Digital display
UP
DW
GND
-
S
+
M
UPPush/PIR input:
-
+
S
Forward
DWPush/PIR input:
+
-
Backward
AC100-240V
≤3m
30°(±10° )
O
O
Ta:-30
C ~ +55
C
O
Tc :+65
C
IP20
2 groups SPI
(DATA+CLK)
signal output
Installation rack
Power output -
Power Input -
Power output +
Power Input +
CLK2
DATA2
CLK1
DATA1
V
V
V+
V+
Constantvoltage
5-24VDC
Powersupply
Stair Light Controller
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
Safety standard
CE,EMC
Certification
Package
Size
L175 x W120 x H35mm
Gross weight
0.27kg

170mm
50mm
23mm
SPIsignal
RGB orwhite LEDpixelstrip
Page 1
