3.

Installation

3.1

Install Hardware

This section shows you how to use the PSoC 3 FirstTouch Starter Kit.
Note: This kit comes with a factory programmed demonstration to display "PSoC Rocks!" message
on the LED display when the board is waved.
1. Unpack the PSoC 3 FirstTouch Starter Kit.
2. Connect a 9V DC battery to the battery connector on the kit board.
3. Hold the board and battery exposing the LEDs. Then continuously wave the board from side to
side in the plane of the PCB (shown in
4. As you wave the board, the rasterized image of the message "PSoC Rocks!" appears as shown
in the following figure.
5. Keep waving. The message changes every few seconds.

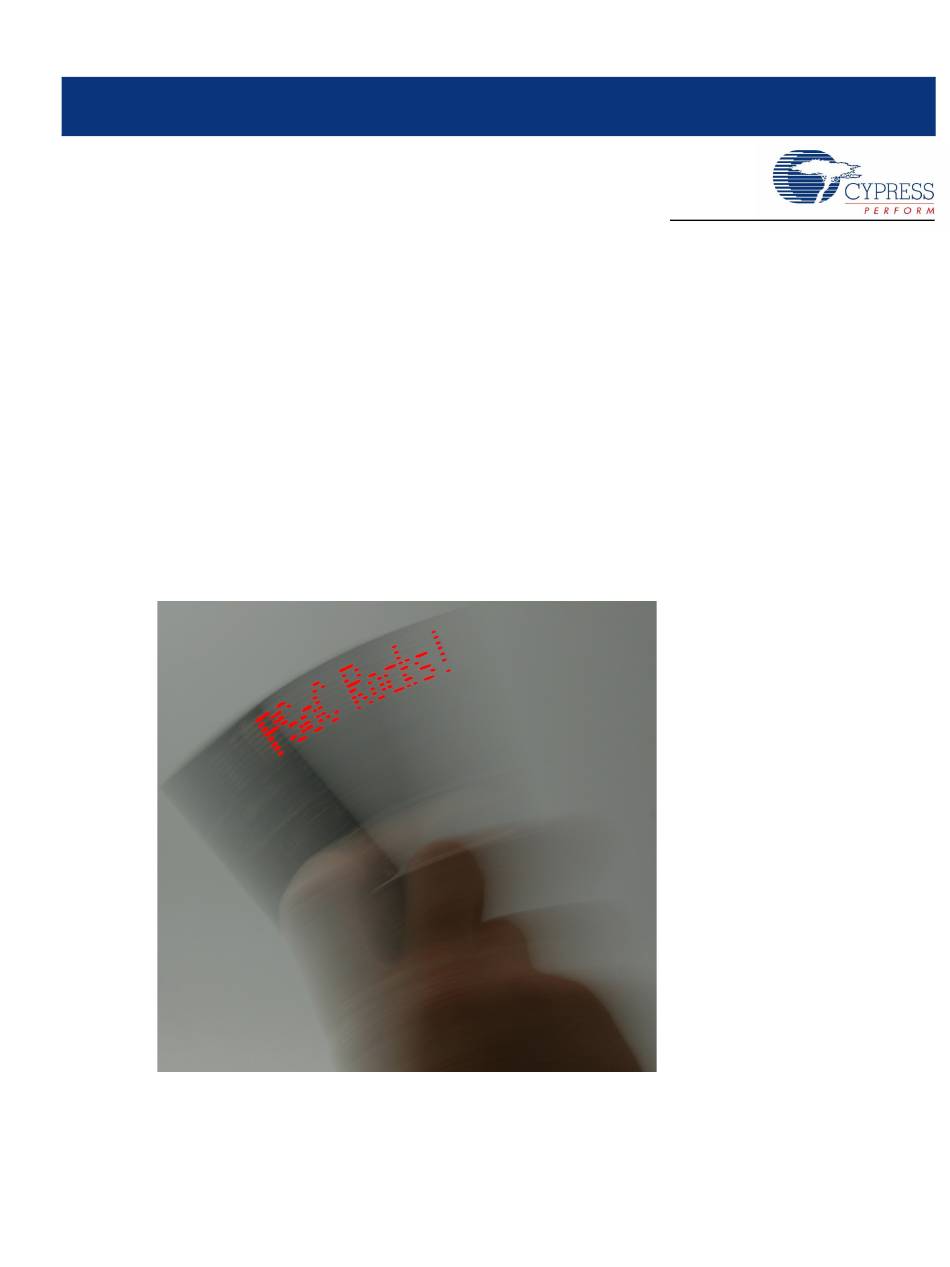

Figure 3-1. Rasterized Image of "PSoC Rocks!"
3.1.1

Hardware Jumpers

There are two jumpers for power configuration. All examples are run with the default setup of 3.3V
operation. This requires J1-2 to connect to J1-3 and J4-2 to connect to J4-3. For all other configura-
tions see section
CY8CKIT-003 PSoC 3 FirstTouch Starter Kit Guide, Spec. # 001-49613 Rev. *D
5.1.1 Hardware Jumpers on page
Figure 3-1).
33.
