Example Projects

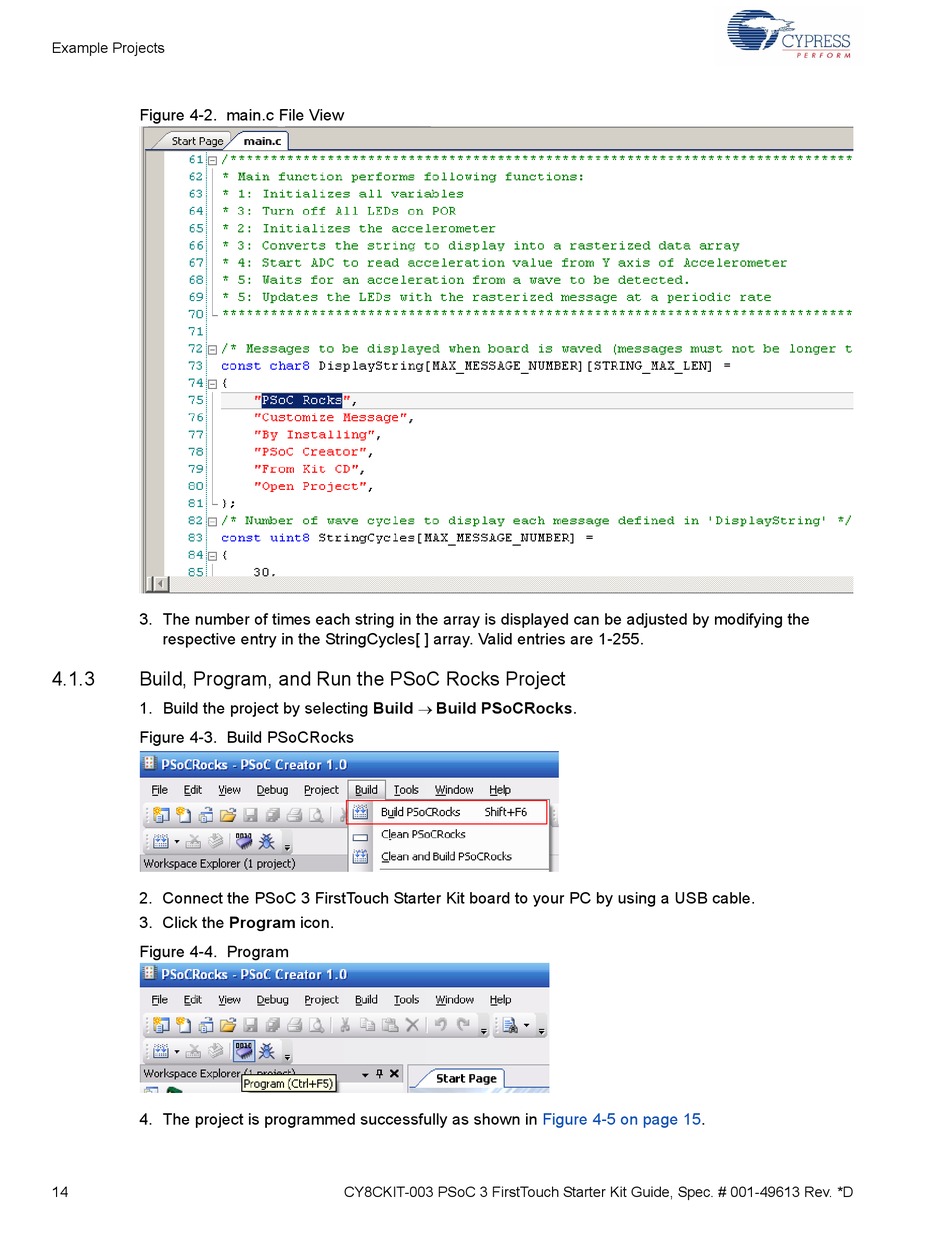

Figure 4-2. main.c File View
3. The number of times each string in the array is displayed can be adjusted by modifying the
respective entry in the StringCycles[ ] array. Valid entries are 1-255.
4.1.3

Build, Program, and Run the PSoC Rocks Project

1. Build the project by selecting Build
Figure 4-3. Build PSoCRocks
2. Connect the PSoC 3 FirstTouch Starter Kit board to your PC by using a USB cable.
3. Click the Program icon.
Figure 4-4. Program
4. The project is programmed successfully as shown in
14
 Build PSoCRocks.
CY8CKIT-003 PSoC 3 FirstTouch Starter Kit Guide, Spec. # 001-49613 Rev. *D
Figure 4-5 on page 15.
