- Page 1 VGA to Component & CVBS Scaler Converter User Manual rev: 161111 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-910S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The CV-910S VGA to Component & CVBS Scaler Converter offers an easy and instant approach for converting analog PC video (VGA) to analog Component video (YPbPr) / CVBS in real time. With this module, YPbPr/CVBS based receivers such as TV can be readily connected to VGA based devices such as PC. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-910S Technical Role of usage VGA to Component & CVBS Scaler Converter Input Video Frequency 165 MHz bandwidth Output Video 74.25MHz Frequency bandwidth ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] PCB stack-up 4-layer board [impedance control —... -
Page 5: Panel Description

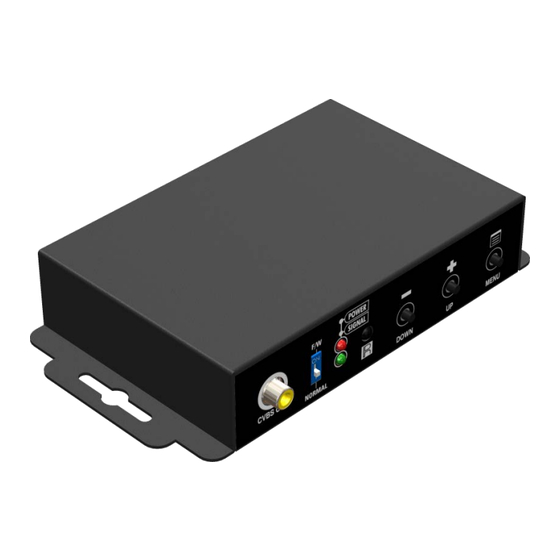

PANEL DESCRIPTION Front Panel CVBS OUT: Connect to a CVBS display with a CVBS male-male cable here DIP Switch: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [RED]: power indicator LED [GREEN]: signal indicator LED IR SENSOR: IR sensor for receiving the IR commands from IR remote PUSH BUTTON [LEFT]: Down Button... -
Page 6: Connection Diagram
CONNECTION DIAGRAM... -
Page 7: Osd Menu
OSD MENU Menu Items HD(720p)60 HD(720p)59 HD(720p)50 HD(720p)30 HD(720p)25 HD(1080i)60 HD(1080i)59 HD(1080i)50 HD(1080p)60 Output Resolution HD(1080p)59 HD(1080p)50 HD(1080p)30 HD(1080p)25 HD(1080p)24 Bypass 01. Output Setup SD(480i)60 SD(576i)50 SD(480p)60 SD(576p)50 Output Mode YCbCr422 Disable White Cross Hatch Color Default Pattern Gray Window H-Ramp W-HRamp W-VRamp... -
Page 8: Operation Approach
Menu Items Under/Over Scan -50%~50% of Scan Level 16:9 Aspect Ratio H-Mirror 03. Adjustment V-Mirror H-Shift -100~100 of H-shift Level V-Shift -50~50 of V-Shift Level Input Res. Infor 04. System F/W Version Factory Reset OPERATION APPROACH Method A: Push-in Button Method B: IR Remote Control Button Function... - Page 9 Method C: IR Remote Control through Mini-USB port COM Port Selection COM Port Detection Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button Output Quick Selection Button 1.
- Page 10 3. Output Setup Button 4. Image Button 5. Adjustment Button...
- Page 11 6. System Button 1) In-Sync Info: To view the current input resolution 2) Factory Reset Button 3) Firmware Update Button The steps of firmware update: a) Unplug Mini-USB connector from device b) Set the Dip Switch to ON [] c) Connect the device to PC via USB to mini-USB cable d) Click the FW Update button on software e) Click “Load File”...
-
Page 12: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-910S features and specifications is subject to change without further notice.
