VW-1404ZH-G

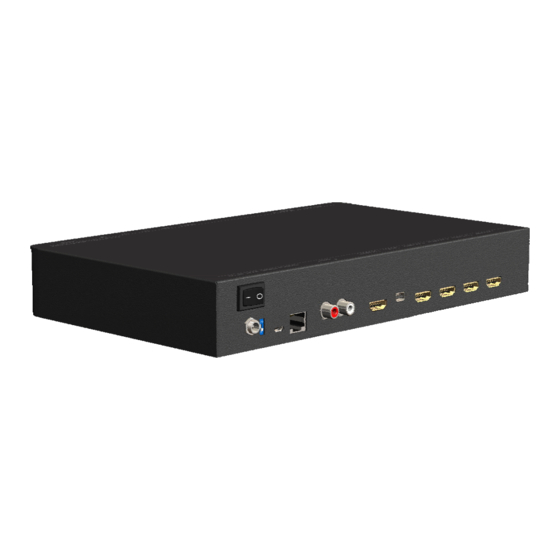

4K 1x4 Video Wall Processor
User Manual
The VW-1404ZH-G
regulations and requirements, and has been certified for international use. However, like all
electronic equipment, the VW-1404ZH-G should be used with care. Please read and follow the
safety instructions to protect yourself from possible injury and to minimize the risk of damage to the
unit.
● Follow all instructions and warnings marked on this unit.
● Do not attempt to service this unit yourself, except where explained in this manual.
● Provide proper ventilation and air circulation and do not use near water.
● Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
● Use only the power adapter and power cords and connection cables designed for this unit.
● Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device
before cleaning.
TABLE OF CONTENTS
INTRODUCTION ................................................................................................................... 1
FEATURES ........................................................................................................................... 1
PACKAGE CONTENTS ........................................................................................................ 1
SPECIFICATIONS ................................................................................................................ 2
HARDWARE INSTALLATION ............................................................................................... 3
CONNECTION DIAGRAM .................................................................................................... 3
PANEL DESCRIPTIONS ...................................................................................................... 4
SUPPORTED RESOLUTION ............................................................................................... 5
OPERATION APPROACH .................................................................................................... 6
EDID LEARNING ................................................................................................................ 19
WARRANTY ........................................................................................................................ 20
rev: 180919
Made in Taiwan
Safety and Notice
has been tested for conformance to safety
4K 1x4 Video Wall Processor
Advertisement
Table of Contents
Related Manuals for GoMax Electronics VW-1404ZH-G
Summary of Contents for GoMax Electronics VW-1404ZH-G
-
Page 1: Table Of Contents
However, like all electronic equipment, the VW-1404ZH-G should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 2: Introduction
VW-1404ZH-G data/video processor for multiple flat panel displays or projectors. Virtually any setups for the display Technical layout can be possible by the control software. The VW-1404ZH-G allows user to input HDMI/ DisplayPort Role of usage Video Wall Processor up to 4K2K@60Hz 4:4:4. And the embedded scaler converts signals from HDMI/ DisplayPort source to... -
Page 3: Hardware Installation
PANEL DESCRIPTIONS VW-1404ZH-G as master Front Panel 1. Connect the sources to HDMI / DisplayPort Input of the VW-1404ZH-G. 2. Connect all displays to HDMI Outputs of the VW-1404ZH-G. 3. Connect the +12V DC power supply to the VW-1404ZH-G. CONNECTION DIAGRAM LED indicator: PWR –... -
Page 4: Supported Resolution
SUPPORTED RESOLUTION OPERATION APPROACH Method A: IR Remote Control Input resolution Output resolution 720x480@60Hz 640x480@60Hz Button Function 720x576@50Hz 720x480@60Hz Display device status (IN/OUT Resolution, 1280x720@60Hz 720x576@60Hz INFO EDID, Layout) 1920x1080@30Hz 800x600@60Hz MUTE Turn off the stereo audio output 1920x1080@60Hz 1024x768@60Hz 4K2K@30Hz 1280x720@60Hz POWER... - Page 5 System Requirement and Precautions Show the connect information and status. If you use USB control Mode to connect device, the graph 1. Whenever power off VW-1404ZH-G, please stay unpowered at least 5 to 10 seconds to allow power capacitors to discharge. . For IP control, the graph of Ethernet is 2.
- Page 6 Output Selection and Resolution: (1) Step 1: check input resolution and choose output resolution (3) Step 2-1: quick selection Set the output resolution. You can choose the design display icon to select the output port and setup resolution. When setting the different resolution, the coordinate of output will also be changed.
- Page 7 (5) Step 2-3: custom define EDID (Extended Display Identification Data) In Custom define mode, you can define how to cut in both directions and the part you want to show on output TV. If you want to understand or estimate which part you may select, you can select the Grid button to show grid on the graph.
- Page 8 Advanced Setting 4K2K Setting When input is 4K2K@60Hz Resolution, the output display will be forced to 2x2 layout (other layout cannot set) and only can set up the output position. We also provides 8 preset spaces to save the frequently used scenarios into the device. (1) Machine Name You can set up your machine name in here.
- Page 9 Info Method D: Cloud Control (IntriCloud) through Ethernet Port Read the software and firmware version. Create Account The first time to use the IntriCloud service, please create a new account. 1. Access IntriCloud (http://www.intri.cloud) and click “Create new account”. Refresh This function not only can refresh the information of setting but also can reconnect this device.
- Page 10 After adding the device, the list of device related to your account will show on the right top Add Device to IntriCloud 1. Firstly, please make sure the device is connected to the Ethernet. Then please executing the corner. You can click the button to switch device for control. software with device to get the association code (Note: the status of software is connected).
-
Page 11: Edid Learning
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the VW-1404ZH-G features and specifications is subject to change without further notice.
