- Page 1 HDMI to 3G/HD/SD-SDI Converter User Manual rev: 140509 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-503M should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-503M also provides 2 low jitter SDI outputs for daisy chain or multiple monitors. With the use of CV-503M, the most popular uncompressed video interface in the... -
Page 4: Specifications
SPECIFICATIONS Model Name CV-503M Technical SDI standards 3G-SDI & HD-SDI & SD-SDI Auto 3G/HD/SD-SDI detection Video bandwidth [2.97Gpbs & 2.975/1.001Gbps] [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, Video support 1080p @23.98/24/25/29.97/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz Input signal... -
Page 5: Supported Resolutions
SUPPORTED RESOLUTIONS 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 50Hz SMPTE 274M -6 1080i @ 60 / 59.94Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11... -

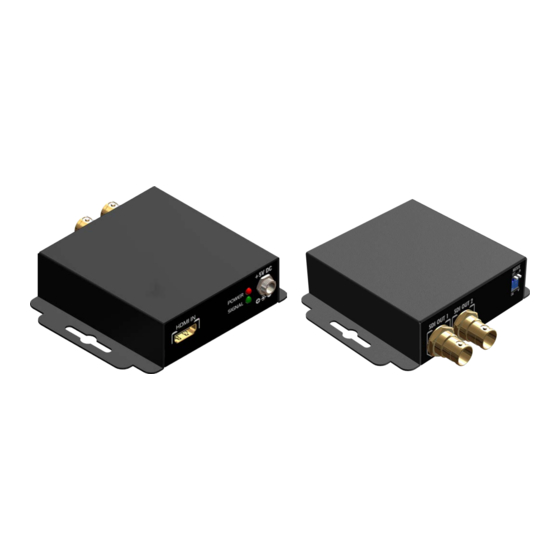

Page 6: Panel Descriptions
PANEL DESCRIPTIONS Front Panel HDMI IN: Connects to a HDMI source with a HDMI male-male cable Signal LED: <green> Both power and signal active. <rde> Only power active. +5V DC: Connect to a 5V DC power supply Rear Panel SDI OUT 1: 3G/HD/SD-SDI output #1 SDI OUT 2: 3G/HD/SD-SDI output #2 DIP switch: Setup the RS-232 mode for serial communication channel... -
Page 7: Dip Switch
DIP SWITCH A 2-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. Pin#1 Pin#2 EDID feature OFF [ ] OFF [ ] 3G/HD/SD-SDI with multi-channel audio except DTS-HD & Dolby True HD OFF [ ... -
Page 8: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-503M features and specifications is subject to change without further notice.
