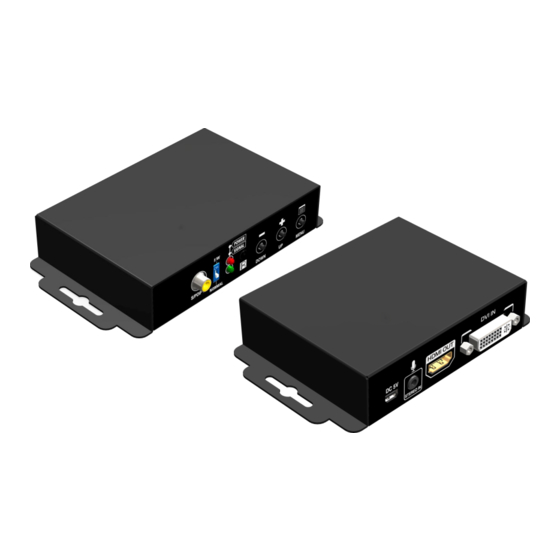

- Page 1 DVI to HDMI & Audio Scaler Converter User Manual rev: 130503 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-105S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
INTRODUCTION The CV-105S DVI to HDMI & Audio Scaler Converter offers an easy and instant approach for converting digital video (DVI-D) and both digital audio (S/PDIF) or analog stereo audio to digital HDMI. With this module, DVI based devices such as PC with S/PDIF or analog stereo audio can readily connect to your HDMI TV. -
Page 4: Specifications
SPECIFICATIONS Model Name CV–105s Technical Role of usage DVI to HDMI Converter DVI compliance DVI 1.0 Input Video Maximum Pixel 165 MHz Rate Output Video Maximum 165MHz Pixel Rate Audio support Stereo PCM (48KHz) [1] Human body model — ±19kV [air-gap discharge] & ±12kV ESD protection [contact discharge] [2] Core chipset —... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel S/PDIF AUDIO IN: connect to digital S/PDIF audio source. DIP SWITCH: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [green]: signal indicator LED [red]: power indicator LED. IR SENSOR: IR sensor for receiving the IR commands from IR remote PUSH BUTTON [LEFT]: Down Button [MID]: Up Botton... -
Page 6: Connection Diagram
CONNECTION DIAGRAM... -
Page 7: Osd Menu
OSD MENU Out Res. Output Mode RGB, YCbCr444, YCbCr422 Disable, White, Cross, Hatch, 1.Output Setup Color, Gray, Windows, Default Pattern H-Ramp, W-HRamp, W-VRamp, Diagonal Audio Source Stereo, SPDIF Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level 2.Image B/W Extension... -
Page 8: Operation Approach
OPERATION APPROACH Method A: Push-in Button Method B: IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit OSD ENTER Enter key Up key LEFT Left key RIGHT Right key DOWN Down key MENU Menu on INPUT INFO... - Page 9 Method C: IR Remote Control through Mini-USB port COM Port Selection COM Port Detection Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Refresh Input / Output Resolution Info Button Output Quick Selection Button 1.
- Page 10 3. Output Setup Button 4. Image Button 5. Adjustment Button...
- Page 11 6. System Button 1) In-Sync Info: To view the current input resolution 2) Factory Reset Button 3) Firmware Update Button The steps of firmware update: a) Unplug Mini-USB connector from device b) Set the Dip Switch to ON [] c) Connect the device to PC via USB to mini-USB cable d) Click the FW Update button on software e) Click “Load File”...
-
Page 12: Limited Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-105S features and specifications is subject to change without further notice.
