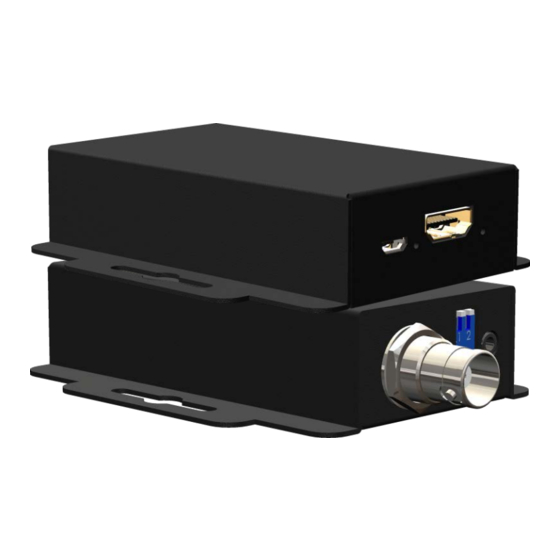

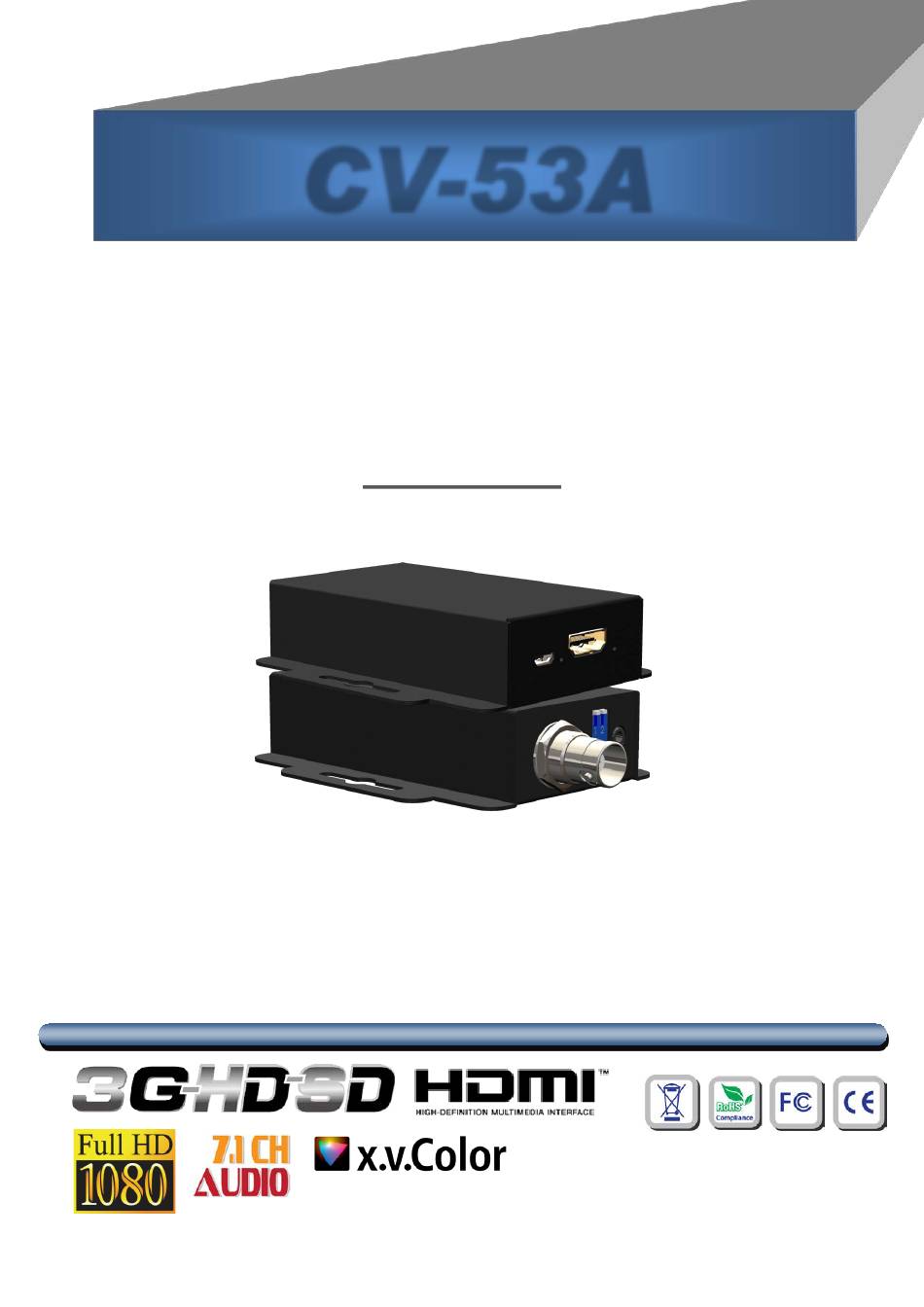

- Page 1 CV-53A HDMI to 3G/HD/SD-SDI Converter with Audio Embedder User Manual rev: 180607 Made in Taiwan...
- Page 2 However, like all electronic equipment, the CV-53A should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
-
Page 3: Package Contents
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-53A provides one low jitter SDI output and to provide more flexible application possibility, and CV-53A is also equipped with high quality analog stereo embedder. -
Page 4: Specifications
SPECIFICATIONS Model Name CV-53A Technical SDI standards 3G-SDI & HD-SDI & SD-SDI HDMI standards HDMI 1.3 Auto 3G/HD/SD-SDI detection [SDI][2.97Gpbs & 2.975/1.001Gbps] Video bandwidth [HDMI] [6.75Gbps] [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, Video support 1080p @23.98/24/25/29.97/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel SDI OUT: 3G/HD/SD-SDI output 2-Pin Dip Switch (Please refer to “Notes”) Stereo Audio Input Rear Panel +5V DC: Connect to a 5V DC power supply LED: Power LED indicator HDMI IN: Connects to a HDMI source with a HDMI male-male cable LED: Signal LED indicator *Notes: DIP Switch Position DIP Switch Position... -
Page 6: Connection Diagram
CONNECTION DIAGRAM SUPPORTED RESOLUTIONS... - Page 7 3G-SDI Output 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD-SDI Output 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 50Hz SMPTE 274M -6 1080i @ 60 / 59.94Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11...
-
Page 8: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-53A features and specifications is subject to change without further notice. -
Page 9: Signal Measurement
SIGNAL MEASUREMENT...
