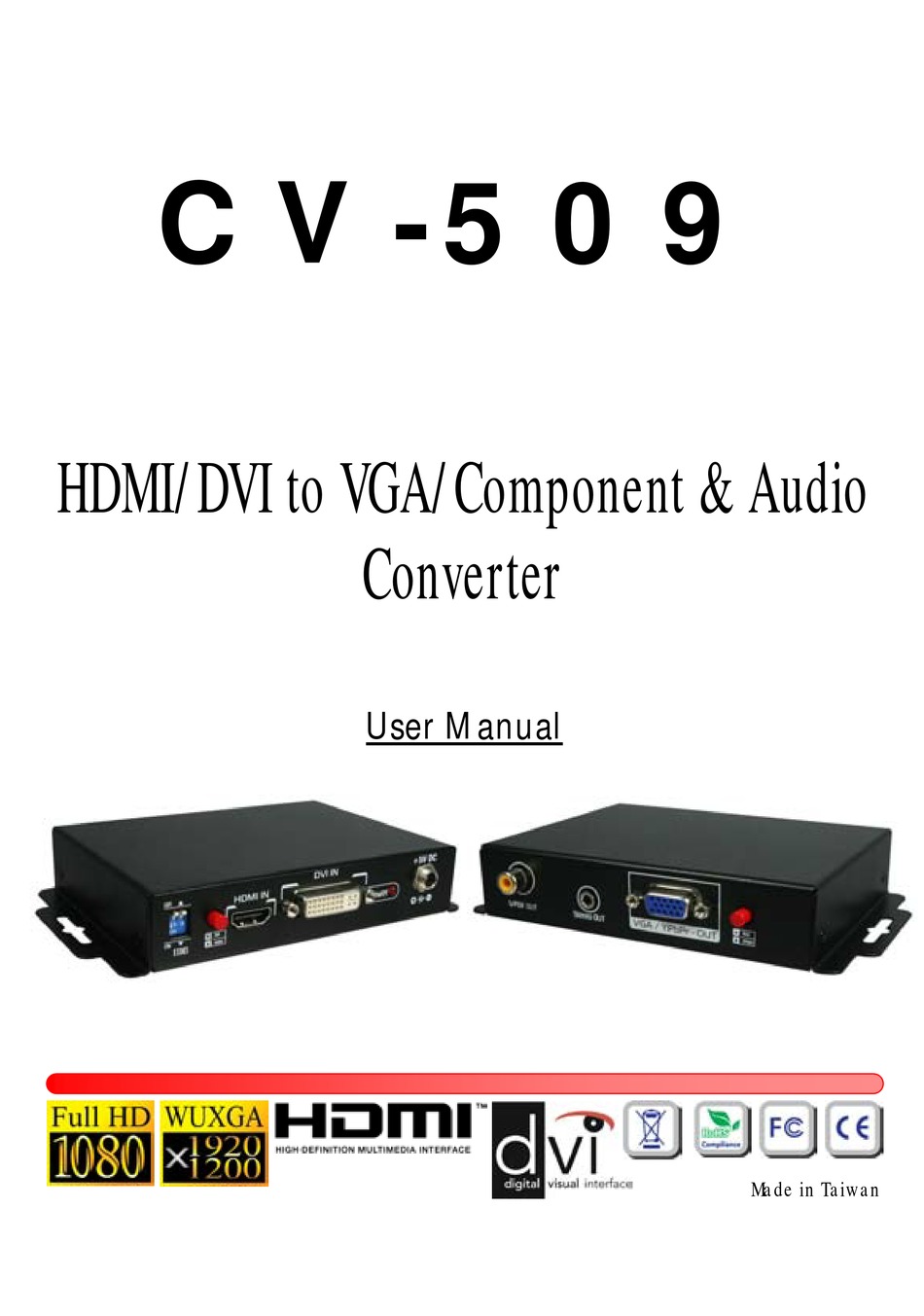

- Page 1 CV-509 HDMI/DVI to VGA/Component & Audio Converter User Manual Made in Taiwan...
- Page 2 However, like all electronic equipments, CV-509 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Introduction This CV-509 HDMI/DVI to VGA/Component & Audio Converter offers an easy and instant approach for converting digital HDMI to analog PC video (VGA) and component video (YPbPr) with digital audio (S/PDIF) and analog stereo audio. With this module, YPbPr/VGA based receivers such as LCD monitors or plasma TV can be readily connected to HDMI sources such as DVD players or PS3.
- Page 4 5V 2A DC Power consumption 2 Watts [max] Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x CV-509 1x VGA-component breakout cable Package Contents 1x 5V power adapter 1x User Manual ~ 3 ~...
- Page 5 Supported Resolutions PC Graphics [DVI or VGA] VESA 640x400 @85Hz VESA 1024x768 @60Hz VESA 1280x960 @85Hz 1152x864@60Hz VESA 720x400 @85Hz VESA 1024x768 @75Hz VESA 1280x1024 @60Hz Mac 480-66A VESA 640x480 @72Hz VESA 1024x768 @85Hz VESA 1280x1024 @85Hz Mac 480-66B VESA 640x480 @75Hz VESA 1152x864 @60Hz VESA 1360x768 @60Hz...
- Page 6 3. For connecting to VGA display/projector, link VGA cable to the VGA output connector. For connecting to component (YPbPr) video display/projector, link VGA-component breakout cable first to the VGA output connector then link a component cable to the component (YPbPr) display/projector. 4. Power up the CV-509. ~ 5 ~...
- Page 7 EDID by pulling DIP switch 1 up and down. 3. To learn EDID for DVI source, please power up CV-509 first. Secondly pull down the DIP switch 2 to ON, and the red light will be dark and bright to indicate the EDID learning process is complete. Finally, please remember to reboot CV-509 for updating.
- Page 8 Limited Warranty The SELLER warrants the CV-509 HDMI/DVI to VGA/Component & Audio Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surge.
