- Page 1 CV-900S VGA to CVBS Scaler Converter User Manual rev: 150605 Made in Taiwan...
- Page 2 However, like all electronic equipments, the CV-900S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Maximum pixel rate : 165MHz Supports nosie reduction and video enhancement features USB firmware upgradable for expanding compatibility Wall-mount housing design for easy installation PACKAGE CONTENTS 1x CV-900S 1x 5V/2A power supply unit 1x User Manual...
- Page 4 SPECIFICATIONS Model Name CV-900S Technical Role of usage VGA to CVBS Converter Frequency bandwidth 165MHz Audio support ESD protection Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge] PCB stack-up 4-layer board [impedance control — differential 100Ω; single 50Ω]...

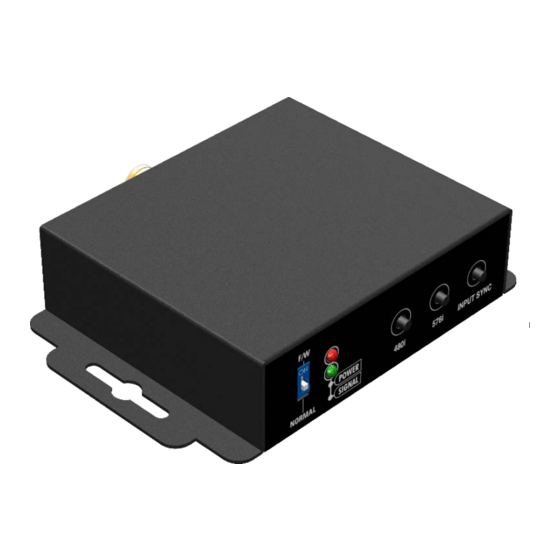

- Page 5 PANEL DESCRIPTION Front Panel DIP SWITCH: For firmware update ON []: firmware update mode OFF []: normal mode LED INDICATOR: [green]: signal indicator LED [red]: power indicator LED. PUSH BUTTON [LEFT]: Output Resolution 480i [MID]: Output Resolution 576i [RIGHT]: Input signal information Rear Panel +5V DC: Interlocking power jack for 5V DC power supply unit Mini USB: F/W update...
- Page 6 CONNECTION DIAGRAM...
- Page 7 SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-900S features and specifications is subject to change without further notice.
