- Page 1 1x12 VGA & Audio over CAT5 Splitter User Manual rev: 160322 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the SP-9112 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction

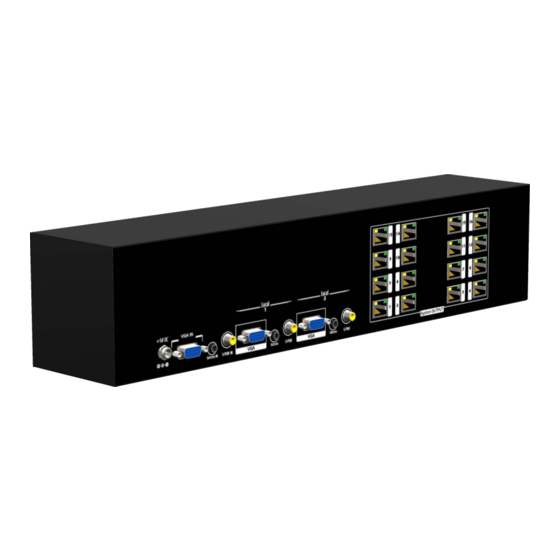

INTRODUCTION The SP-9112 1x12 VGA & Audio over CAT5 Splitter with only one cost effective Cat-5/5e/6 cable lets you extend VGA or component video (WUXGA) and stereo/analog audio signals to cover the distance up to 330m to sixteen VGA & Audio over CAT5 receivers (BPVGARA or BPVGARAD). Built with two VGA and digital/analog audio loop-outs, local AV receivers can provide extra video and audio fan-outs through typical VGA, S/PDIF, and analog audio cables. -
Page 4: Specifications
SPECIFICATIONS Model Name SP-9112 Technical Role of usage 1x12 splitter / transmitter [TX] Video bandwidth 350MHz VESA Video support Supported Resolutions Up to WUXGA (1920 x1200) Resolution and Distance 1280x 1024 at 300 meters (1000 feet) Audio Support Stereo Equalization Continuous analog control 1.2 Volts (peak-to-peak) -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Front Panel Audio Format Switch: A push-in button for input audio selection. — analog stereo audio; — S/PDIF digital stereo audio) Power: Power on/off indicator. Rear Panel +5V DC: Latch-locking power jack to connect to a 5V DC power supply unit with a C7 power cord. VGA INPUT: Connect to a VGA source or a component video source (via a VGA-component breakout cable) Stereo IN: Connect to an analog stereo audio source. -
Page 6: Hardware Installation
VGA OUT port on the receiving units BPVGARA or BPVGARAD. 4. Connect a Cat-5/5e/6 cable to each VGA SIGNAL OUT RJ45 port on the SP-9112 and the VGA SIGNAL IN RJ45 port on each receiving unit BPVGARA or BPVGARAD. Make sure these Cat-5/5e/6 cables are tightly connected and not loose. -
Page 7: Connection Diagram
CONNECTION DIAGRAM... -
Page 8: Notice
1. All the transmission distances are measured using Belden CAT-5e 125MHz Solid cable and ASTRODESIGN Video Signal Generator VG-859C. The transmission distance is defined as the distance between the SP-9112 and the remote VGA display. 2. The transmission length is largely affected by the type of Cat-5/5e/6 cables, the type of VGA sources, and the type of VGA display. -
Page 9: Pin Definition
PIN DEFINITION VGA / Component Pin 1 » Pr / Red Pin 6 » Ground Pin 11 » Ground Pin 2 » Y / Green / Composite Pin 7 » Ground Pin 12 » Reserved Pin 3 » Pb / Blue Pin 8 »...
