- Page 1 HDMI to 3G/HD/SD-SDI Converter with Audio Extractor User Manual rev: 140509 Made in Taiwan...
- Page 2 fety Noti The CV-50 has been n tested fo 03MLR MI to 3G/H HD/SD-SDI Converter with Audi io Extracto conformanc ce to safety y regulation ns and requ uirements, and has be een certified d for interna ational use However, li ike all elect ronic equip ments, the...
-
Page 3: Package Contents
Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The CV-503MLR also provides 2 low jitter SDI outputs for daisy chain or multiple monitors. With the use of CV-503MLR, the most popular uncompressed video interface in the consumer... -
Page 4: Specifications
SPECIFICATIONS Model Name CV-503MLR Technical SDI standards 3G-SDI & HD-SDI & SD-SDI Auto HD/SD-SDI detection Video bandwidth [2.97Gpbs & 2.975/1.001Gbps] [3G] 1080p50/59.94/60 (4:2:2) [HD] – 720p @50/59.94/60Hz,1080i @50/59.94/60Hz, Video support 1080p @24/30Hz [SD] – NTSC @59.94Hz, PAL @50Hz [SD-SDI] SMPTE 259M... -
Page 5: Panel Descriptions

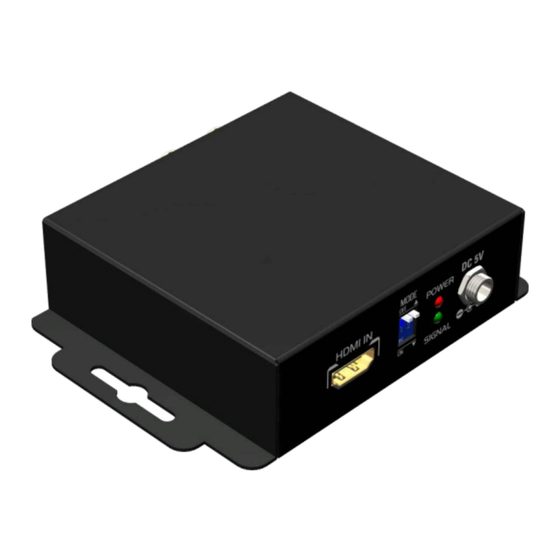

PANEL DESCRIPTIONS Front Panel HDMI IN: Connects to a HDMI source with a HDMI male-male cable DIP switch: Setup the RS-232 mode for serial communication channel Signal LED: <green> Both power and signal active. <rde> Only power active. +5V DC: Connect to a 5V DC power supply Rear Panel SDI Output 1: 3G/HD/SD-SDI output #1 SDI Output 2: 3G/HD/SD-SDI output #2... -
Page 6: Dip Switch
DIP SWITCH A 2-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. Pin#1 Pin#2 EDID feature OFF [ ] OFF [ ] 3G/HD/SD-SDI with multi-channel audio except DTS-HD & Dolby True HD OFF [ ... -
Page 7: Supported Resolutions
SMPTE 274M -7, -8 SD OUTPUT NTSC PAL B,D,G,H,I NOTICE 1. The CV-503MLR only embeds the audio channels in audio group 1 & 2. 2. The CV-503MLR supports audio sample frequency at 48kHz only. 3. Signal LED Indication: Green light Red light... -
Page 8: Warranty
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-503MLR features and specifications is subject to change without further notice.
