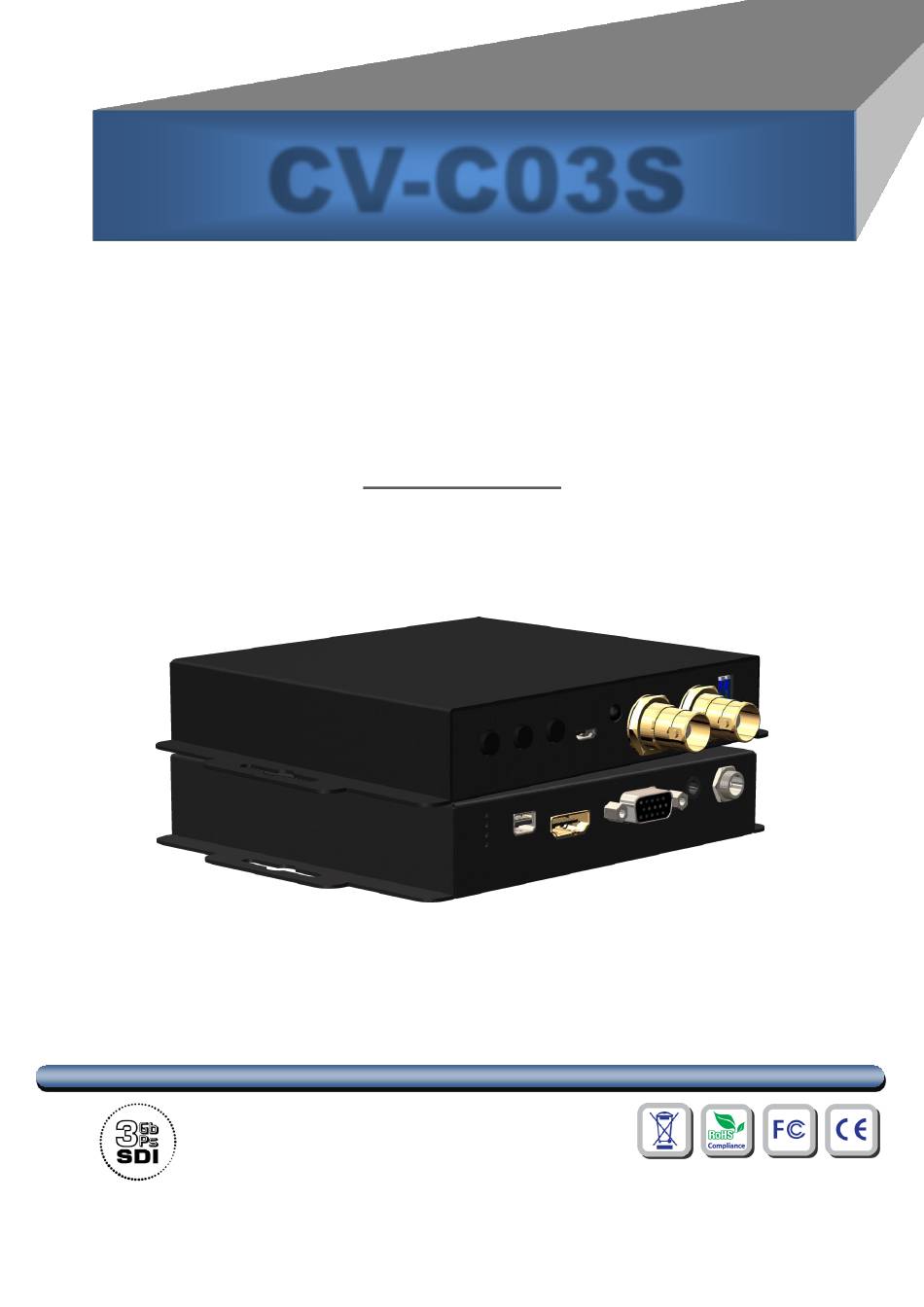

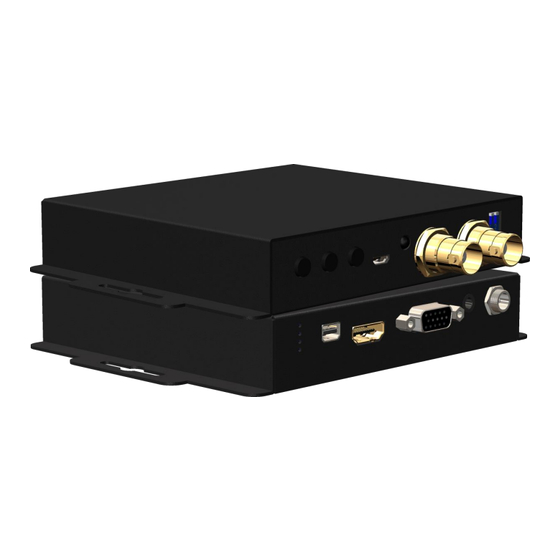

- Page 1 CV-C03S HDMI/DP/VGA to 3G/HD/SD-SDI Scaler Converter User Manual rev: 130503 Made in Taiwan...
-
Page 2: Table Of Contents
However, like all electronic equipments, the CV-C03S should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
VGA based SDI is pure digital and guarantees no loss transformation for both audio and video. Besides, devices such as PC with analog stereo audio can readily connect to your SDI TV. The CV-C03S provides low jitter SDI output. FEATURES ... -
Page 4: Specifications
SPECIFICATIONS Model Name CV-C03S Technical Role of usage HDMI/DP/VGA to SDI Converter SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video Maximum 165MHz Pixel Rate Output Video bandwidth 2.970Gpbs, 2.970/1.001Gbps [3G] 1080p @50/59.94/60Hz (4:2:2) Output Video support [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] NTSC @59.94Hz, PAL @50Hz... -
Page 5: Panel Description
PANEL DESCRIPTION Front Panel PUSH BUTTON [LEFT]: Down Button [MID]: Up Botton [RIGHT]: Menu/Enter Button Micro USB: Micro-USB port for control port IR SENSOR: IR sensor for receiving the IR commands from IR remote SDI OUT 1: 3G/HD/SD-SDI output SDI OUT 2: 3G/HD/SD-SDI output DIP SWITCH: For firmware update PIN 1: F/W update PIN 2: Reserved... - Page 6 *Notes: LED INDICATOR Power Indicator Signal Indicator LED Power DisplayPort HDMI...
-
Page 7: Connection Diagram
CONNECTION DIAGRAM... -
Page 8: Osd Menu
OSD MENU Output Format Disable, White, Cross, Hatch, Color, Gray, Test Pattern Windows, H-Ramp, W-HRamp, W-VRamp, 1.Output Setup Diagonal Audio Mute Off, On Input Type HDMI, VGA, DP Return Contrast 0~255 of Contrast Level Brightness 0~255 of Brightness Level Saturation 0~255 of Saturation Level 0~255 of Hue Level Gamma Adjust... -
Page 9: Operation Approach
OPERATION APPROACH Method A: Push-in Button Method B: IR Remote Control Button Function FREEZE Freeze video ASPECT RATIO Aspect ratio change BLANK Blank video EXIT Exit OSD ENTER Enter key Up key LEFT Left key RIGHT Right key DOWN Down key MENU Menu on INPUT INFO... - Page 10 Method C: IR Remote Control through Micro-USB port COM Port Selection COM Port Detection Button Connect/Disconnect Button Output Setup Button Image Button Adjustment Button System Button Input / Output Resolution Info Output Quick Selection Button Refresh Input / Output Resolution Info Button 1.
- Page 11 2. COM Port Detection Button Click this button to detect the COM PORT 3. Connect/Disconnect Button 1) Click this button to connect 2) Click this button to disconnect 4. Output Setup Button 5. Image Button 6. Adjustment Button...
- Page 12 7. System Button 1) Input Format: To view the current input resolution 2) F/W Version Information 3) Factory Reset Button 8. I/O Port and Resolution Info To display the information about the I/O Port and the applied Resolution 9. Output Quick Selection Button Common functions for quick setting 10.
-
Page 13: Limited Warranty
SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the CV-C03S features and specifications is subject to change without further notice.
