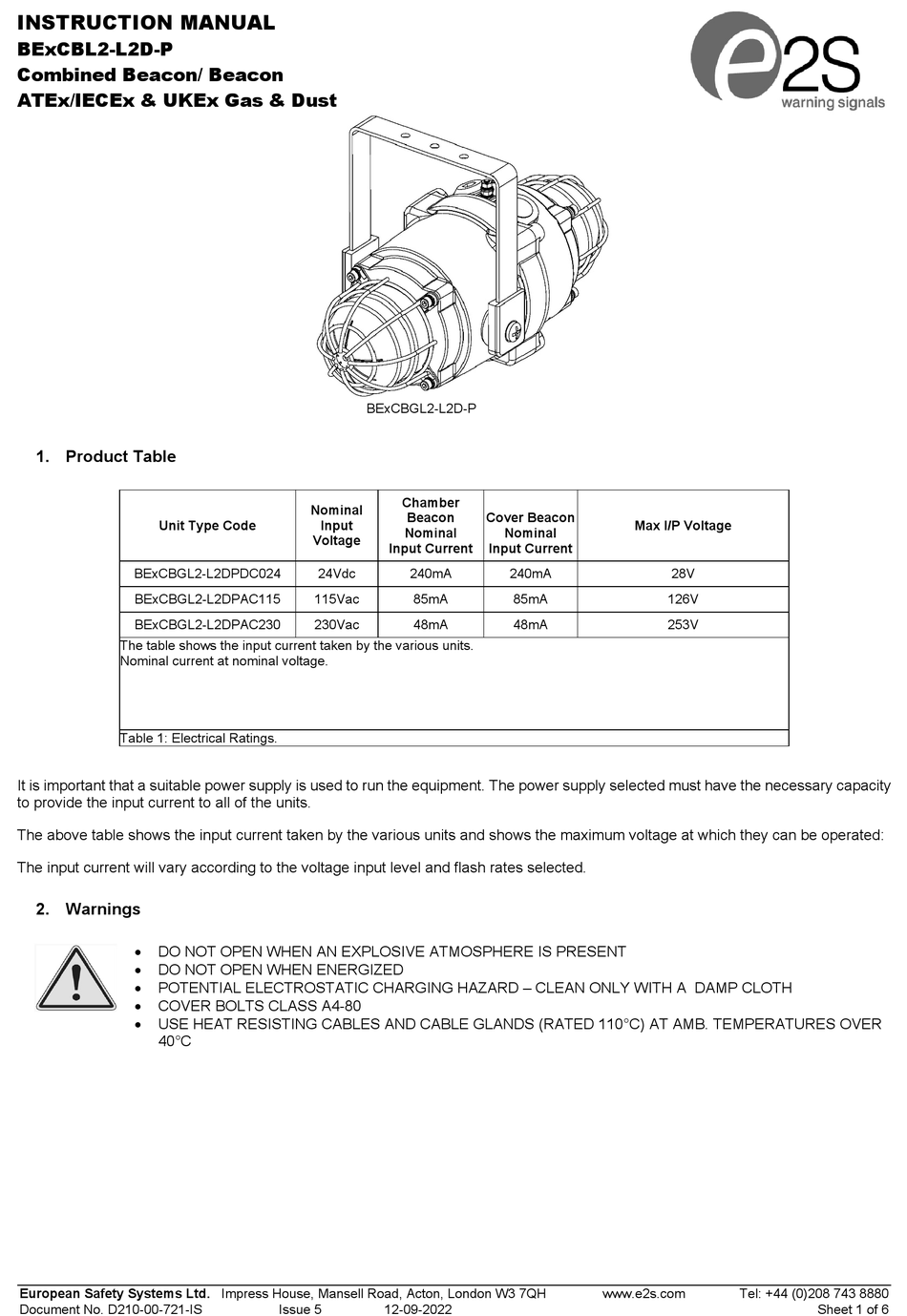

INSTRUCTION MANUAL
BExCBL2-L2D-P
Combined Beacon/ Beacon
ATEx/IECEx & UKEx Gas & Dust
1. Product Table
Unit Type Code
BExCBGL2-L2DPDC024
BExCBGL2-L2DPAC115
BExCBGL2-L2DPAC230
The table shows the input current taken by the various units.
Nominal current at nominal voltage.
Table 1: Electrical Ratings.
It is important that a suitable power supply is used to run the equipment. The power supply selected must have the necessary capacity
to provide the input current to all of the units.
The above table shows the input current taken by the various units and shows the maximum voltage at which they can be operated:
The input current will vary according to the voltage input level and flash rates selected.
2. Warnings
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGIZED
POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND CABLE GLANDS (RATED 110°C) AT AMB. TEMPERATURES OVER
40°C
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-721-IS
BExCBGL2-L2D-P
Chamber
Nominal
Beacon
Input
Nominal
Voltage
Input Current
24Vdc
240mA
115Vac
85mA
230Vac
48mA
Issue 5
12-09-2022
Cover Beacon
Max I/P Voltage
Nominal
Input Current
240mA
85mA
48mA
www.e2s.com
28V
126V
253V
Tel: +44 (0)208 743 8880
Sheet 1 of 6
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for E2S BExCBL2-L2D-P
Summary of Contents for E2S BExCBL2-L2D-P
- Page 1 INSTRUCTION MANUAL BExCBL2-L2D-P Combined Beacon/ Beacon ATEx/IECEx & UKEx Gas & Dust BExCBGL2-L2D-P 1. Product Table Chamber Nominal Beacon Cover Beacon Unit Type Code Input Max I/P Voltage Nominal Nominal Voltage Input Current Input Current BExCBGL2-L2DPDC024 24Vdc 240mA 240mA BExCBGL2-L2DPAC115...
- Page 2 European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-721-IS...
-
Page 3: Special Conditions For Safe Use
Never use the cover bolts to force the cover into position. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-721-IS Issue 5... -
Page 4: Cable Connections
2.5mm². Fig. 3 Internal View of Chamber European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-721-IS Issue 5... -
Page 5: Line Monitoring
The resistor leads should be kept as short as possible. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-721-IS Issue 5... - Page 6 M5x16 Hex Socket Screw operation, take care when handling the equipment. M5 Spring Washer The beacon covers are interchangeable, contact E2S Ltd for a M5 Plain Washer replacement cover available in various colours. Guard To change the cover, unscrew the M5 socket head screws and remove the M5 screws, M5 spring &...
-
Page 9: Eu Declaration Of Conformity
EN 60529:1991 + A1:2000 + A2:2013. - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-006_Issue_K (BExCBG)- Page 1 of 2 QAF_252_Issue_5... - Page 10 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-006_Issue_K Quality Assurance Manager Date and Place of Issue: London, 23/12/2020 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-006_Issue_K (BExCBG)- Page 2 of 2 QAF_252_Issue_5...
- Page 11 EN 60529:1991 / A1:2000 / A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-107_Issue_A (BExCBG)- Page 1 of 2 - QAF_252_Issue_5...
- Page 12 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-107_Issue_A Quality Assurance Manager Date and Place of Issue: London, 12/09/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-107_Issue_A (BExCBG) - Page 2 of 2 - QAF_252_Issue_5...
