E2S Datasheet 1.4.3 v10a
BExBG05

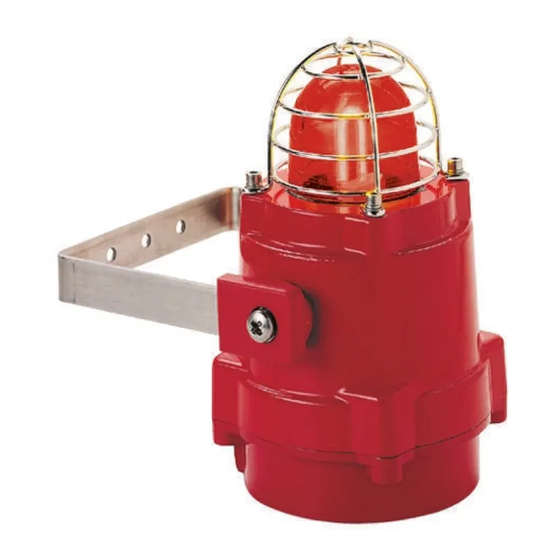

The flameproof BExBG05 Xenon beacons are suitable for Zone 1, 2, 21
& 22 applications.
The BExBG05 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation
in the harshest of environments possible. Additional features include automatic synchronisation on multi-beacon systems
and stainless steel guard and mounting bracket as standard.
The BEx range features enclosures manufactured from corrosion proof, marine grade copper free LM6 aluminium which is
phosphated and powder coated. All models have two M20 cable entries, large termination areas containing in & out
terminals (Ex de version only) and an ingress protection of IP66/67 (Ex d) and IP66 (Ex de
Features:
•
Automatic synchronisation on multi-beacon system.
•
Beacons can be set to 'flip-flop' alternating mode with
other units on multi-beacon systems.
•
Xenon tubes mechanically secured against shock
& vibration
•
Glass lens & Stainless Steel guard
•
Very large termination area.
•
Ratchet adjustable stainless steel 'U' bracket.
•
IN & OUT terminals (Ex de version only).
COMSEC PROTECTION SYSTEMS LTD.
UNIT 26, STADIUM BUSINESS PARK, • BALLYCOOLIN ROAD, • DUBLIN 11, • IRELAND
PHONE: +353 (0)1 8853008 • FAX: +353 (0)1 8853007
EMAIL: info@comsec.ie • WEB: http://www.comsec.ie
Xenon Beacon
Approvals:
•
ATEX certificate: KEMA 00ATEX2006,
EN 60079-0 : 2006, EN 60079-1 : 2007,
EN 60079-7 : 2003, EN 61241-0 : 2006,
EN 61241-1 : 2004
•
IECEx certificate: IECEx KEM 10.0002,
IEC 60079-0 : 2004 (Ed4), IEC 60079-1 : 2007 (Ed6),
IEC 60079-7 : 2001 (Ed3), IEC 61241-0 : 2004 (Ed1),
IEC 61241-1 : 2004 (Ed1)
•
GOST-R certificate: POCC GB.JB05.B02205
•
Inmetro certificate: 10-IEx-0010
).
GOST-R
Advertisement
Related Manuals for E2S BExBG05 Series
Summary of Contents for E2S BExBG05 Series
- Page 1 E2S Datasheet 1.4.3 v10a BExBG05 Xenon Beacon The flameproof BExBG05 Xenon beacons are suitable for Zone 1, 2, 21 & 22 applications. The BExBG05 5 Joule beacons are ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. Additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as standard.
- Page 2 E2S Datasheet 1.4.3 v10a BExBG05D version BExBG05E version 153.60 mm 153.60 mm 3 x 7mm dia. Mounting Holes 3 x 7 mm dia. Mounting Holes Part codes: Assemblies: The products from the BEx range are available as Part Code: Classification:...
- Page 3 EMAIL: info@comsec.ie • WEB: http://www.comsec.ie E2S, Impress House, Mansell Road, London, UK, W3 7QH Telephone +44 20 8743 8880 www.e2s.com No liability is accepted for any consequence of the use of this document. The technical specification of this unit is subject to change without notice due to our policy...
- Page 4 INSTRUCTION MANUAL (ATEX / IECEx) BExBG05D Flameproof Xenon Beacons For use in Flammable Gas and Dust Atmospheres 1) Introduction EN60079-0:2006 IEC60079-0:2004 (Ed4) General Requirements The BExBG05D is a flameproof beacon which is certified to EN60079-1:2007 IEC60079-1:2007 (Ed6) Flameproof Enclosure ‘d’ meet the requirements of the ATEX directive 94/9/EC and the IECEx scheme.
-
Page 5: Safety Warning
Note the four M6 screws are Class A4-80 stainless steel Area Classification Dust: and only screws of this category can be used on the beacons. It is therefore important that these screws and their spring washers are kept in a safe place during installation. Zone 21 Explosive dust air mixture likely to occur in normal operation. -
Page 6: Cable Selection
When only one cable entry is used the other one must be Cable Selection closed with an Ex ‘d’ flameproof blanking plug, which must be suitably approved for the installation requirements. When selecting the cable size consideration must be given to the input current that each unit draws (see table above), the For combustible dust applications, the cable entry device and number of beacons on the line and the length of the cable... - Page 7 Flip-Flop Operation Two beacons can be mounted close to each other to form a flip-flop operation, where the beacons will flash alternately. To achieve this mode of operation, fit a pin header to the flip- flop header pins on the electronics board, i.e. the two header pins are shorted together, (see figure 4) on one of the two beacons.
- Page 8 INSTRUCTION MANUAL (ATEX / IECEx) (GBR) BExBG05D Flameproof Xenon Beacons For use in Flammable Gas and Dust Atmospheres 2) Marking Zone 1 Explosive gas air mixture likely to occur in All units have a rating label, which carries the following normal operation.
- Page 9 8) Power Supply Selection For combustible dust applications, the cable entry device and blanking elements shall be in type of explosion protection increased safety “e” or flameproof enclosure “d” and shall The system power supply must have the necessary capacity have an IP 6X rating according to EN60529:1992.
- Page 10 Drawing A Drawing C N N L L Lossen screw to adjust Loosen screw to adjust. Løsn skruen for at tilpasse. Schroef losdraaien om af te stellen. Desserrer la vis pour régler. Zum Regulieren Schraube lockern. Allentare la vite per poter effettuare la 180º...
- Page 11 Wiring Diagram E BExBG05D AC Units BExBG05D DC Units _______________________________________________________________________________________________________________________________ European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH sales@e-2-s.com Tel: +44 (0)20 8743 8880 www.e-2-s.com Fax: +44 (0)20 8740 4200 Document No. BExBG05D (Gas-Dust) English Issue E (Four Sheets) 23-02-10 COMSEC PROTECTION SYSTEMS LTD.
- Page 12 INSTRUCTION MANUAL (ATEX / IECEx) BExBG05E Flameproof / Increased Safety Xenon Beacons For use in Flammable Gas and Dust Atmospheres 1) Introduction EN60079-0:2006 IEC60079-0:2004 (Ed4) General Requirements EN60079-1:2007 IEC60079-1:2007 (Ed6) The BExBG05E is a flameproof beacon which is certified to Flameproof Enclosure ‘d’...
- Page 13 Note the four M6 screws are Class A4-80 stainless steel Area Classification Dust: and only screws of this category can be used on the beacons. It is therefore important that these screws and their Zone 21 Explosive dust air mixture likely to occur in spring washers are kept in a safe place during installation.
- Page 14 necessary capacity to provide the input current to all of the requirements of the Ex equipment installation standards beacons connected to the system. EN60079-14:2008 / IEC60079-14:2007. The following table shows the input current taken by the When only one cable entry is used the other one must be various beacons:- closed with an Ex ‘e’...
- Page 15 Flip-Flop Operation Two beacons can be mounted close to each other to form a flip-flop operation, where the beacons will flash alternately. To achieve this one beacon must be set so that the first flash is delayed by ½ a second. To set this mode of operation the flameproof chamber must be accessed, (see section 7).
