E2S BexCS11005D24DC-RD Instruction Manual

1) Introduction

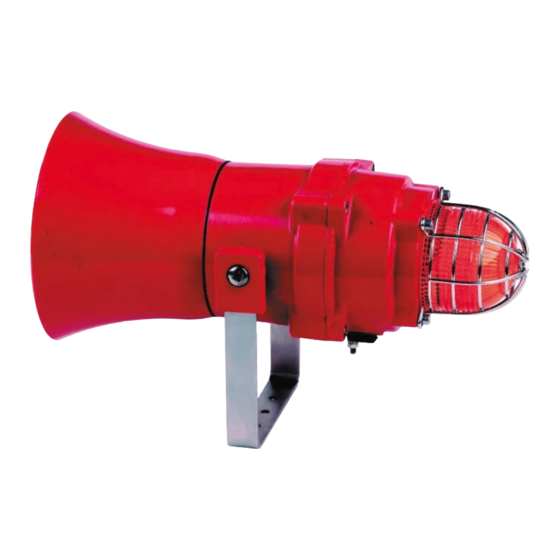

The BExCS110-05D is a flameproof combined sounder /
beacon which is certified to meet the requirements of the
ATEX directive 94/9/EC and the IECEx scheme. The sounder
section produces loud audio warning signals and the beacon
section produces a synchronised visual warning signal. The
unit can be used in hazardous areas where potentially
flammable atmospheres may be present. Thirty-two different
first stage audio alarm sounds can be selected by internal
switches, and each one can be externally changed to a
second or third stage alarm sound (see tone table on Page
5). The sounder produces output levels in the 110dB(A)
range and the beacon has a flash energy of 5 joules. The unit
can be used in Zone 1 and Zone 2 areas with gases in
groups IIA and IIB and with Temperature Classifications of
T1, T2, T3 and T4.
2) Marking
All units have a rating label, which carries the following
important information:-
BExCS110-05D
Unit Type No.
Input Voltage: DC Units 12V or 24V or 48V
AC Units
Ex d IIB T4 for T
Code:
KEMA 01ATEX2223X
Certificate No.
IECEx KEM 10.0025X
Epsilon x:
Equipment Group
And Category:
CE Marking:
Notified Body No.
"Warnings"
DO NOT OPEN WHEN AN EXPLOSIVE
GAS ATMOSPHERE IS PRESENT
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND
CABLEGLANDS (Rated 110ºC) AT
AMB. TEMPERATURES OVER 40ºC
Year of Construction /
Serial No. i.e. 10 / 1CS21000001
3)
Type Approval Standards
The units have an EC Type examination certificate issued by
KEMA and have been approved to the following standards:-
www.acornfiresecurity.com
INSTRUCTION MANUAL (ATEX / IECEx)
Flameproof Combined Sounder / Beacon
230V or 115V
° °
–50 C to +70 C
a
II 2G
www.acornfiresecurity.com
BExCS110-05D
EN60079-0:2006 IEC60079-0:2004 (Ed4)
EN60079-1:2007 IEC60079-1:2007 (Ed6)
4)
Installation Requirements
The unit must be installed in accordance with the latest
issues of the relevant parts of the EN60079 specifications or
the equivalent IEC specifications – Selection, Installation and
maintenance of electrical apparatus for use in potentially
explosive atmospheres (other than mining applications or
explosive processing and manufacture):-
EN60079-14:2008 Electrical Installations in Hazardous
IEC60079-14:2007 (Ed4) Areas (other than mines)
EN60079-10:2003 Classification of Hazardous Areas
IEC60079-10:2008 (Ed1)
The installation of the unit must also be in accordance with
any local codes that may apply and should only be carried
out by a competent electrical engineer who has the
necessary training.
5)
Zones, Gas Group, Category and Temperature
Classification
The BExCS110-05D unit has been certified Ex d IIB T4 for
Ta –50ºC to +70ºC. This means that the units can be
installed in locations with the following conditions:-
Area Classification:
Zone 1 Explosive gas air mixture likely to occur in
normal operation.
Zone 2 Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Gas Groupings:
Group IIA Propane
Group IIB Ethylene
Equipment Category: 2G
Temperature Classification:
T1 400
T2 300
T3 200
T4 135
General Requirements
Flameproof Enclosure 'd'
o
C
o
C
o
C
o
C
