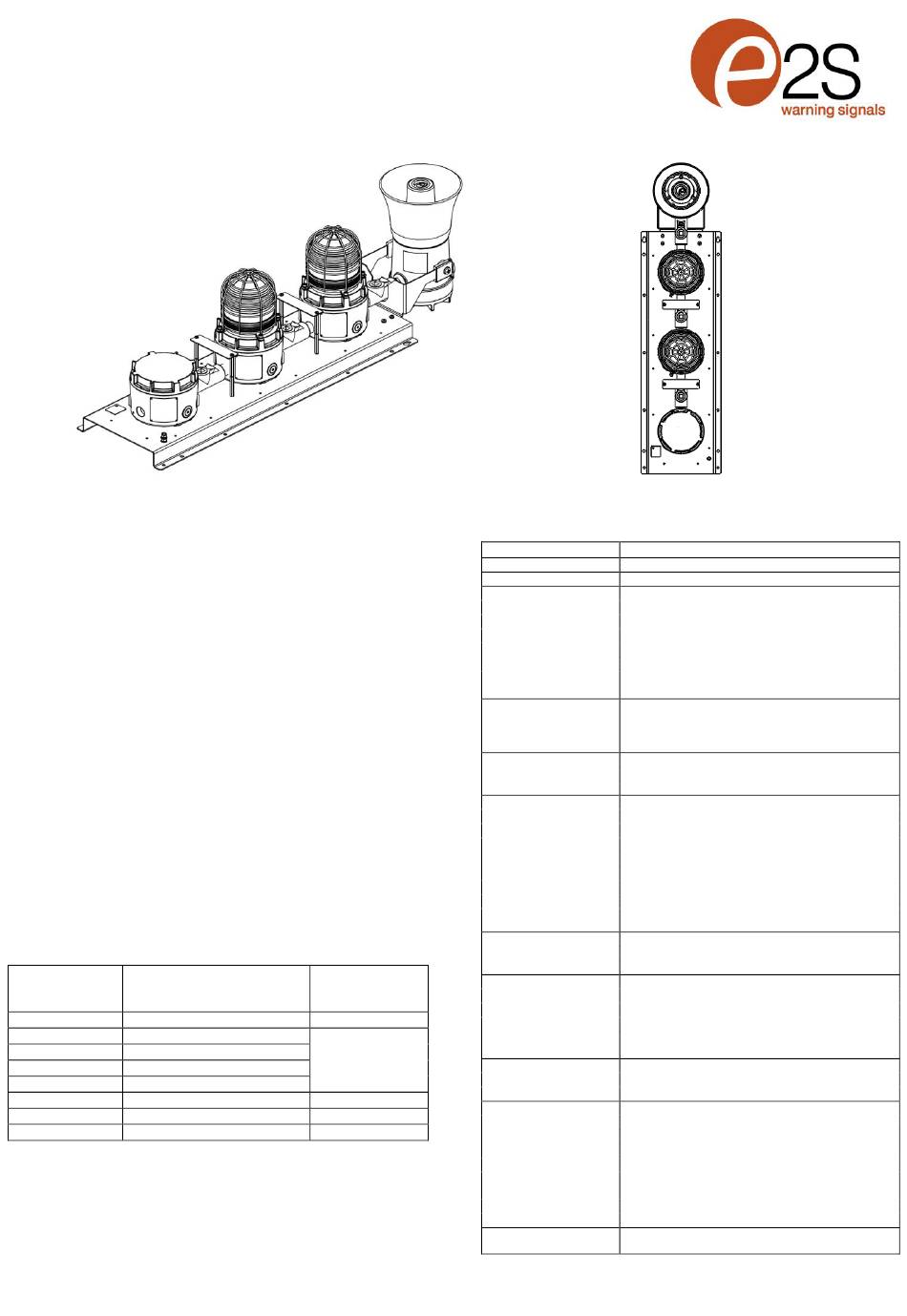

E2S D1xC3 Instruction Manual

INSTRUCTION MANUAL
D1xC3 Alarm Bar
2 Beacons & Alarm Horn with Junction Box
1) Warnings
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
2) Rating & Marking Information
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
All individual unit ratings must be suitable for the installation.
3) Type Approval Standards
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
4) Installation Requirements
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
5) Special Conditions of Use
Please see individual product instruction manual. See Table
1 for Instruction Manual Document Number.
Component Component Description
Part Code
Reference
D1XJ2 Junction Box
D1XB2X05 5J Xenon Strobe Beacon
D1XB2X10 10J Xenon Strobe Beacon
D1XB2X15 15J Xenon Strobe Beacon
D1XB2X21 21J Xenon Strobe Beacon
D1XB2LD2 LED Beacon
D1XS1 Alarm Horn Sounder
D1XS2 Alarm Horn Sounder
Table 1: Product Instruction Manual Reference
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D226-00-138-IS_Issue_5
6) Part Coding
Part Code:
Product Type
Junction Box
Beacon Type
(Add Code for each
Beacon in Alarm Bar)
Sounder Type
Voltage
Cable Entries [e]
Stopping Plug /
Adaptor Material [m]
Document
Guard / Tag Material
Number
[s]
D191-00-501-IS
D191-00-201-IS
Product Version [v]
D191-00-401-IS
Product Option [o]
D190-00-001-IS
D190-00-101-IS
Assembly Colour [x]
14/08/2023 Sheet 1 of 5
Beacon 2
Beacon 1
Identifier - Description
D1xC3
J2 = Junction Box
1Y = D1xB2X05
2Y = D1xB2X10
3Y = D1xB2X15
4Y = D1xB2X21
5Y = D1xB2LD2
Where Y = Lens Colour, choose from:
A = Amber, B = Blue, C = Clear, G = Green,
M = Magenta, R = Red, Y = Yellow
S1F = D1xS1 Flare Sounder
S1R = D1xS1 Radial Sounder
S2F = D1xS2 Flare Sounder
S2H = D1xS2 Large Flare Sounder
DC024 = 24Vdc
AC115 = 115-120Vac 50/60Hz
AC230 = 220-230Vac 50/60Hz
A = 1 x M20x1.5mm + 1 x M20 (Adaptor)
B = 2 x 1/2" NPT (Adaptors)
C = 1 x 3/4" NPT + 1 x 3/4" NPT (Adaptor)
D = 2 x M25x1.5mm (Adaptors)
E = 1 x 1/2" NPT (Adaptor) + 1 x M20x1.5mm
F = 1 x 1/2" NPT (Adaptor) + 1 x 3/4" NPT
G = 1 x M25x1.5mm (Adaptor) + 1 x M20
M = 1 x 3/4" NPT + 1 x M20x1.5mm - Default
All Junction Boxes have additional 2 x 3/4" NPT Side
Entries
B = Brass
N = Nickel Plated
S = Stainless Steel
1 = 316 St.Steel Guard & 316 Tag
2 = As (1) with Traffic Light Cowl
3 = 316 St.Steel Guard, 316 Tag & Duty Labels
4 = As (5) with Traffic Light Cowl
5 = 316 St.Steel Guard, 316 Tag & Duty Labels
attached by steel wire
A = IECEx/ATEX/UL/cUL Class I Zone 1
B = IECEx/ATEX
C = UL/cUL Class Div 1
1 = Standard Wiring (Positive Switching)
2 = Independent Wiring (Positive Switching)
3 = Alt. Standard Wiring (Negative Switching)
4 = Independent Wiring (Negative Switching)
5 = Beacons & Sounder Linked w/ Line Monitoring
6 = Independent Wiring w/ Line Monitoring
7 = Beacons & Sounder Linked
W = Special Wiring
X = Special Configuration
R = Red, G = Grey
Other colours also possible, contact E2S sales
www.e2s.com Tel: +44 (0)208 743 8880
