E2S BExBGL1D Instruction Manual

1) Introduction

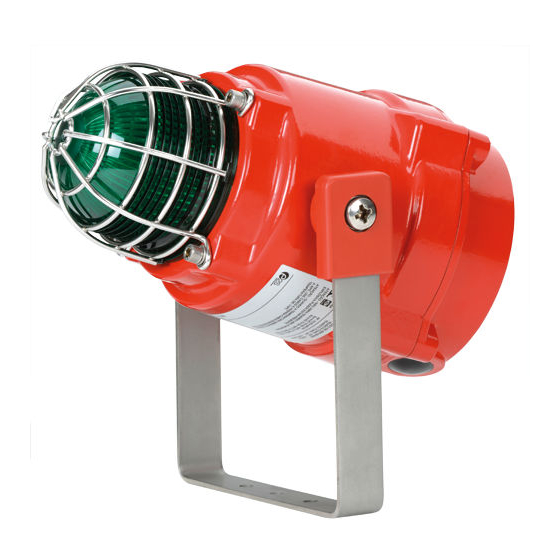

The BExBGL1D is a flameproof LED beacon which is
certified to meet the ATEX directive 94/9/EC and the IECEx
scheme. The beacon produces visual warning signals and
can be used in hazardous areas where potentially flammable
gas and dust atmospheres may be present. The BExBGL1D
LED beacon has nine different flash patterns including a
steady ON state and can also be remotely switched to a
second and third flash pattern. The beacon can be used in
Zone 1 and Zone 2 areas with gases in groups IIA, IIB and
IIC and Temperature Classifications of T1, T2, T3, and T4. It
can also be used in a temperature classification T5, if the
upper ambient temperature is restricted to +40ºC. The unit
can be used in Zone 21 and Zone 22 areas for combustible
dusts and has an IP rating of IP 67 and a surface
temperature rating of T120ºC or T105ºC if the upper ambient
temperature is restricted to +55ºC and T95ºC if the upper
ambient temperature is restricted to +40ºC.
2) Marking
All units have a rating label, which carries the following
important information:-
BExBGL1D
Unit Type No.
Input Voltage: DC Units
AC Units
Codes: Ex d IIC T4 for Ta –50ºC to +70ºC
Ex d IIC T5 for Ta –50ºC to +40ºC
Ex tD A21 T120ºC based on max. Ta of +70ºC
Certificate No's
Epsilon x
Equipment Group and
Category:
CE Marking
Notified Body No.
Warnings:
DO NOT OPEN WHEN AN EXPLOSIVE
GAS OR DUST ATMOSPHERE IS PRESENT
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND CABLE GLANDS
(Rated 110ºC) AT AMB. TEMPERATURES OVER 40ºC
Year of Construction /
Serial No.
3) Type Approval Standards
The beacon has EC Type Examination and IECEx certificates
issued by KEMA and have been approved to the following
standards:-
_______________________________________________________________________________________________________________________________
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. IS 2468-P
INSTRUCTION MANUAL (ATEX / IECEx)
BExBGL1D Flameproof LED Beacon
For use in Flammable Gas and Dust Atmospheres
10-50V
10-35V or 230V or 115V
KEMA 00ATEX2006
IECEx KEM 10.0002
II 2G/D
0518
i.e. 10 / 1DB73000001
Issue D 18-03-10
EN60079-0:2006 IEC60079-0:2004 (Ed4)
EN60079-1:2007 IEC60079-1:2007 (Ed6)
EN61241-0:2006 IEC61241-0:2004 (Ed1)
EN61241-1:2004 IEC60079-1:2004 (Ed1)
4) Installation Requirements
The led beacons must be installed in accordance with the
latest issues of the relevant parts of the BS EN 60079
specifications or the equivalent IEC specifications –
Selection, Installation
apparatus for use in potentially explosive atmospheres (other
than mining applications or explosive processing and
manufacture):-
EN60079-14:2008
IEC60079-14:2007 (Ed4)
EN60079-10:2003
IEC60079-10:2008 (Ed1)
The installation of the units must also be in accordance with
any local codes that may apply and should only be carried
out by a competent electrical engineer who has the
necessary training.
5) Zones, Gas Group, Category, IP Rating and
Temperature Classification
The BExBGL1D beacons have been certified Ex d IIC T4 for
Ta –50ºC to +70ºC and Ex d IIC T5 for Ta –50ºC to +40ºC for
gas and IP67 T120ºC Ta < +70ºC, T105ºC Ta < +55ºC and
T95ºC Ta < +40ºC for dust. This means that the units can be
installed in locations with the following conditions:-
Area Classification Gas:
Zone 1 Explosive gas air mixture likely to occur in
normal operation.
Zone 2 Explosive gas air mixture not likely to occur,
and if it does, it will only exist for a short time.
Gas Groupings:
Group IIA
Group IIB
Group IIC
Temperature Classification:
T1
T2
T3
T4
T5
sales@e-2-s.com
www.e-2-s.com
Sheet 1 of 4
General Requirements
Flameproof Enclosure 'd'
Dust General
Requirements
Dust Enclosures tD
and maintenance of
Electrical Installations in Hazardous
Areas (other than mines)
Classification of Hazardous Areas
Propane
Ethylene
Hydrogen and Acetylene
o
400 C
o
300 C
o
200 C
o
135 C
o
100 C Amb. +40ºC
