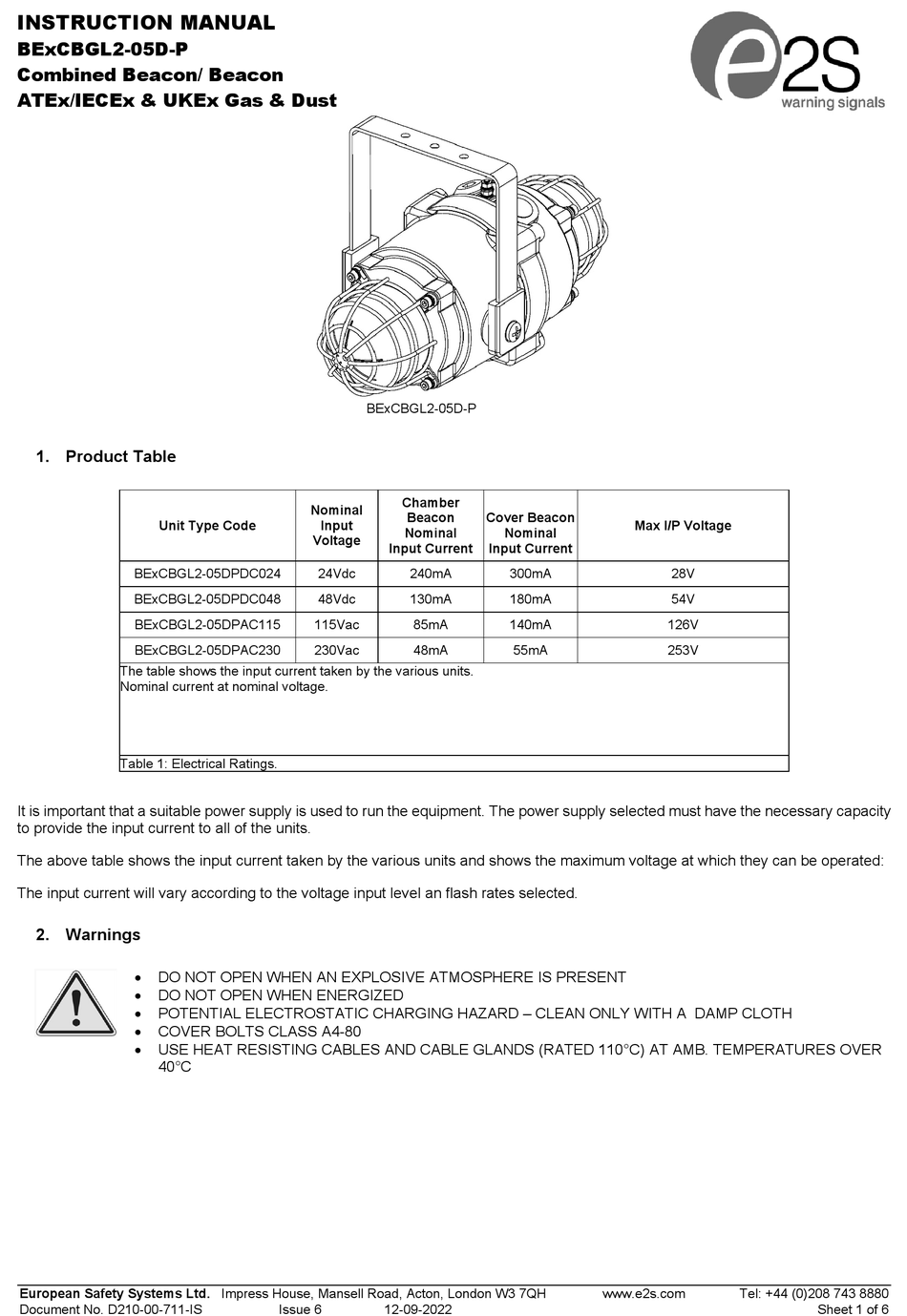

INSTRUCTION MANUAL
BExCBGL2-05D-P

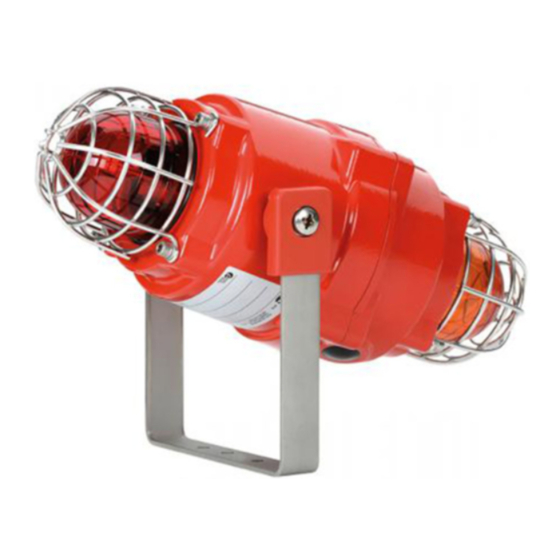

Combined Beacon/ Beacon
ATEx/IECEx & UKEx Gas & Dust
1. Product Table
Unit Type Code
BExCBGL2-05DPDC024
BExCBGL2-05DPDC048
BExCBGL2-05DPAC115
BExCBGL2-05DPAC230
The table shows the input current taken by the various units.
Nominal current at nominal voltage.
Table 1: Electrical Ratings.
It is important that a suitable power supply is used to run the equipment. The power supply selected must have the necessary capacity
to provide the input current to all of the units.
The above table shows the input current taken by the various units and shows the maximum voltage at which they can be operated:
The input current will vary according to the voltage input level an flash rates selected.
2. Warnings
DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE IS PRESENT
DO NOT OPEN WHEN ENERGIZED
POTENTIAL ELECTROSTATIC CHARGING HAZARD – CLEAN ONLY WITH A DAMP CLOTH
COVER BOLTS CLASS A4-80
USE HEAT RESISTING CABLES AND CABLE GLANDS (RATED 110°C) AT AMB. TEMPERATURES OVER
40°C
European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH
Document No. D210-00-711-IS
BExCBGL2-05D-P
Chamber
Nominal
Beacon
Input
Nominal
Voltage
Input Current
24Vdc
240mA
48Vdc
130mA
115Vac
85mA
230Vac
48mA
Issue 6
12-09-2022
Cover Beacon
Max I/P Voltage
Nominal
Input Current
300mA
180mA
140mA
55mA
www.e2s.com
28V
54V
126V
253V
Tel: +44 (0)208 743 8880
Sheet 1 of 6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for E2S BExCBGL2-05D-P
Summary of Contents for E2S BExCBGL2-05D-P
- Page 1 INSTRUCTION MANUAL BExCBGL2-05D-P Combined Beacon/ Beacon ATEx/IECEx & UKEx Gas & Dust BExCBGL2-05D-P 1. Product Table Chamber Nominal Beacon Cover Beacon Unit Type Code Input Max I/P Voltage Nominal Nominal Voltage Input Current Input Current BExCBGL2-05DPDC024 24Vdc 240mA 300mA BExCBGL2-05DPDC048...
- Page 2 4. Zones, Gas Group, Category and 3. Marking & Rating Information Temperature Classification The BExCBGL2-05D-P Alarm Horns comply with the following The units can be installed in locations with the following conditions: standards for hazardous locations: 3.1 ATEX / IECEx & UKEx Ratings...
-
Page 3: Special Conditions For Safe Use
Never use the cover bolts to force the cover into position. European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-711-IS Issue 6... - Page 4 Internal earthing connections should be made to the Internal Earth terminal in the base of the housing using a ring crimp European Safety Systems Ltd. Impress House, Mansell Road, Acton, London W3 7QH www.e2s.com Tel: +44 (0)208 743 8880 Document No. D210-00-711-IS...
-
Page 5: Line Monitoring
Fig. 5b Cover DC Terminals 12.2 Line Monitoring On BExCBGL2-05D-P DC units, dc reverse line monitoring can be used if required. All DC beacons have a blocking diode Fig. 4a Chamber Beacon AC Terminals fitted in their supply input lines. An end of line monitoring diode... - Page 6 M5x16 Hex Socket Screw equipment. M5 Spring Washer The beacon covers are interchangeable, contact E2S Ltd for a M5 Plain Washer replacement cover available in various colours. Guard To change the cover, unscrew the M5 socket head screws and remove the M5 screws, M5 spring &...
-
Page 9: Eu Declaration Of Conformity
EN 60529:1991 + A1:2000 + A2:2013. - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-006_Issue_K (BExCBG)- Page 1 of 2 QAF_252_Issue_5... - Page 10 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-006_Issue_K Quality Assurance Manager Date and Place of Issue: London, 23/12/2020 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-006_Issue_K (BExCBG)- Page 2 of 2 QAF_252_Issue_5...
- Page 11 EN 60529:1991 / A1:2000 / A2:2013 - Degrees of protection provided by enclosures (IP code) – enclosure rated IP66/67 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-107_Issue_A (BExCBG)- Page 1 of 2 - QAF_252_Issue_5...
- Page 12 This Declaration is issued under the sole responsibility of the manufacturer. Martin Streetz Document No.: DC-107_Issue_A Quality Assurance Manager Date and Place of Issue: London, 12/09/2022 E2S Telephone: +44 (0)20 8743 8880 Fax: +44 (0)20 8740 4200 Email: sales@e2s.com www.e2s.com DC-107_Issue_A (BExCBG) - Page 2 of 2 - QAF_252_Issue_5...
