Summary of Contents for Anzzi SD-AZ055-01 Series

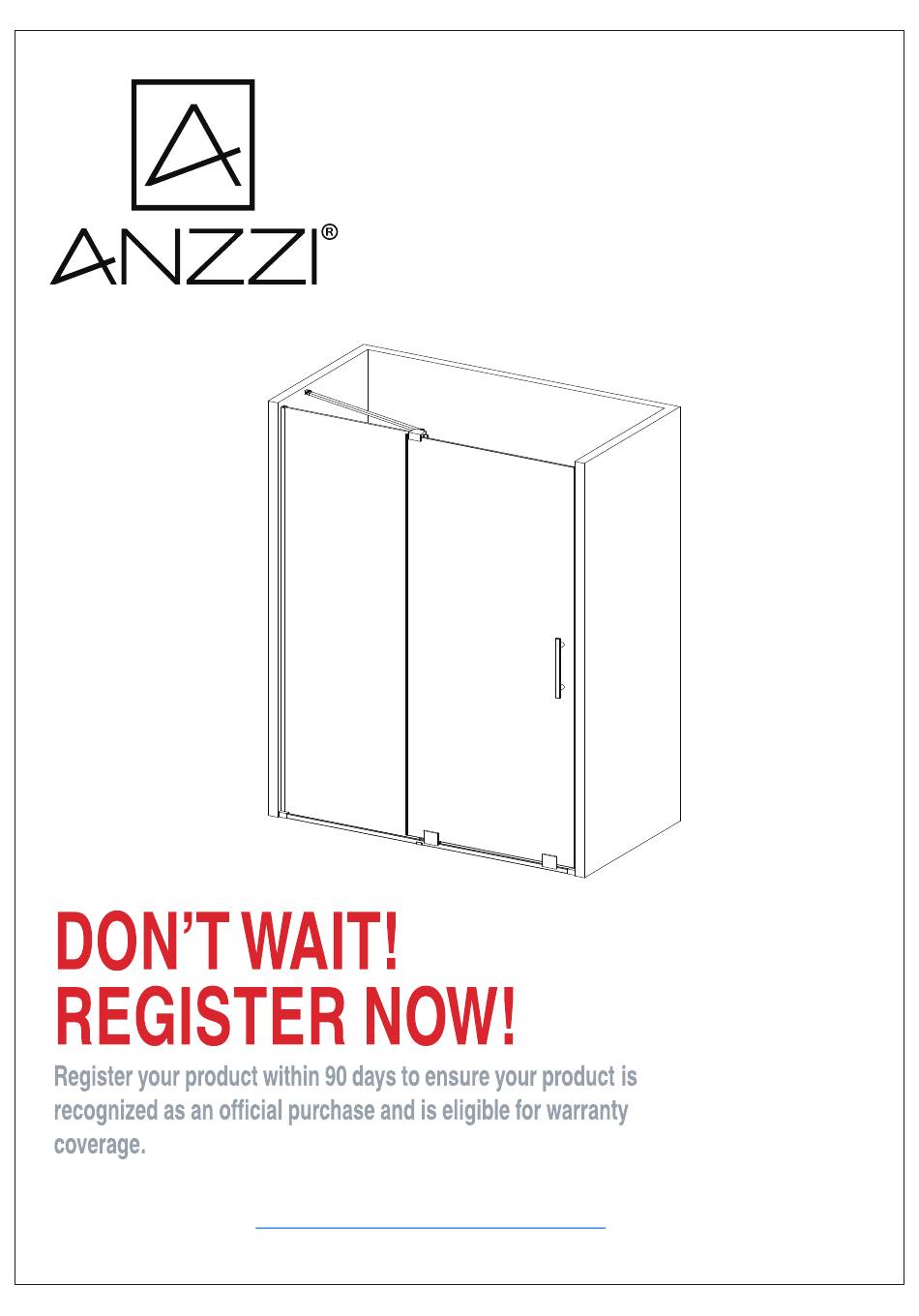

- Page 1 ITEM : SD-AZ055-01** ANZZI GLASS SHOWER DOOR INSTALLATION & OPERATION MANUAL V2.2 08/24/2024 Register online at https://anzzi.com/pages/register or scan the QR code at PG. 2. V2.2-This version supersedes all previous versions as of 08/24/2024...
- Page 4 Please check the product for damage and missing parts immediately upon delivery. Damage reported later will not be covered by our warranty. Please handle the product with care. Avoid any impact to the sides and edges of the glass. Consult your local building codes before installation. To reduce the risk of breakage, keep corner protectors on glass while installing.
-
Page 5: Tools Required
Surface of the threshold must be level for proper installation. This model requires a minimum 1.8" (46 mm) flat level threshold space for installation. Tools Required 5/16 (9.5mm) This product is heavy and requires two people to install. Use cut-resistant, non-slip gloves to reduce the risk of personal injury and... - Page 6 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. [01]X1 [02]X2 [03A]X1 [03B]X1 [04]X1 [05A]X1 [05B]X2 [06]X1 [07]X1 [08]X1 [09]X1 [10]X2 [11]X7 [12]X7 [13]X1 [14]X7 [15]X1 [16]X1 [17]X1 [18]X1 [19]x5 [20]x1 [21]x1...
-
Page 7: Part Description
Notice: If there is only one piece of Bottom Water Sealing Strip, please cut it according to the width of each section of the Door [07]. Part Description Qty. Part Description Qty. [01] Wall Profile [10] Anchor Assembly [02] Roller [11] Screw #10 X 1.6"... - Page 8 SD-AZ055-01** 60" x 76" 1524mm [60"] 738mm [29"] 856mm [33.7"] 84mm [3.3"] 60mm [2.4"] 123mm [4.8"] 123mm [4.8"]...
- Page 9 To avoid personal injury or property damage, identify components and read all instructions before installing. This model requires a minimum 1.8" (46mm) of flat level threshold space for installation. This manual shows right side installation. For left side installation, switch the sides of Bottom Rail [08] in Step 1, install the Wall Profile [01] to the right side in Step 2, switch the sides of Fixed Panel [15] and install in Step 3, install Support Bar [09] to the counter side in Step 4, switch the Door [07] in Step 5, then install the shower door by following the rest steps.
- Page 10 Step 1 Remove screw, clip and one gasket from the Guide Block [06]. Keep one gasket and sleeve on the anchor. (Fig 1.7) Position the Guide Block [06] and Bottom Rail [08] on the threshold. The clip side of Guide Block [06] faces inside.
- Page 11 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 2 1. Position Wall Profile [01] on the left side wall closed to the Anchor Assembly [10]. (Fig 2.1) Notice: Make sure the distance between surface #1 and surface #2 is 1"(26mm). 2.
- Page 12 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 3 1. Remove the Corner Protectors except the one at the top right corner of Fixed Panel [15]. 2. Install Glass Protection Seal [17] to the side away from the gap of Fixed Panel [15]. (Fig 3.1) 3.
- Page 13 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 4 1. Remove the Corner Protectors of Fixed Panel [15] and install Support Bar [09] to the top of Fixed Panel [15]. (Fig 4.1) 2.
- Page 14 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 5 1. Remove covers, screws, clips and gaskets from the Rollers [02]. (Fig 5.1) 2. Install the Rollers [02] from the front of the Door [07]. (Fig 5.2, Fig 5.3) Notice: When facing the front of Door [07] during right side installation, the holes for hanlde should be at the right.
- Page 15 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 6 1. Remove the Corner Protector at the top right of the Door [07]. Slightly place the Door [07] assembly onto the Bottom Rail [08] as figure shows. (Fig 6.1) 2.
- Page 16 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 7 1. Disassemble the Handle [16] and install to the Door [07]. Install handle and washers from the front of Door [07]. Install sleeves, washers, lever and fixed block from the back of Door [07]. (Fig 7) washer lever handle...
- Page 17 To prevent damage to glass and potential injury, make sure to follow the instructions on page 1. Step 9 1. If there is gap between the Door [07] and the wall, loose the center screw of one Roller [02]. Use appropriate allen key #1 to hold the nut, then use allen key #2 to loose the screw by turning it anticlockwise as figure shows.
