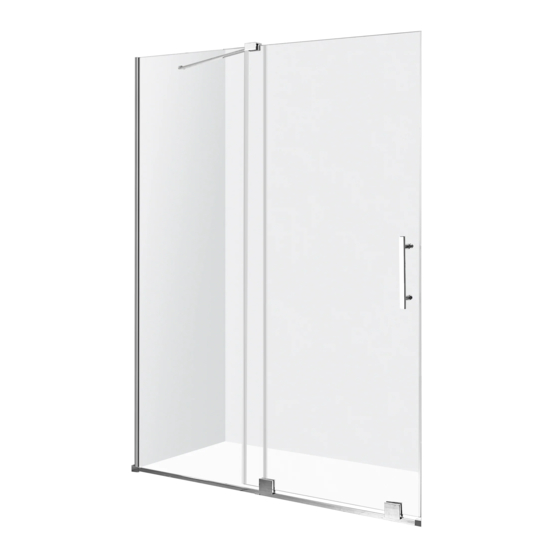

- Page 4 Left-hand door installation shown Right-hand door installation shown...
- Page 5 1.Wall Profile X1 2.Lower Pulley X2 3.Arch strip X2 4.Sweep Seal X1 5.Hinge-Side Vinyl Seal X1 6.Lower rail fixings X1 7.Sliding glass panel X1 8.Lower rail X1 9.Pull rod X1 10.Lower rail wall joint X2 11.Truss Head Screw St5x40 X7 12.Wall Anchor X7 Wall Anchor (green) X1...
- Page 7 1.1.Simple assembly of the bottom rail, Place it at the installation location and make sure the wall connecter (10) is 10mm away from the outside of edge,Mark on the positions as the picture shown .(A1) The lower fixing part (6) is 720mm away from the side wall. Mark on the postions as the picture shown (B1) 1.2.
- Page 8 2.1: Place the wall profile (1) on the wall as shown in the picture, make sure the distance from the profile outside to the inside of the wall connector (10)( is 26 mm. Use a horizontal ruler to make it vertical to the ground and mark the holes. Drill the hole with φ 1 / 4”...
- Page 9 put the the notch of the glass (15) into lower fixing part (6) , lock down the cover with screw cover (14) as shown in the picture . 5. Install the pull rod ( 9) on the fixed glass and leave it 12mm away from the glass panel edge.
- Page 10 Install the bottom lower pulley ( 2) into the sliding glass panel ( 7) as shown 7. Install the sliding glass panel with bottom pulley on the bottom lower rail (8), and mount the the fixed glass panel (15) and the sliding glass (7) into the pull rod at the same time.
- Page 11 Install the handle (16) as shown in the picture inside inside Install the (3)(4)(5) seal strips as shown in the picture...
- Page 12 10. If the sliding glass cannot be vertical to bottom, you can adjust the bottom pulley as shown in the picture, then put the decorative cover on the pulley as shown in the picture. Door Door Door After the installation, adhesive sealant on the outside of the product as shown, and it can only be used after 24 hours adhesive .
