Summary of Contents for Aaeon UP 400 EDGE
Page 1

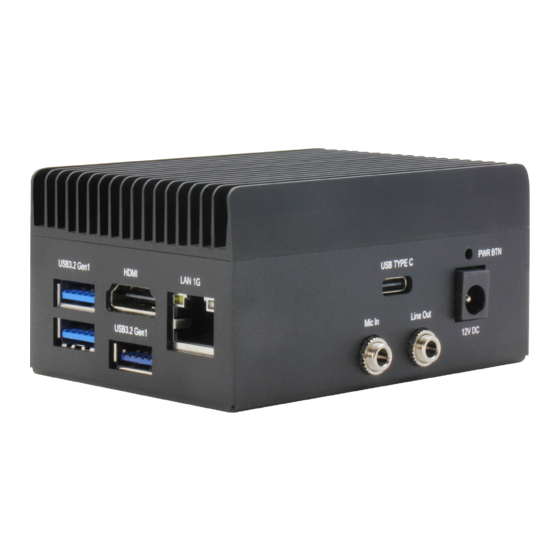

UP 4000 EDGE Edge System UP-EDGE-APL03 User’s Manual 1st Ed Last Updated: September 26, 2022...
Page 2
AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
Page 3
Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft®, Windows® are registered trademarks of Microsoft Corp. ⚫ Intel®, Pentium®, and Celeron® are registered trademarks of Intel Corporation ⚫ Intel Atom™ is a trademark of Intel Corporation ⚫...
Page 4
Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity UP-EDGE-APL03 (UP 4000 EDGE) with heatsink ⚫ If any of these items are missing or damaged, please contact your distributor or sales representative immediately.
Page 5
(if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the product page at AAEON.com for the latest version of this document. Preface...
Page 6
Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
Page 7
If any of the following situations arises, please the contact our service personnel: Damaged power cord or plug Liquid intrusion to the device iii. Exposure to moisture Device is not working as expected or in a manner as described in this manual The device is dropped or damaged Any obvious signs of damage displayed on the device...
Page 8
FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation.
Page 10
China RoHS Requirement (EN) Hazardous and Toxic Materials List AAEON System QO4-381 Rev.A0 Hazardous or Toxic Materials or Elements Component Name PCB and Components Wires & Connectors for Ext.Connections Chassis CPU & RAM HDD Drive LCD Module Optical Drive Touch Control...
Specifications System Intel® Pentium® N4200/ Celeron® N3350/ Atom E3950™ Memory Onboard LPDDR4 Memory up to 8GB Graphics Intel® Gen 9 HD, supporting 4K Codec Decode and Encode for HEVC4, H.264, VP8 Storage Onboard eMMC Storage, up to 64GB Ethernet Gb Ethernet (full speed) RJ-45 x 1 WIFI/BT —...
Page 14
Power Supply Power Requirement 12V DC-in @ 5A Power Supply Type DC Jack, 5.5-2.1mm/Phoenix Colay Power Consumption (Typical) 12V @ 1.25A (15W) Mechanical Mounting VESA Mounting Dimensions (W x H x D) 3.62" x 2.52" x 1.78" (92mm x 64mm x 45.2mm) Net Weight 0.64 lbs.
List of Connectors Please refer to the table below for all of the board’s connectors that you can configure for your application Label Function Dual USB 3.0 USB3.0 + HDMI RJ45 RTC Conn CN10 Type-C 3.0 CN11 DC Jack Power Button Chapter 2 –...
2.3.3 RJ45 (CN6) Signal Signal LAN1_MDI0+(TXD+) LAN1_MDI0-(TXD-) LAN1_MDI1+(RXD+) LAN1_MDI1-(RXD-) CT_GND CT_GND LAN1_MDI2+ LAN1_MDI2- LAN1_MDI3+ LAN1_MDI3- LAN Link LED 1000# LAN Link LED 100# LAN Active LED_N LAN Active LED_P Chassis_GND Chassis_GND Chapter 2 – Hardware Information...
2.3.4 RTC Connector (CN9) Signal Signal 3.3V for RTC 2.3.5 USB Type-C 3.0 (with Alt Mode) (CN10) Signal Signal USB3.0_ Type-C_TxP_P1 USB3.0_ Type-C_TxN_P1 5V@3A for USB Type-C USB Type-C CC pin1 USB2.0_ Type-C_DP_P1 USB2.0_ Type-C_DN_P1 USB Type-C SBU1 5V@3A for USB Type-C USB3.0_ Type-C_RxP_P2 USB3.0_ Type-C_RxN_P2 USB3.0_ Type-C_TxP_P2...
Signal Signal USB3.0_ Type-C_TxN_P2 5V@3A for USB Type-C USB Type-C CC pin2 USB2.0_ Type-C_DP_P1 USB2.0_ Type-C_DN_P1 USB Type-C SBU2 5V@3A for USB Type-C USB3.0_ Type-C_RxP_P1 USB3.0_ Type-C_RxN_P1 2.3.6 DC Jack (5.5-2.1mm) (CN11) Signal Signal 12V@7A Input Chapter 2 – Hardware Information...
Hardware Installation 2.4.1 VESA Mount Installation For this process you will need a Phillips head screwdriver. Step 1: Remove screws on the bottom plate. Chapter 2 – Hardware Information...
Page 27
Step 2: Pick up VESA Bracket. Step 3: Please make sure to counterbore up and align VESA Bracket with the edge of the UP 4000 System in the correct position. Chapter 2 – Hardware Information...
Page 28
Front View Back View Step 4: Use 4 screws (refer to step 1) to lock VESA Bracket. Chapter 2 – Hardware Information...
Driver Download and Installation Please access https://www.up-community.org and go to the Downloads section > UP 4000 EDGE to find the relevant drivers. Unknown Device Troubleshooting After installing the drivers on Windows 10, you may see five unknown devices in the device manager.
Page 31
PCI Device (8086&DEV_5AC8), Unknown Device (AANT0F01), and VEN_AANT&DEV_1280 Go into the device BIOS Settings. Navigate to the Boot menu. Change OS Selection to “Windows. ” Chapter 3 – Drivers Installation...
Page 32
PCI Device: The unknown PCI device is the PWM signal. It is provided directly from the Apollo Lake chipset, but Intel has not released a Windows driver for this device. This PCI device is not available for Windows 10, it is only supported by Linux. VEN_AANT&DEV_1280: This is the ADC for Linux, there is no Windows driver.
Introduction This section provides instructions for the installation of the UP Framework SDK. Instructions are provided for Windows 10 and Windows IoT Core. You can download the latest version of UP Framework SDK from the UP community: https://downloads.up-community.org/download/up-sdk-for-windows-10-and-windows-iot/ A.2 Installation for Windows 10 Step 1 Locate the downloaded file UpFrameworkSetup.msi and run the installer.
Page 35
Step 2 Select the installation folder. Default destination path is C:\Program Files(x86)\AAEON\ You may also choose to install the UP Framework SDK for all users or only the current user. Press “Next” to continue installation. Step 3 Press “Next” to confirm the installation.
Page 36
Step 4 Press “Close” to exit once setup is complete. Appendix A – UP Framework SDK Installation...
A.3 Installation for Windows IoT Core Before you begin, make sure you have downloaded and installed the latest version of the Windows IoT Core image from the UP community. Installation requires using a connected PC with the UP Framework SDK software downloaded and saved.
Page 38
Step 2 Download the UP Framework SDK to your PC and unzip the files. Open PowerShell as an Administrator. Run the command RemoteInstallation.ps1 to install the UP Framework SDK. Enter the IP address of the UP IoT Core device when prompted. Appendix A –...
